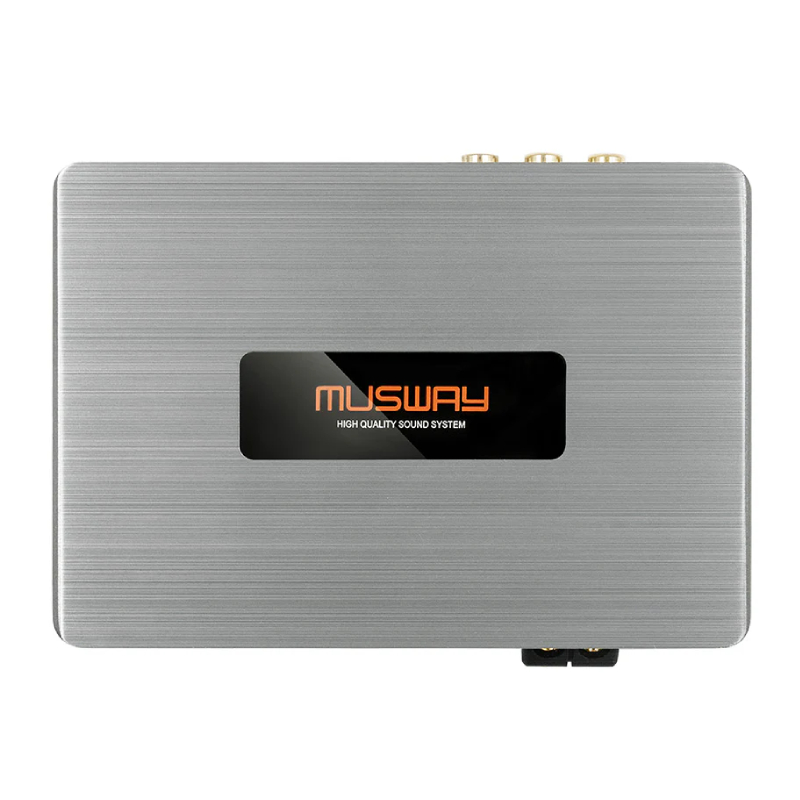

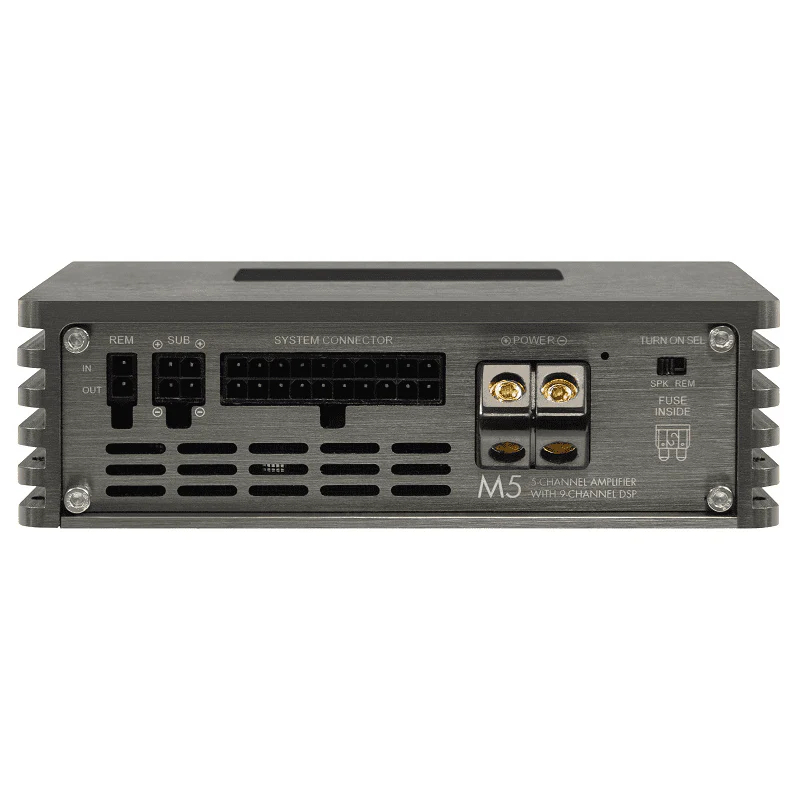

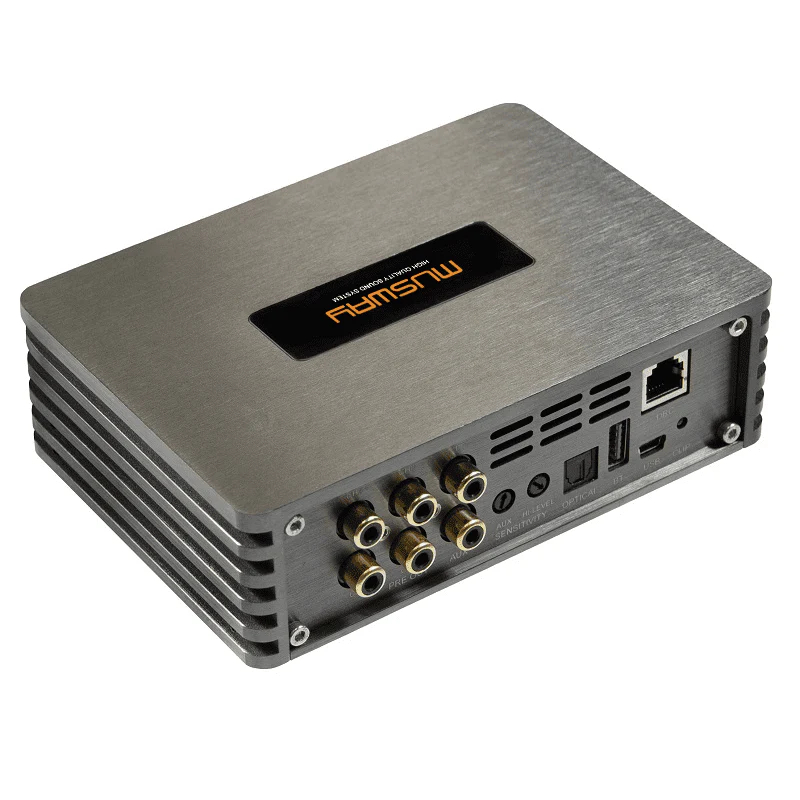

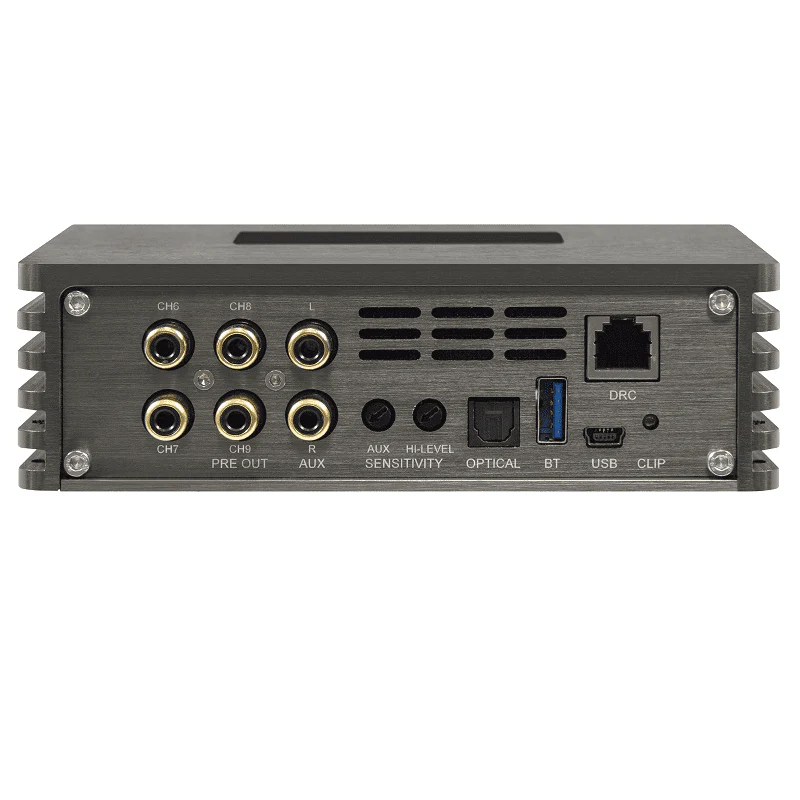

Musway M5 5-Channel 50W RMS x 4 at 3 Ohm + 5th Sub Channel 300W RMS x 1 at 2 Ohm, Class-D Full Range Car Amplifier with Built-In 9-Channel Digital Sound Processor Output - German Engineered
We are a Musway authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 5-Channel Class-D Full Range Car Amplifier with Built-In DSP
- • Wiring Harness
- • QC Passed Sticker
- • Owner's Manual
Effortless Integration and Stylish Performance
Experience seamless integration with Start-Stop compatible technology, enjoy peace of mind with smart EPS protection, turn heads with a sleek brushed aluminum design, and simplify installation with effortless auto turn-on via DC offset or signal sensing—no remote wire needed!
Engineered for Clean and Powerful Performance
Enjoy a compact and clean setup thanks to advanced 4-fold laminated circuit boards that reduce EMI interference, backed by European EMI certification for crystal-clear performance—plus, fine-tune your sound with confidence using the built-in clipping indicator that ensures distortion-free audio every time!
Ultimate Control and Connectivity
Take full control of your audio experience with real-time tuning via the intuitive MUSWAY PC DSP Software or mobile app, unlock Hi-Res wireless streaming and DSP control with optional Bluetooth dongles, and command your system with ease using the optional DRC1 digital remote with OLED display—your sound, your way!
- Number of Channels : 5
- Amplifier Class : D
- Fuse Rating : 1x40 A
- Built In DSP : Yes
Features:
- Start-Stop Compatible: Engineered to work flawlessly with vehicles equipped with start-stop technology
- Smart Protection: Features EPS – an intelligent high-level input error protection system
- Premium Design: Brushed aluminum heat sink and end panels for a sleek, durable finish
- Effortless Power-On: Auto turn-on via DC offset or signal sensing – no need for a remote wire
- Compact & Clean: 4-fold laminated circuit boards for a compact design and reduced EMI interference
- EMI Certified: Meets tough European EMI standards for noise-free performance
- Clipping Indicator: Output clipping LED helps you dial in the perfect sound without distortion
- Real-Time Tuning: Tune and configure in real time using easy MUSWAY PC software or the mobile app
- Bluetooth Ready: Add optional USB Bluetooth dongles for Hi-Res audio streaming and DSP control via smartphone
- Take Control: Optional DRC1 digital remote with OLED display puts system control at your fingertips
Musway DSP Software for Windows:
Specifications:
POWER SUPPLY
- Voltage: 7.5 – 17 VDC
- Idle Current: 1 A
- Switched Off: <0.1 mA
- Remote IN: 5 – 15 VDC (1 mA)
- Remote OUT: 8 – 15 VDC (300 mA)
- Fuse: 40 A
AMPLIFIER STAGE
- Distortion (THD, 1 kHz @ 4 Ω, 5 W): <0.015 %
- Bandwidth (-3 dB, 2 V RMS, 4 Ω): 10 Hz – 20 kHz
- S/N Ratio (@ A-weighted, 1 V, Max Power): >95 dB
- Damping Factor (@ 1 kHz, 2 V RMS, 4 Ω): >80
- Input Sensitivity: 6 – 18 V RMS (High-level), 2 – 6 V RMS (AUX Low-level)
- Input Impedance: 13 Ω (High-level), 47 kΩ (AUX Low-level)
Output Power @ 13.8 VDC, 1% THD
- CH1–CH4: 4 × 45 W RMS @ 4 Ω
- CH5 (Sub): 1 × 180 W RMS @ 4 Ω
- CH1–CH4: 4 × 50 W RMS @ 3 Ω
- CH5 (Sub): 1 × 300 W RMS @ 2 Ω
SIGNAL OUTPUTS
- RCA OUT CH6 / CH7 / CH8 / CH9: 5 V RMS Max.
- UPC:
- Weight: 0
- Authorized Internet Dealer
Warranty: 3 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 3 Year(s) from the original date of purchase with proper return authorization.
