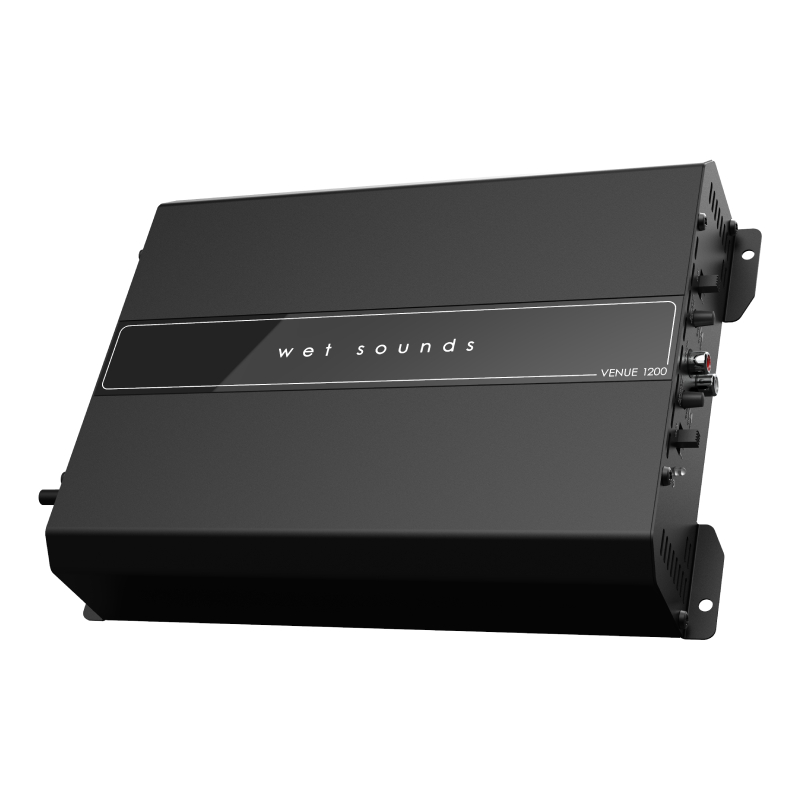

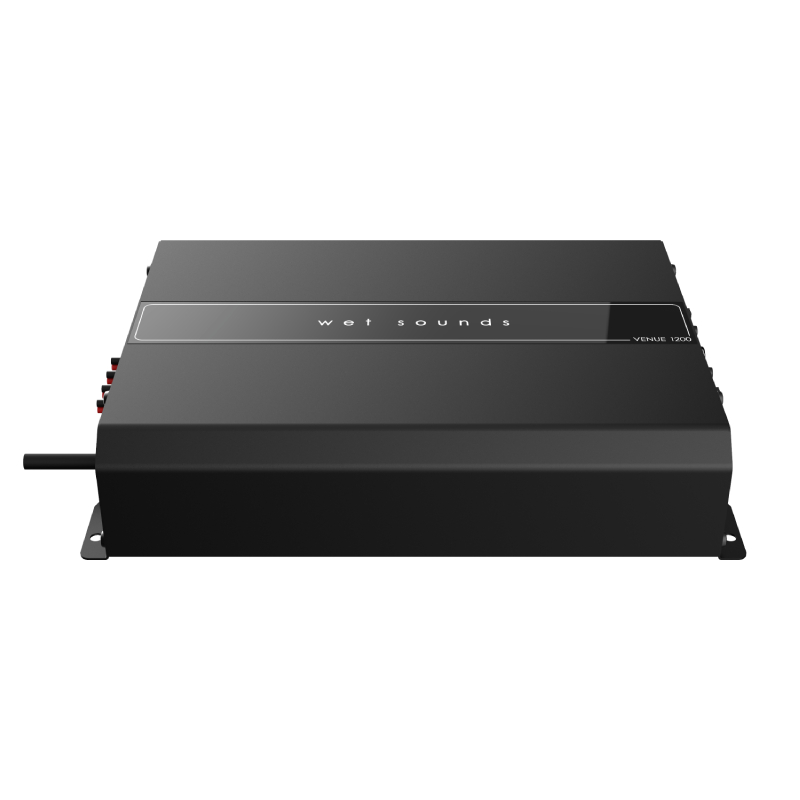

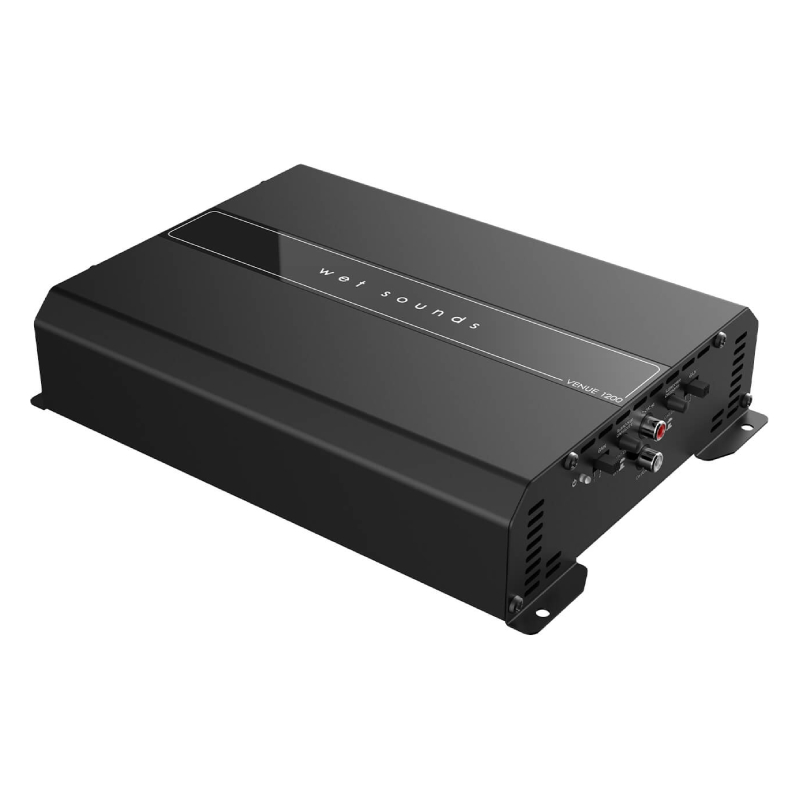

Wet Sounds VS-1200-AMP Venue Series 4-Channel 300W RMS x 4 at 2 Ohms, Outdoor Amplifier
We are a Wet Sounds authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 4-Channel Outdoor Amplifier with attached 9" speaker output cables (terminated in watertight connectors) and 15" AC power cord (IEC 3-pin)
- • (4) 9" speaker harnesses (watertight connectors on one end / bare-ended wire on other end)
- • Owner's Manual
Why Choose Wet Sounds VS-1200-AMP Home Theater Amplifier?
Superior Audio Performance
This amplifier delivers powerful performance with 4 x 300W RMS at 2 Ohm, offers precise sound quality with a frequency response of 5Hz - 20kHz, and features a 100Hz low pass filter, operating efficiently across 90VAC - 240VAC with 77% total efficiency, while maintaining a strong 200 damping factor and a signal-to-noise ratio of 88dB, making it the perfect choice for those seeking superior audio performance with minimal impedance.
High-Quality, Hassle-Free Sound
Specifically designed to power Venue Series™ products, this 110V amplifier offers customizable audio with preset selectable gain controls and a selectable low-pass filter, while ensuring quick and easy speaker wiring with watertight quick connectors—perfect for delivering high-quality, hassle-free sound.
Effortless Installation with Watertight Quick Connectors
The amplifier simplifies speaker wiring with its watertight quick connectors, making installation effortless and allowing you to experience exceptional sound with minimal effort.
Frequently Asked Questions (FAQ)
- • How do I turn the amplifier on?
Connect the 110V power supply and turn-on trigger correctly. A compatible media source, such as a Sonos Port, can provide the trigger needed for activation.
- • What should I check when there is no audio?
Check RCA inputs, speaker connections, gain settings, and source output. Make sure the amplifier receives a signal and all watertight speaker connectors are fully seated.
- • Can the amplifier handle loud outdoor playback?
Yes, when connected to compatible speakers and operated within its rated load. Proper ventilation, correct gain settings, and adequate power help maintain reliable performance.
- • How can I increase the overall speaker volume?
Adjust the appropriate gain controls and source output level. Check speaker impedance and wiring first, since incorrect connections can limit available output.
- • What settings can improve bass performance?
Check the low-pass switch, gain settings, speaker connections, and subwoofer wiring. The selectable 100Hz low-pass setting may need adjustment for your system configuration.
- • How do I balance different channel outputs?
Check the gain settings for each channel pair and verify RCA connections. Different speaker loads or incorrect wiring can also create uneven output between channels.
- • Why is there humming or unwanted noise?
Check RCA connections, grounding, and signal cables. Keep audio cables away from power wiring and inspect connections for looseness or electrical interference.
- • Can I connect 2-ohm speakers to each channel?
Yes. Each channel supports a minimum 2-ohm load. Verify the total speaker impedance before installation and avoid connecting loads below the amplifier's rated minimum.
- • Is it normal for the amplifier to get warm?
Some heat is normal during operation. Ensure adequate ventilation and keep the cooling system unobstructed. Excessive heat may indicate heavy loading or restricted airflow.
- • Can it be installed outdoors?
Yes. It is designed for outdoor audio installations when properly housed and protected. Use an appropriate weather-resistant enclosure and keep connections secure against moisture.
Features:
- Designed for Venue Series™: Specifically engineered to power Wet Sounds Venue Series™ products.
- Power Source: Operates using a standard 110v power source.

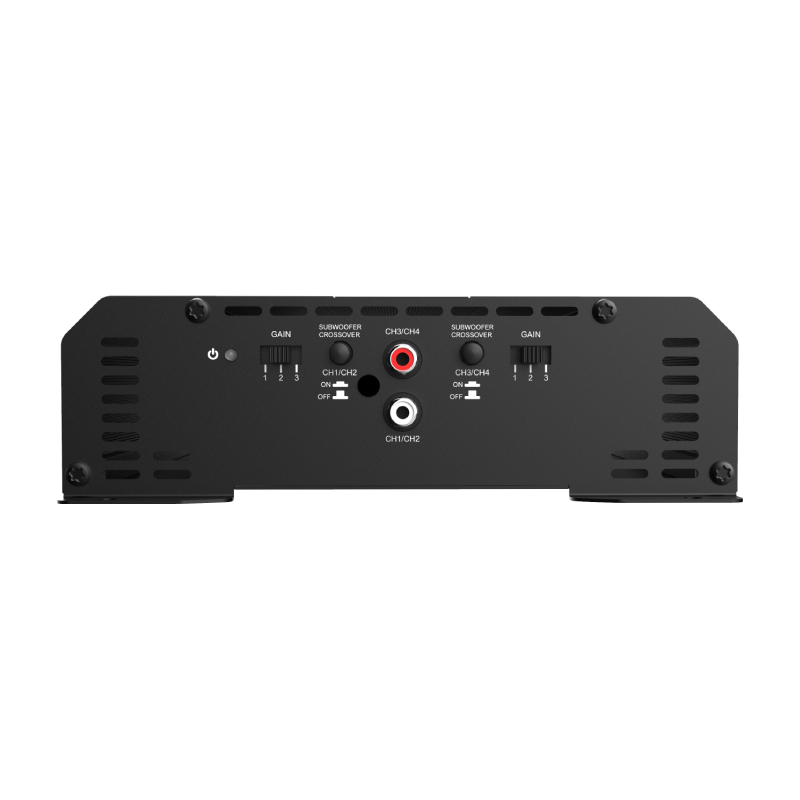

- Gain Controls: Features preset selectable gain controls for customized sound.
- Low Pass Filter: Includes a selectable low pass filter for optimized audio performance.

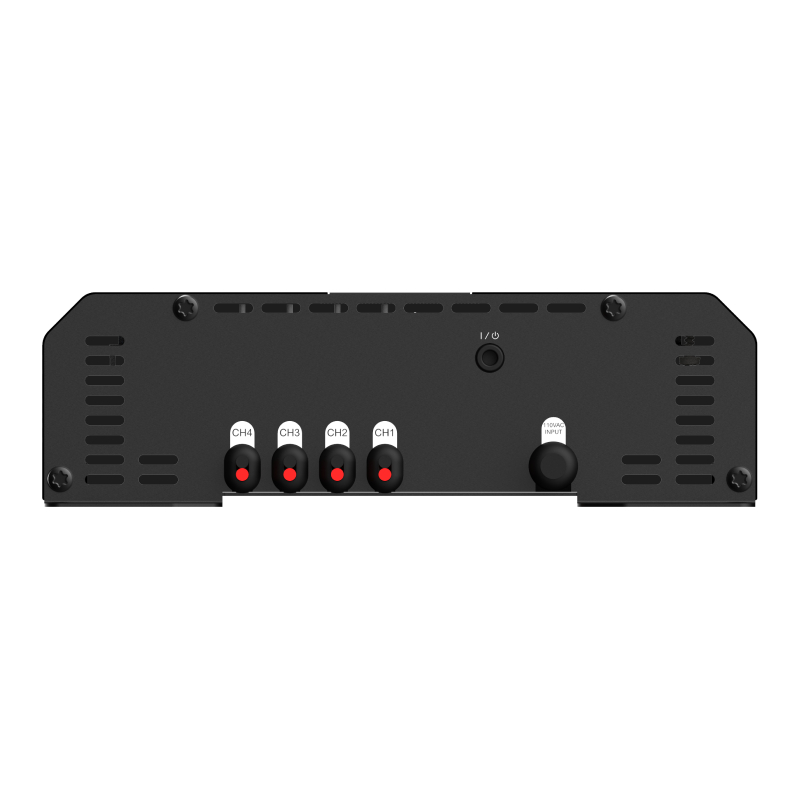

- Wiring: Fast and easy speaker wiring with watertight quick connectors.
Specifications:
- Power RMS @ 2 Ohm: 4 x 300W
- Power RMS @ 4 Ohm: 4 x 200W
- Frequency Response: 5Hz - 20kHz
- Low Pass Filter: 100Hz
- Operating Voltage: 90VAC - 240VAC
- Signal-to-Noise Ratio (SNR): 88dB
- Input Sensitivity: 0.2 - 2V
- Current Draw (Music): 5A @ 110V
- Current Draw (Max): 18A @ 90V
- Total Efficiency: 77%
- Damping Factor: 200
- Minimum Impedance: 2 Ohm
- UPC: 810042170773
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
