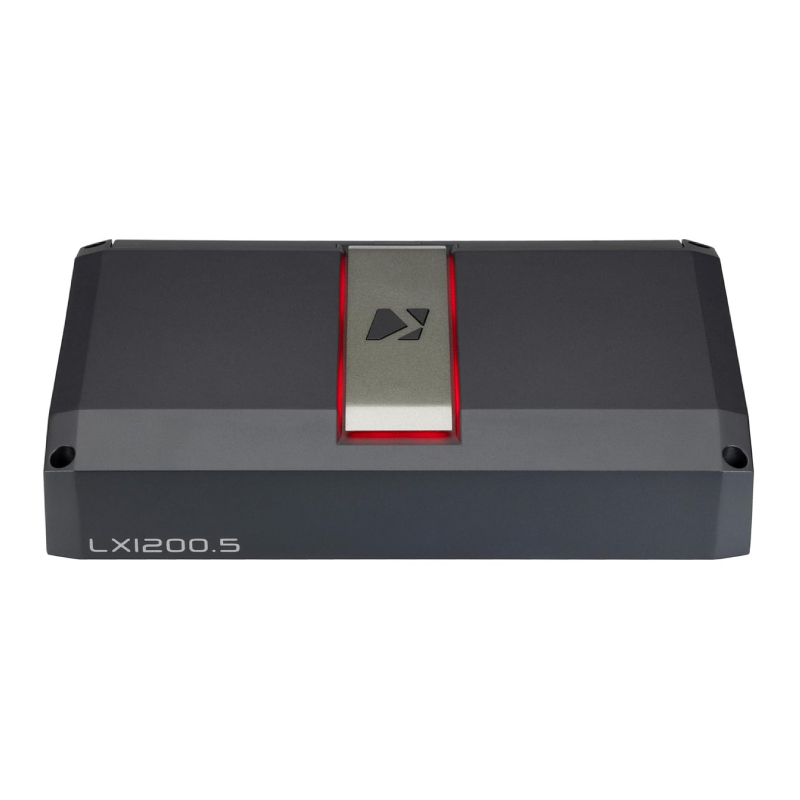

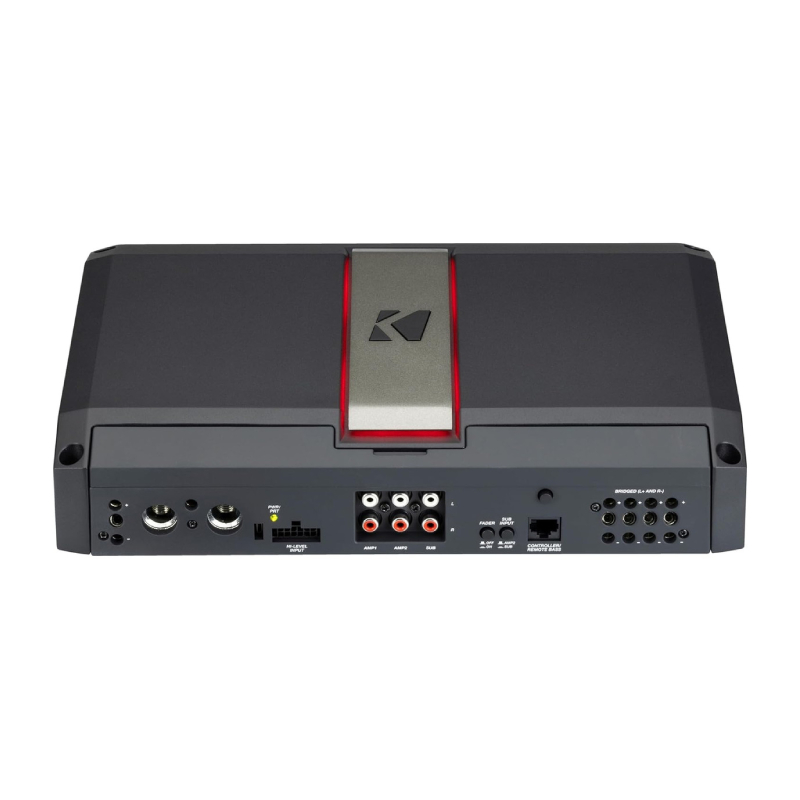

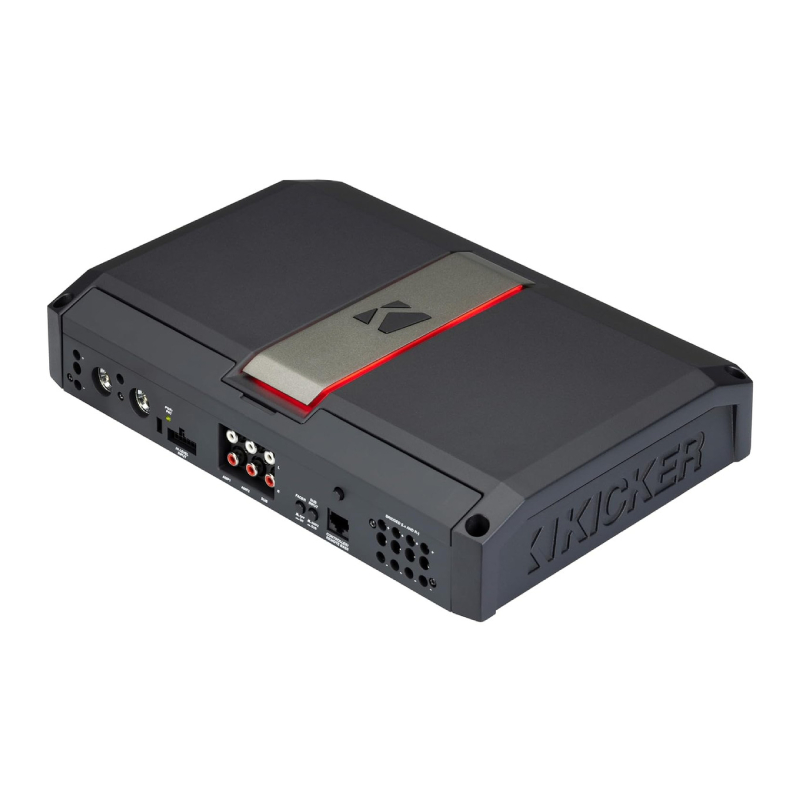

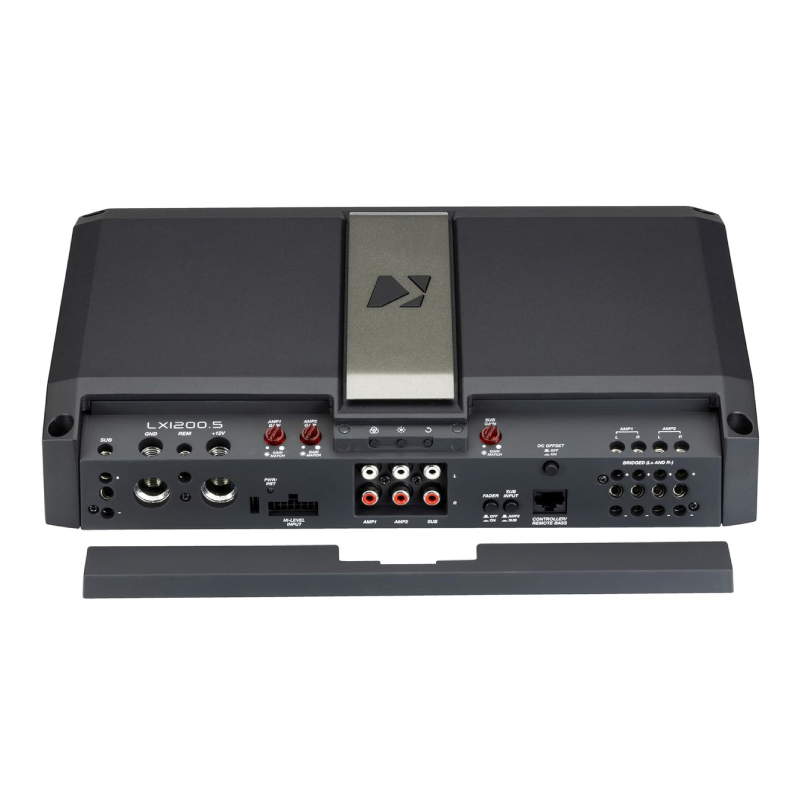

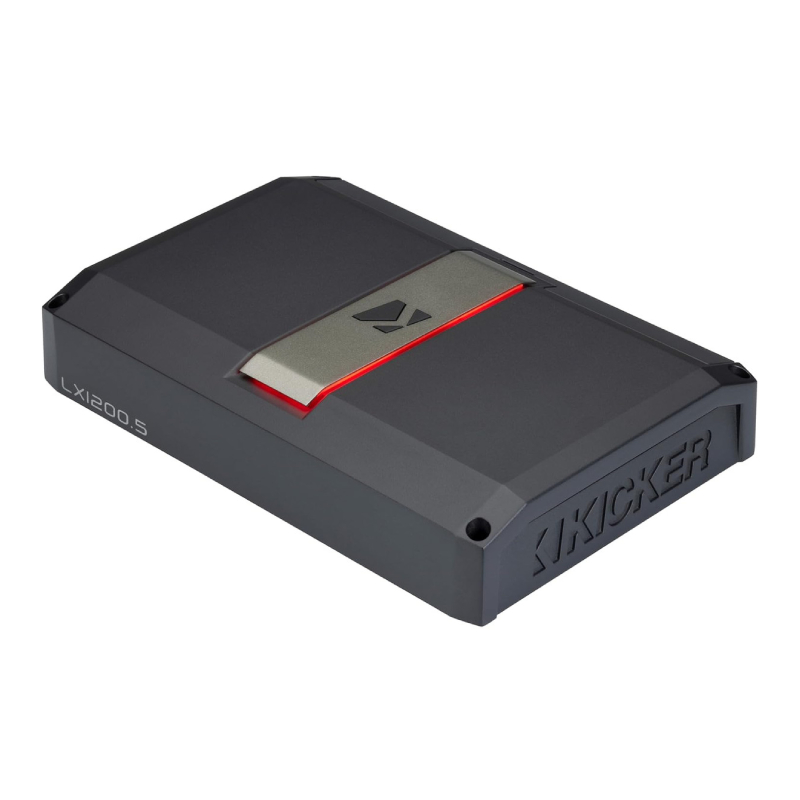

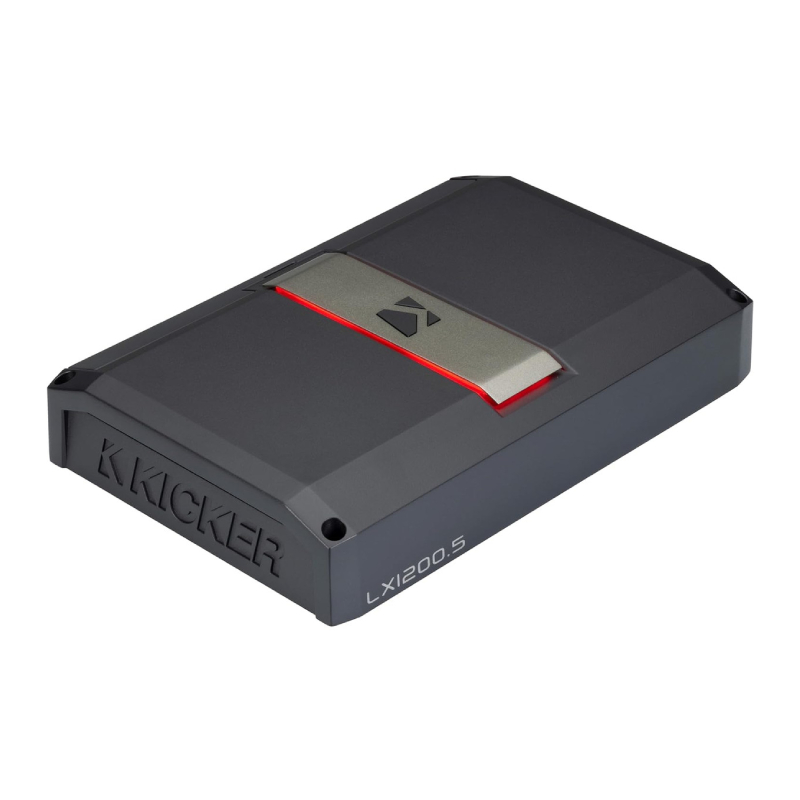

Kicker  51LX12005

LX Series 5-Channel 175W RMS x 4 at 2 Ohm + 5th Channel 700W x 1 at 1 Ohm, Class-D Full Range Car Amplifier with LX Remote Control and LX Control Center Included

Item #94546

Condition:   Brand New

Product Highlights

  • LX Series 5-Channel Amplifier
  • 175W RMS x 4 at 2 Ohm
  • 5th Channel 700W x 1 at 1 Ohm
  • Class-D Full Range
  • Includes LX Remote Control and Control Center

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$849.99

Reg. Price $949.99  Save $100.00
In Stock
In Stock

Limited Stocks left!
Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Kicker Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Kicker 51LX12005 LX Series 5-Channel 175W RMS x 4 at 2 Ohm + 5th Channel 700W x 1 at 1 Ohm, Class-D Full Range Car Amplifier with LX Remote Control and LX Control Center Included


Kicker Authorized Dealer Stamp

We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

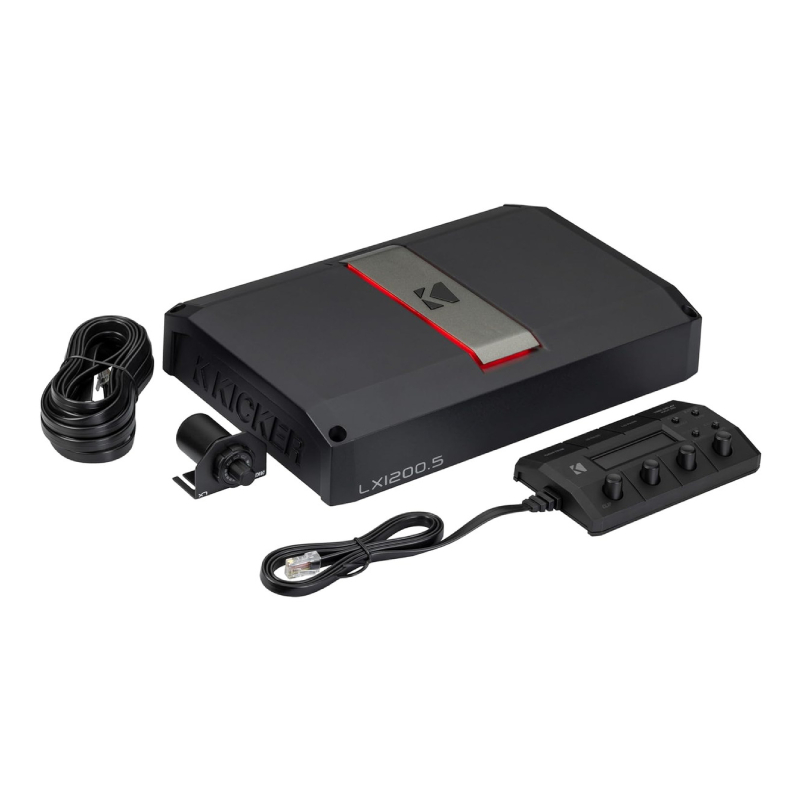

What's Inside?
  • • 5-Channel Class-D Full Range Car Amplifier
  • • LXCC Control Center with attached 39" cord (terminated in an RJ-45 connector)
  • • LXRC Remote bass control with attached mounting bracket
  • • 19.5' Remote bass control cable (terminated in RJ-45 connectors on both ends)
  • • 10" Speaker-level input harness
  • • (4) 1-3/8" screws
  • • (2) 3/8" screws
  • • 3mm Allen key
  • • Power chart
  • • Power certificate
  • • High level Input Harness (CEA Color Standard)
  • Owner's Manual





Unleash Total Control with the Kicker LX1200.5

If you’re serious about your car audio setup, the Kicker 51LX12005 LX1200.5 isn’t just another amp—it’s the command center your system has been waiting for. Designed from the ground up, this 5-channel powerhouse gives you the flexibility to run your entire setup—from crisp highs to deep, chest-hitting bass—all in one sleek package. With built-in DSP features and remote control capability, you’re not just listening to music—you’re shaping it exactly how you want.

Big Power, Clean Output, Zero Compromise

Let’s talk muscle. This amp delivers serious power across every channel—125W x4 plus 300W on the sub at 4 ohms, and even more when you push it to 2 ohms. Need more punch? Bridge it or unleash up to 700W on the sub channel at 1 ohm. And thanks to Kicker’s FIT+ (Fail-safe Integration Technology-Plus), you get clean, noise-free audio whether you’re running factory or aftermarket head units. It accepts up to 40V input signals, meaning integration is smooth, stable, and frustration-free.





Dial It In Like a Pro with Advanced DSP

This is where things get exciting. The included LXCC Control Center lets you fine-tune your entire system with precision—adjust crossovers, tweak gain, set time delay, and even customize bass response with KickEQ+™. Want perfect staging? Done. Need tighter bass? Easy. Plus, SHOCwave2.0™ restores those low-end frequencies often lost in compressed audio, giving your music that full, rich sound it deserves. And with real-time diagnostics like voltage and temperature monitoring, you’re always in control.

Smart Features, Sleek Style, and Total Confidence

Beyond performance, the LX1200.5 is loaded with smart features that make everyday use effortless. Gain Match technology helps prevent clipping, while built-in protection circuits guard against overheating, short circuits, and voltage issues. You also get customizable LED accent lighting with multiple color options to match your build’s vibe. Add in the LXRC remote for on-the-fly adjustments right from your driver’s seat, and you’ve got a setup that’s as convenient as it is powerful. Bottom line? This amp doesn’t just upgrade your system—it transforms your entire listening experience.


SPECIFICATIONS


  • Number of Channels : 5
  • Frequency Response : 20-20000 Hz
  • Amplifier Class : D

FEATURES


Features:

  • Premium 5-Channel Amplifier Design: The Kicker 51LX12005 LX1200.5 5-Channel Amplifier is engineered in-house to deliver high-performance, full-system amplification with advanced DSP control and flexible system configuration.
  • FIT+ Integration Technology: Accepts both low- and high-level inputs up to 40V with full differential inputs, ensuring clean, noise-free integration with factory and aftermarket source units.
  • High Power Output: Delivers 125W x4 + 300W x1 at 4 ohms, 175W x4 + 550W x1 at 2 ohms, 350W x2 bridged at 4 ohms, and up to 700W x1 at 1 ohm on the sub channel.
  • Comprehensive Protection Circuitry: Built-in safeguards protect against overheating, short circuits, and voltage instability for reliable long-term operation.
  • DC Offset Auto Turn-On: Enables automatic activation via speaker-level input signals or traditional +12V remote turn-on lead for flexible installation.
  • Gain Match Technology: Illuminated gain controls indicate clipping levels, allowing precise adjustment to maintain clean, distortion-free audio.
  • Flexible Input and Channel Routing: Selectable fader and sub input routing options allow adaptable system configurations based on installation needs.
  • Customizable LED Accent Lighting: Multi-color LED illumination with adjustable brightness and a reversible magnetic logo panel for versatile mounting aesthetics.

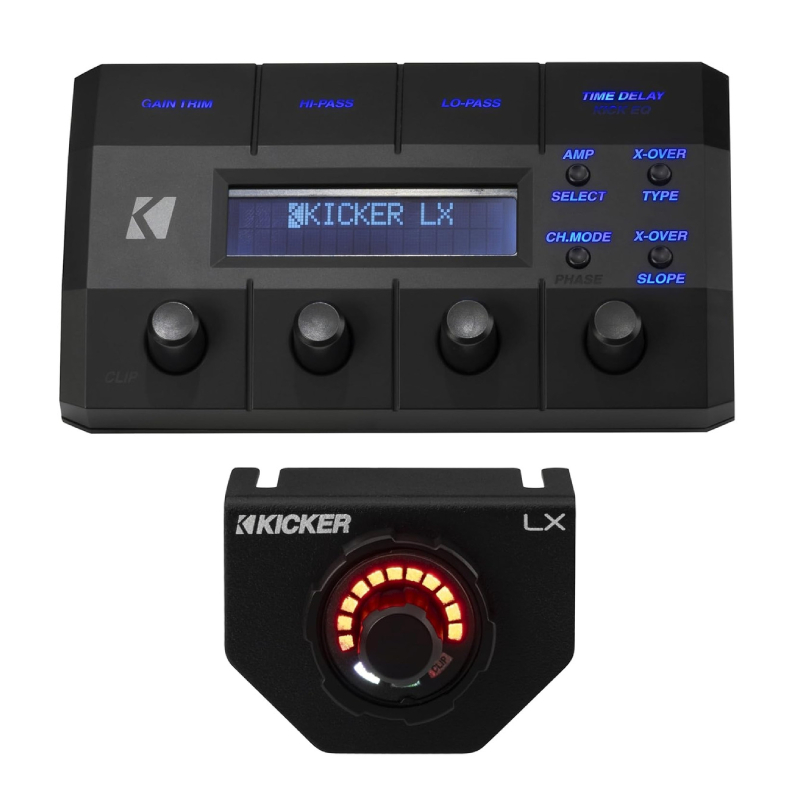

  • LXCC DSP Control Center: Includes a wired controller for full DSP tuning, system diagnostics, crossover configuration, gain trim adjustment, time alignment, and channel mode selection.
  • Advanced Crossover and Tuning Capabilities: Supports high-pass, low-pass, and band-pass filters with adjustable frequency ranges, selectable slopes, and precise tuning for optimal sound performance.
  • KickEQ+™ Bass Enhancement: Adjustable bass boost with variable frequency and Q factor for tailored low-frequency response.
  • SHOCwave2.0™ Bass Restoration: Recovers lost low-frequency content in compressed audio for deeper, more accurate bass reproduction.
  • Real-Time System Monitoring: Provides live feedback on voltage, amplifier temperature, protection status, and signal clipping through the LXCC interface.
  • Efficient Class-D Architecture: Compact and efficient design ensures high output with reduced heat generation and simplified installation.
  • Universal Vehicle Compatibility: Designed for seamless integration with most OEM and aftermarket systems, including Start/Stop vehicle compatibility.
  • Heavy-Duty Wiring Support: Accommodates up to 1/0-gauge power and ground wiring and up to 10-gauge speaker outputs with secure set-screw terminals.
  • Dual Input Signal Compatibility: Supports both RCA low-level and speaker-level inputs with wide sensitivity ranges for maximum flexibility.
  • LXRC Wired Remote Control Included: Provides convenient access to gain attenuation, bass restoration level, voltage monitoring, clip indication, and LED brightness adjustments from the driver’s seat.
  • Certified Power Testing: Each unit is individually tested for performance, with a certification sheet verifying power output, distortion levels, and overall quality.
  • External Fuse Requirement: Requires a 100A external fuse installed within 18 inches of the battery for proper system protection.



Specifications:

  • RMS Power [Watts/Channel] @ 14.4V
  • Amp 1 & Amp 2 (Stereo Channels): 2Ω Stereo: 175W x 4, 4Ω Stereo: 125W x 4, 4Ω Bridged: 350W x 2
  • Sub Channel: 1Ω Mono: 700W, 2Ω Mono: 550W, 4Ω Mono: 300W
  • Dynamic Power: 1500W
  • Frequency Response [Hz]
  • Stereo Channels: 20Hz - 20kHz
  • Sub Channel: 10Hz - 160Hz (+0/-1dB)
  • Signal-to-Noise Ratio
  • (a-weighted, re: rated power): >95dB
  • (ref: 1W output): >75dB
  • Dimensions [in, cm]
  • Height: 2-3/8" (6 cm)
  • Width: 8-7/16" (21.4 cm)
  • Length: 12-5/8" (32 cm)
  • Input Sensitivity
  • High level: 1V - 40V
  • Low level: 125mV - 5V
  • Variable Electronic Crossover
  • Amp 1 & Amp 2 (Stereo Channels): Off/HP/LP/BP, HP: 20Hz - 5kHz, LP: 40Hz - 5kHz
  • Sub Channel: LP 40Hz - 160Hz, 24dB/octave Linkwitz-Riley, Selectable Topology: 12, 18, or 24dB/oct Butterworth; 12 or 24dB/oct Linkwitz-Riley
  • Variable Subsonic Filter
  • 24dB/octave Linkwitz-Riley, variable hi-pass @ 10Hz - 80Hz (sub channel only)
  • KickEQ+™ (Sub Channel)
  • 0–6dB, variable center 20Hz - 80Hz, variable bandwidth 1–5
  • UPC: 713034020233
  • Weight: 11.2
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
