Rockford Fosgate 20GLADR-STG5 Stage 5 Audio Kit for Select 2020 and Up Jeep Gladiator JT
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

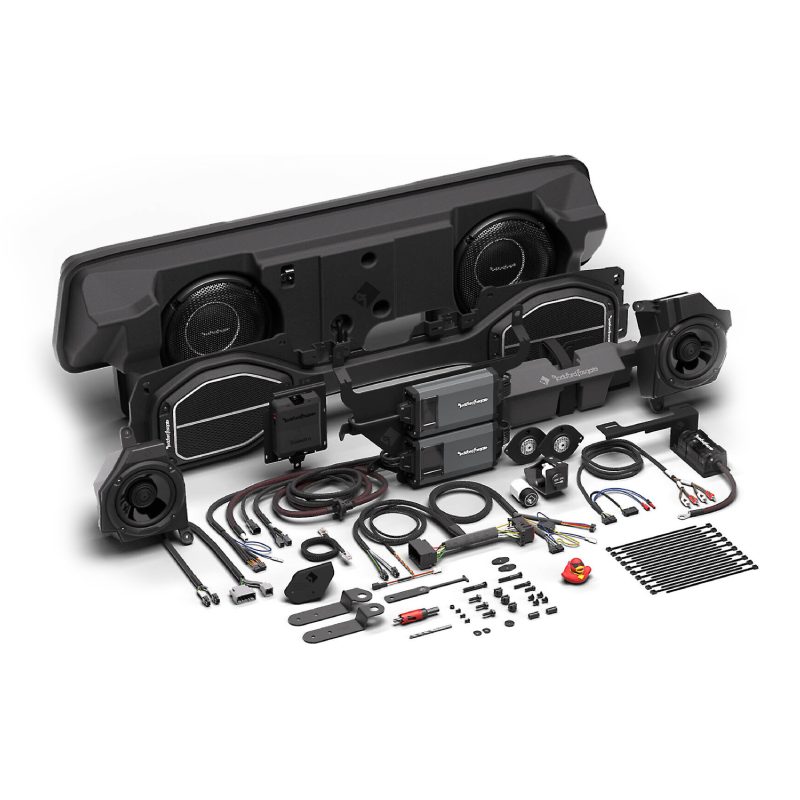

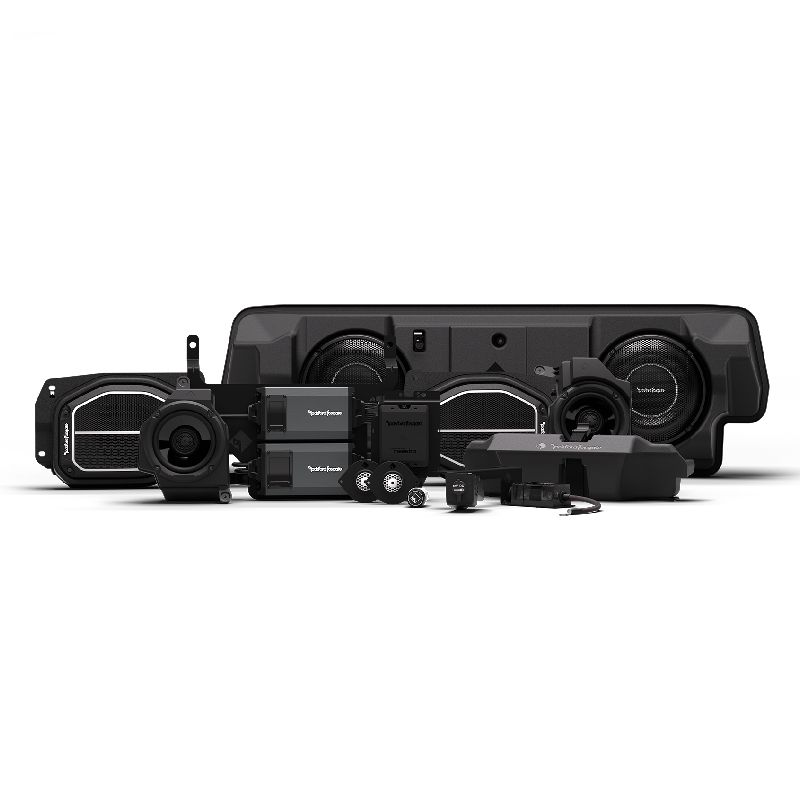

What's Inside?

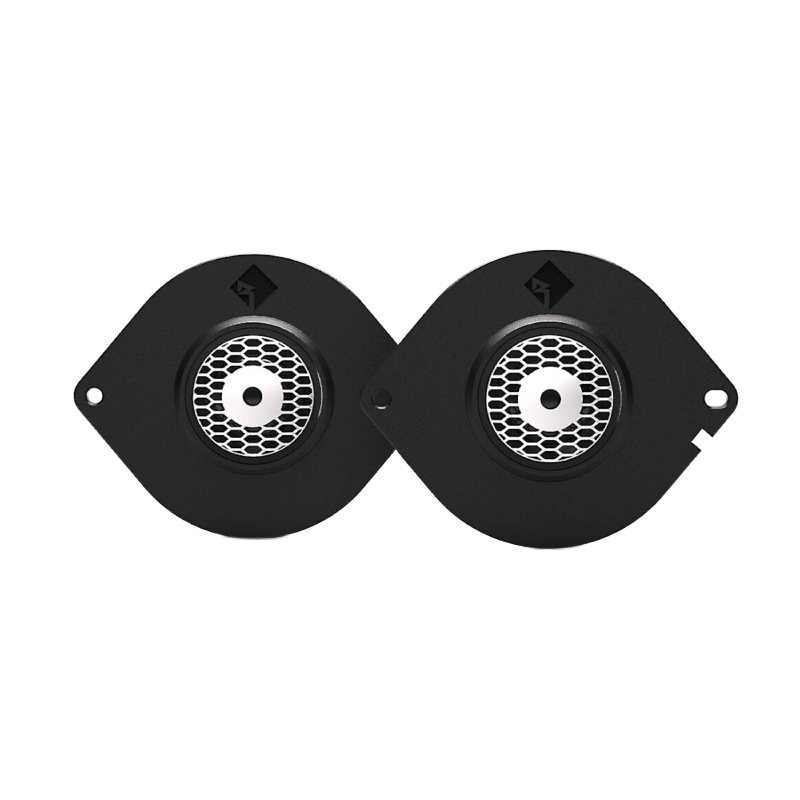

- • (2) M2-TS M2 1” Dash Tweeters + Bezels

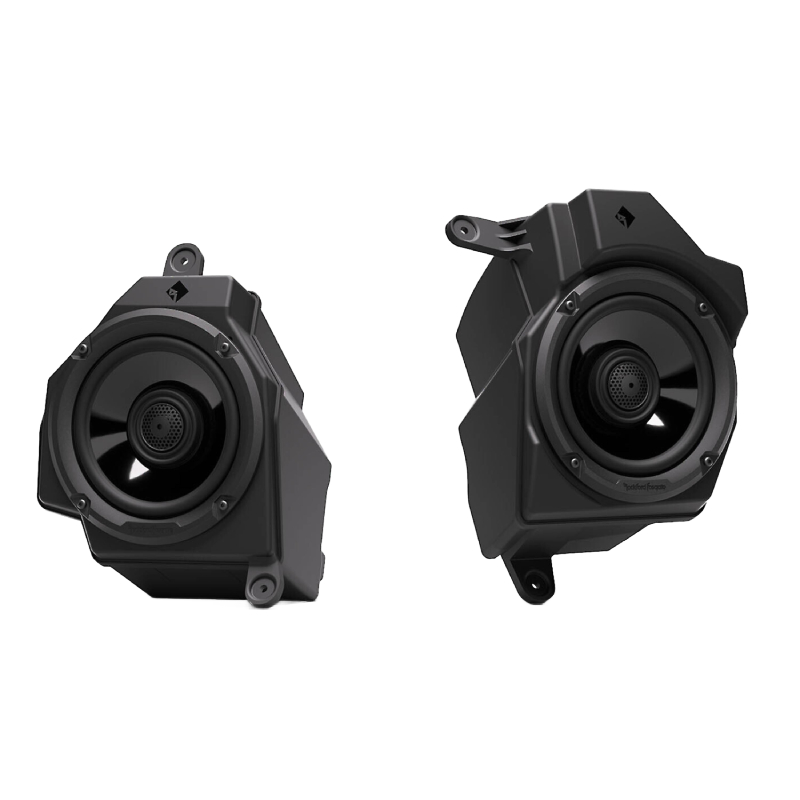

- • (2) TMS65 6.5” Front Speakers + Enclosures

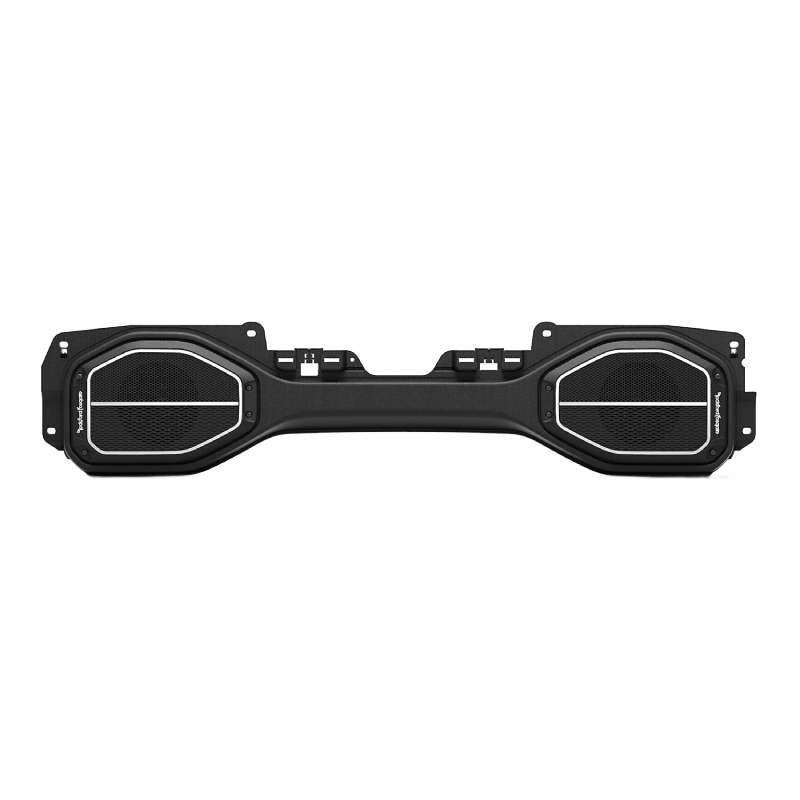

- • (2) TMS65 6.5” Overhead Speakers + Enclosure

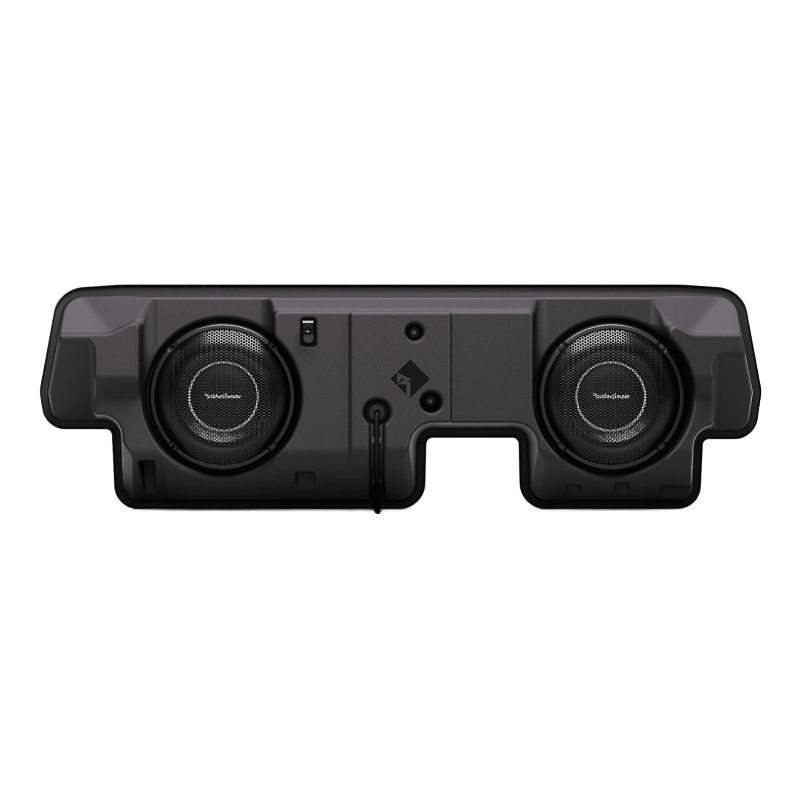

- • (2) T1S2-10 Dual 10” Subwoofers + Enclosure
- • DSP + Jeep Specific Tune

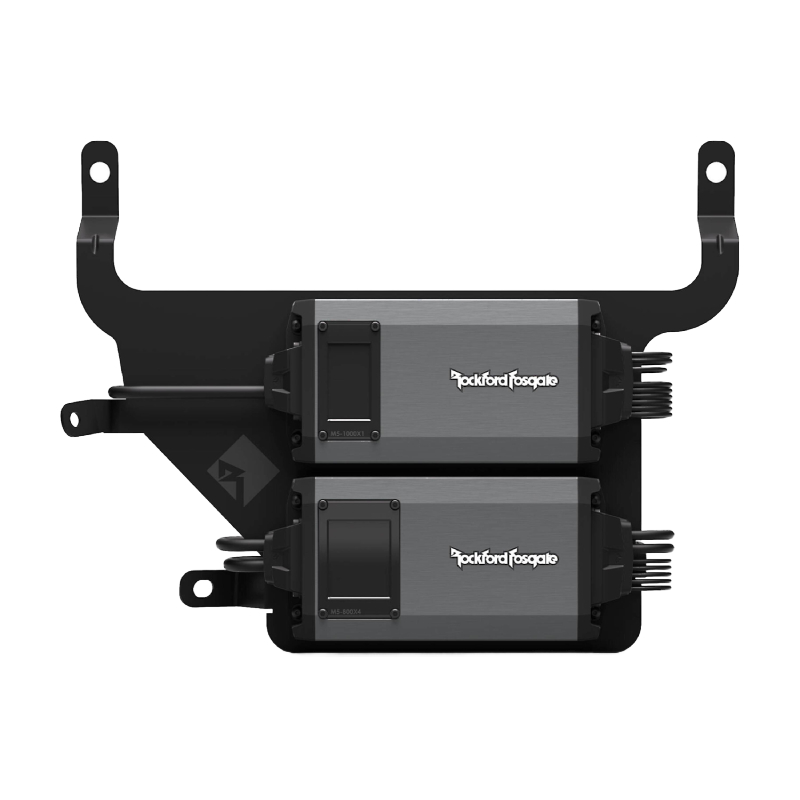

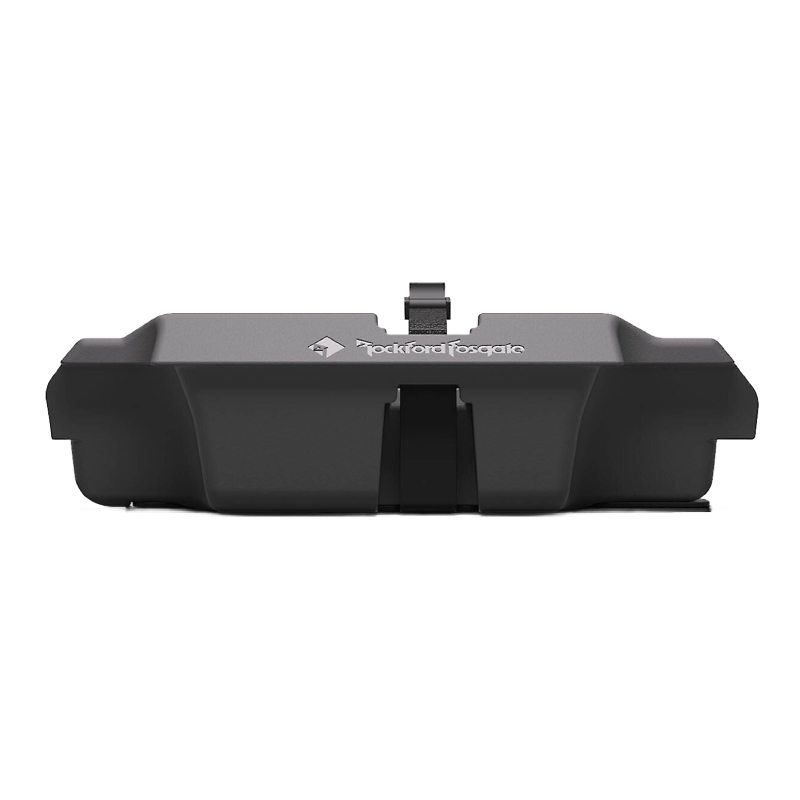

- • M5-800X4 800 Watt Amp + Jeep Specific Tune
- • M5-1000X1 1,000 Watt Amp + Jeep Specific Tune

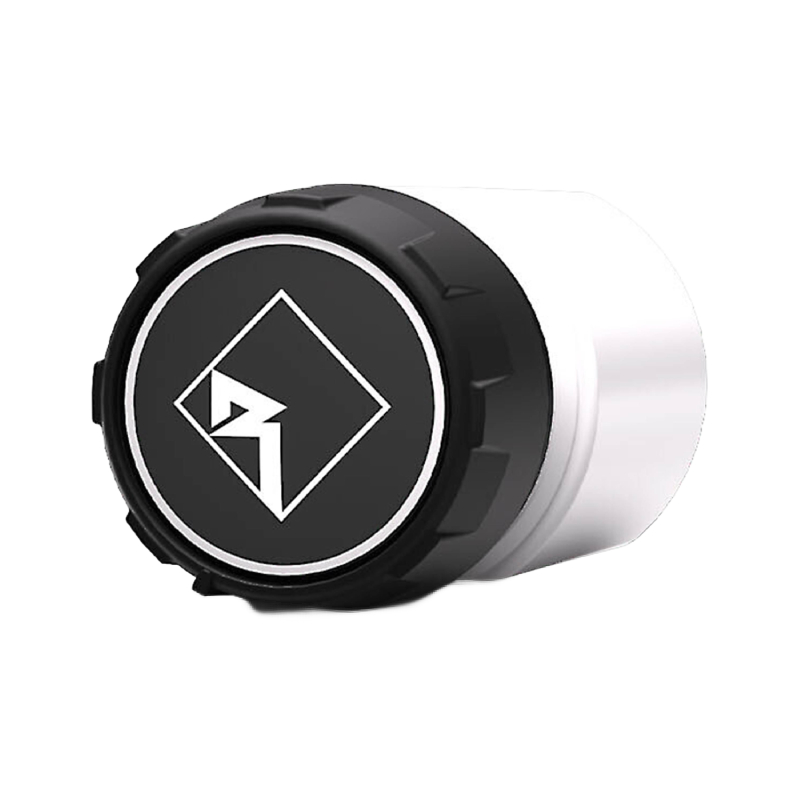

- • PLC2 Bass Level Control + Custom Knob

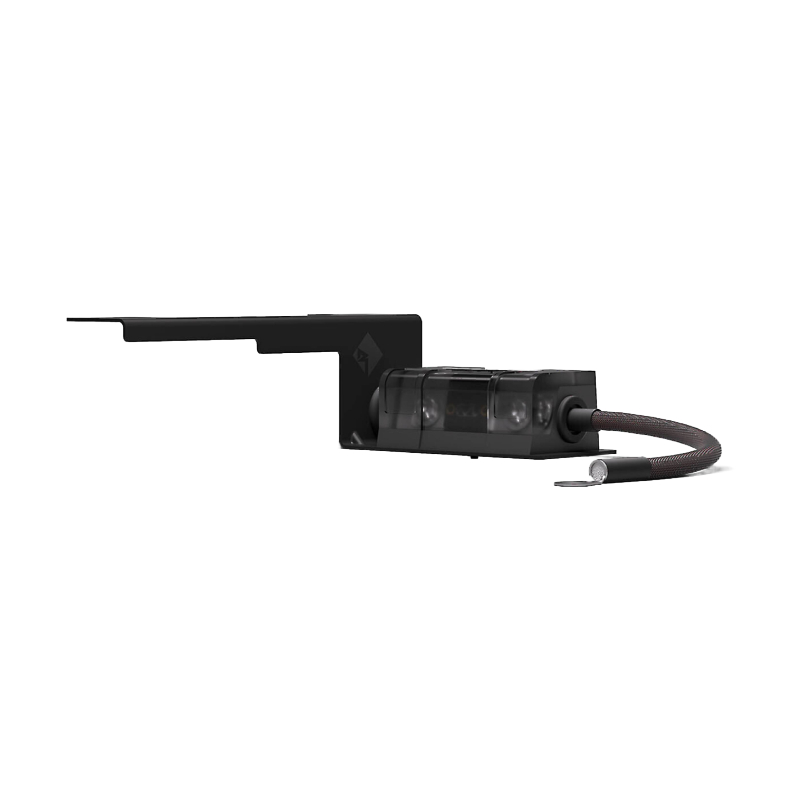

- • Complete Wiring Kit + Fuse Block
- • Factory Jack Relocation Kit

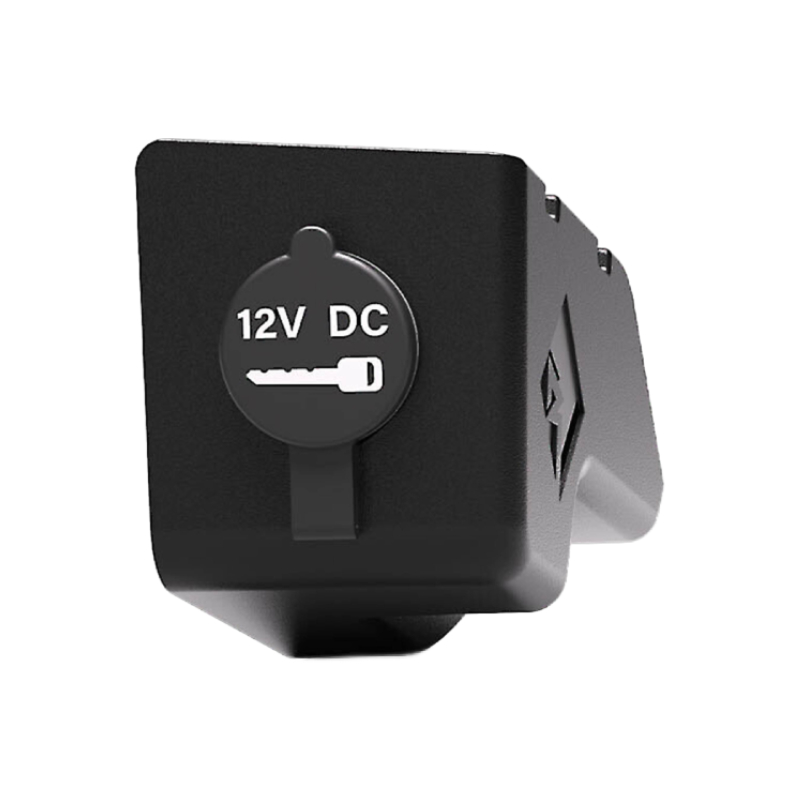

- • 12V Relocation Kit
- • Rockford Fosgate Duck
- • Owner's Manual
Full Send Sound Dominance, No Compromises
When you step into the Rockford Fosgate 20GLADR-STG5 system, you are not just upgrading audio, you are replacing the entire experience with pure power. This Stage 5 flagship setup is engineered to deliver extreme output that pushes nearly 2x louder than premium factory systems and up to 4x louder than base setups. It is built for riders who want every track, every beat, and every bass drop to hit harder, clearer, and with more presence than anything stock could ever deliver. This is high-energy, all-in audio domination made for serious enthusiasts.
Factory Clean Fit With Zero Wiring Headaches
What makes this system feel next level is how seamlessly it fits into your ride. The OEM-style enclosures are designed to match factory interiors perfectly, while the plug-and-play T-harness system means no wire cutting and no messy modifications. Everything connects directly using factory mounting points for a secure, bolt-in installation that feels original, not aftermarket. With CAN-bus system integration, your vehicle electronics stay fully in sync, giving you that smooth, factory-level control with upgraded performance behind it.
Smart Control, Custom Sound Your Way
This Stage 5 kit does not just play loud, it plays smart. The built-in DSP audio tuning comes pre-loaded with vehicle-specific profiles that automatically optimize sound output and frequency balance for the best possible experience. On top of that, the custom bass control interface gives you real-time adjustment right from the dash, so you can crank it up when the trail opens or dial it back when you want balance. It is full control, right at your fingertips, tuned exactly how you like it.
Built for Chaos, Engineered for Long Hauls
Every part of this system is made to survive real-world punishment. The durable PE construction with friction-welded seams keeps everything strong and stable, while element-ready protection shields against heat, UV, water, and vibration. The slim sealed subwoofer design delivers deep, controlled bass without stealing cargo space, keeping your setup practical and powerful at the same time. You even get extras like a factory jack relocation kit and an exclusive Rockford Fosgate duck collectible, adding a unique touch to a system that is already built to stand apart from everything else on the trail.
Frequently Asked Questions (FAQ)
- • Why is the 20GLADR-STG5 installation taking longer than expected?
Although the kit uses OEM-style mounting points and T-harnesses, the complete installation involves removing the roof, sound bar, dash components, factory amplifier, driver seat, and other interior panels. Retailers estimate roughly 6–8 hours, so it is considerably more involved than a basic speaker swap.
- • Will the Stage 5 work with my Gladiator's 12.3-inch screen?
This has been a real buyer concern. A retailer specifically noted that Rockford's compatibility chart lists the 12.3-inch screen as not compatible with the 20GLADR-STG5. Check the exact factory screen before purchasing rather than relying only on the Gladiator model year.
- • Why don't the speaker mounting holes line up perfectly?
A customer specifically asked whether the factory Alpine removable Bluetooth speaker remains compatible after installing the Stage 5. The retailer cautioned that the kit may not be fully compatible with the removable Alpine speaker and factory subwoofer.
- • Why does my system sound wrong after changing the amplifier or radio?
The two included amplifiers are configured around the factory source and the system uses a Gladiator-specific DSP tune. Rockford has separate programming instructions for situations involving an aftermarket source or replacement amplifier, so changing components can require retuning rather than simply adjusting the volume.
- • Why does the installation require moving my factory jack?
The Stage 5 includes a factory jack relocation kit because the upgraded subwoofer installation occupies the original area. The relocation is part of the intended installation rather than an indication that the enclosure is incorrectly positioned.
- • Why do I need to relocate the 12V outlet?
The 20GLADR-STG5 includes a dedicated 12V relocation kit, and the installation procedure includes preparing the accessory connection before final reassembly. This is one of the small modifications that can make the installation more involved than a normal plug-and-play speaker upgrade.
- • Why isn't the Stage 5 simply a speaker replacement?

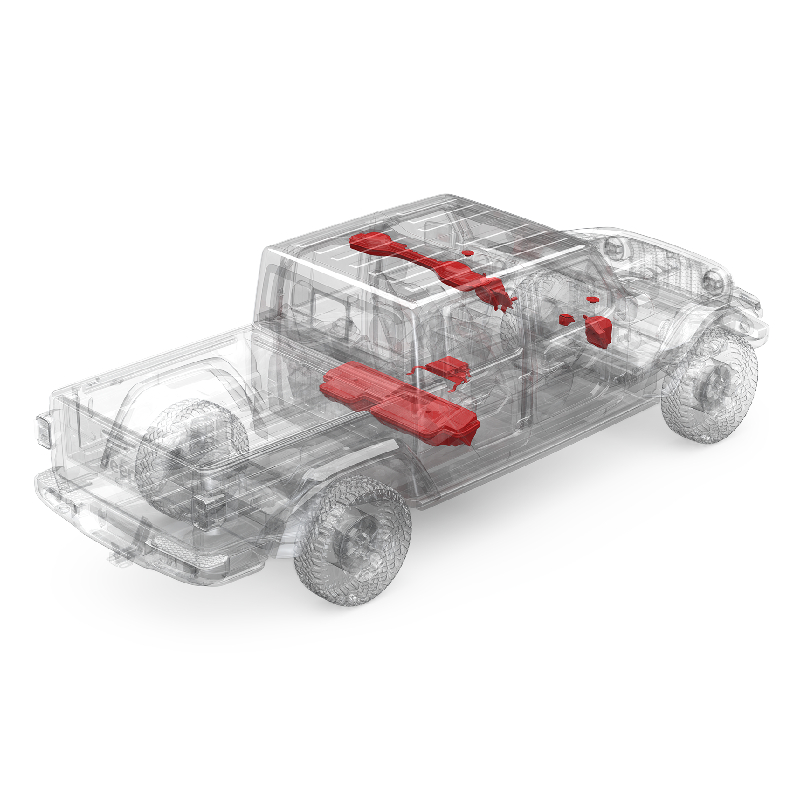

The kit replaces much of the Gladiator's audio system, including the front speakers, overhead speakers, dash tweeters, two 10-inch subwoofers, two amplifiers, DSP, and associated wiring. Because so many components are involved, troubleshooting should consider the entire signal chain rather than only one speaker.
- • Why does my Stage 5 need DSP programming even though the amplifiers are pre-tuned?
The amplifiers are preconfigured for the factory source, but Rockford's current guidance explains that aftermarket source units or amplifier changes require different setup procedures. Leaving the system with the incorrect configuration can result in poor frequency balance or improper amplifier input levels.
- • Why is my 20GLADR-STG5 installation difficult even though it is advertised as plug-and-play?
"Plug-and-play" mainly refers to the wiring integration: the system uses OEM connectors and T-harnesses rather than requiring extensive wire cutting. The physical installation can still be demanding because multiple interior components must be removed and the amplifier rack, subwoofers, speaker enclosures, and power wiring all have to be installed.
- • Is there anything important I should check before installing an older 20GLADR-STG5 kit?
Yes. Check the fuse situation and recall status. A 2026 recall report identifies certain 20GLADR-STG5 amplifier kits because the supplied 150-amp fuse may not provide adequate circuit protection during an amplifier short circuit. If purchasing or installing one of these kits, verify the affected serial/product information and applicable remedy with Rockford Fosgate before use.
Features:
- 20GLADR-STG5 System: Flagship Stage 5 upgrade engineered to deliver extreme-output audio performance with full factory system replacement capability.
- Louder Performance: Delivers nearly 2x louder output than premium factory audio systems for significantly enhanced sound presence.
- Extreme Volume Output: Achieves up to 4x louder performance compared to base audio systems for high-energy listening experiences.
- High Output Sound Design: Tuned for powerful, immersive audio delivery with enhanced clarity at high volume levels.
- OEM-Style Enclosures: Factory-matched housings with integrated connectors designed for seamless interior integration.
- Plug-and-Play Installation: Simplified system design enables fast installation with no complex wiring modifications required.
- T-Harness Integration: Eliminates wire cutting by using direct plug-in harness architecture for clean OEM compatibility.
- Secure Bolt-In Fitment: Utilizes factory mounting points for stable, vibration-resistant installation across all components.
- Durable PE Construction: Built from high-strength polyethylene with friction-welded seams for long-term structural reliability.
- CAN-Bus System Integration: Seamlessly connects with vehicle electronics for factory-level communication and control.
- Smart DSP Audio Tuning: Pre-loaded vehicle-specific sound profiles optimize output and frequency response automatically.
- Custom Bass Control Interface: Dash-mounted adjustment knob allows real-time bass tuning for user preference.
- Element Ready Protection: Engineered to resist heat, UV exposure, water intrusion, and environmental stress conditions.
- Rugged Environmental Durability: Thermal shock and vibration-resistant design ensures consistent performance in extreme terrain.
- Slim Sealed Subwoofer Design: Space-efficient enclosure preserves cargo area while delivering deep, controlled bass response.
- Exclusive Collector Accessory: Includes Rockford Fosgate Duck collectible for added system exclusivity.
- Factory Jack Relocation Kit: Integrated solution ensures full compatibility and clean fitment within vehicle storage architecture.
Specifications:
- Total Power: 1,800 Watts
- Amplifiers:
- (1) M5-800X4
- (1) M5-1000X1
- Digital Signal Processor:

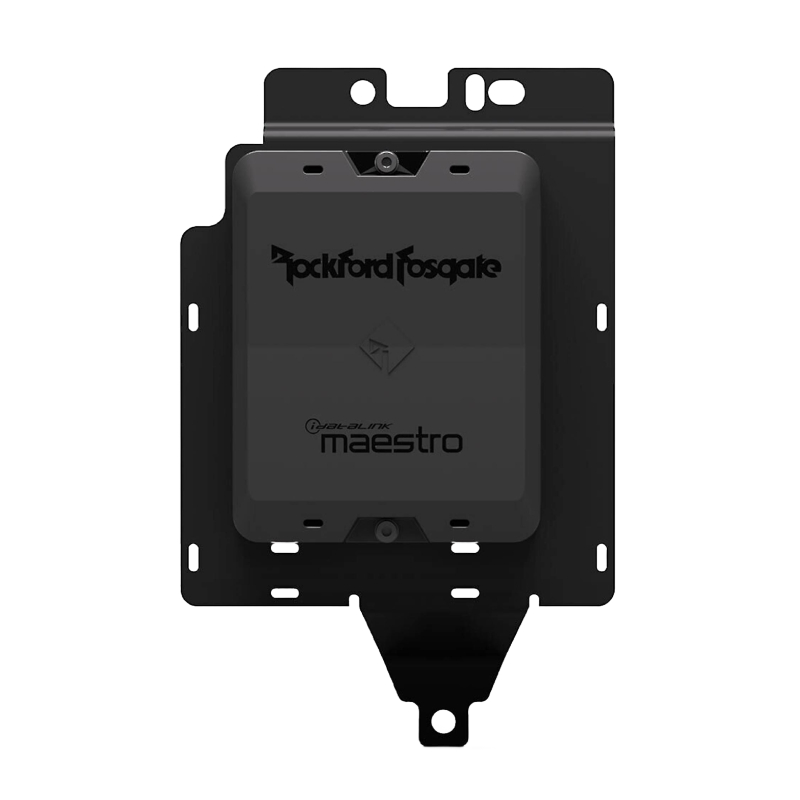

- (1) DSR1J (Maestro Jeep Programmed)
- Front Speakers:
- Soundbar Speakers:
- Subwoofers:
- Fuse Size: 150 ANL
- UPC: 780687364304
- Weight: 99
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
