Alpine  R2-SB12V-Bundle New

R2-SB12V Halo R-Series 12" 2250W Peak Power Handling 2 Ohms Linkable Ported Enclosed Car Subwoofer + R2-A150M R2-Series 1500W RMS at 1 Ohm Class-D Mono Subwoofer Amplifier

Item #94709

Condition:   Brand New

Product Highlights


  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:
LIMITED TIME SALE!

Get 15% OFF on this item! Use coupon code SITE15

$1,108.90

Reg. Price $1,300.00  Save $191.10
In Stock
In Stock

Only 4 left
  Free 2-Years Warranty Included!

No Credit needed for Learn More


Alpine Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

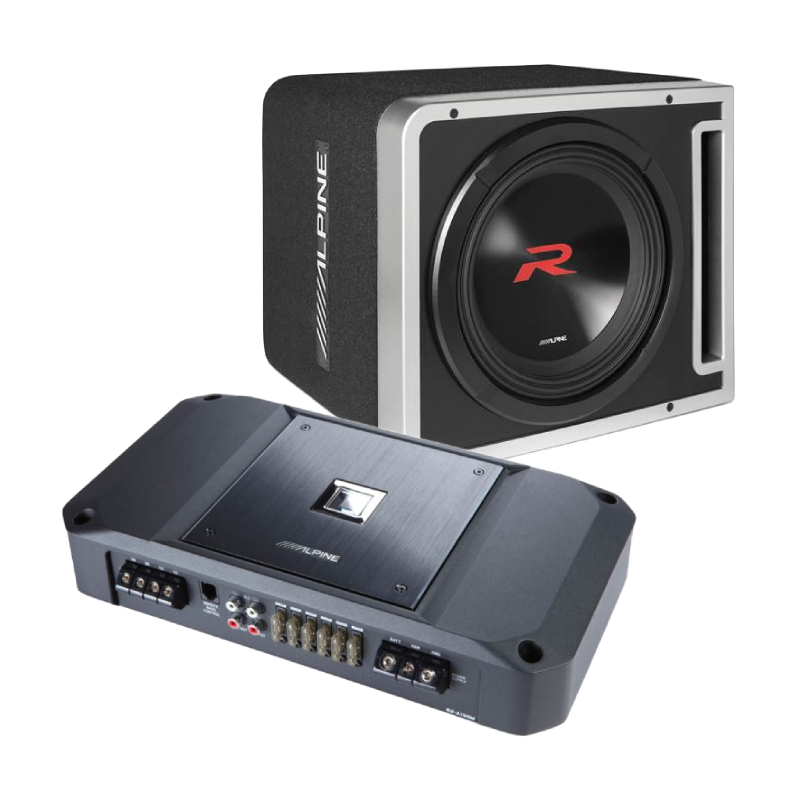

Alpine R2-SB12V Halo R-Series 12" 2250W Peak Power Handling 2 Ohms Linkable Ported Enclosed Car Subwoofer + Alpine R2-A150M R2-Series 1500W RMS at 1 Ohm Class-D Mono Subwoofer Amplifier


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • R2-SB12V 12" Dual 4-ohm voice coil subwoofer
  • • R2-SB12V Ported enclosure loaded with one R2-W12D4 subwoofer driver
  • • R2-SB12V Warranty information
  • • R2-SB12V Product registration information
  • • R2-SB12V Safety notice
  • • R2-A150M Mono subwoofer amplifier (six installed 25A ATO fuses)
  • • R2-A150M (4) 1" pan-head screws
  • • R2-A150M 3mm Allen key
  • • R2-A150M 2.5mm Allen key
  • • R2-A150M Power supply note
  • • R2-A150M Owner's Manual
Alpine_R2-SB12V
High-performance Powered Subwoofer

The Alpine R2-SB12V is a high-performance powered subwoofer that offers exceptional bass output and clarity. It is designed to deliver powerful and immersive bass in a compact and easy-to-install package. Featuring a 12-inch subwoofer driver and a built-in amplifier, the R2-SB12V boasts a peak power output of 2250 watts and an RMS power rating of 750 watts.

Deep Bass Reproduction

This combination ensures robust and deep bass reproduction that adds depth and impact to your audio system. The R2-SB12V is housed in a sturdy and compact enclosure that is built to withstand the rigors of daily use. Its compact size allows for flexible installation options, such as under a seat or in the trunk, without compromising on performance.



Alpine_R2-SB12V

Alpine_R2-SB12V
Deep Bass Reproduction

Alpine has incorporated advanced technologies into the R2-SB12V to optimize its performance. It features a high-excursion cone design and a durable surround, allowing for precise and controlled bass response. The enclosure is designed to minimize resonance and vibration, resulting in clean and distortion-free bass output.

Powerful and Compact Solution

Overall, the Alpine R2-SB12V is a powerful and compact solution for enhancing your vehicle's audio system with deep and immersive bass. Its high-performance components, durable construction, and convenient features make it an excellent choice for car audio enthusiasts seeking an upgrade in their bass reproduction capabilities.



Alpine_R2-SB12V
Powerful Bass Reproduction

R2-A150M delivers an impressive power output of 700W x 1 at 4Ω, 1200W x 1 at 2Ω, and 1500W x 1 at 1Ω, allowing for powerful bass reproduction and overall audio performance. Whether you are looking for a new addition to your car audio system or a powerful upgrade to your existing setup, the Alpine R2-A150M R-Series Mono Amplifier is a great option. A full amplifier lineup that boasts impressive power, yet compact in size, makes the R-Series amplifiers a powerhouse in performance.

High-performance Car Audio Amplifier

The Alpine R2-A150M R-Series Mono Amplifier is a high-performance car audio amplifier designed to deliver exceptional sound quality and power output. This amplifier features Alpine’s Class D amplifier circuit, which allows for efficient power usage and minimal heat generation. With dimensions of 13.46”(W) x 2.56”(H) x 7.32”(D), this amplifier is compact and easy to install in a variety of vehicles. It has a frequency response range of 20Hz – 400Hz and a signal-to-noise ratio of >75dB, ensuring clean and clear audio playback.

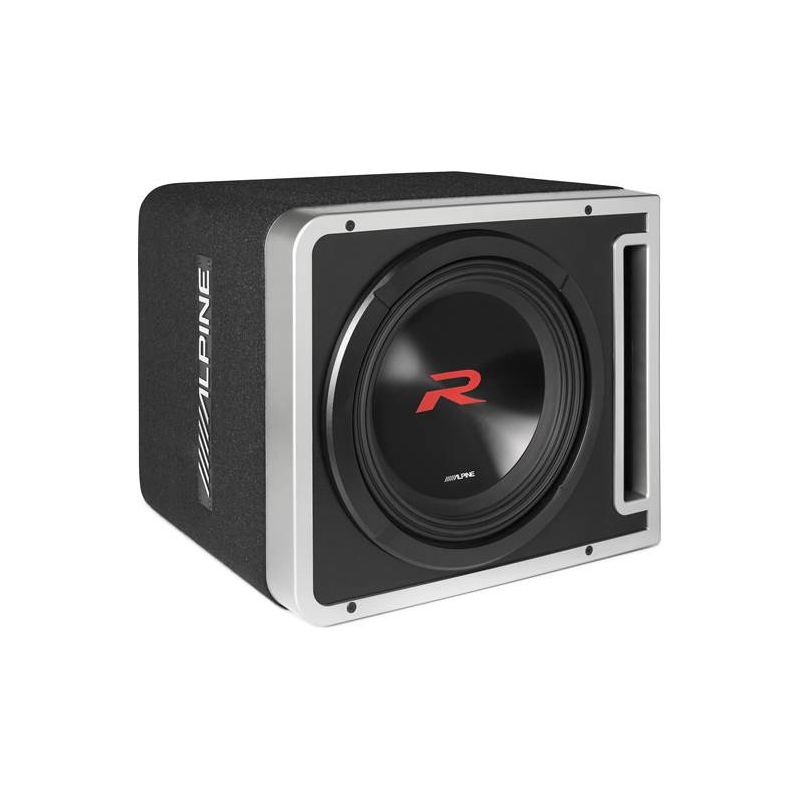

R2-SB12V Halo R-Series 12" 2250W Peak Power Handling 2 Ohms Linkable Ported Enclosed Car Subwoofer



Features:

  • Includes Preloaded R-W12D4 12” R-Series Subwoofer
  • Ground-breaking Alpine Halo Design
  • ProLink™ Ported Enclosure Design
  • USA Designed for Optimal Bass and Sound Quality Performance
  • CARB compliant 3/4-inch MDF construction
  • Premium Black Carpet
  • Silver Alpine Embossed Side Logo Badge
  • Brushed Aluminium Finished Metallic Front Baffle
  • KTX-H12 Linking Kit Ready



Specifications:

  • Dimensions: 17” W x 14.625” H x 15” D
  • Dual 4Ohms Voice Coils Wired in Parallel for a 2Ohms Load (Compatible with R-A75M)
  • 12 Gauge OFC Speaker Box Wire
  • Binding Post Terminal Cup
  • Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
  • 2Ohms Impedance
  • Frequency Response: 24-200Hz
  • Vented Enclosure Tuning Frequency: 35Hz
  • Sensitivity 84dB
  • Terminals: A single rear-panel terminal cup houses a pair of binding posts for connection, accepting up to 12 ga. speaker wire. Both of the driver's voice coils are wired in parallel for a single 2? load.
  • Groundbreaking Alpine Halo Design
  • ProLink™ ported enclosure design
  • Optimal Sound Performance
  • 750W RMS Power Handling
  • Includes preloaded R-W12D4 12” R-Series subwoofer
  • CARB compliant 3/4-inch MDF construction
  • Premium black carpet
  • Silver Alpine embossed side logo badge
  • Brushed aluminum finished metallic front baffle

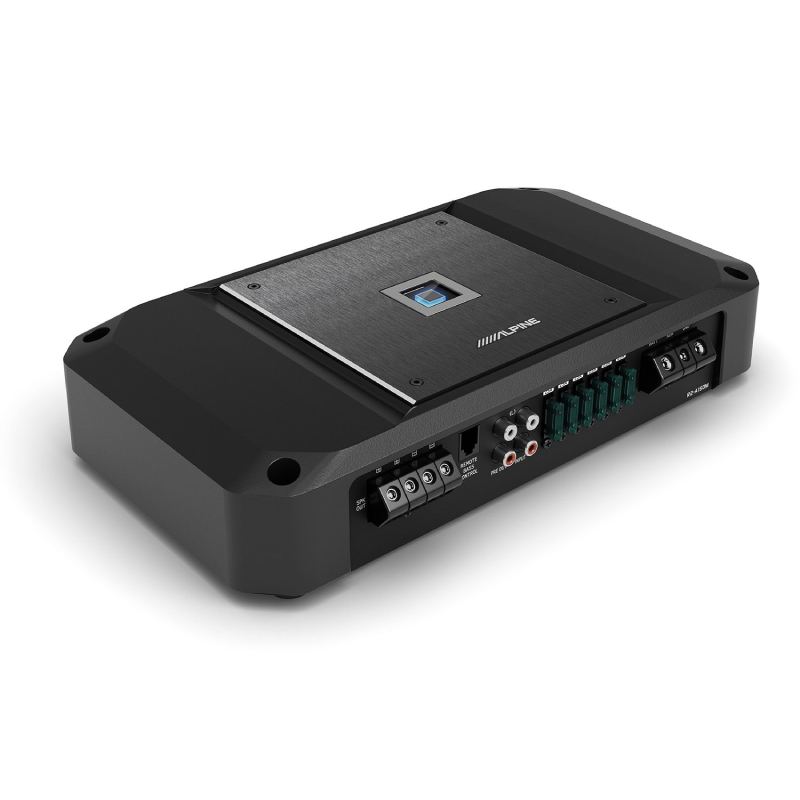

R2-A150M R2-Series 1500W RMS at 1 Ohm Class-D Mono Subwoofer Amplifier



Features:

  • 1500W Mono Amplifier
  • Alpine's Class D Amplifier Circuit
  • One-Sided Terminal Layout
  • Top Panel Sound Controls
  • Integrated Mounting Feet for Simple Installation
  • Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)
  • Black Finish



Specifications:

  • RMS Power Output (Watts x Channels): 700 x 1
  • Peak Power Output (Watts x Channels): ---
  • Power at 2 Ohms (Watts x Channels): 1200 x 1
  • Bridged Power (Watts x Channels): ---
  • Minimum Impedance Bridged: ---
  • Minimum Impedance Unbridged: 1
  • Minimum Impedance: 1
  • Best Frequency Response: 10-400hz Hz
  • THD at Rated RMS Power: 1%
  • Signal to Noise Ratio: 75 dB
  • Input Voltage: 14.4v
  • Amplifier Class: D
  • Low-Pass Crossover Frequency: 50-400 Hz
  • Low-Pass Slope (dB/octave): 24 dB/octave
  • High-Pass Crossover Frequency: N/A
  • High-Pass Slope (dB/octave): N/A
  • Bass Boost: 0-12 dB
  • Bass Boost Frequency: 50 Hz
  • Fan Cooled: No
  • Fuse Rating: 150
  • Speaker Level Inputs: Yes
  • Preamp Outputs: 2
  • Width (inches): 13-1/2
  • Height (inches): 2-5/8
  • Depth (inches): 7-3/4
  • UPC:
  • Weight: 27
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
