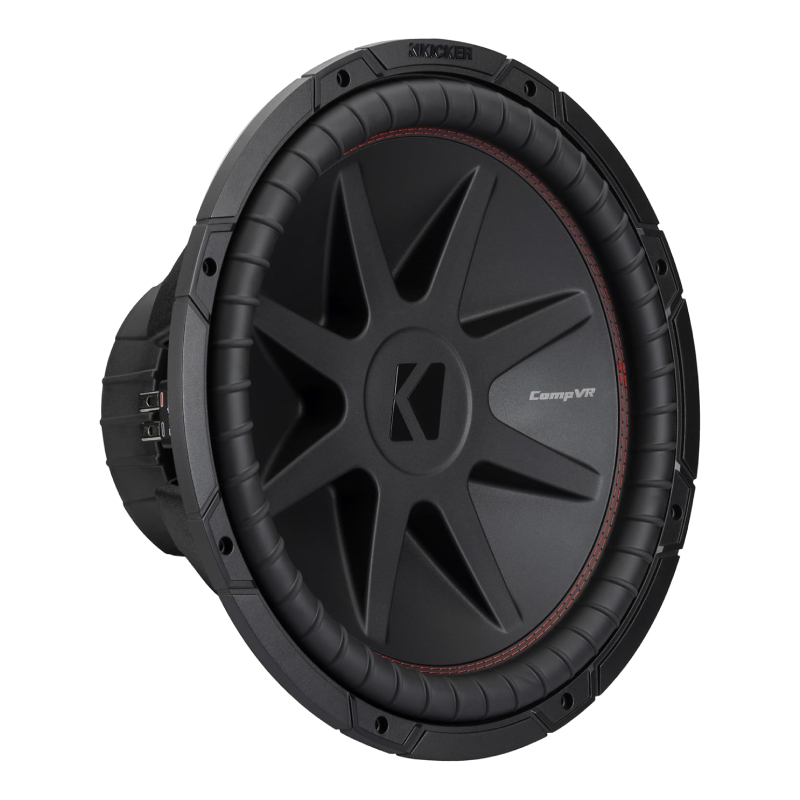

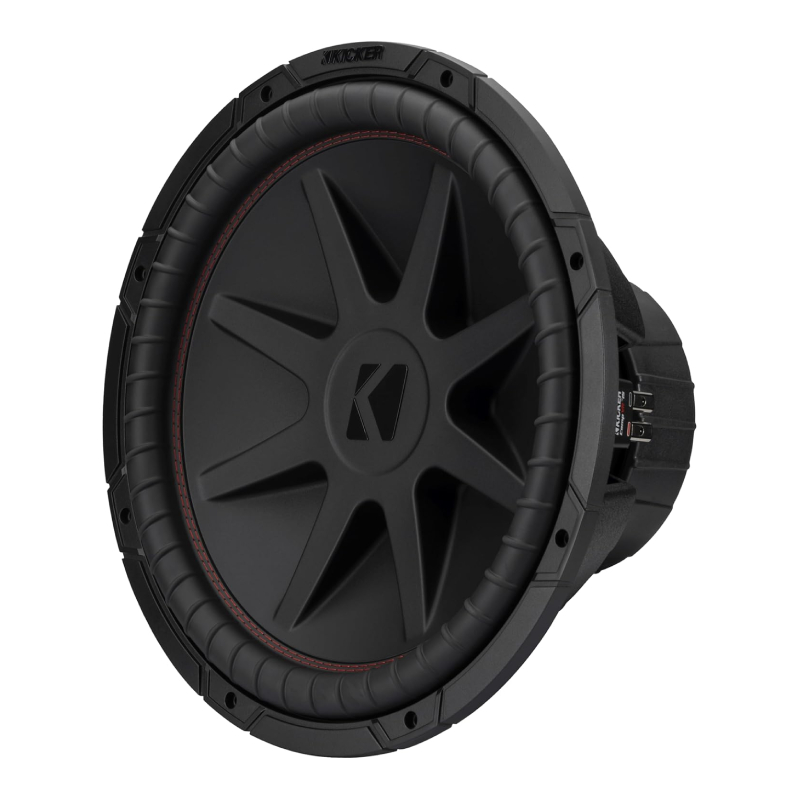

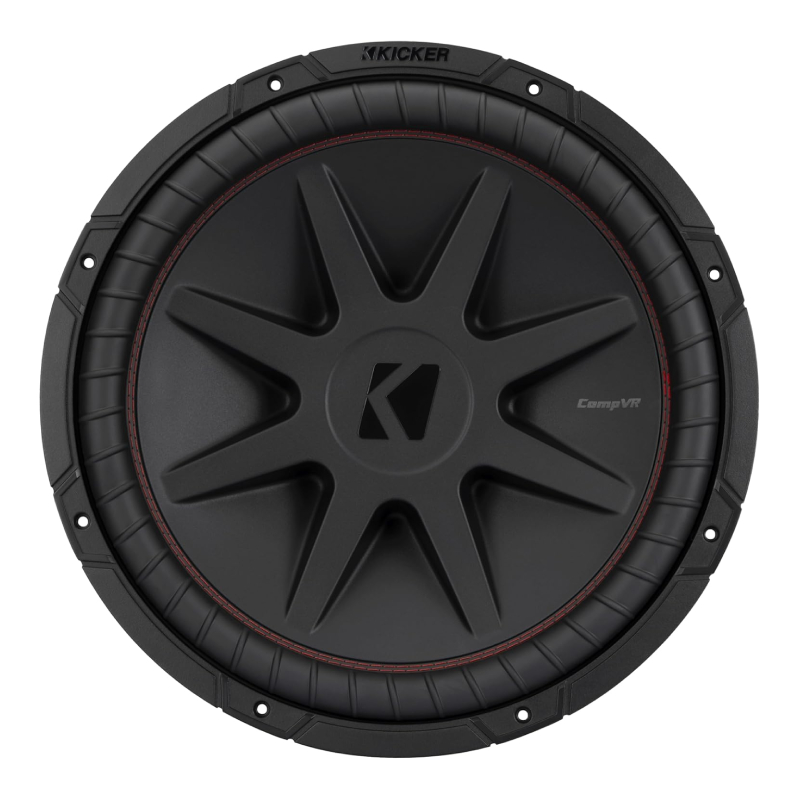

Kicker 52CVR154 CompVR Series 15" 700W RMS (1400W Peak Power Handling) 4 Ohms, Dual Voice Coil Component Car Subwoofer
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 15" CompVR Series Dual Voice Coil Component Car Subwoofer
- • Kicker Logo Sticker
- • Template on box lid
- • Dimensions sheet with manual QR Code
- • Owner's Manual
Why Choose Kicker 52CVR154 Component Car Subwoofer?
Unbeatable Sound Performance
Experience unbeatable sound performance with our subwoofer, designed for sealed or ported enclosures, delivering optimal power with 700 watts RMS, and featuring dual voice coils to maximize amplifier output and flexibility.
Earth-Shaking Bass
Featuring red surround stitching for enhanced durability, SoloKon technology that seamlessly integrates the woofer and back brace into a single cohesive system, and an optimized motor design with KICKER’s Forced-Air Cooling for deep, powerful bass and efficient heat management.
Durable Design for Powerful and Consistent Performance

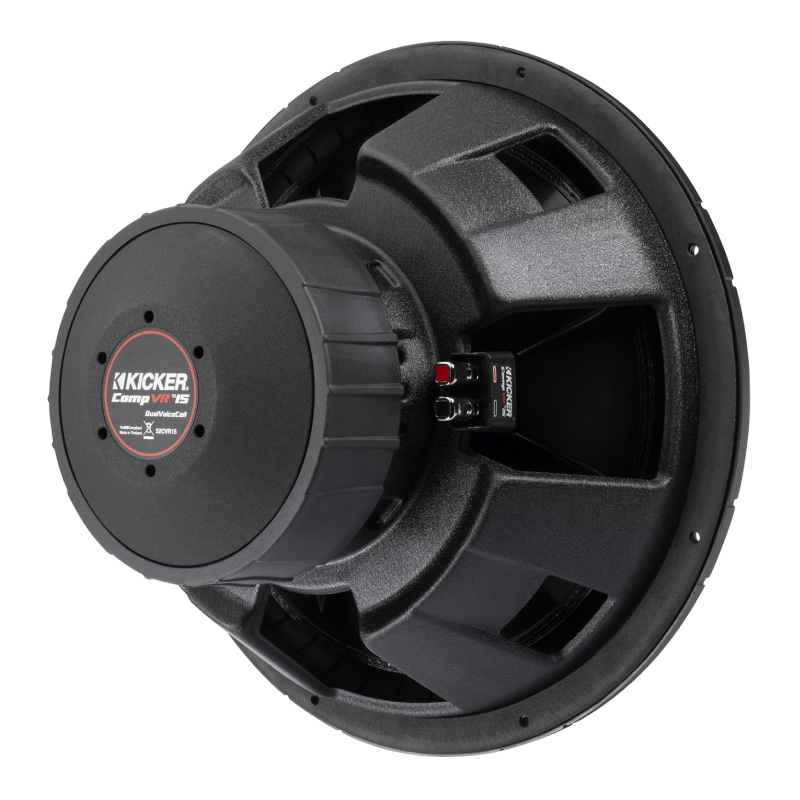

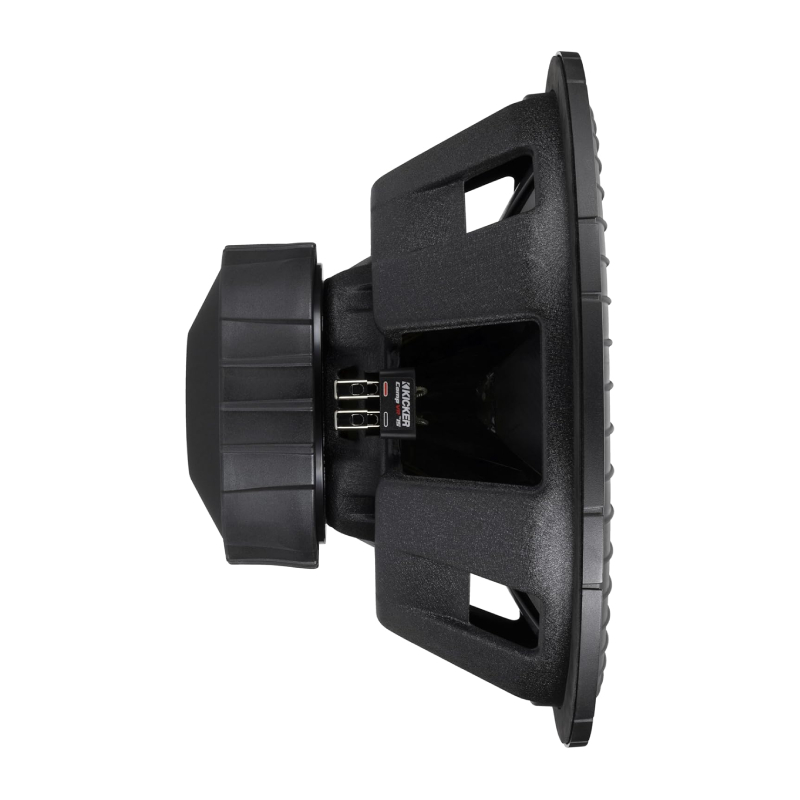

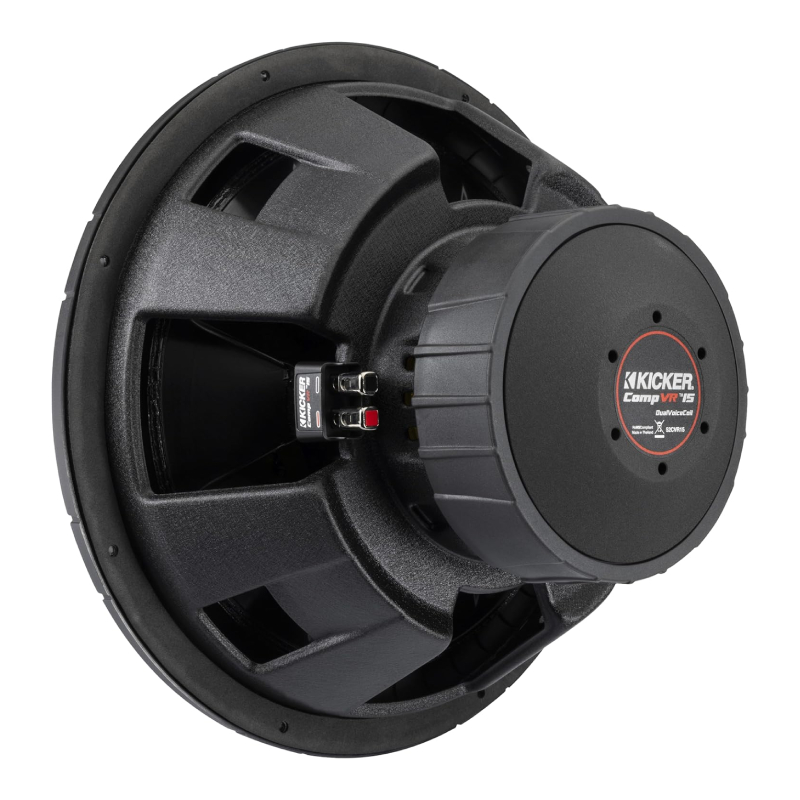

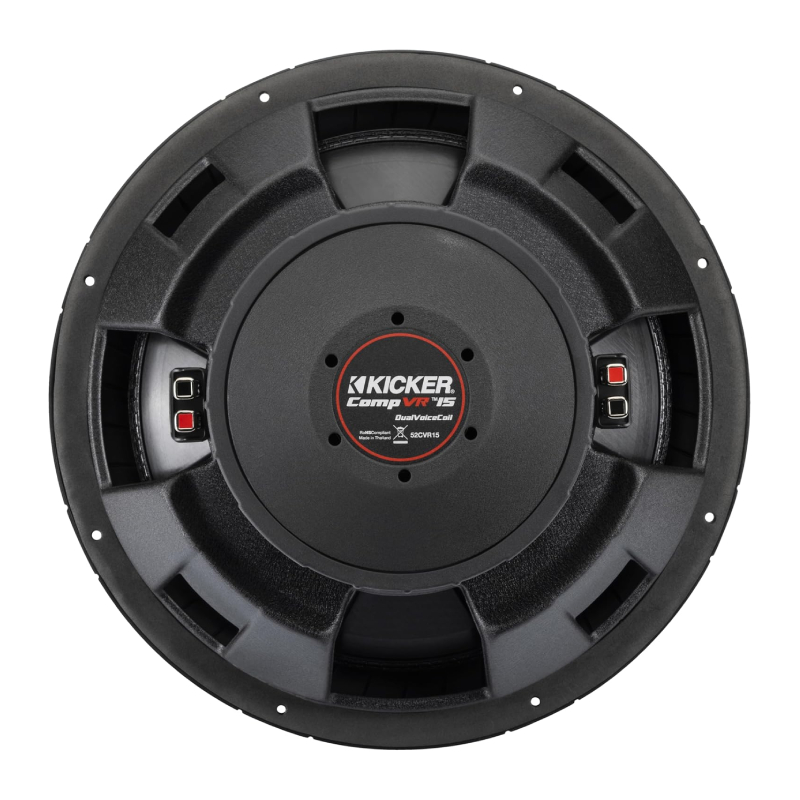

Crafted with a high-strength stamped steel basket to minimize vibration for stable performance, and high-temp voice coils that drive an injection-molded woofer cone, delivering distortion-free bass even at high power levels.
Frequently Asked Questions (FAQ)
- • Why does it sound weak even though my amplifier is powerful enough?
Weak bass is often caused by an enclosure that does not meet the recommended specifications or improper amplifier tuning. Verify the box volume, crossover settings, and speaker polarity before increasing the gain.
- • Can I install this in a sealed enclosure?
Yes. It performs well in both sealed and ported enclosures when they are built according to the recommended internal volume and tuning guidelines.
- • Why does my amplifier keep going into protection mode during heavy bass?
This usually indicates an impedance mismatch, poor wiring, or insufficient electrical power. Check all wiring connections and confirm the amplifier is stable at the final speaker impedance.
- • Why does the rubber surround smell like it is burning after playing music for only 15 minutes?
A burning smell means the voice coils are overheating from a distorted, clipped signal. Turn down the volume immediately and lower your amplifier's gain to prevent permanent damage.
- • Why does the bass become distorted when I turn up the volume?
Amplifier clipping, excessive gain, or incorrect low-pass crossover settings are common causes. Proper tuning produces cleaner bass while helping prevent damage to the subwoofer.
- • Does it require a break-in period?
Yes. Playing music at moderate listening levels for several hours allows the suspension to loosen naturally and improves overall low-frequency performance.
- • Why is my trunk rattling every time the bass hits?
Loose trim panels, license plates, rear deck components, or enclosure hardware commonly vibrate with strong bass. Tightening loose parts and adding sound-deadening material can greatly reduce unwanted rattles.
- • Can I use an amplifier that delivers more RMS power than the subwoofer is rated for?
Yes. A properly adjusted amplifier with clean output is generally safer than an underpowered amplifier that clips at high volume.
- • Why does the cone move but produce very little bass?
This often happens because of reversed polarity, incorrect crossover settings, or an air leak in the enclosure. Verify the wiring, amplifier settings, and enclosure seal before replacing the subwoofer.
- • Can I wire two subwoofers to a single mono amplifier?
Yes. Calculate the combined impedance carefully and make sure it falls within the amplifier's supported operating range before completing the installation.
- Diameter : 15 Inch
- Sensitivity : 89.2 dB
- Impedance : 4 Ohm
- Frequency Response : 25-500 Hz
- Peak Power Handling : 1400 Watts
- Top Mount Depth : 8-3/16 Inches
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 1.8-5.2 Cubic ft.
- Suggested Ported Box Volume : 3.0-5.0 Cubic ft.
- Mounting Depth : 8.19 Inches
- RMS Power Handling : 700 Watts
Features:
- Enclosure Compatibility: Works best with a sealed or ported enclosure
- Recommended Power: 700 watts RMS for optimal performance
- Dual Voice Coils: Provides flexibility and maximizes amplifier output
- Red Surround Stitching: Perfectly binds the surround to the cone for added durability
- SoloKon Technology: Combines the woofer and back brace into one cohesive system
- Optimized Motor Design: Features KICKER's Forced-Air Cooling for hard-hitting bass and efficient cooling
- High-Strength Stamped Steel Basket: Reduces vibration for stable performance
- High-Temp Voice Coils: Moves an injection-molded woofer cone for distortion-free bass at high power
Specifications:
- Woofer: 15 in (38 cm)
- Impedance: 4 Ohm DVC
- Recommended Amp Power: 350-700 watts RMS
- Peak Power Handling: 1400 watts
- Frequency Response: 25-500 Hz
- Sensitivity: 89.2 dB (1W, 1m)
- Mounting Hole Diameter: 13-3/4 in (34.9 cm)
- Mounting Depth: 8-3/16 in (20.8 cm)
- Sealed Enclosure Volume Min-Max: 1.8-5.2 cu. ft (51-147 L)
- Vented Enclosure Volume Min-Max: 3-5 cu. ft (85-142 L)
- UPC: 713034093510
- Weight: 23.6
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
