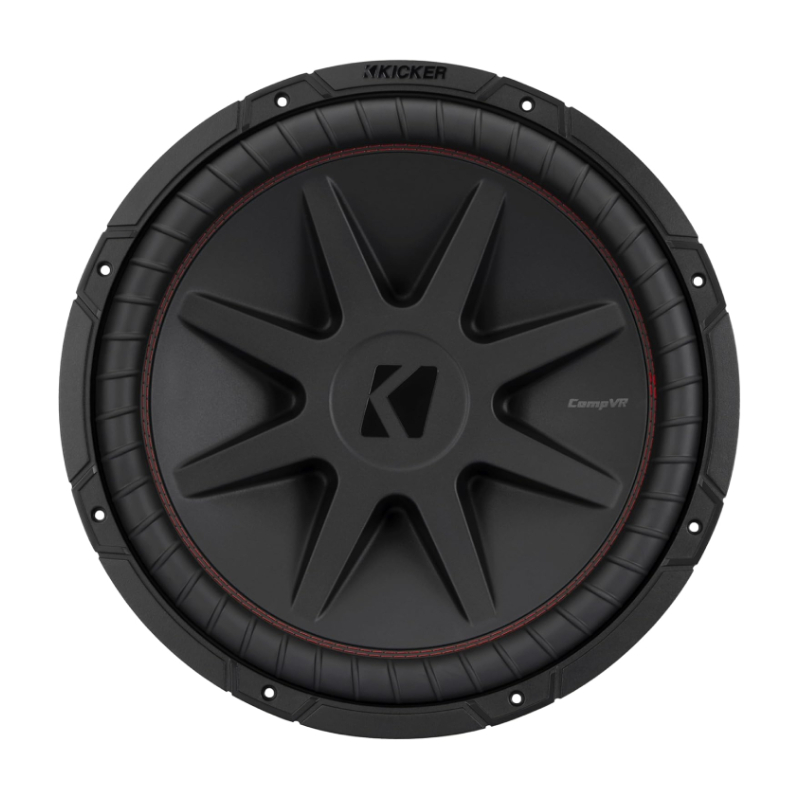

Kicker 52CVR124 CompVR Series 12" 450W RMS (900W Peak Power Handling) 4 Ohms, Dual Voice Coil Component Car Subwoofer
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12" CompVR Series Dual Voice Coil Component Car Subwoofer
- • Kicker Logo Sticker
- • Template on box lid
- • Dimensions sheet with manual QR Code
- • Owner's Manual
Why Choose Kicker 52CVR124 Component Car Subwoofer?
Unbeatable Sound Performance
Experience unbeatable sound performance with our subwoofer, designed for sealed or ported enclosures, delivering optimal power with 450 watts RMS, and featuring dual voice coils to maximize amplifier output and flexibility.
Earth-Shaking Bass
Featuring red surround stitching for enhanced durability, SoloKon technology that seamlessly integrates the woofer and back brace into a single cohesive system, and an optimized motor design with KICKER’s Forced-Air Cooling for deep, powerful bass and efficient heat management.
Durable Design for Powerful and Consistent Performance
Crafted with a high-strength stamped steel basket to minimize vibration for stable performance, and high-temp voice coils that drive an injection-molded woofer cone, delivering distortion-free bass even at high power levels.
Frequently Asked Questions (FAQ)
- • Why is it making a rattling sound even at low volume levels?
Weak bass is usually caused by an enclosure that doesn't match the recommended specifications or incorrect amplifier tuning. Verify the box volume, crossover settings, and speaker polarity before increasing the amplifier gain.
- • Can I use this in a sealed or ported enclosure?
Yes. It is designed to perform well in either enclosure type when built according to the recommended internal volume and tuning specifications.
- • Why does my amplifier enter protection mode when the bass gets loud?
This commonly indicates an impedance mismatch, faulty wiring, or insufficient electrical power. Check the wiring configuration and make sure the amplifier supports the final speaker load.
- • Can I connect this to a factory head unit?
Yes. You'll need an external amplifier, and many factory audio systems also require a line output converter to provide a compatible signal.
- • Why does the bass sound distorted when I increase the volume?
Amplifier clipping, excessive gain, or incorrect crossover settings are the most common causes. Proper amplifier tuning delivers cleaner bass while reducing the risk of speaker damage.
- • Does it need to be broken in before it reaches full performance?
Yes. Playing music at moderate volume for several hours allows the suspension to loosen naturally and improves overall bass response.
- • Why do I hear rattling noises from my trunk when the bass hits?
Loose trim panels, license plates, or enclosure hardware are often responsible for unwanted vibrations. Tightening these components and adding sound-deadening material can greatly reduce rattling.
- • Can I use an amplifier that has a higher RMS rating than the subwoofer?
Yes. A properly tuned amplifier with clean power is generally safer than an underpowered amplifier that clips when driven too hard.
- • What causes the cone to feel completely locked up and stiff when I try to push it manually?
A completely frozen cone is a classic sign of a melted voice coil that has physically fused to the internal magnet gap due to severe overheating.
- • How do I wire the dual 4-ohm voice coils to get a 2-ohm load??
To drop the total impedance to 2 ohms, wire the voice coils in parallel by jumping both positive terminals together and both negative terminals together before connecting to the amp.
- Diameter : 12 Inch
- Sensitivity : 86.9 dB
- Impedance : 4 Ohm
- Frequency Response : 25-500 Hz
- Peak Power Handling : 900 Watts
- Top Mount Depth : 6-3/8 Inches
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 1.0-4.6 Cubic ft.
- Suggested Ported Box Volume : 1.75-2.25 Cubic ft.
- Mounting Depth : 6.38 Inches
- RMS Power Handling : 450 Watts
Features:
- Dual 4-Ohm Voice Coils: Flexible wiring options for parallel or series configurations.
- Progressive-Roll Spider: Ensures smooth, linear cone movement for precise bass output.
- Ribbed Santoprene Surround: Promotes controlled excursion and long-term durability.
- Reengineered Suspension System: Optimized for high-power handling without distortion.
- High-Excursion Cone: Produces deep, punchy bass across a wide frequency range.
- Versatile Enclosure Compatibility: Performs well in sealed or ported boxes for tailored sound.
- Robust Basket and Motor Structure: Supports reliable performance under heavy power loads.
Specifications:
- Size: 12" (30 cm)
- Impedance: 4 Ohms DVC
- Recommended Amplifier Power: 225–450 watts RMS
- Peak Power Handling: 900 watts
- Frequency Response: Not specified (optimized for low-end performance)
- Sensitivity: 86.9 dB at 1 watt / 1 m
- Mounting Depth: 6-3/8" (16.2 cm)
- Mounting Diameter: 11" (27.9 cm)
- Minimum Sealed Box Volume: 1 cu. ft. (28.3 L)
- Maximum Sealed Box Volume: 4.6 cu. ft. (130 L)
- Minimum Vented Box Volume: 1.75 cu. ft. (49.6 L)
- Maximum Vented Box Volume: 2.25 cu. ft. (63.7 L)
- UPC: 713034093497
- Weight: 13.3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
