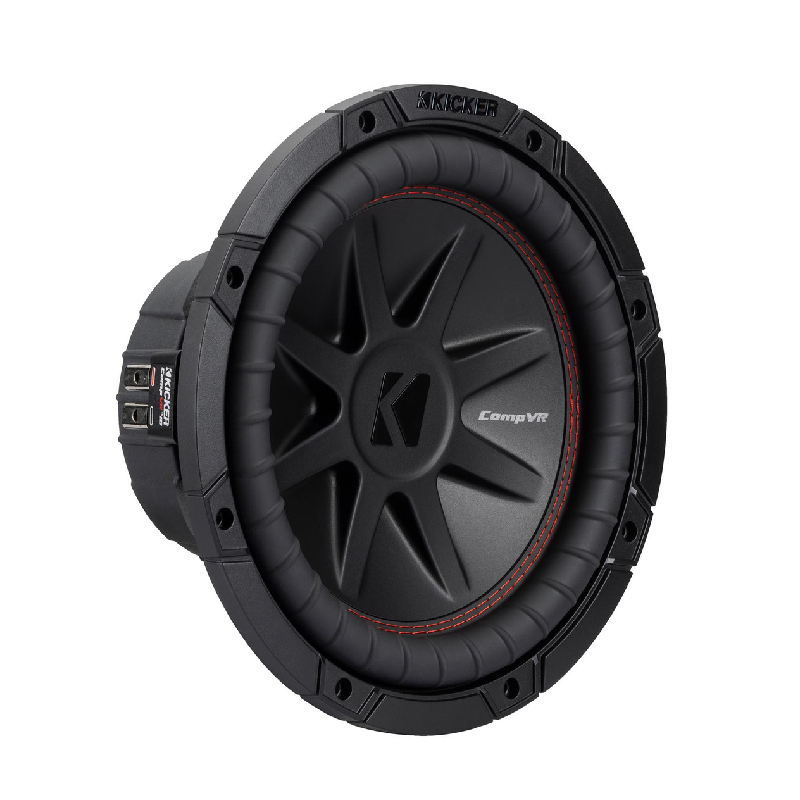

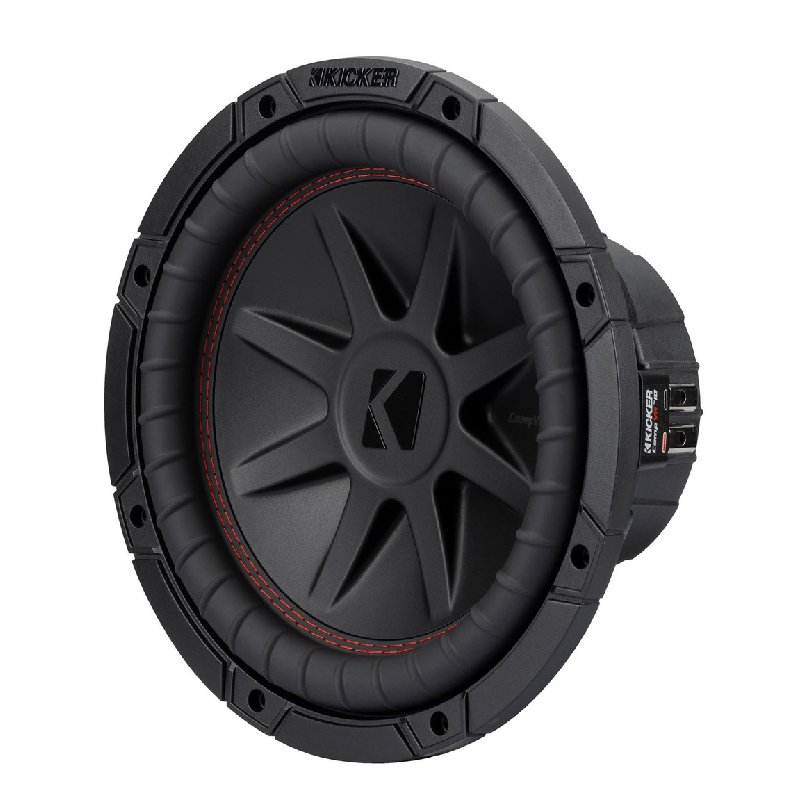

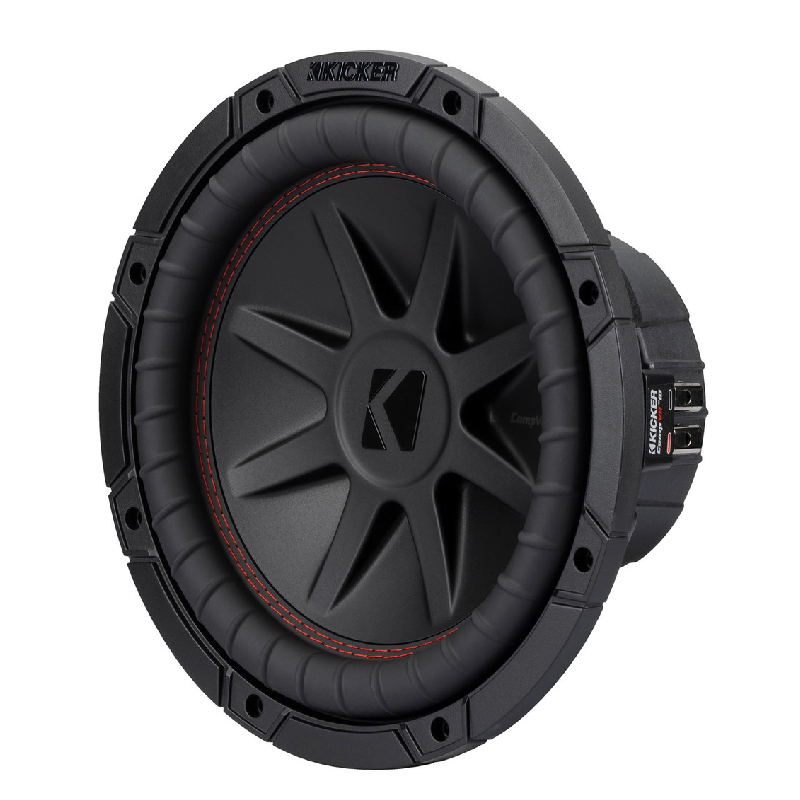

Kicker 52CVR104 CompVR Series 10" 375W RMS (750W Peak Power Handling) 4 Ohms, Dual Voice Coil Component Car Subwoofer
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" CompVR Series Dual Voice Coil Component Car Subwoofer
- • Kicker Logo Sticker
- • Template on Box lid
- • Owner's Manual
Why Choose Kicker 52CVR104 Component Car Subwoofer?
Unbeatable Sound Performance
Experience unbeatable sound performance with our subwoofer, designed for sealed or ported enclosures, delivering optimal power with 375 watts RMS, and featuring dual voice coils to maximize amplifier output and flexibility.
Earth-Shaking Bass
Featuring red surround stitching for enhanced durability, SoloKon technology that seamlessly integrates the woofer and back brace into a single cohesive system, and an optimized motor design with KICKER’s Forced-Air Cooling for deep, powerful bass and efficient heat management.
Durable Design for Powerful and Consistent Performance
Crafted with a high-strength stamped steel basket to minimize vibration for stable performance, and high-temp voice coils that drive an injection-molded woofer cone, delivering distortion-free bass even at high power levels.
Frequently Asked Questions (FAQ)
- • Why does it make a scratching or scraping noise during playback?
A scratching sound may indicate a damaged voice coil or debris inside the motor assembly. Stop using the subwoofer until the enclosure and speaker are inspected to prevent further damage.
- • Can cold weather affect my subwoofer's performance?
Yes. Low temperatures can temporarily stiffen the suspension, reducing bass output until the speaker warms up during normal playback.
- • Why is it getting hot after only a short listening session?
Excessive heat is often caused by amplifier clipping, excessive power, or poor enclosure ventilation. Lower the volume and verify your amplifier settings to avoid overheating.
- • Can I mount this facing down in the enclosure?
Yes, if the enclosure provides adequate clearance between the cone and the mounting surface. Always follow the recommended installation guidelines to avoid restricting cone movement.
- • Why does the bass seem delayed compared to my door speakers?
This can happen because of incorrect DSP settings, time alignment, or crossover configuration. Adjusting the audio processor or head unit settings can improve system integration.
- • Is it normal for a new subwoofer to smell during the first few days?
A mild odor from adhesives and voice coil materials can be normal during the initial break-in period. A strong burning smell, however, usually indicates overheating or amplifier clipping.
- • Why does my bass disappear when I play certain songs?
Some recordings contain very little low-frequency content, while others may expose incorrect crossover or EQ settings. Test multiple tracks before making changes to your system.
- • Can I reuse my old enclosure with this speaker?
Yes, but only if the enclosure's internal volume and tuning match the recommended specifications. An incorrect enclosure can significantly reduce bass quality and efficiency.
- • Why does my vehicle's interior lights dim when the bass hits?
Dimming lights usually indicate that the electrical system is struggling to supply enough current. Upgrading the battery, wiring, or charging system may improve overall performance.
- • Can I listen to the subwoofer at maximum volume for long periods?
Continuous operation at maximum output increases heat buildup and can shorten the lifespan of the speaker. Keeping the amplifier properly tuned and avoiding clipping will improve long-term reliability.
- Diameter : 10 Inch
- Sensitivity : 83.6 dB
- Impedance : 4 Ohm
- Frequency Response : 30-500 Hz
- Peak Power Handling : 750 Watts
- Number of Voice Coils : Dual
- Mounting Depth : 5.50 Inches
- RMS Power Handling : 375 Watts
Features:
- 10-inch CompVR Subwoofer: Best performance with sealed or ported enclosure
- Recommended Power: 375 watts RMS
- Dual Voice Coils: Maximizes amplifier performance
- Red Wrap Stitching: Seamlessly ties the contour to the cone
- SoloKon Technology: Combines the woofer and rear mount into a cohesive system
- Optimized Motor Design: Features KICKER forced air cooling for strong bass and optimal cooling
- Heavy-Duty Stamped Steel Basket: Reduces vibration for clearer sound
- High-Temperature Voice Coils: Moves the injection-molded woofer cone for strong, distortion-free bass
Specifications:
- Woofer [in, cm]: 10, 25
- Impedance: 4 Ohm DVC
- Recommended Amp Power [watts RMS]: 180-375
- Peak Power Handling [watts]: 750
- Frequency Response [Hz]: 30-500
- Sensitivity [dB; 1W, 1m]: 83.6
- Mounting Hole Diameter [in, cm]: 9-3/16, 23.3
- Mounting Depth [in, cm]: 5-1/2, 14
- Sealed Enclosure Vol. Min-Max (cu. ft, L): 0.8-3.0, 22.7-85.0
- Vented Enclosure Vol. Min-Max (cu. ft, L): 1.25-1.75, 35.4, 49.6
- UPC: 713034093473
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
