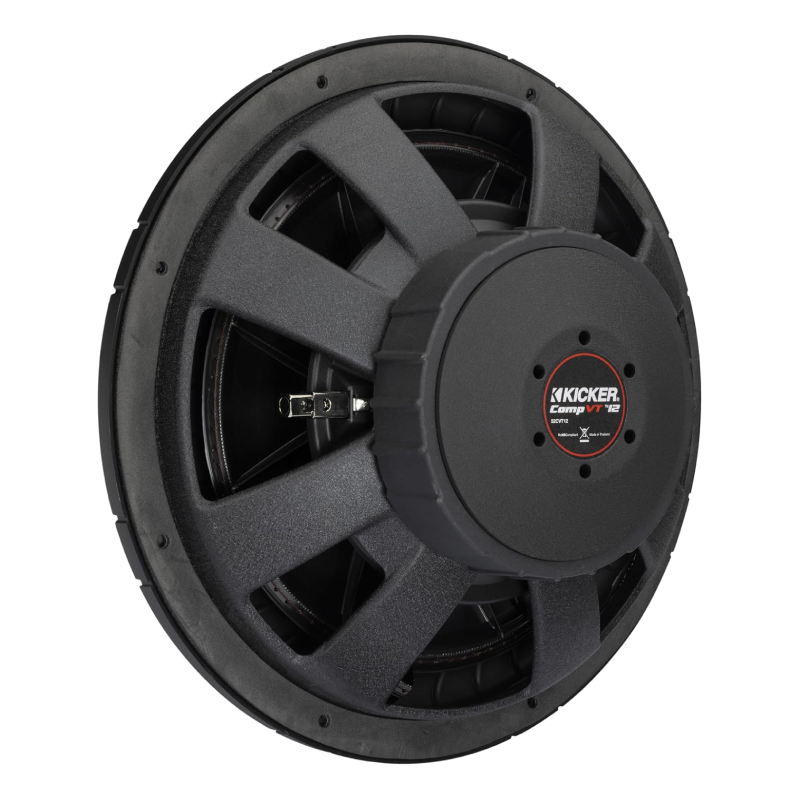

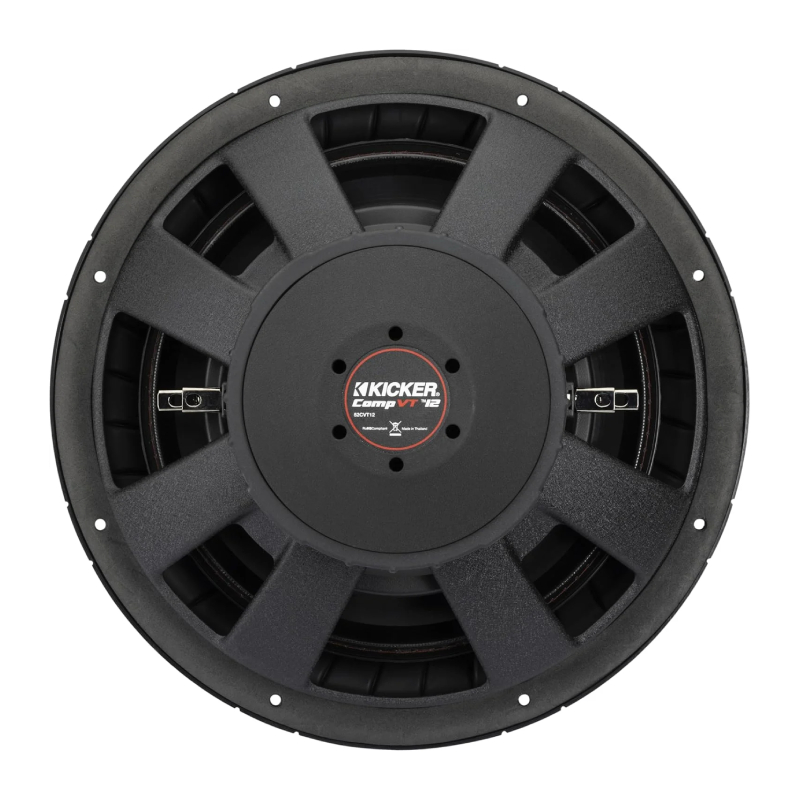

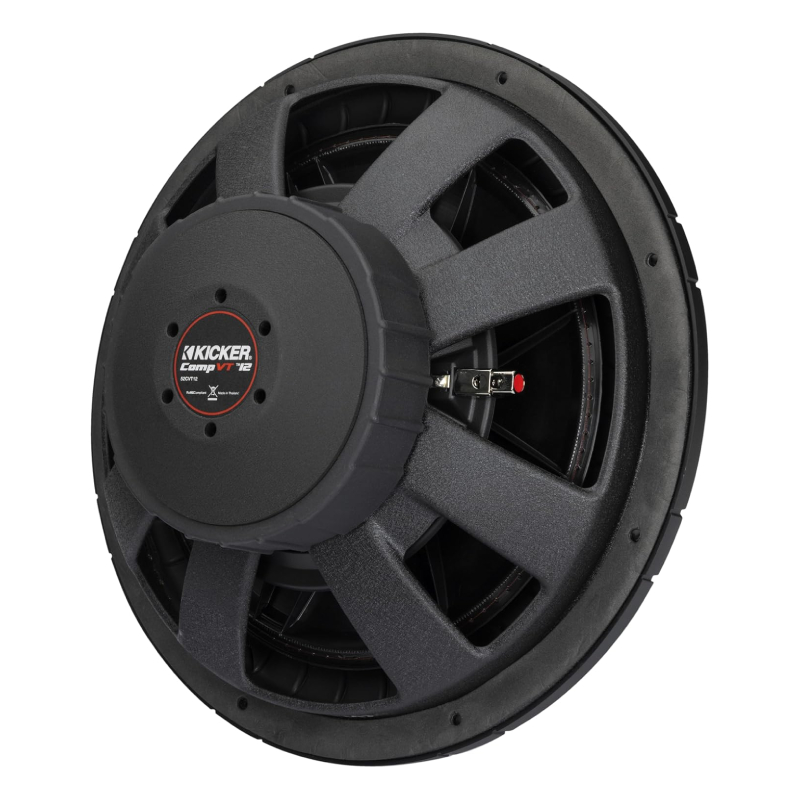

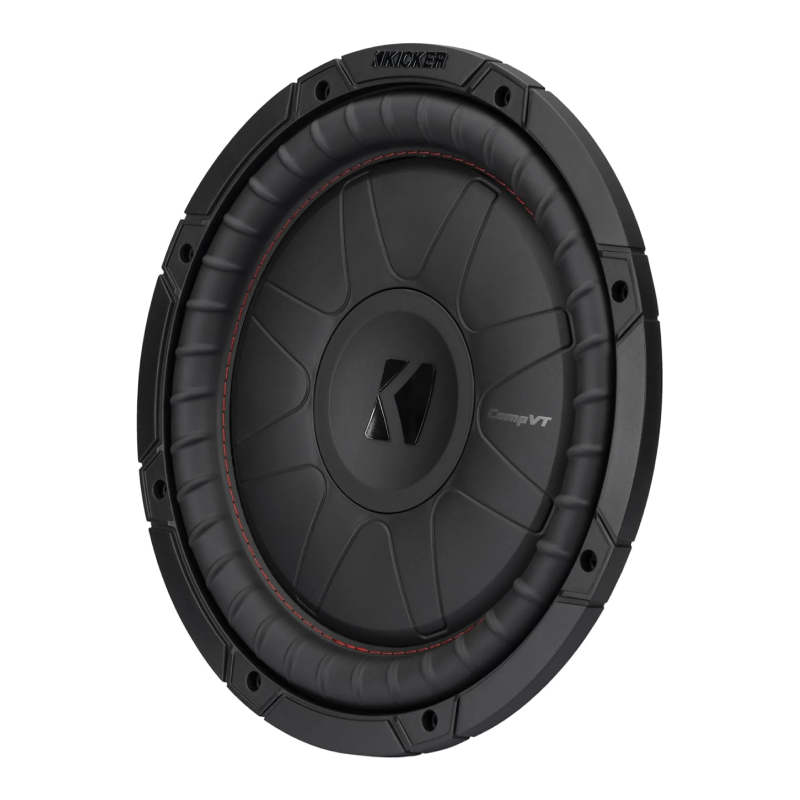

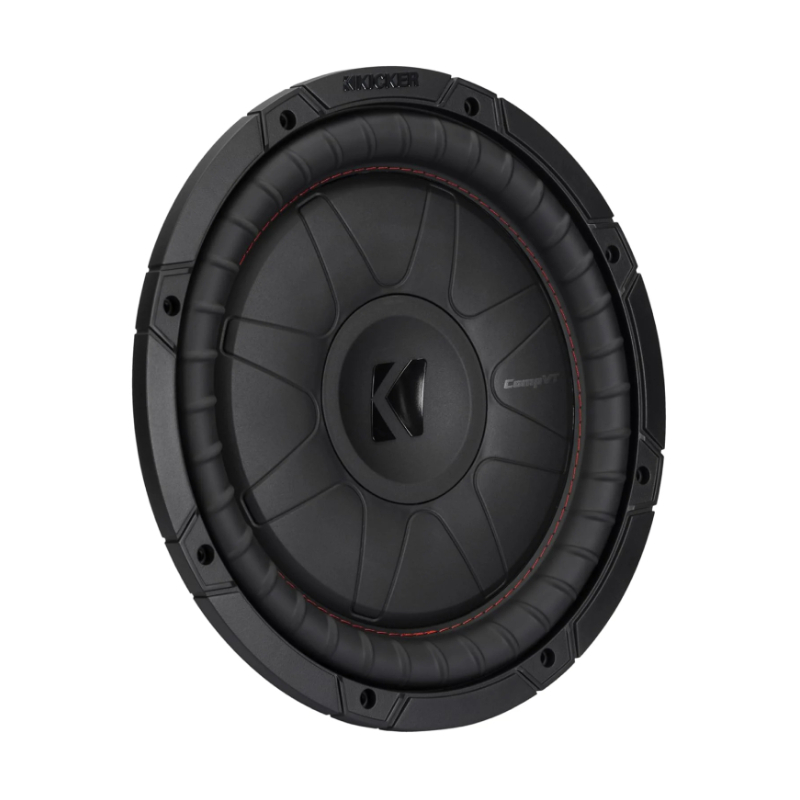

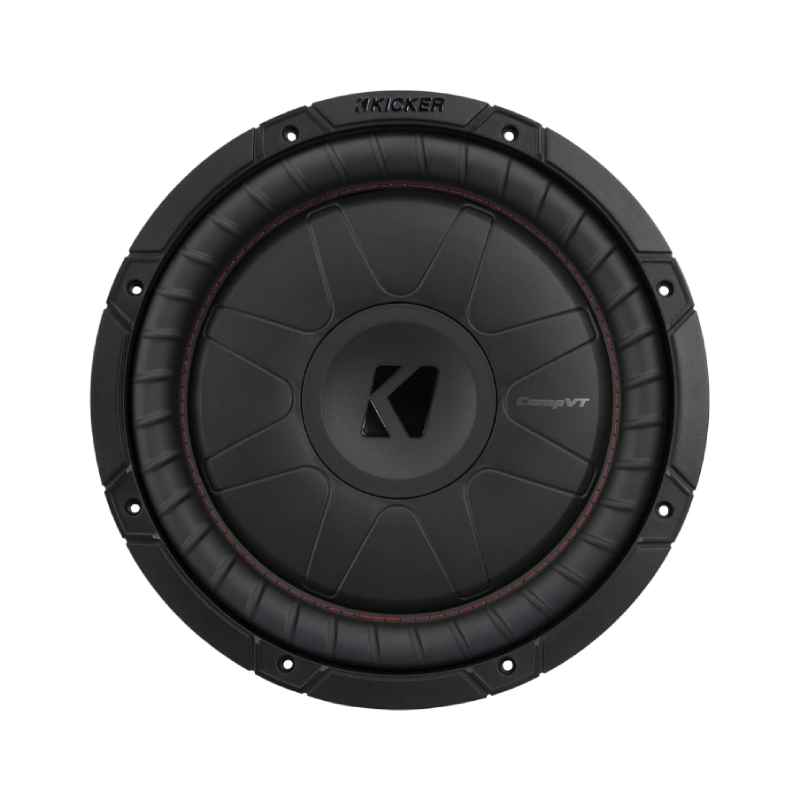

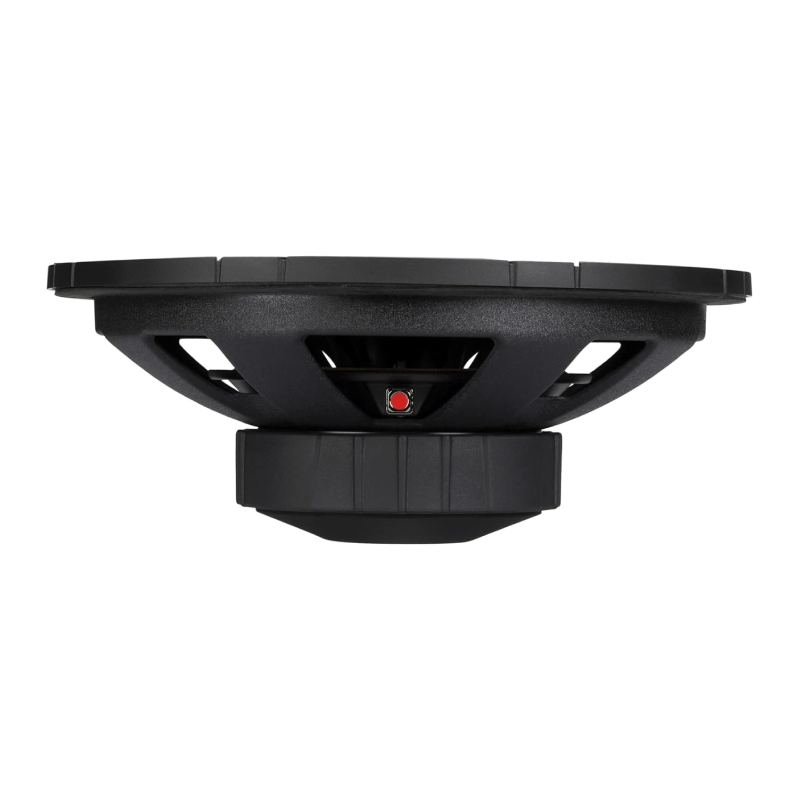

Kicker 52CVT124 CompVT Series 12" 450W RMS (900W Peak Power Handling) 4 Ohms, Single Voice Coil Component Car Subwoofer
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12" CompVT Series Single Voice Coil Component Car Subwoofer
- • Kicker Logo Sticker
- • Template on Box lid
- • Dimensions sheet with manual QR Code
- • Owner's Manual
Why Choose Kicker 52CVT124 Component Car Subwoofer?
Unbeatable Sound Performance
Experience powerful, high-performance sound with the 12-inch woofer, featuring a versatile 2 or 4 SVC impedance, handling up to 900 watts of peak power. Designed for ultimate clarity and punch, it delivers an impressive frequency response of 25-500 Hz and a sensitivity of 87.1 dB @ 1W, 1m, making it the perfect choice for those seeking deep, distortion-free bass and exceptional amplifier compatibility (225-450 watts RMS).
Earth-Shaking Bass
Achieve superior sound quality with this subwoofer, optimized for both sealed and ported enclosures, and delivering a powerful 450 watts RMS. Featuring individual voice coils for precise audio control and a unique red wrap stitching that seamlessly connects the surround to the modified radius cone, this subwoofer ensures distortion-free bass. The innovative SoloKon design merges the woofer and rear mount into one unified system, providing unmatched performance and reliability.
Durable Design for Powerful and Consistent Performance
Unleash powerful, deep bass with advanced features like the optimized motor design and KICKER forced air cooling system, ensuring both strong performance and efficient cooling. The slim, shallow-mount design offers easy installation, while the heavy-duty stamped steel basket reduces vibration for clearer sound. Enjoy distortion-free bass with the high-temperature voice coil, and experience enhanced audio performance thanks to the injection-molded woofer cone, which moves hundreds of times per second for crisp, dynamic sound.
Frequently Asked Questions (FAQ)
- • Why doesn't it hit the low notes like a full-size model?
Shallow-mount subwoofers prioritize compact installation while still delivering strong bass. Using the recommended enclosure and proper amplifier tuning will maximize low-frequency performance.
- • Can I install this under the rear seat of my truck?
Yes. Its shallow mounting depth makes it suitable for many under-seat truck enclosures with limited clearance.
- • Why does my subwoofer bottom out on heavy bass notes?
This can happen if the enclosure is incorrect or the amplifier is sending excessive power or clipped signals. Verify the enclosure specifications and reduce the amplifier gain if necessary.
- • Can I use this with a ported enclosure?
Yes. It supports both sealed and ported enclosures when they are built according to the recommended air volume and tuning specifications.
- • Why do I hear a humming noise even when no music is playing?
A constant hum is usually caused by a ground loop, poor grounding, or signal interference. Inspect the amplifier ground and RCA cable routing to eliminate unwanted noise.
- • Is a capacitor necessary for this subwoofer setup?
Not in most installations. A healthy charging system and properly sized power wiring usually provide better results than adding a capacitor.
- • Why does it stop playing after driving for a while?
The amplifier may be entering thermal protection because of overheating or low impedance. Check for adequate ventilation and confirm the wiring matches the amplifier's specifications.
- • Can I mount the enclosure facing upward instead of toward the rear?
Yes. The enclosure orientation can be adjusted, although bass response may vary depending on your vehicle's cabin acoustics.
- • Why does it play loudly with some songs but not others?
Music recordings contain different bass levels and frequency ranges. Testing multiple tracks and fine-tuning the crossover and EQ can provide more consistent performance.
- • How can I improve bass without replacing my subwoofer?
Optimizing the enclosure, amplifier gain, crossover frequency, and speaker placement often produces noticeable improvements. Eliminating air leaks and securing loose panels can also enhance bass quality.
- Diameter : 12 Inch
- Sensitivity : 87.1 dB
- Impedance : 4 Ohm
- Peak Power Handling : 900 Watts
- Top Mount Depth : 4-38 Inches
- Shallow Mount : Yes Inch
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 1.0-4.6 Cubic ft.
- Suggested Ported Box Volume : 1.75-2.25 Cubic ft.
- Mounting Depth : 4.375 Inches
- RMS Power Handling : 450 Watts
Features:
- Enclosure Compatibility: Performs best with a sealed or ported enclosure
- Recommended Power: 450 watts RMS
- Voice Coil Design: Equipped with individual voice coils
- Surround Construction: Red wrap stitching ties the surround seamlessly to the modified radius cone
- Integrated System: SoloKon design combines the woofer and rear mount into one cohesive system
- Cooling System: Optimized motor design with KICKER forced air cooling for strong bass and optimal cooling
- Mounting Design: Slim, shallow-mount design
- Vibration Control: Heavy-duty stamped steel basket reduces vibration
- Distortion-Free Performance: High-temperature voice coil enables distortion-free bass
- Cone Movement: Injection-molded woofer cone moves hundreds of times per second for enhanced performance
Specifications:
- Woofer Size: 12 inches (30 cm)
- Impedance: 4 Ohm SVC
- Recommended Amplifier Power: 225-450 watts RMS
- Peak Power Handling: 900 watts
- Frequency Response: 25-500 Hz
- Sensitivity: 87.1 dB @ 1W, 1m
- Mounting Hole Diameter: 11 inches (27.9 cm)
- Mounting Depth: 4-3/8 inches (11.1 cm)
- Sealed Enclosure Volume (Min-Max): 1.0-4.6 cu. ft (28.3-130.0 L)
- Vented Enclosure Volume (Min-Max): 1.75-2.25 cu. ft (49.6-63.7 L)
- UPC: 713034093459
- Weight: 11.5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
