SSV Works KX-Q3A1 A-Spec 3-Speaker Plug and Play Kit (6.5” Front-Kick Pods with Speakers, 10" Subwoofer, Phase EQ Amplifier, and JVC MR3) for 2020-2024 2-Seater Kawasaki Teryx KRX1000
We are a SSV Works authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

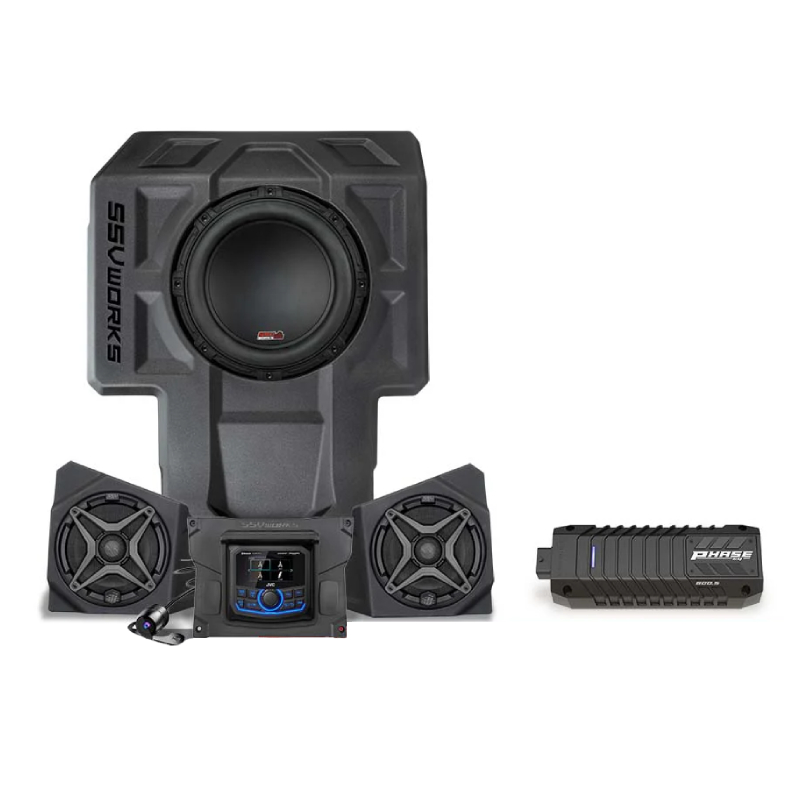

What's Inside?
- • JVC MR3 Bluetooth Headunit w/ Backup Camera
- • 6.5" Front-Kick Speaker-Pods w/ SSV Works Speakers
- • 10" Subwoofer-Enclosure with SSV Works Subwoofer

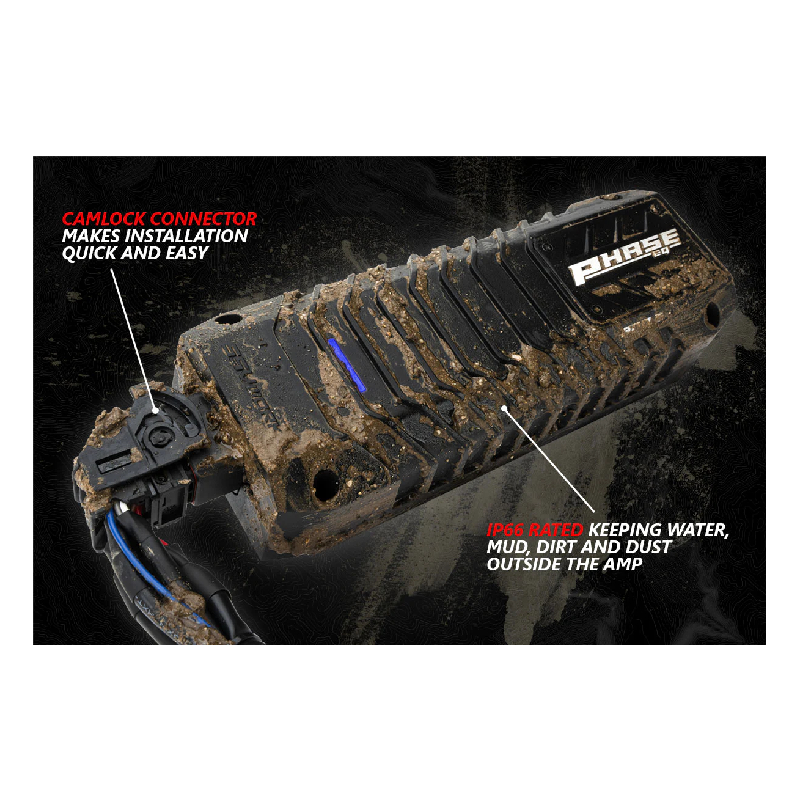

- • Phase EQ Amplifier with Pre-Mounted Direct-Fit Amp Mounting Plate
- • Plug and Play Wiring Kit
Ride Louder, Ride Stronger – The Ultimate Off-Road Audio Kit
Transform your 2020+ 2-Seater Kawasaki KRX1000 with a premium Plug and Play audio system built for adventure. No cutting, no crimping—just bolt it in, plug it up, and hit the trails. Engineered to withstand dust, mud, and rugged terrain, this system delivers crystal-clear sound with our patented Phase EQ™ tuning and Rock and Ride™ switch for optimized audio on and off the trail. Built by SSV Works, the pioneers of off-road audio, this kit lets you spend less time installing and more time riding with the soundtrack you deserve!
Frequently Asked Questions (FAQ)
- • Why does my phone connect to the KX-Q3A1 but fail to play music?
If Bluetooth shows as connected but audio is silent, check that the JVC source is actually set to Bluetooth and that your phone is sending media audio to the receiver rather than another previously paired device.
- • What if the front speaker pods interfere with my KRX1000 foot area?
The included kick pods are vehicle-specific, but aftermarket floor mats, pedals, or other accessories can affect available clearance. Remove or reposition interfering accessories before forcing the enclosure into place.
- • Why does the audio suddenly stop when I turn the volume up?
A sudden shutdown can indicate the amplifier entering protection because of excessive load, a wiring problem, inadequate power, or overheating. Check the amplifier connections and speaker wiring before repeatedly increasing the volume.
- • Why is my KRX1000 battery weaker after installing the complete audio system?
A multi-component system containing an amplifier, receiver, speakers, and subwoofer places a greater electrical demand on the vehicle. If the system remains powered when the vehicle is parked, check the accessory/turn-on wiring and verify that the audio system shuts down with the vehicle. SSV Works describes the KX-Q3A1 as a plug-and-play system with a vehicle-specific wiring kit.
- • Why are the front speakers loud while the 10-inch subwoofer has very little bass?
Check the subwoofer connection, amplifier settings, crossover, and phase configuration. The KX-Q3A1 uses a 10-inch SSV Works subwoofer rated at 500W RMS, so weak bass can be caused by configuration or signal problems rather than simply insufficient speaker size.
- • Why does the sound change when I switch between different audio profiles?
The SSV Works system uses sound processing designed for different listening environments. Its KRX1000 systems can use profiles intended to compensate for wind, engine noise, and helmet use, so a noticeable change in bass or vocal balance between modes can be intentional rather than a speaker fault.
- • What should I inspect if the speakers start rattling after several trail rides?
Check the speaker-pod fasteners, subwoofer mounting hardware, amplifier mounting plate, and nearby dashboard or body panels. Off-road vibration can loosen surrounding components even when the original installation was secure.
- • Why does the backup-camera image not appear when I expect it to?
Verify the camera connection and confirm that the receiver is receiving the proper reverse signal. The KX-Q3A1 package includes a JVC head unit with backup-camera capability, so a camera display problem may involve the signal or trigger wiring rather than the audio speakers.
- • What if one of the plug-and-play connectors does not seem to reach its intended component?
Do not stretch or modify the harness immediately. Follow the vehicle-specific wiring path and verify that each connector is going to the correct component; the system is designed around preconfigured KRX1000 wiring rather than universal aftermarket routing.
- • Can I transfer the KX-Q3A1 into a different KRX1000 configuration?
The listed KX-Q3A1 application is specifically for the 2020–2024 Kawasaki Teryx KRX1000 2-seater, so moving the complete kit to another configuration should not be assumed to be a direct fit. Vehicle-specific speaker and enclosure locations are part of the system's design.
Features:
- Plug-&-Play: No soldering, cutting, or crimping required. Simply bolt down the speaker enclosures, connect the vehicle-specific plug-&-play wiring, turn the key, and go! Designed for quick and easy installation so you can spend less time wrenching and more time riding.
- Factory Fit and Finish: Designed to seamlessly match the factory styling, ensuring a precise fit that looks like it came straight from the manufacturer.
- Trail Ready: Built to withstand harsh off-road conditions, including sand, dust, water, and snow, without compromising premium audio quality.
- Premium Quality: Features the patented Phase EQ™ amplifier and Rock and Ride™ switch for top-tier UTV audio performance.
- Phase EQ: Advanced Digital Signal Processing (DSP) tuning optimizes frequencies for the best possible sound quality, tailored specifically to your vehicle and audio kit. Unlike traditional amps, Phase EQ maximizes power output, outperforming larger, high-wattage amplifiers without sacrificing sound quality.

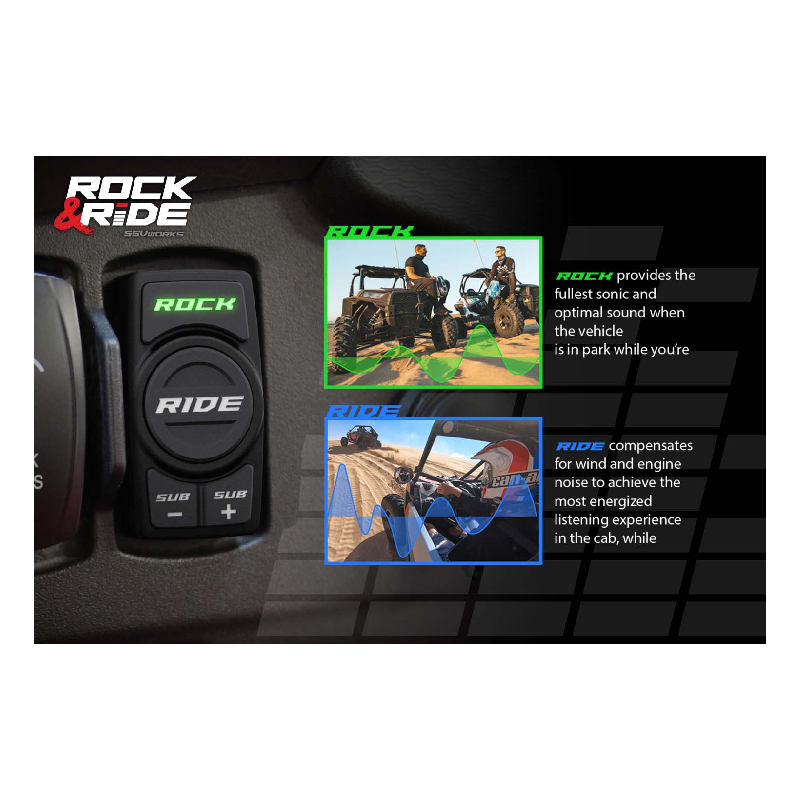

- Rock and Ride Switch: Easily switch between two audio profiles to match your environment:
- RIDE Mode: Enhances audio for in-cab listening while compensating for wind, engine noise, and helmet use.
- ROCK Mode: Optimizes sound for the best outdoor listening experience, perfect for when you're relaxing at camp.
Specifications:
Package
- Compatible Vehicle Types: ATV/UTV
- Included Components: Bluetooth Rocker-Switch Media-Center, Pair of Speakers in Custom-Fit Enclosures, Custom Fit Loaded Subwoofer Enclosure, Marine/Powersports Amplifier
- IPX Rating: IPX-6
- Marine Certified: Yes
Stereo Receiver

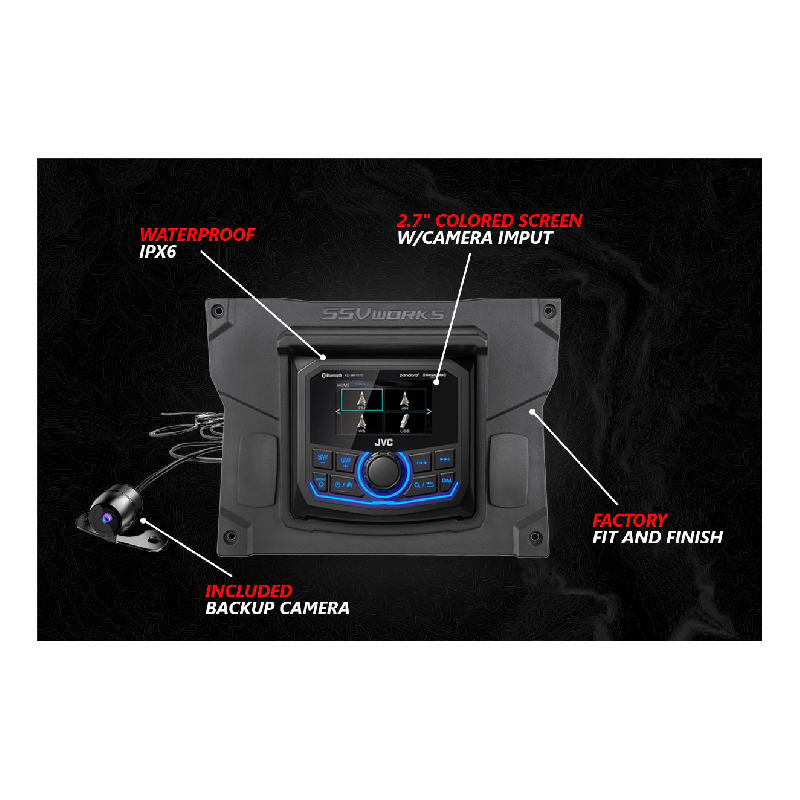

- Type: Bluetooth hideaway digital media receiver with panel-mount display
- Key Features: SiriusXM Ready, USB input, Aux input
- Bluetooth Features: Audio Streaming (A2DP), Built-in Microphone
- Volume Control Type: Knob
- Wireless Remote: Optional (sold separately)
- Preamp RCA Outputs: 1 Set (2-channel)
- Dedicated Subwoofer Preamp RCA Output: Yes
- Preamp Voltage: 4 volts
- Built-In Equalizer: 6-Band EQ
- Power Output: Peak - 50 watts x 4 channel, RMS - 26 watts x 4 channel
- Inputs: Auxiliary (Rear), USB (Rear)
Speaker

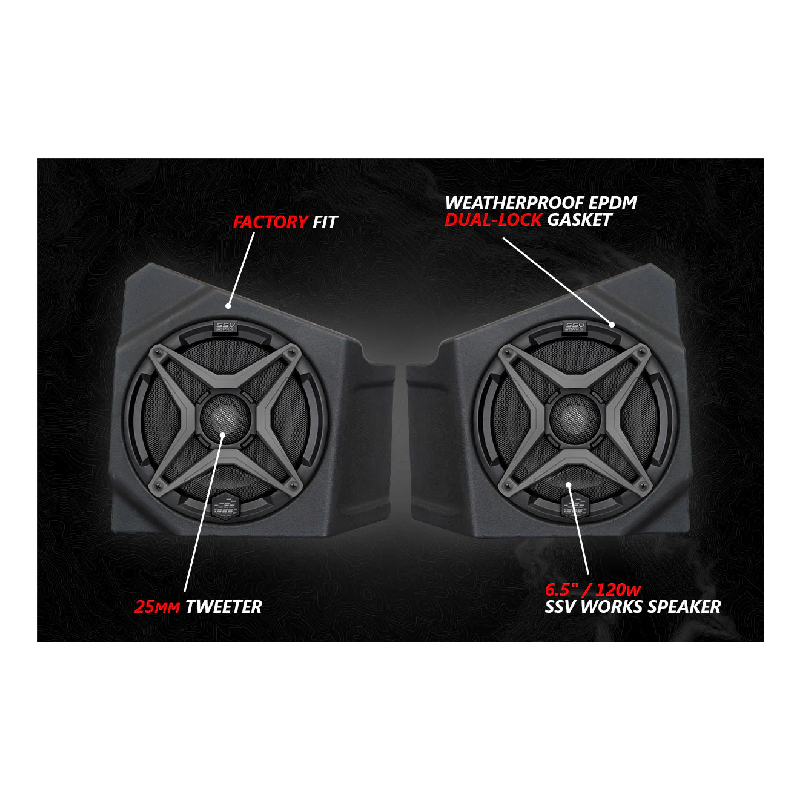

- Includes: Pair of 6.5" Front Kick Speaker-Pods in custom-fit enclosures
- Number of Speakers: 2
- Illumination: None
- Speaker Grilles: Yes
Amplifier

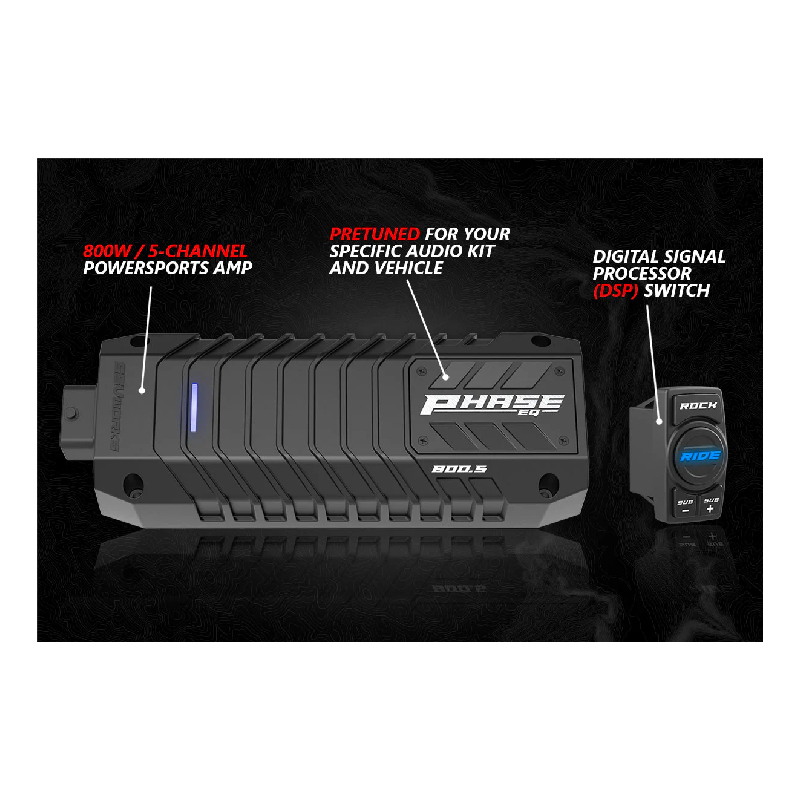

- Type: 800W RMS Powersports Amplifier with Pre-Mounted Direct-Fit Amp Mounting Plate
- Number of Channels: 5-Channel
- Total RMS Power Output: 800 watts
- Amplifier Class: D
Subwoofer

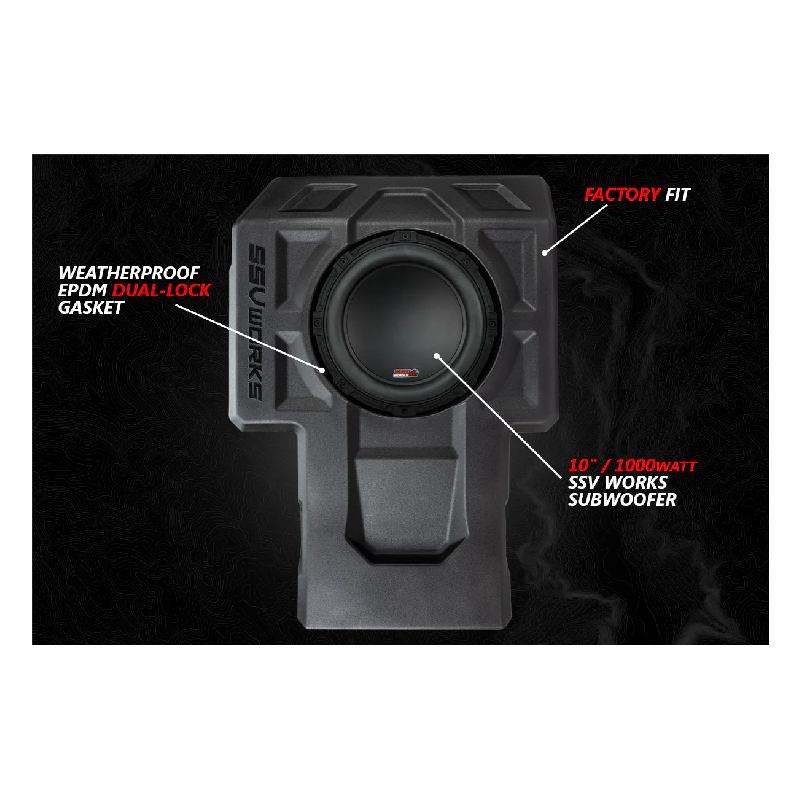

- Type: 10" SSV Works Subwoofer preloaded in a Factory-fit Enclosure
- Subwoofer Size: 10"
- Number of Subwoofers: 1
- Power Output: Peak - 1000 watts, RMS - 500 watts
- Subwoofer Grille: Yes (Included)
Other Component
- Additional Features: Includes patented Phase EQ™ amplifier, Rock ‘N Ride™ switch to power the new UTV audio kit
- UPC: 815172018377
- Weight: 50.5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
