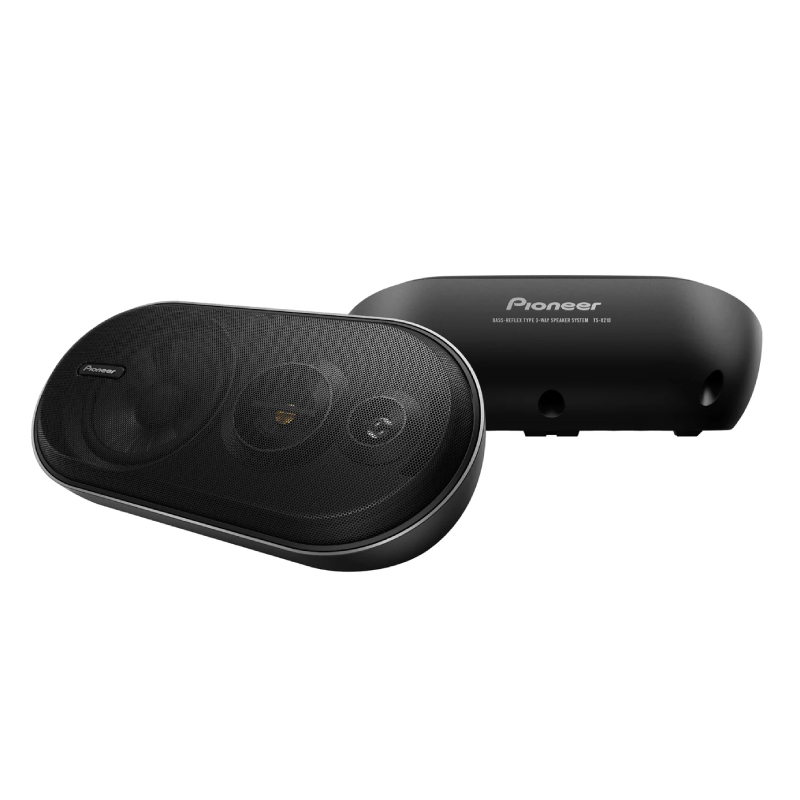

Pioneer TS-X210 5.25" 25W RMS (100W Peak Power Handling) 4 Ohm, 3-Way Surface Mount Triaxial Car Speakers (Pair)
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 3-way enclosed speakers with attached 16' length of speaker wire (terminated in insulated bullet connectors)
- • (4) 5" Mounting plates
- • (2) 35mm machine screws
- • (4) 3/8" screws
- • (2) Split washers
- • (2) Flat washers
- • (2) Wing nuts
- • (2) Rubber caps
- • Owner's Manual
Why Choose Pioneer TS-X210 Full Range Car Speakers?
Full Range Sound in a Compact Pod Setup
A 3-way triaxial pod combining a carbon and mica-reinforced IMPP woofer, cellulose fiber midrange, and piezo dome tweeter delivers full, clear sound from deep bass to crisp highs. Enclosed in one compact unit, it offers an effortless plug-and-play upgrade over stock audio.
Focused Audio That Actually Reaches You
These pods are built with a directional bass-reflex design, angled to push sound where you can actually hear it instead of wasting it inside the cabin. That means vocals sound more present, instruments feel more defined, and the overall listening experience feels more direct and engaging. The wave guide technology also helps spread sound more evenly, so you get solid clarity whether you are sitting in front or further back in the car.
Easy Install With Clean Power Delivery
Power-wise, the TS-X210 is rated at 25 watts RMS and up to 100 watts peak at 4 ohms, making it a solid match for factory systems or light aftermarket setups. It covers a wide frequency range from 60 Hz to 30 kHz, so you still get plenty of detail across the entire sound spectrum. Installation is straightforward too, with 16-foot pre-attached wiring and mounting hardware included so you can securely install it on flat surfaces like your rear deck without complicated modifications.
Frequently Asked Questions (FAQ)
- • Why is there little or no bass after installing the speakers?
Weak bass is usually caused by incorrect speaker polarity or improper placement. Verify the positive and negative wiring and ensure the speakers are mounted securely.
Easy Install With
- • Can I connect these directly to my factory stereo?
Yes. They are compatible with most factory head units, but an external amplifier can improve overall volume and sound quality.
- • Why do the speakers distort when the volume is high?
Distortion often occurs when the head unit or amplifier is clipping due to insufficient clean power. Lowering the volume or using a properly matched amplifier can resolve the issue.
- • Will these fit in my vehicle without modifying the mounting location?
Fitment depends on your vehicle's available space and mounting requirements. Check your vehicle's speaker dimensions and clearance before installation.
- • Why do I hear vibrations from the rear deck while driving?
Loose trim panels or mounting hardware can vibrate when the speakers produce stronger bass. Tightening the installation and adding sound-deadening material can minimize the noise.
- • Why is one speaker noticeably quieter than the other?
This may be caused by a loose wire, damaged connector, or incorrect balance settings on the receiver. Inspect the wiring and verify the balance and fade controls are centered.
- • Can I pair these with a subwoofer?
Yes. Adding a dedicated subwoofer improves low-frequency performance and allows the speakers to reproduce mids and highs more efficiently.
- • Why do I hear static only when using Bluetooth music?
The problem is typically related to the Bluetooth source device or head unit rather than the speakers. Try reconnecting your device or testing another audio source to isolate the issue.
- • Why do the speakers sound better after several days of use?
New speakers often require a brief break-in period before reaching their optimal performance. After several hours of playback, the suspension becomes more flexible and the sound becomes smoother.
- • Should I replace both even if only one is damaged?
Yes. Replacing both speakers helps maintain balanced sound quality and prevents noticeable differences in performance between channels.
- Diameter : 5.25 Inch
- Sensitivity : 84 dB
- Impedance : 4 Ohm
- Frequency Response : 60-30000 Hz
- Peak Power Handling : 100 Watts
- Design : 3 Way
- Woofer Composition : Carbon and Mica reinforced IMPP
- Tweeter Composition : Piezoelectric
- RMS Power Handling : 25 Watts
Features:
- Tri-Axis Acoustic Pod Speaker System: Features a 3-way design combining a 5-1/4 inch carbon and mica reinforced IMPP woofer, a 1-5/8 inch cellulose fiber midrange driver, and a 3/4 inch piezoelectric dome tweeter, delivering a full-spectrum sound profile with improved clarity and spatial dispersion.
- Directional Bass-Reflex Enclosure Engineering: Built into a compact pod-style bass-reflex housing that is angled for optimized sound direction, enhancing audio projection and improving overall listening focus within the vehicle cabin.
- Wide Dispersion Wave Guide Technology: Incorporates Pioneer’s speaker wave guide design to improve sound distribution, producing a broader listening area with clearer imaging and more balanced audio coverage.
- Balanced Power and Frequency Performance Output: Rated at 25 watts RMS and up to 100 watts peak power at 4 ohms, delivering consistent audio performance across a frequency range of 60 Hz to 30 kHz for detailed sound reproduction.
- Extended Wiring and Secure Installation System: Includes 16-foot attached speaker wires with 18-gauge construction and bullet connectors, along with mounting plates and hardware designed for stable surface installation on flat vehicle areas such as rear decks.
Specifications:
- Continuous Power Handling (RMS): 25 W
- Frequency Response: 60 Hz to 30 kHz
- Maximum Peak Power Handling: 100 W
- Nominal Impedance: 4-Ohm
- Sensitivity (1W/1m): 84 dB
- System Type: 3-way Surface Mount Speakers, Piezoelectric Tweeter
- Midrange: 1-5/8'' 1.65 inches
- Tweeter: 3/4'' 0.79 inches
- Woofer: 5-1/4'' 5.12 inches
- Center Cap Material: Rubber coated cloth
- Cone Material: Carbon and Mica reinforced Injected Molded Polypropylene (IMPP)
- Cone Material (Midrange): Cellulose fiber
- Damper: Poly cotton
- Magnet Material: Ferrite
- Magnet Weight: 4.1 oz
- Surround Material: Elastic Polymer
- Voice Coil Wire: Copper
- Wire Terminals: Lug Type
- UPC: 884938523219
- Weight: 7
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
