Pioneer DMH-WT5000NEX 1-DIN 9" Touchscreen HD Floating Display Digital Multimedia Receiver with Wired/Wireless Apple CarPlay™ & Android Auto™, SiriusXM™ Ready, and Built-In Bluetooth®
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Touchscreen monitor (rear cover pre-installed)
- • Source unit (10A fuse)
- • Wiring harness
- • Preout/AV harness
- • 58" USB extension cable
- • Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
- • GPS antenna (attached 11.5' cable)
- • Self-adhesive square
- • (3) Self-adhesive clips
- • Two-sided tape
- • Monitor bracket
- • Monitor spacer
- • (6) Pan-head ISO screws (M5x8mm)
- • (6) Flat-head ISO screws (M5x8mm)
- • (4) Binding head screws (M4x30mm)
- • (4) Binding head screws (M4x12mm)
- • (4) Binding head screws (4mmx6mm)
- • (4) Machine screws (M2x4mm)
- • (2) Stickers
- • Quick Start Guide
- • Owner's Manual
Why Choose Pioneer DMH-WT5000NEX Apple CarPlay Receiver?
Big Screen Flex Meets Factory Fit

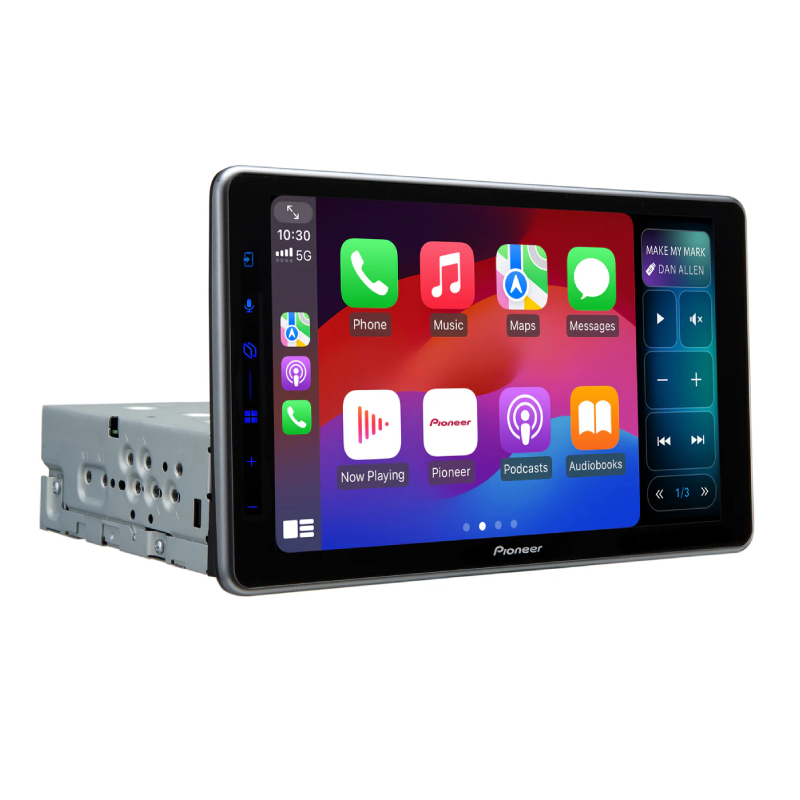

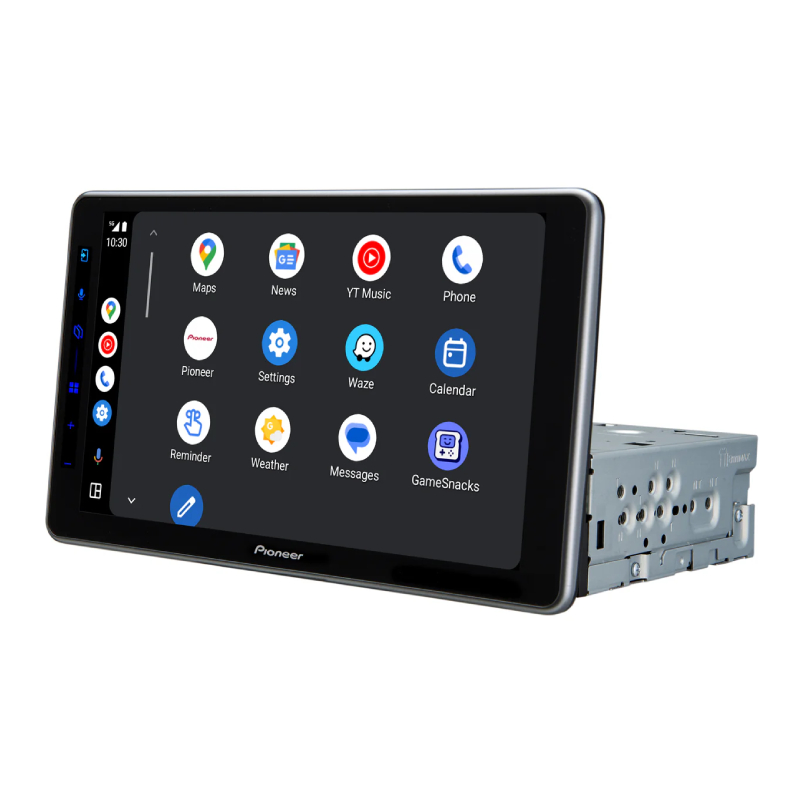

It redefines the in-dash experience with a two-piece floating design that fits standard single-DIN (2-inch) openings. Featuring a separate 9-inch capacitive touchscreen with full tilt, height, and depth adjustments, it gives you a massive display without blocking factory vents or dash controls.
Smart Control, Seamless Connectivity, Everyday Convenience
Built for speed and intuitive control, this unit features a high-resolution 9-inch touchscreen with responsive pinch, swipe, and scroll gestures. It offers split-screen functionality alongside wireless Apple CarPlay, Android Auto, WebLink Cast, and built-in Wi-Fi, plus customizable home screens, widgets, and themes for a tailored, cable-free dashboard.
Serious Sound Power with Smart Safety and Control
Designed for audio enthusiasts, this receiver combines a 48-bit dual-core DSP, 13-band EQ, crossover controls, and MOSFET amplification for precise, high-output sound. It offers Bluetooth 5.2 dual-phone connectivity, 24-bit/192kHz hi-res USB playback, Alexa voice control, dual camera inputs, and iDatalink Maestro support for seamless OEM integration.
Frequently Asked Questions (FAQ)
- • Why won't wireless Apple CarPlay connect automatically?
Old Bluetooth pairing information or disabled Wi-Fi on your iPhone can prevent automatic connections. Delete the pairing from both devices, enable Wi-Fi and Bluetooth, and pair them again.
- • Why does Android Auto keep disconnecting while I'm driving?
Wireless interference, battery optimization, or outdated phone software can interrupt the connection. Updating your phone and disabling battery restrictions for Android Auto usually improves stability.
- • Why isn't the floating display sitting correctly on my dashboard?
The display bracket may need to be adjusted for your vehicle's dash layout. Reposition the screen using the available height, depth, and angle adjustments for a better fit.
- • Why doesn't my backup camera switch on when I put the vehicle in reverse?
An incorrect reverse trigger connection or improperly wired camera is the most common cause. Verify the reverse signal wire and ensure the camera is receiving power.
- • Why is there no sound even though the touchscreen is working?
Incorrect speaker wiring, amplifier settings, or muted audio controls can prevent sound output. Check all wiring connections and verify the receiver's audio configuration.
- • Why does the receiver lose all my settings after I turn off the ignition?
This usually indicates the constant battery wire and accessory wire are connected incorrectly. Correcting the power wiring will allow the receiver to retain its settings and presets.
- • Can I connect both a front and rear camera to the receiver?
Yes. The receiver supports compatible multiple camera inputs, allowing you to switch between camera views depending on your installation.
- • Why does Bluetooth music randomly pause or skip?
Wireless interference, outdated firmware, or background apps on your phone can interrupt streaming. Updating the receiver and your smartphone often improves Bluetooth performance.
- • Why is the touchscreen slow or occasionally unresponsive?
Temporary software glitches or incomplete startup processes can affect touchscreen responsiveness. Restarting the receiver or installing the latest firmware often resolves the problem.
- • Why won't the receiver power on after installation?
A blown fuse, poor chassis ground, or incorrect power wiring is the most common cause. Inspect the fuse, verify the ground connection, and confirm the constant and switched power wires are installed correctly.
- Satellite Radio Ready : Yes
- DIN : 1
- Preamp Voltage : 4 volts
- Display Size : 9 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Preamp Outputs : Front, Rear & Sub
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
- USB Mirroring : Yes
Features:
- Two-Piece Floating Design: Features a separate 9" capacitive touchscreen monitor and a single-DIN source unit, enabling installation in standard 2" dash openings while delivering a large-format display experience for modern in-car entertainment.

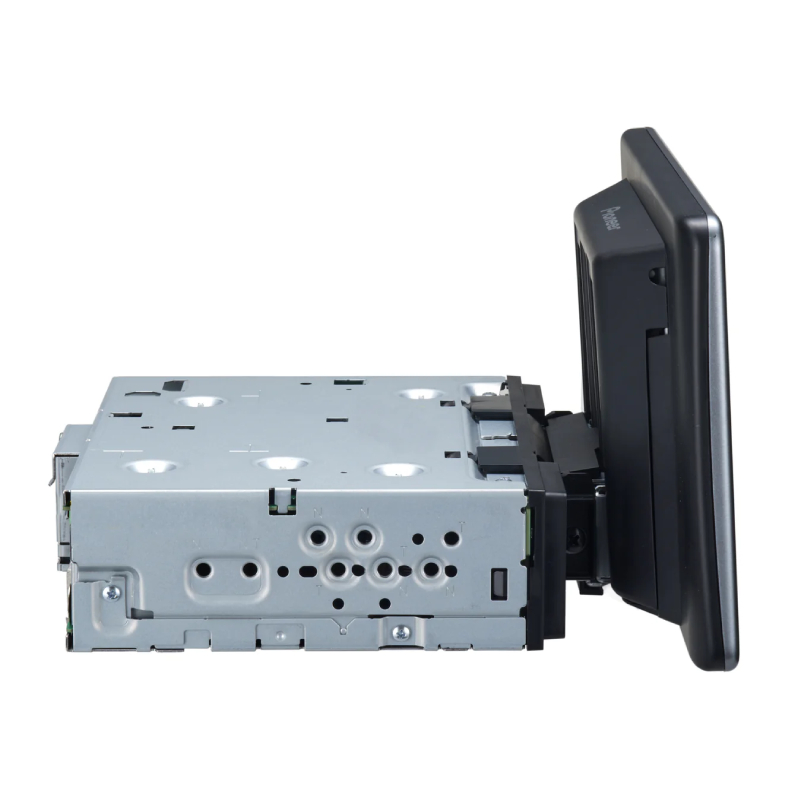

- Floating 9" Adjustable Display: Includes a fully adjustable monitor with tilt (15° back to 60° forward), vertical positioning, and depth adjustment for optimized visibility, usability, and seamless integration with various dash layouts.
- High-Resolution Capacitive Touchscreen: Equipped with a 9" 1024 x 600 display offering sharp visuals, wide viewing angles, and smartphone-like multi-touch controls including pinch, swipe, and scroll gestures.
- Split-Screen Functionality: Enables simultaneous use of Apple CarPlay or Android Auto alongside audio or system controls, allowing seamless multitasking without switching screens.
- Customizable User Interface: Offers fully customizable home screen layouts, widget integration, color themes, and background images for a personalized in-car experience.

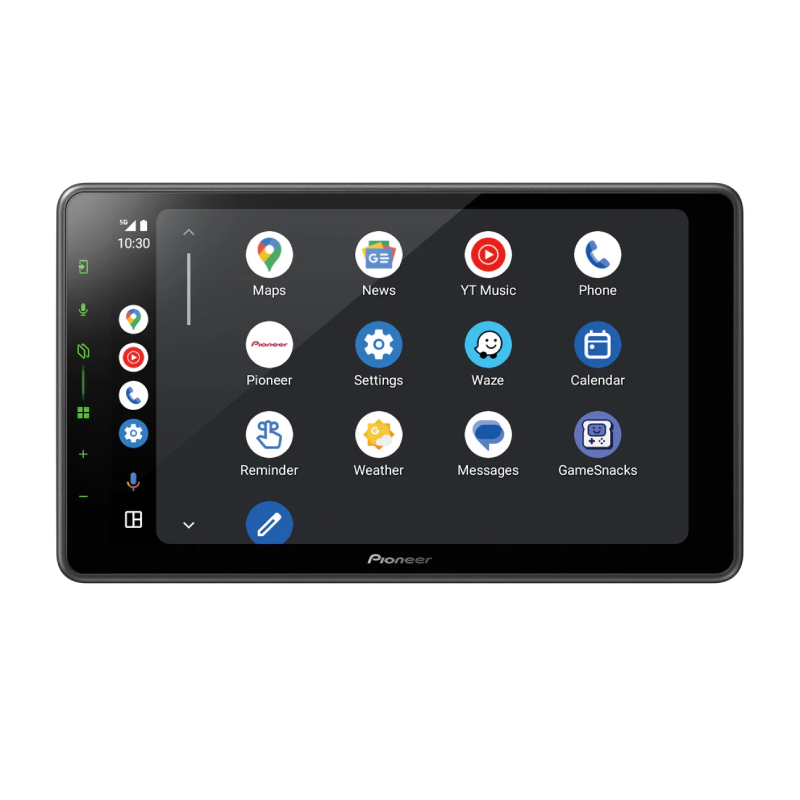

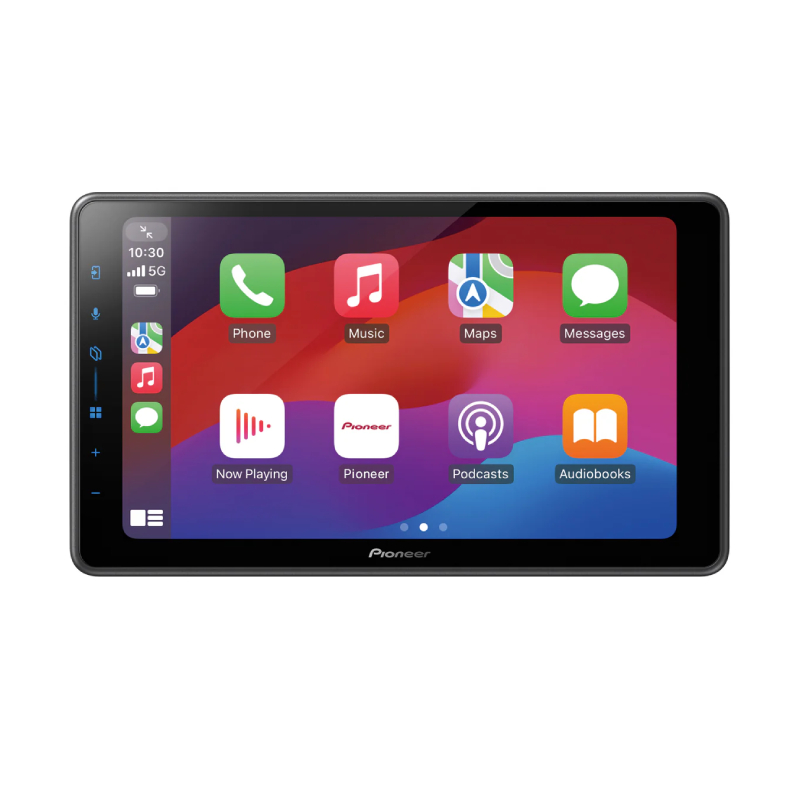

- Advanced Connectivity Suite: Supports wireless Apple CarPlay, Android Auto, WebLink Cast, and built-in WiFi for cable-free smartphone integration and expanded app access.
- Premium Audio Performance: Powered by a 48-bit dual-core DSP with 13-band EQ, time alignment, crossover controls, and high-fidelity MOSFET amplification for precise and powerful sound tuning.
- Bluetooth 5.2 Integration: Delivers stable hands-free calling, dual phone connection, and high-quality wireless audio streaming with AAC codec support for enhanced clarity.
- OEM Integration Capability: Compatible with iDatalink Maestro for retaining factory vehicle features such as steering wheel controls, vehicle data display, and system integration.
- Advanced Camera Support: Includes dual camera inputs with backup camera guidelines and additional input for dash, side, or towing cameras to improve driving safety and visibility.
- Voice Control & Smart Features: Supports Alexa voice control via app integration, along with PxLink app functionality for remote control, customization, and firmware updates.
- High-Resolution Media Playback: Plays USB-based high-resolution audio up to 24-bit/192kHz FLAC/WAV, along with full support for video and image file formats for expanded media versatility.
Specifications:
- RMS Power (CTA-2006): 14 watts
- RMS Power (Manufacturer): 22 watts

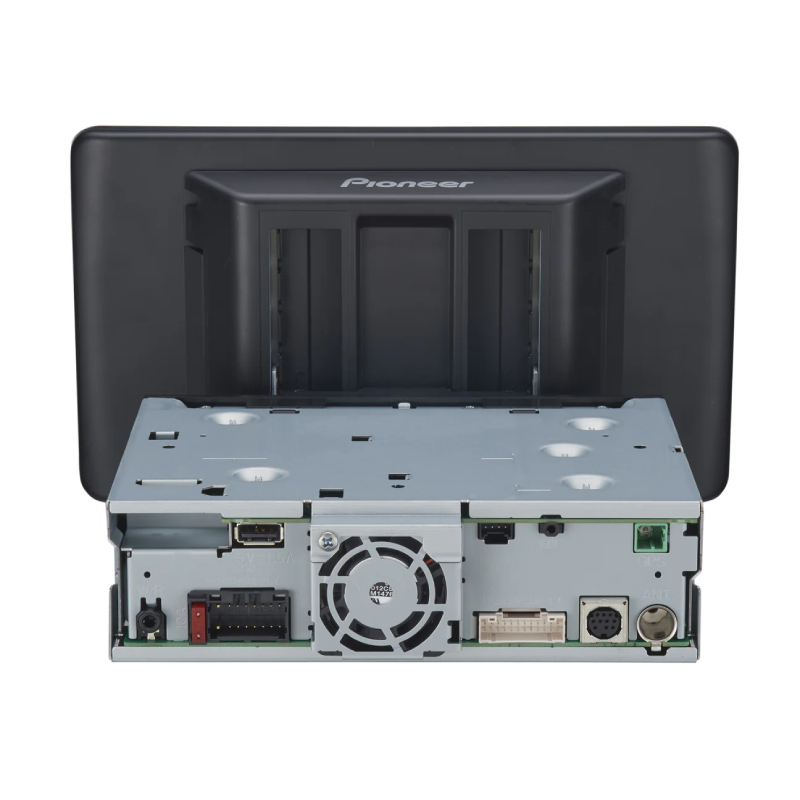

- AUX Input: Mini (rear)
- Audio/Video Input: Mini (rear)
- USB Input: Rear
- USB Port Power: 1.5A
- Backup Camera Input: Yes
- Second Camera Input: Yes
- Preamp Outputs: 6-channel
- Sub Preamp Outputs: Yes
- Switchable Rear Preamp Outputs: No
- Memory Card Slot: USB memory
- iPhone Compatibility: iPhone 8 and newer
- CarPlay: Wired or wireless
- Siri Control: Yes
- Android Control: Yes
- Android Auto: Wired or wireless
- Alexa Voice Control: Yes
- FM Sensitivity: 12 dBf
- European Tuning: No
- Seek/Scan: Seek
- Radio Data System (RDS): Yes
- Music File Formats: MP3, WMA, AAC, FLAC, WAV
- High-Resolution Playback: FLAC/WAV (192kHz)
- Navigation Support: CarPlay, Android Auto
- Compatible iOS Navigation Apps: Apple Maps, Google Maps, Waze
- Compatible Android Navigation Apps: Google Maps, Waze
- Bluetooth Compatible: Built-in
- Bluetooth Version: 5.2
- Satellite Radio Ready: SiriusXM 3.0
- HD Radio: Yes
- Video Screen: Yes
- Preamp Voltage: 4V
- Screen Size: 9 inches
- Screen Type: Swipeable (Capacitive)
- Display Color: ---
- Key Button Color: Variable
- EQ Bands: 13
- Wireless Remote: No
- Steering Wheel Control Compatible: Adapter required
- Chassis Depth: 6.695 inches
- Chassis Width: 7.015 inches
- Chassis Height: 1.975 inches
- UPC: 884938519021
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
