Hertz HSP3-24 A2B S3 2024 A2B 4-Speaker Kit for 2024 and Up for Harley Davidson Motorcycles (for bikes equipped with Factory Stage 3 audio package) with HD A2B Module, SP4.900 amplifier, SX165 NEO Coax Speakers, SX690H NEO 3-Way Speakers, HHP14 Power and Ground Cable and Hog Badges for front and rear speaker grills
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

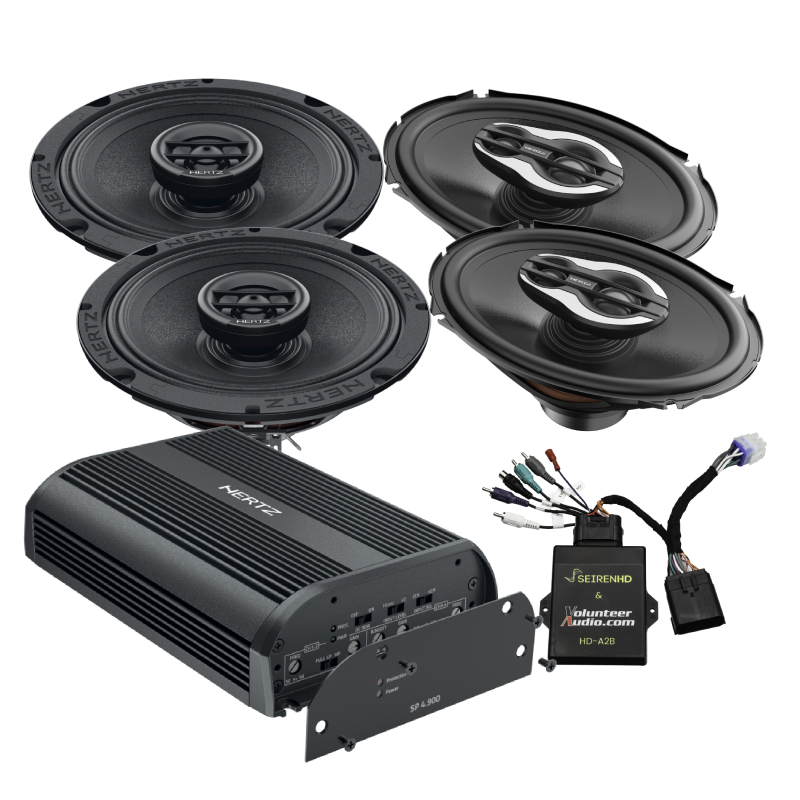

What's Inside?
- • (2) SX 690 H NEO Speakers
- • (2) SX-165-NEO 6.5" 2-Way SPL Coaxial Speakers
- • SP 4.900 4-Channel Amplifier
- • HD A2B Interface Module
- • HHP14 Power and Ground Cable
- • Hog Badges Replacement Logos
- • Owner's Manual
Power and Precision
Experience clean, powerful audio with a versatile 4/3/2-channel amp operating between 6–16 VDC, delivering ultra-low 0.02% THD, a damping factor of 200 for tight bass control, and wide 10 Hz – 35 kHz frequency response for full-range clarity on every ride.
Built for the Road
6x9" 3-way coaxial speakers made for Harley-Davidson, with 260W peak power, weather-resistant construction, powerful N38 H neodymium magnets, and crisp highs from a dome tweeter/supertweeter combo. Easy install with faston terminals and included grilles.
Big Sound and Bold Performance
Unleash 200W of peak audio power with these 6.5" coaxial speakers—engineered for crystal-clear highs, punchy mids, and road-ready durability. With 96.5 dB sensitivity and a 100 Hz – 20 kHz range, they deliver serious volume with precision.
Clear, Powerful, and Efficient Audio
Upgrade your audio system with the HD-A2B Amplifier Replacement Interface, featuring 5-channel RCA outputs, 32-bit DSP resolution, and a wide frequency range of 20 Hz – 24 kHz for crystal-clear, distortion-free sound—designed to operate efficiently with ultra-low power consumption and a noise-free, high-performance experience.
Specifications:
SX 690 H NEO Speakers
- 6x9" 3-way coaxial design optimized for Harley-Davidson fitment
- Peak Power: 260W
- Continuous Power: 130W
- Water and UV-resistant cone for all-weather durability
- Special Neodymium N38 H magnets for compact size and increased performance
- 1.4" dome tweeter and 1" dome super tweeter with resettable protection circuit
- Frequency Response: 65 - 24k Hz for full-range audio reproduction
- Double faston terminals for easy daisy-chaining and compatibility
- Grilles included for a clean, finished look
SPL Show SP 4.900
- Channels: 4 / 3 / 2
- Nominal Power Supply Voltage: 11 – 15 VDC
- Operating Voltage Range (Pulse): 6 – 16 VDC
- Idling Current: 1.1 A
- Remote IN: 6 – 15 VDC (9 mA)
- Total Harmonic Distortion (THD): 0.02% @ 1 kHz, 4Ω, 70% rated power
- Damping Factor: 200 @ 1 kHz, 4Ω, 2 VRMS
- Frequency Response (Bandwidth): 10 Hz – 35 kHz @ -3 dB
SPL Show Series SX-165-NEO
- Power Handling (Peak): 200 W
- Power Handling (Continuous): 100 W
- Impedance: 4 Ω
- Frequency Response: 100 Hz – 20 kHz
- Sensitivity: 96.5 dB SPL
- Woofer Size: 165 mm (6.5 in.)
HD-A2B Amplifier Replacement Interface
- RCA Outputs: 5 Channel, 4v RMS
- Front, Rear, and Subwoofer RCA connections
- Frequency Response: 20 Hz – 24 kHz
- Signal to Noise Ratio: 112 dB
- DSP Resolution: 32-bit
- Operational Voltage: 6-28 volts
- Current Consumption (Idle): 14 microamps
- Current Consumption (Full Power): 300 milliamps
- UPC:
- Weight: 50
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Hertz dealer will have a three (3) year limited warranty from the original date of purchase.
