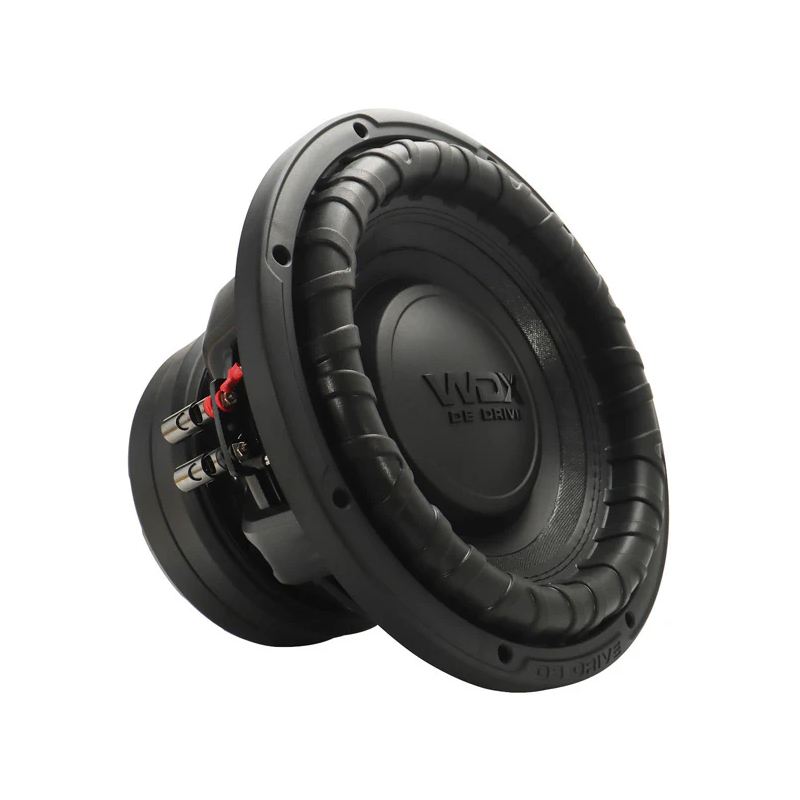

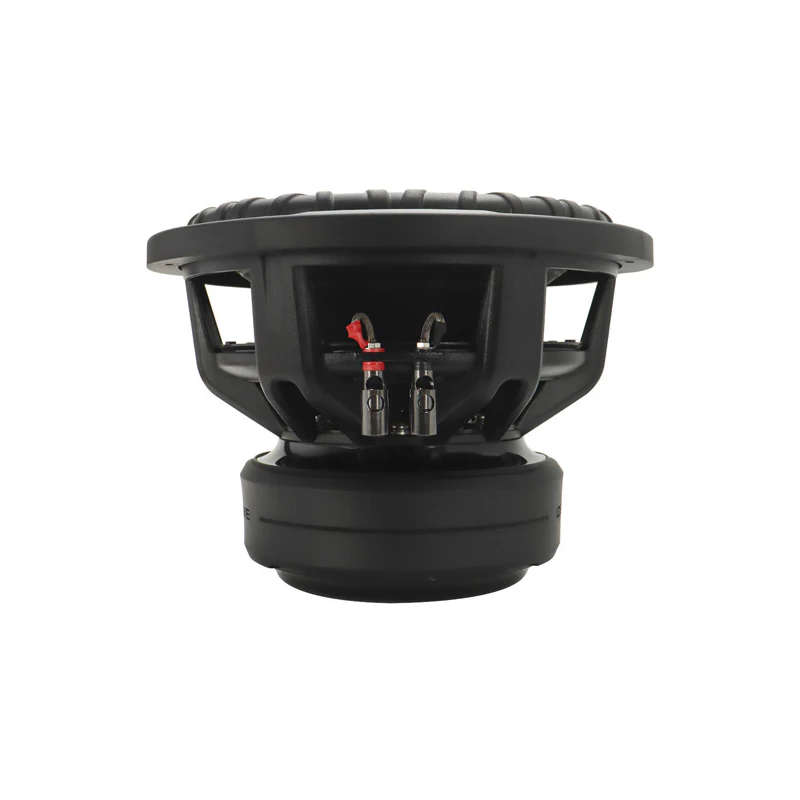

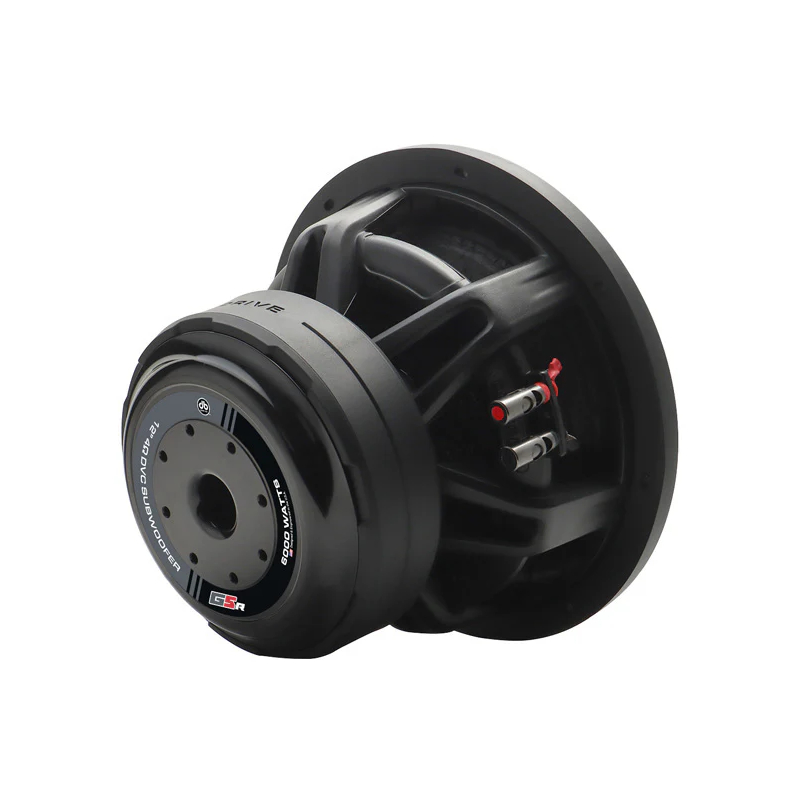

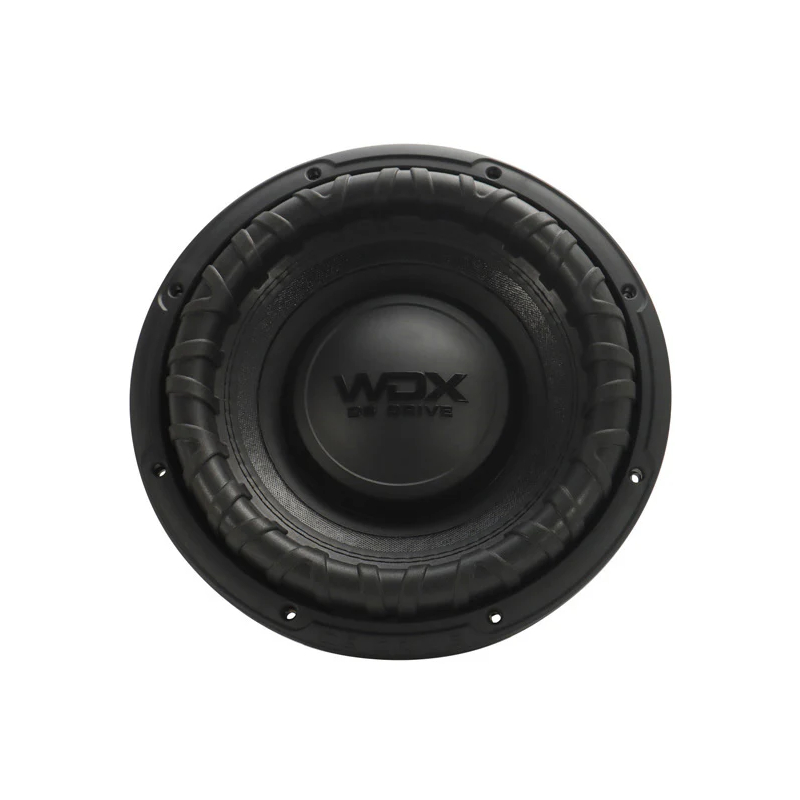

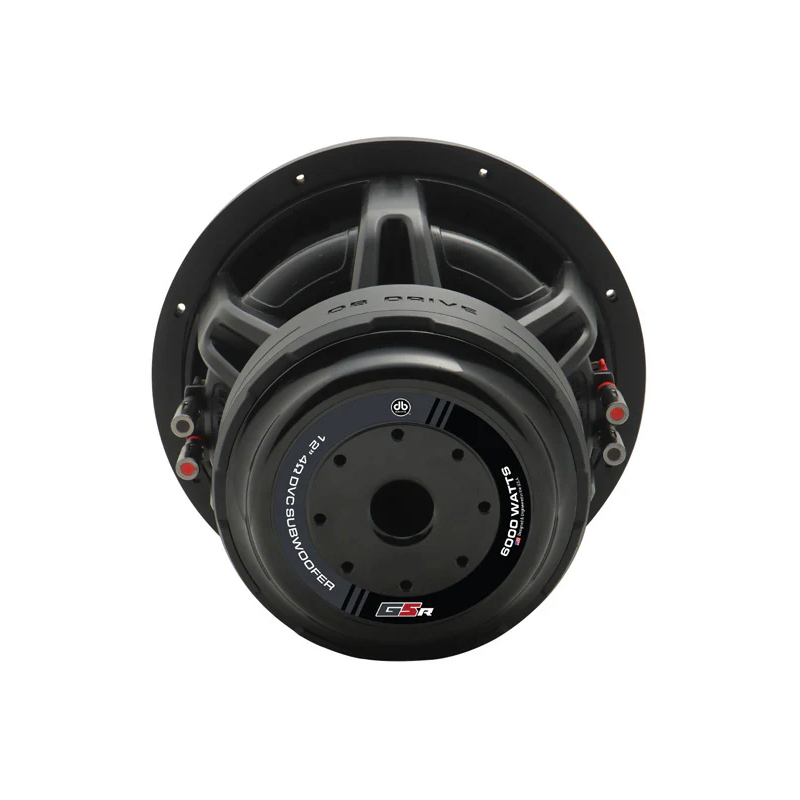

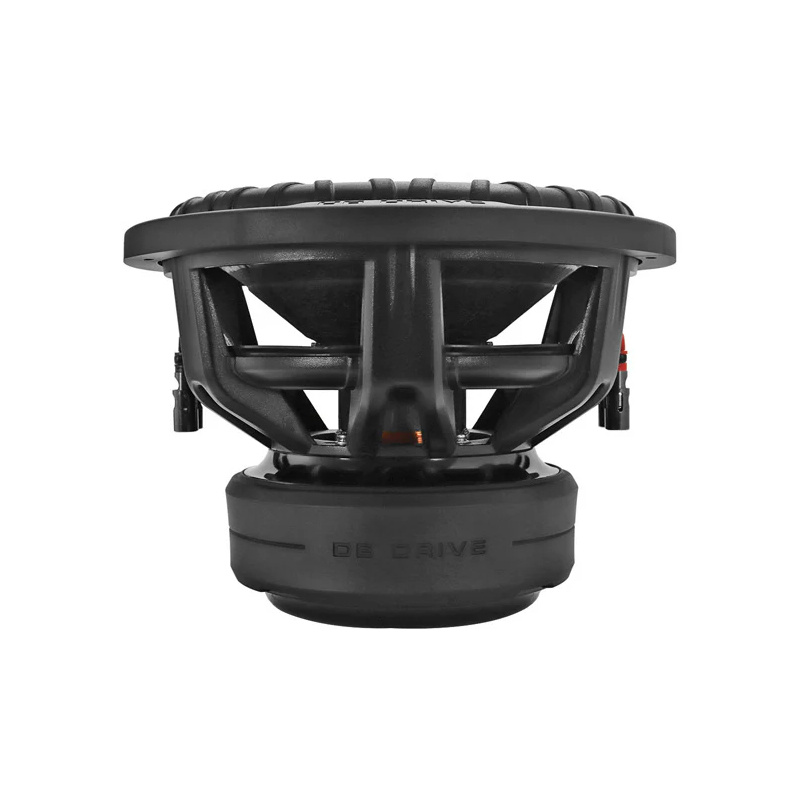

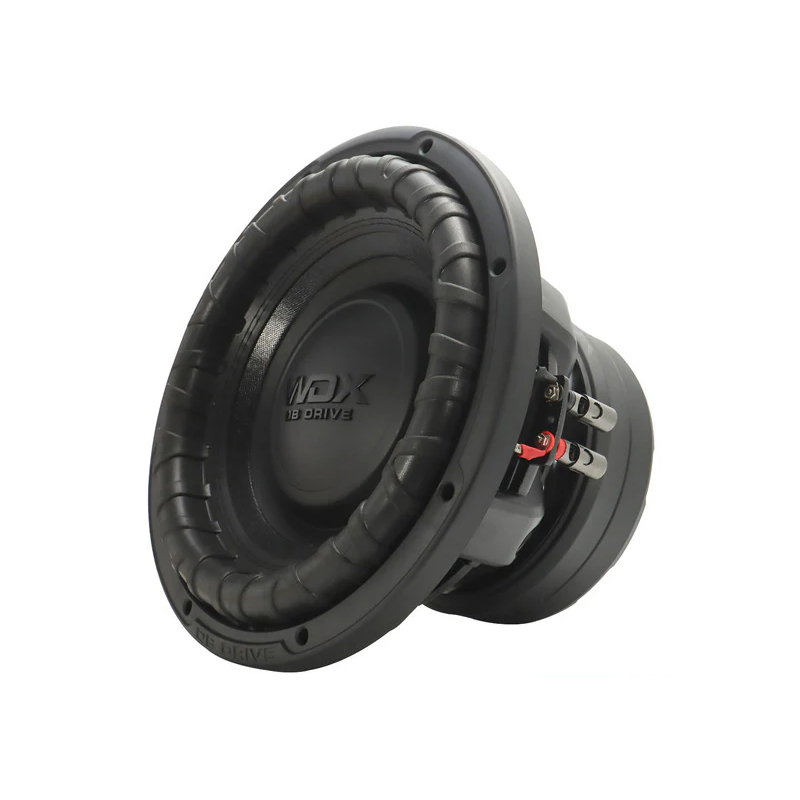

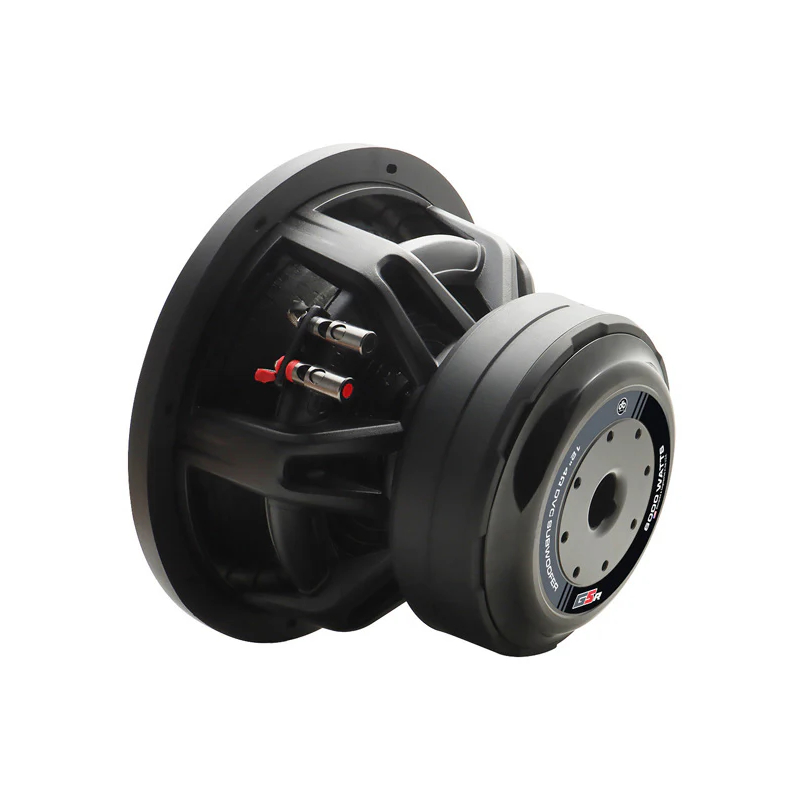

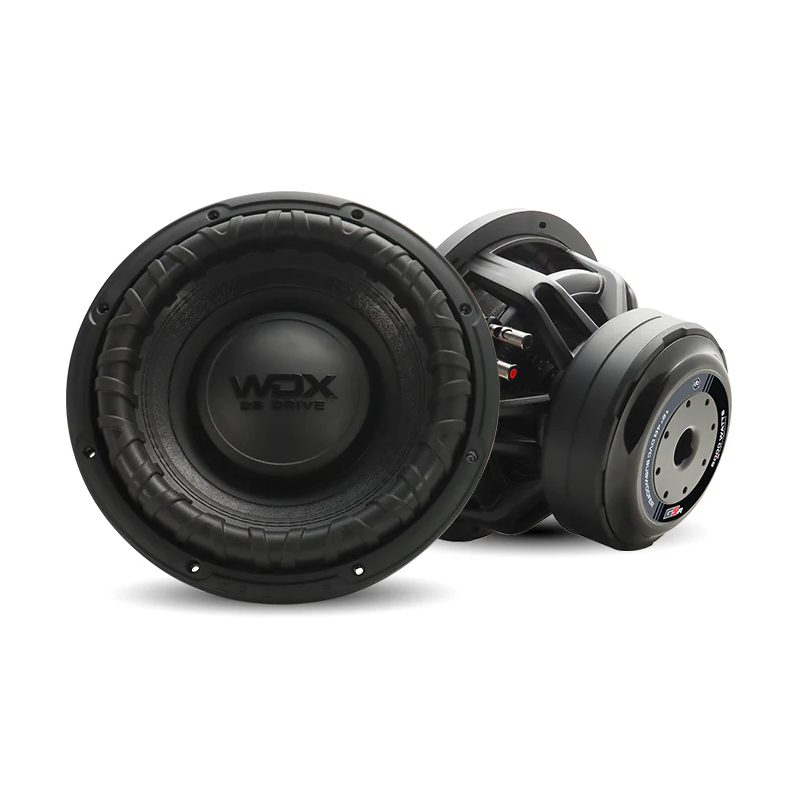

DB Drive WDX12G5R.4 WDX G5R Series 12" 3000W RMS (6000W Peak Power Handling) 4-Ohm, Dual Voice Coil Car Subwoofer (sold individually)
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Feel the Bass Like Never Before
The DB Drive WDX12G5R.4 isn’t just loud—it hits hard, clean, and deep. With 3000 watts RMS and 6000 watts peak power, this 12" subwoofer is built for serious bass lovers who don’t mess around. Whether you're cruising the strip or hitting the highway, the WDX G5R Series turns every ride into a full-blown concert on wheels.
Engineered for the Real Ones
This sub was made for people who know and care about quality. The redesigned mounting gasket gives you a tight, perfect seal for smooth, undistorted bass. Add in the sleek new dust cap and rugged frame, and you’ve got a sub that performs as good as it looks. Every piece of this subwoofer screams high performance.
Control, Power, and Pure Sound
With dual voice coils and pro-grade components, the WDX12G5R.4 gives you total control over your setup. Wire it your way and push it to the limit—it’s made to handle the heat. If you’re building a system that demands attention and delivers results, this is the sub that makes it all come together.
- Diameter : 12 Inch
- Maximum Power : 6000 Watts
- Sensitivity : 82.8 dB
- Impedance : 4 Ohm
- Peak Power Handling : 6000 Watts
- Number of Voice Coils : Dual
- RMS Power Handling : 3000 Watts
Features:
- 3.0" 4-Layer Anodized Aluminum High-Temperature Voice Coil: Enhanced heat dissipation for high-power performance and distortion-free sound.
- Non-Pressed Paper Cone: Offers lightweight and flexible construction for improved sound quality.
- Double-Stitched Reinforced Foam Surround: Provides enhanced durability and resilience, improving the speaker's lifespan.
- Dual Poly-Cotton Dampeners: Reduces distortion for clearer sound reproduction.
- Die-Cast Aluminum Vented Basket: Promotes better airflow, preventing overheating and improving overall performance.
- Rubber Gasket Trim Ring: Ensures a secure and vibration-resistant seal for enhanced sound clarity.
- Large Gauge Compression Terminals: Allows for high-current connections and improved signal transmission.
- Protective Magnet Cover: Shields the magnet from damage and helps maintain sound quality.
Specifications:
- Dynamic Power Handling: 6000 Watts
- Nominal Power Handling: 3000 Watts
- Impedance: Dual 4Ω Voice Coil
- Resonant Frequency (fs): 31.513 Hz
- D.C. Voice Coil Resistance (Re): 2 x 3.2Ω
- Mechanical Quality Factor (Qms): 3.336
- Electrical Quality Factor (Qes): 0.579
- Total Quality Factor (Qts): 0.494
- Equivalent Air Volume (Vas): 22.988 L
- Mechanical Compliance of Suspension (CMS): 60.158 mm/N
- Mass of Diaphragm/Coil (Mms): 423.998 g
- Force Factor (BL): 30.454
- Sound Pressure Level (SPL): 82.8 dB
- UPC: 811536039514
- Weight: 25
- Authorized Internet Dealer
Warranty: 0 Months Onlinecarstereo.com warranty.
0 Months warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
