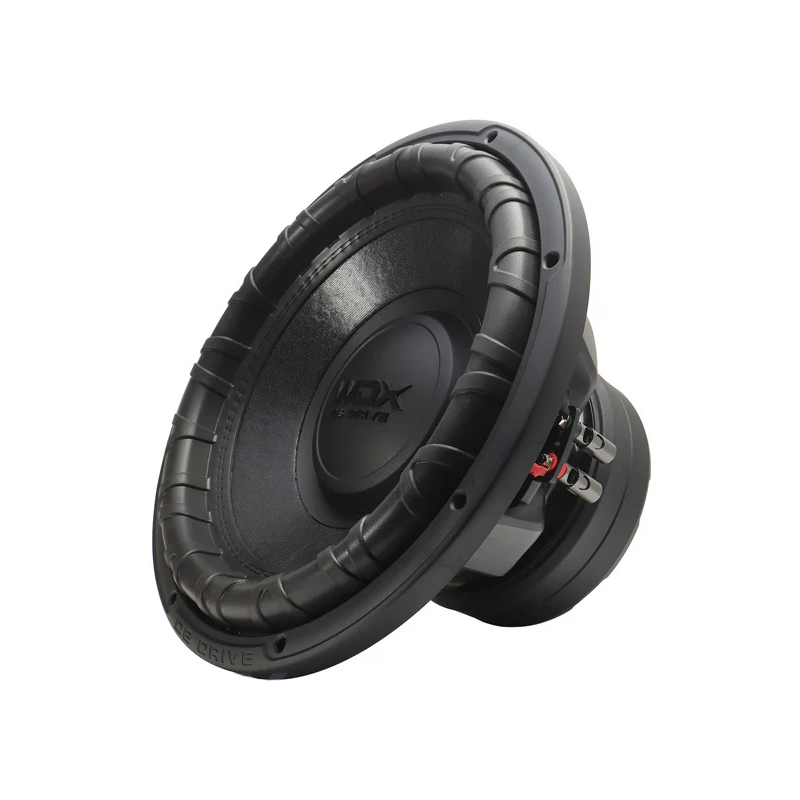

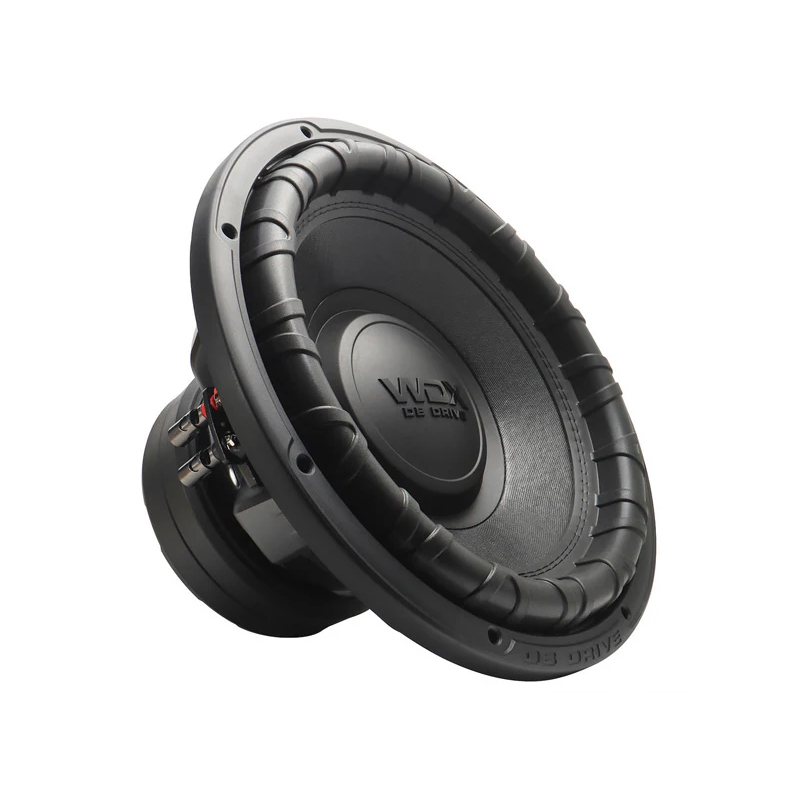

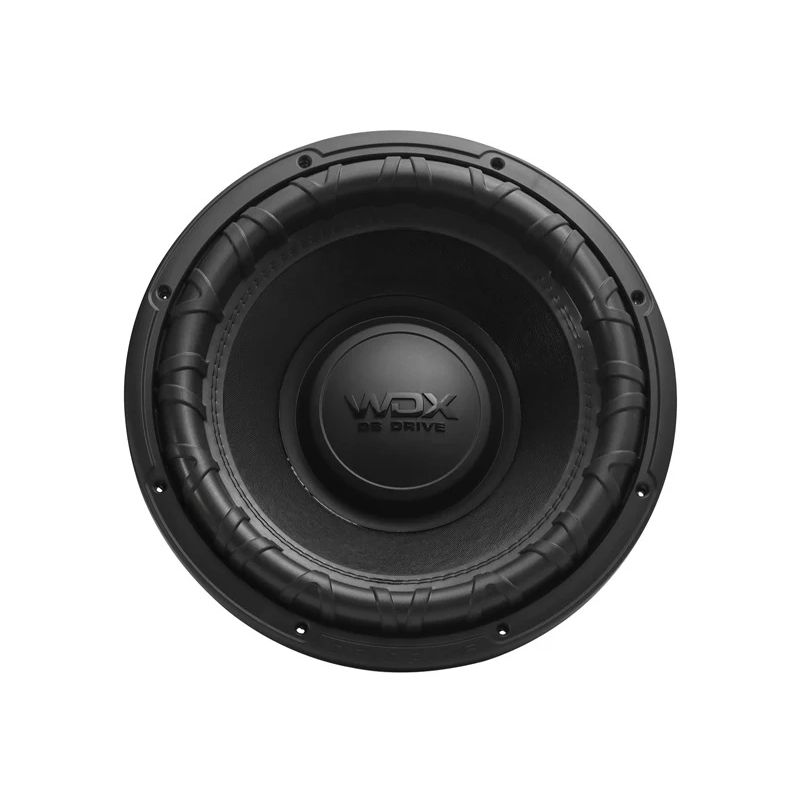

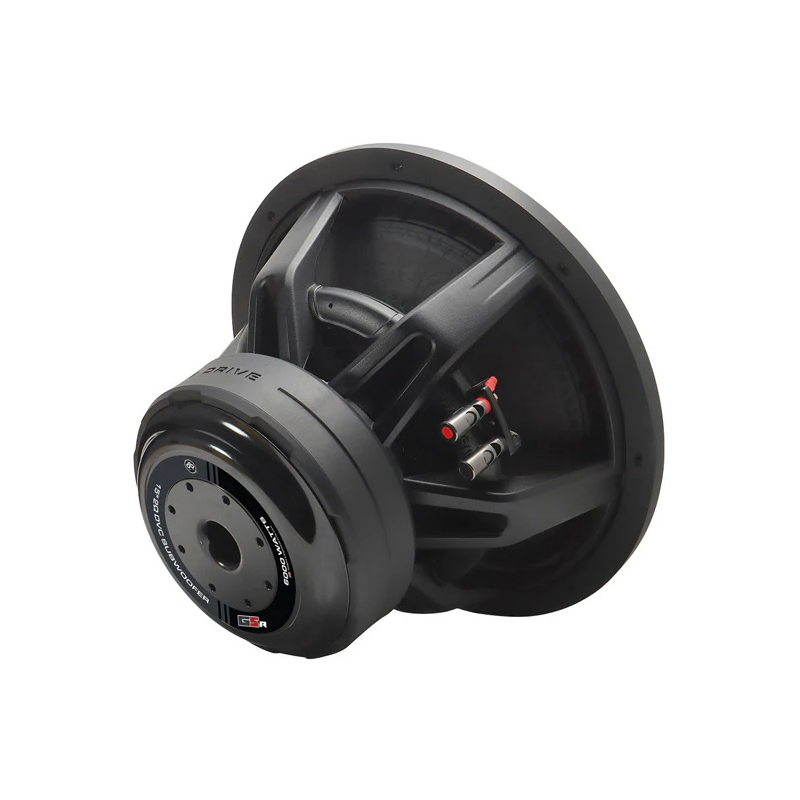

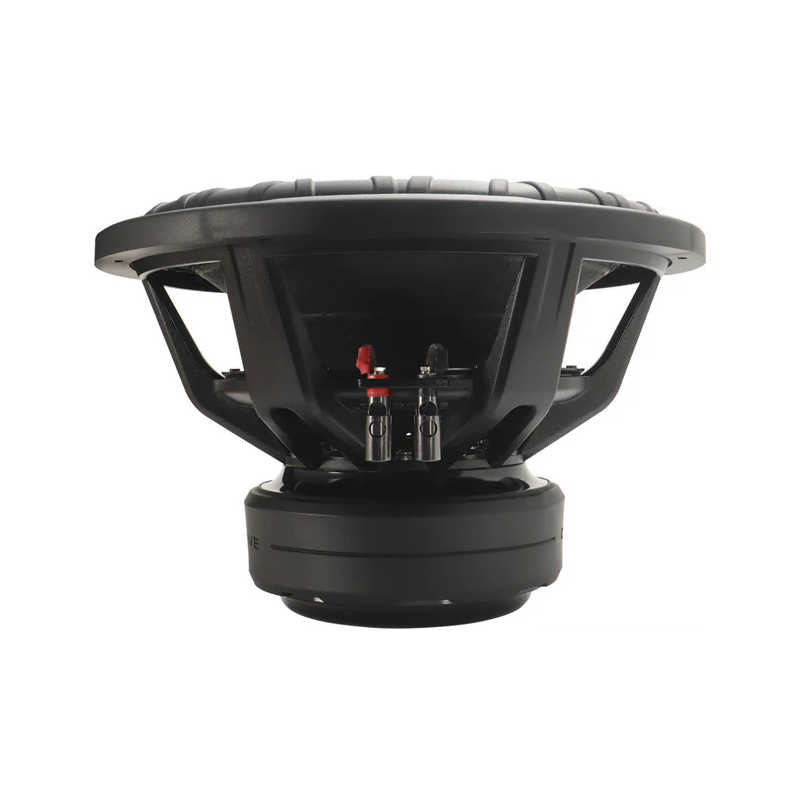

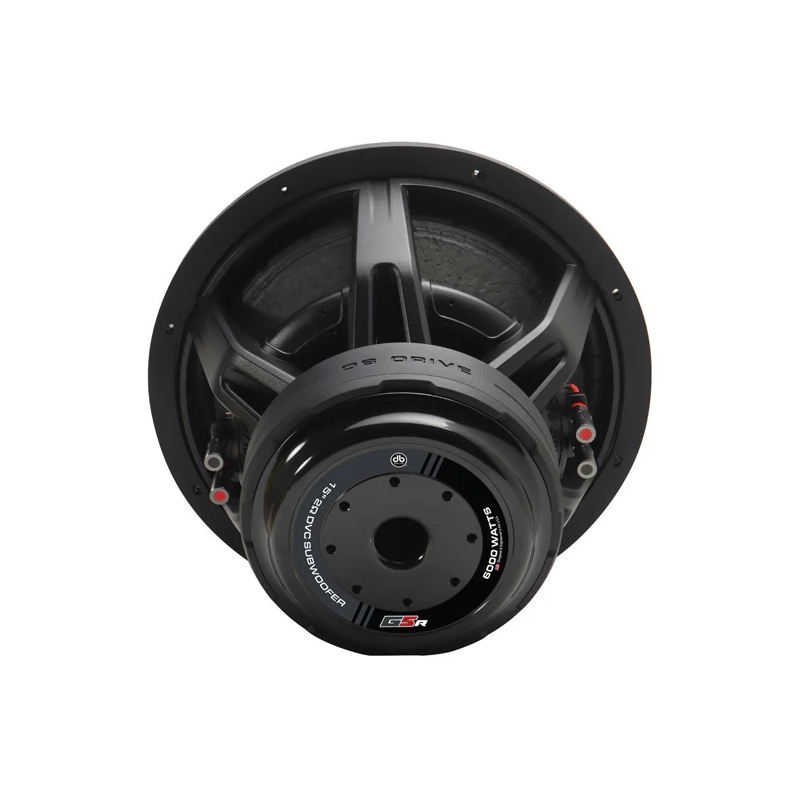

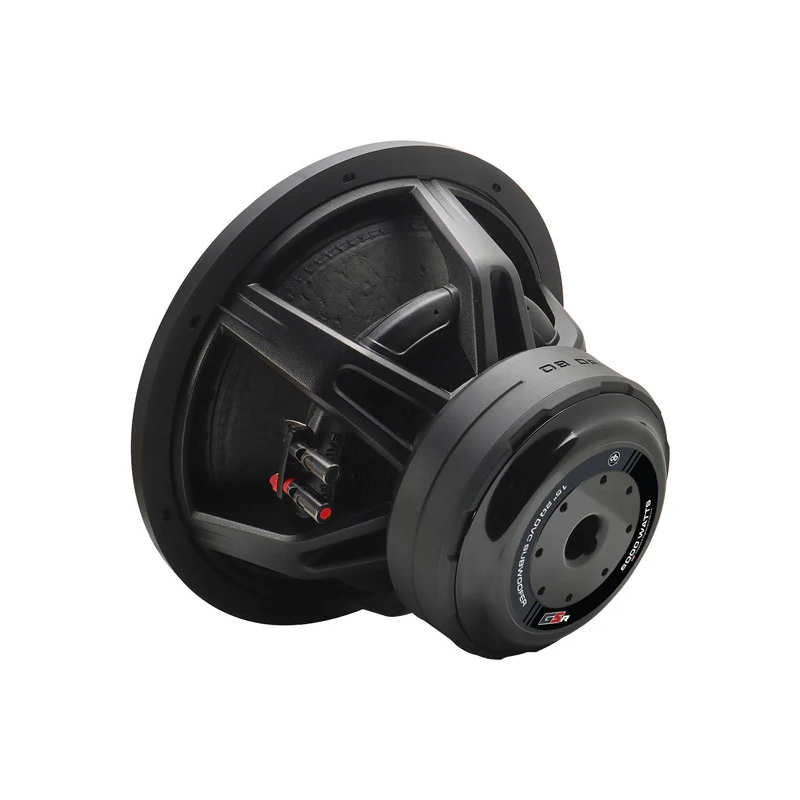

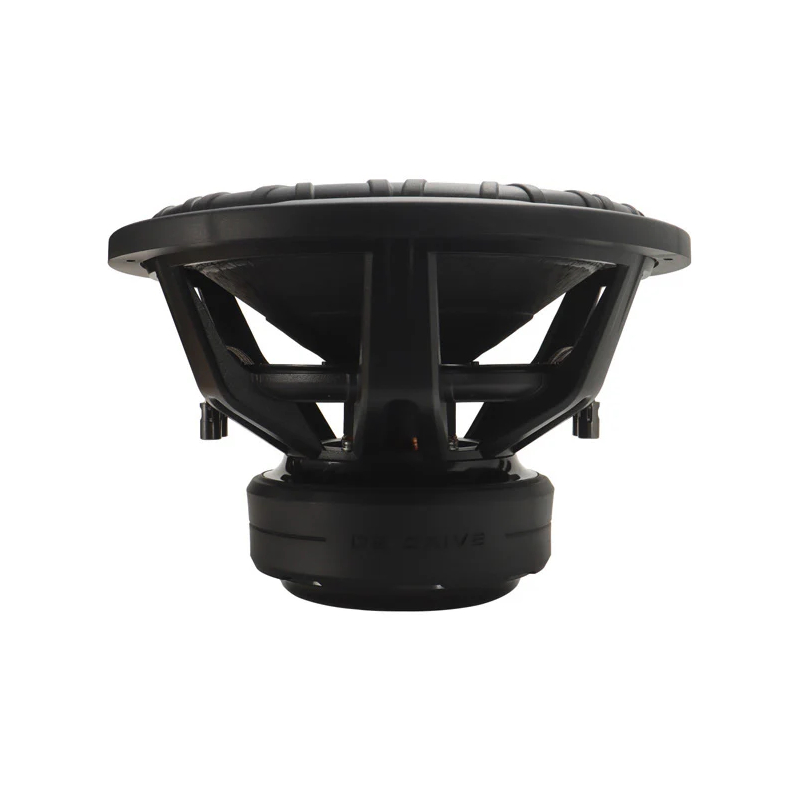

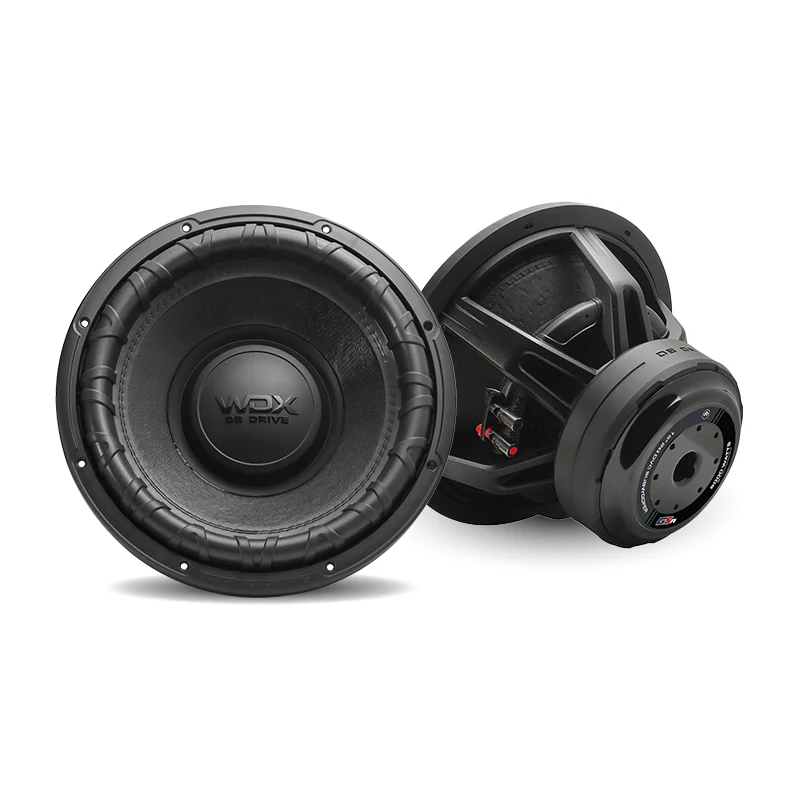

DB Drive WDX15G5R.2 WDX G5R Series 15" 3000W RMS (6000W Peak Power Handling) 2-Ohm, Dual Voice Coil Car Subwoofer (sold individually)
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Feel Every Note—Not Just Hear It
The DB Drive WDX15G5R.2 isn’t your average subwoofer—it’s built to move you. With up to 3000 watts RMS and 6000 watts peak, this 15" beast brings raw, unrelenting bass that shakes your ride to its core. If you’re serious about sound, this is the kind of sub that doesn’t just play music—it turns every beat into a full-body experience.
Built to Take a Beating
You don’t hold back—and neither does this sub. Its rugged aluminum basket, custom dust caps, and high-temp dual voice coils are made for high-output setups that push limits. With Y35 ferrite magnets and a ribbed surround, it’s engineered for clean, deep bass even under extreme pressure. Whether you're daily driving or competing, it's ready to deliver.
Sealed Tight, Hits Hard
Bass this big needs precision. The WDX15G5R.2 features a custom mounting gasket that seals tight to stop rear-wave cancellation, so all you get is clean, pure low-end. Every part of this sub is designed to maximize output and clarity. You’ll feel the difference from the first drop—this is bass that doesn’t back down.
- Diameter : 15 Inch
- Maximum Power : 6000 Watts
- Sensitivity : 84.8 dB
- Impedance : 2 Ohm
- Peak Power Handling : 6000 Watts
- Number of Voice Coils : Dual
- RMS Power Handling : 3000 Watts
Features:
- 3.0" 4-Layer Anodized Aluminum High-Temperature Voice Coil: Enhanced heat dissipation for high-power performance and distortion-free sound.
- Non-Pressed Paper Cone: Offers lightweight and flexible construction for improved sound quality.
- Double-Stitched Reinforced Foam Surround: Provides enhanced durability and resilience, improving the speaker's lifespan.
- Dual Poly-Cotton Dampeners: Reduces distortion for clearer sound reproduction.
- Die-Cast Aluminum Vented Basket: Promotes better airflow, preventing overheating and improving overall performance.
- Rubber Gasket Trim Ring: Ensures a secure and vibration-resistant seal for enhanced sound clarity.
- Large Gauge Compression Terminals: Allows for high-current connections and improved signal transmission.
- Protective Magnet Cover: Shields the magnet from damage and helps maintain sound quality.
Specifications:
- Dynamic Power Handling: 6000 Watts
- Nominal Power Handling: 3000 Watts
- Impedance: Dual 2Ω Voice Coil
- Resonant Frequency (fs): 28.88 Hz
- D.C. Voice Coil Resistance (Re): 2 x 2Ω
- Mechanical Quality Factor (Qms): 3.84
- Electrical Quality Factor (Qes): 0.62
- Total Quality Factor (Qts): 0.54
- Equivalent Air Volume (Vas): 50.53 L
- Mechanical Compliance of Suspension (CMS): 55.010 mm/N
- Mass of Diaphragm/Coil (Mms): 552.05 g
- Force Factor (BL): 25.35
- Sound Pressure Level (SPL): 84.8 dB
- UPC:
- Weight: 25
