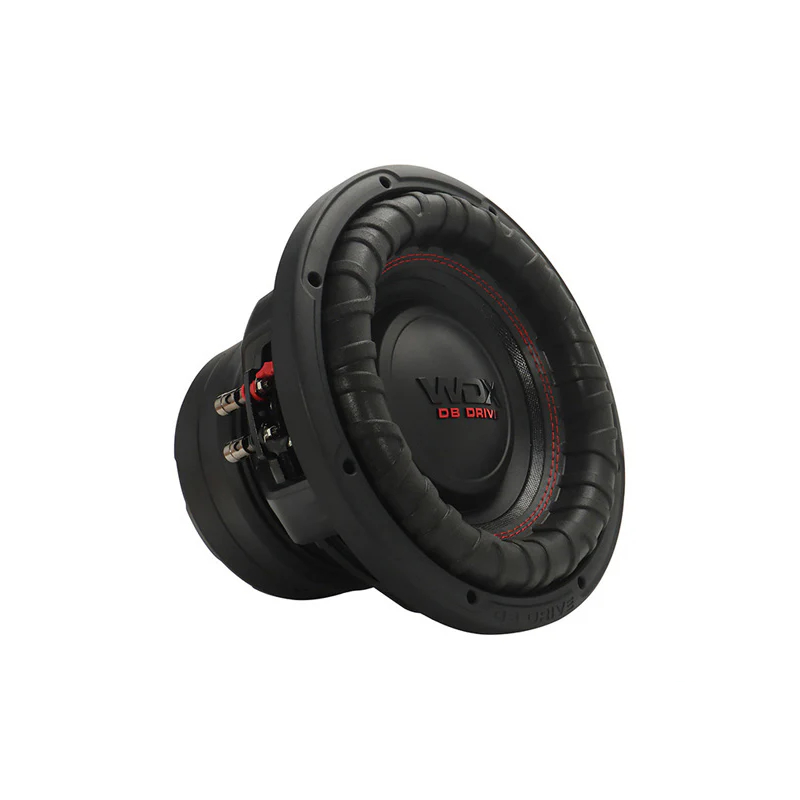

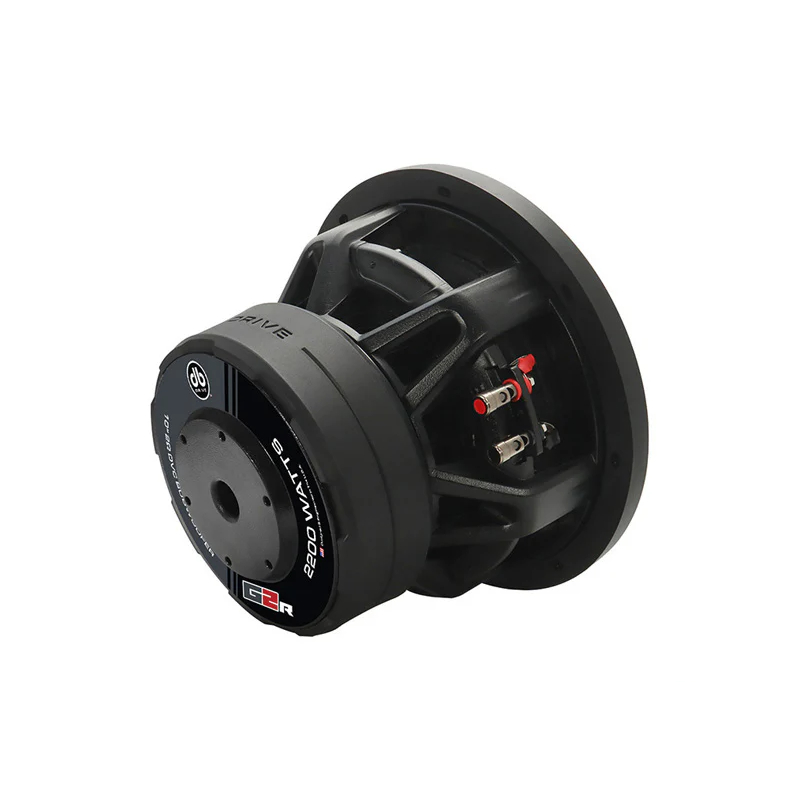

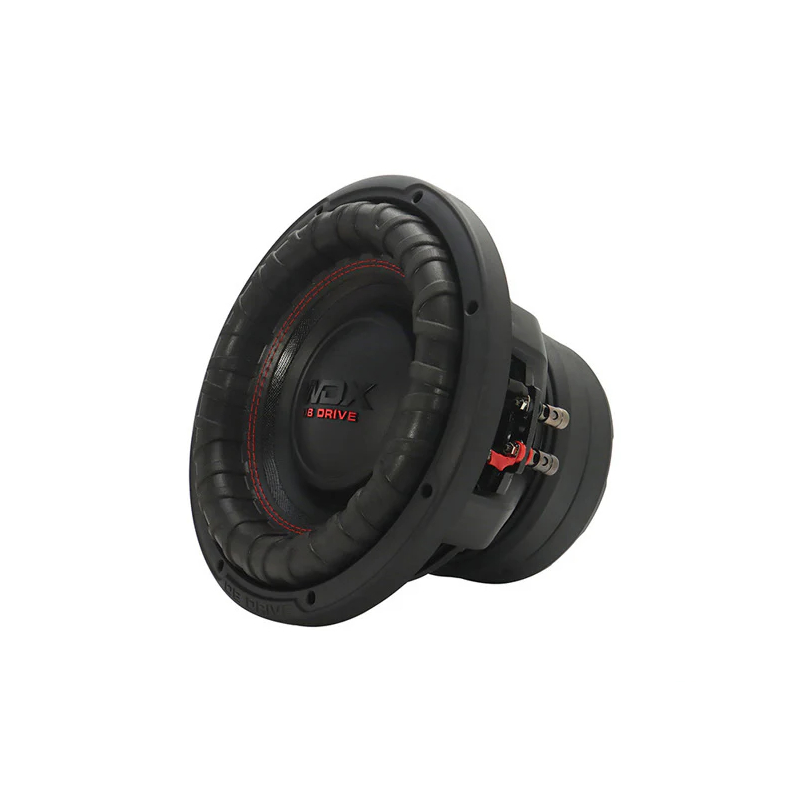

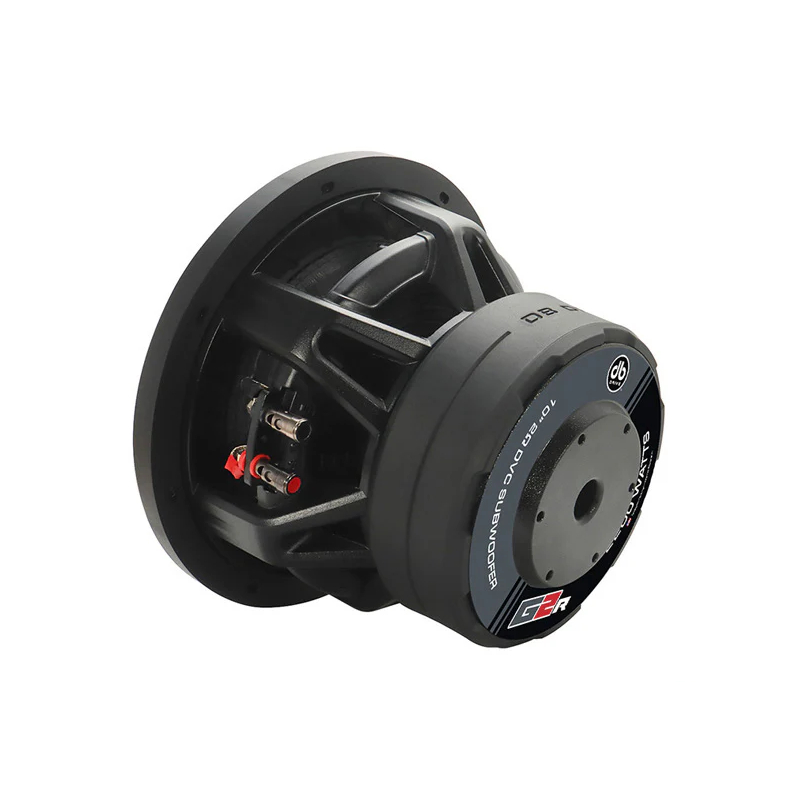

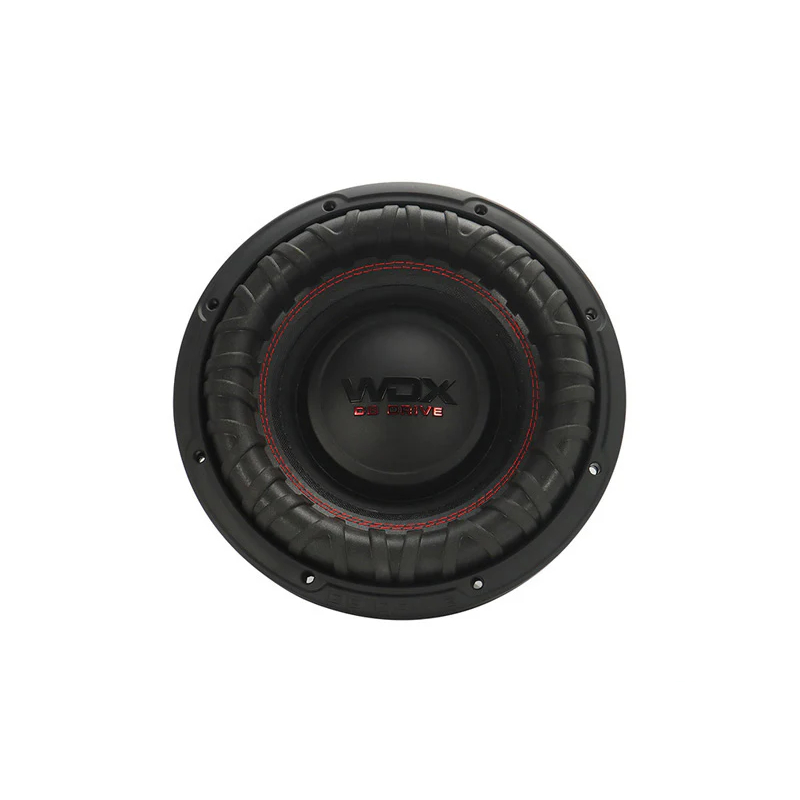

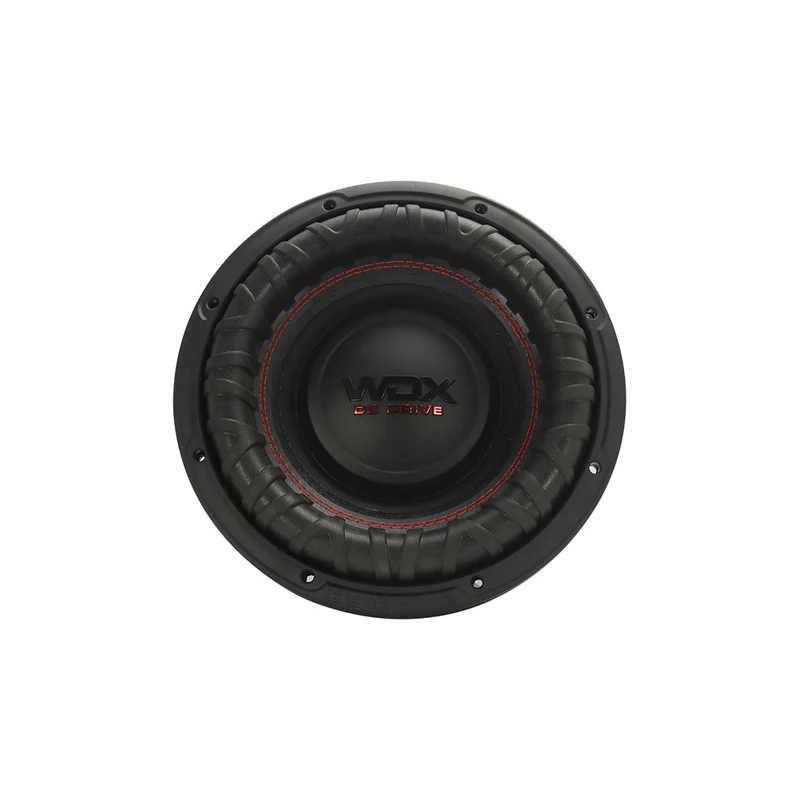

DB Drive WDX10G2R.2 WDX G2R Series 10" 1100W RMS (2200W Peak Power Handling) 2-Ohm, Dual Voice Coil Car Subwoofer (sold individually)
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Feel Every Beat
The DB Drive WDX10G2R.2 isn’t just a subwoofer — it’s the heart-pounding force your sound system’s been missing. With up to 2200 watts of peak power and 1100 watts RMS, this 10-inch powerhouse delivers bass that hits hard and stays clean. Whether you're showing off at a meet or just want to feel your music the way it was meant to be heard, the WDX G2R makes sure every note leaves a mark.
Built for the Streets
This sub was made to take a beating and come back for more. A high-temp 3-inch anodized aluminum voice coil handles serious heat, while the non-pressed paper cone and reinforced foam surround keep your lows tight and accurate. Housed in a rugged die-cast aluminum basket with dual poly-cotton dampeners, it’s all about performance that lasts, no matter how loud you play it.
Smart Power, Serious Flex
With dual 2-ohm voice coils, the WDX10G2R.2 gives you the wiring flexibility to fine-tune your setup for max output. Big gauge compression terminals make connections clean and easy, and the protective magnet cover keeps things safe. Tuned to a resonant frequency of 32.29 Hz, this sub hits deep and delivers that low-end rumble you can feel in your chest.
- Diameter : 10 Inch
- Maximum Power : 2200 Watts
- Sensitivity : 79.6 dB
- Impedance : 2 Ohm
- Peak Power Handling : 2200 Watts
- Number of Voice Coils : Dual
- RMS Power Handling : 1100 Watts
Features:
- 3.0" Anodized Aluminum High-Temperature Voice Coil: Large-diameter coil built for high heat resistance and steady output in demanding setups.
- Non-Pressed Paper Cone: Offers lightweight and flexible construction for improved sound quality.
- Double-Stitched Reinforced Foam Surround: Provides enhanced durability and resilience, improving the speaker's lifespan.
- Dual Poly-Cotton Dampeners: Reduces distortion for clearer sound reproduction.

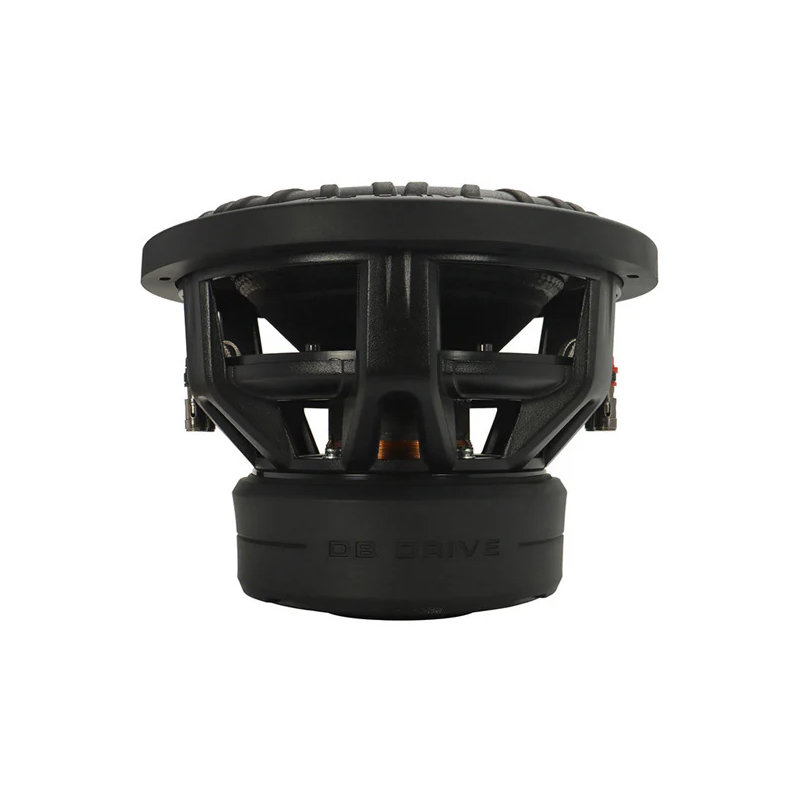

- Die-Cast Aluminum Vented Basket: Promotes better airflow, preventing overheating and improving overall performance.
- Rubber Gasket Trim Ring: Ensures a secure and vibration-resistant seal for enhanced sound clarity.

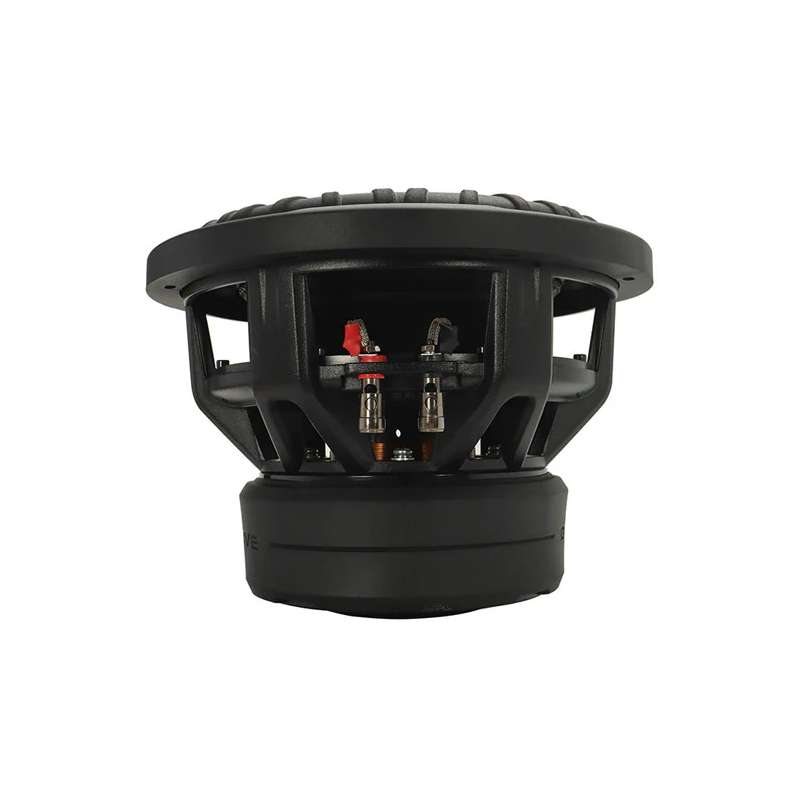

- Large Gauge Compression Terminals: Allows for high-current connections and improved signal transmission.

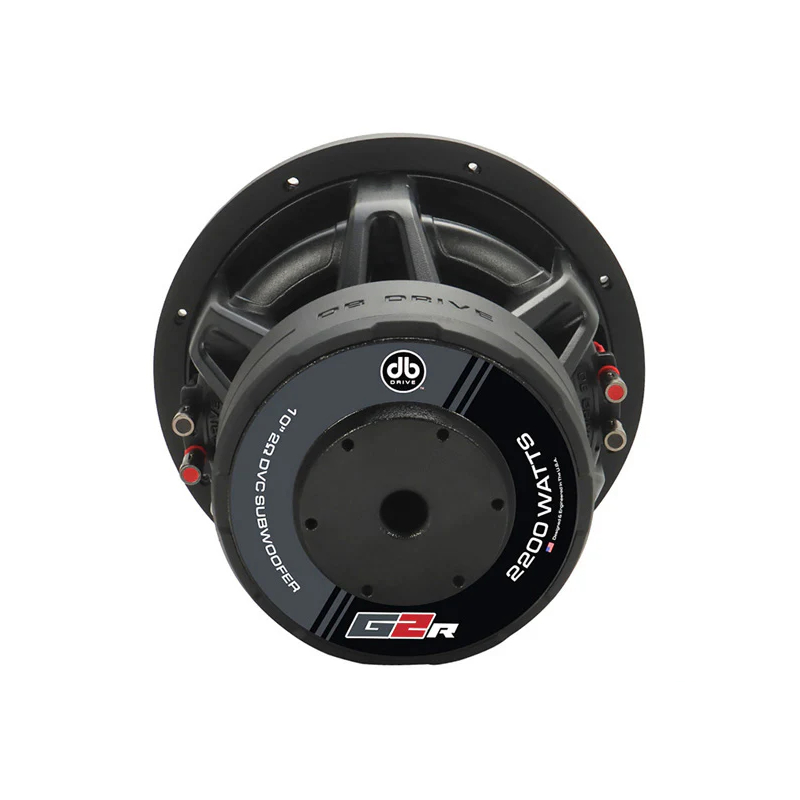

- Protective Magnet Cover: Shields the magnet from damage and helps maintain sound quality.
Specifications:
- Dynamic Power Handling: 2200 Watts
- Nominal Power Handling: 1100 Watts
- Impedance: Dual 2Ω Voice Coil
- Resonant Frequency (fs): 32.29 Hz
- D.C. Voice Coil Resistance (Re): 2 x 2Ω
- Mechanical Quality Factor (Qms): 3.70
- Electrical Quality Factor (Qes): 0.96
- Total Quality Factor (Qts): 0.76
- Equivalent Air Volume (Vas): 16.71 L
- Mechanical Compliance of Suspension (CMS): 92.670 mm/N
- Mass of Diaphragm/Coil (Mms): 262.19 g
- Force Factor (BL): 14.89
- Sound Pressure Level (SPL): 79.6 dB
- UPC: 811536039392
- Weight: 26
