DB Drive WDX8G0.4 WDX G0 Series 8" 400W RMS (800W Peak Power Handling) 4-Ohm, Dual Voice Coil Stamped-Frame Car Subwoofer (sold individually)
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Crank Up the Bass

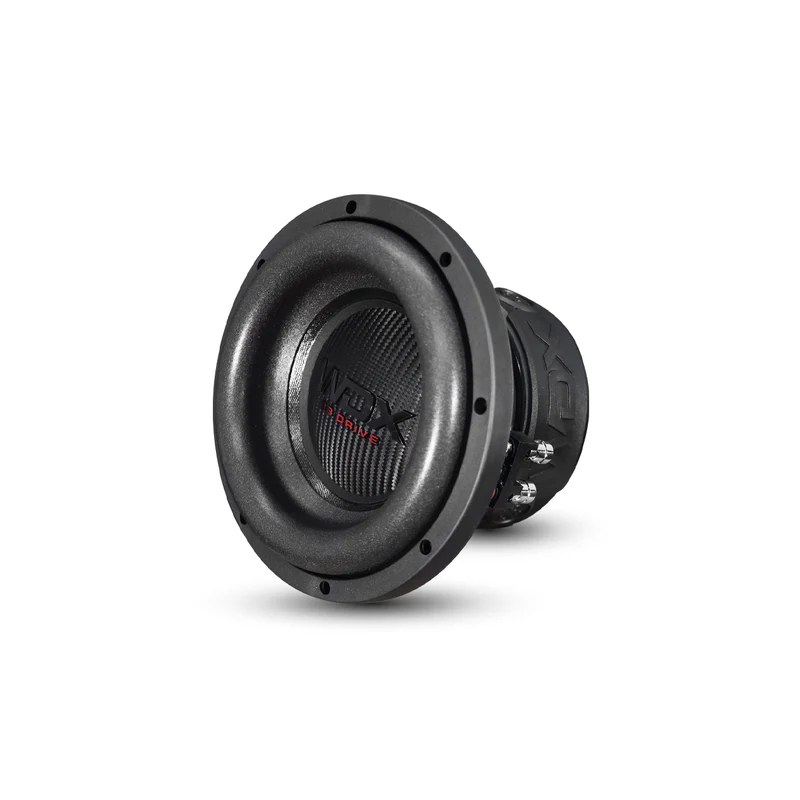

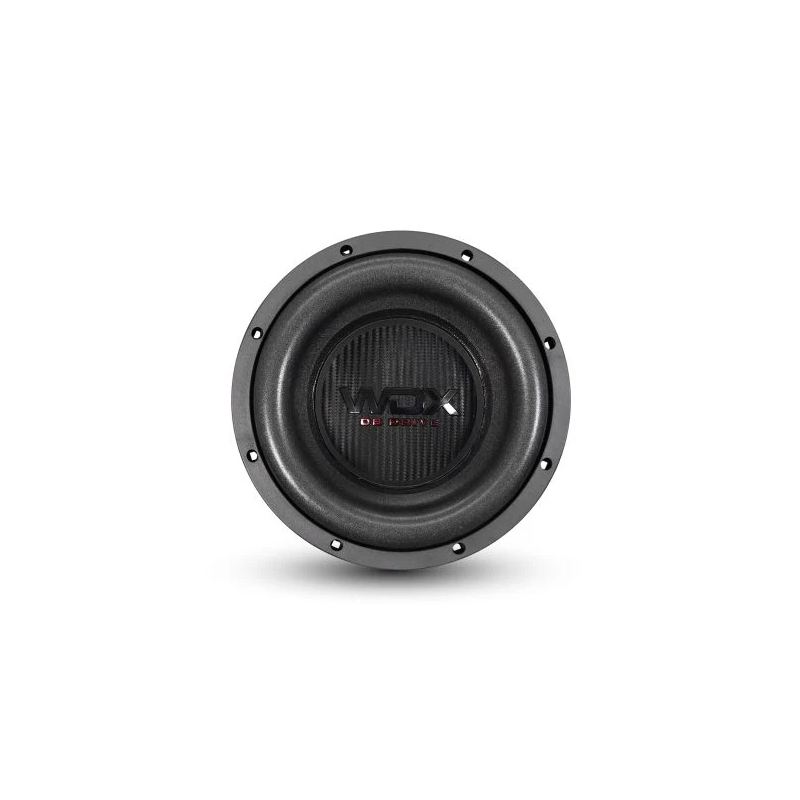

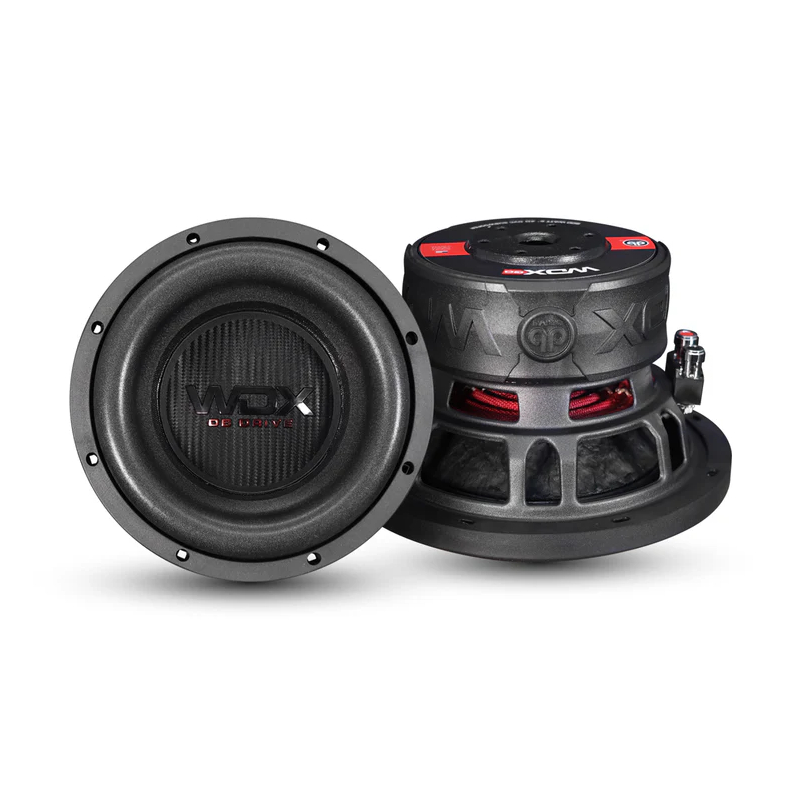

Deliver deep, punchy lows with the DB Drive WDX8G0.4 8" subwoofer. With up to 800 watts of peak power handling and 400 watts RMS, this high-performance woofer brings powerful bass to any car audio system. Whether you're after thunderous low-end or smooth, responsive playback, this subwoofer delivers impressive performance every time you hit the road.
Built for the Beat

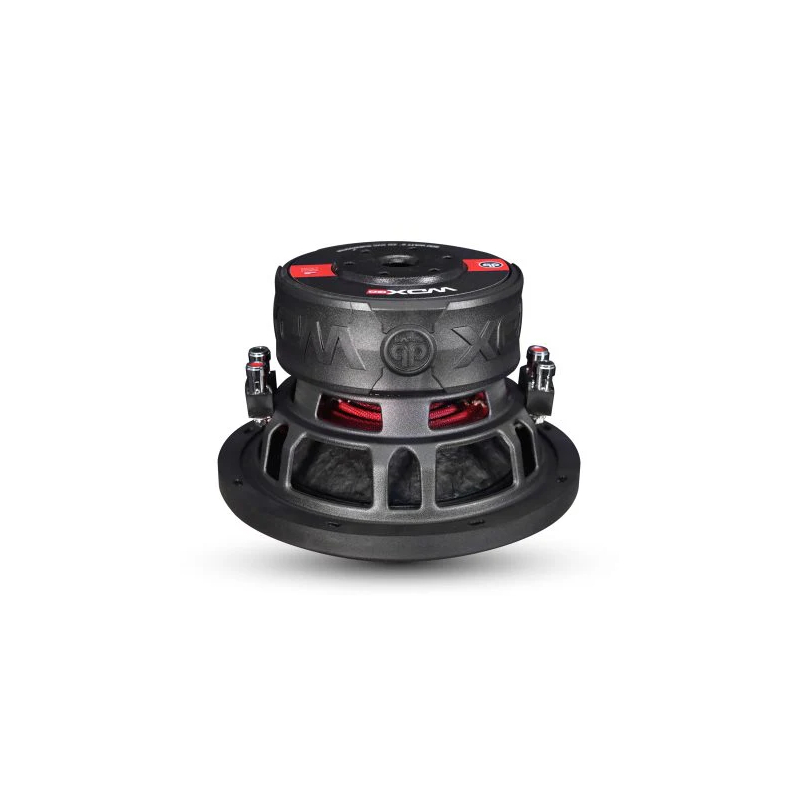

Designed for strength and durability, the WDX8G0.4 features a stamped steel frame, reinforced paper cone, and a 2″ high-temperature voice coil. Dual poly-cotton spiders and a double-stitched foam surround provide excellent control and reduced distortion, even under heavy load.
Precision Meets Power
Dual 4-ohm voice coils give you flexible wiring options to match your setup. Large gauge compression terminals ensure a solid connection, while the protective magnet cover enhances long-term reliability. Whether you're upgrading your system or starting from scratch, the WDX8G0.4 delivers the deep, rich bass you want—with the durability you need.
- Diameter : 8 Inch
- Maximum Power : 800 Watts
- Sensitivity : 84.3 dB
- Impedance : 4 Ohm
- Peak Power Handling : 800 Watts
- Number of Voice Coils : Dual
- Mounting Depth : 4.62 Inches
- RMS Power Handling : 400 Watts
Features:
- Reinforced Paper Cone: Delivers a balance of lightweight responsiveness and enhanced durability for improved bass accuracy and performance.
- Dual Poly-Cotton Dampeners: Reduces distortion for clearer sound reproduction.
- Stamped Cast Basket: Provides structural rigidity while maintaining efficient airflow for cooler operation and consistent performance.
- Rubber Gasket Trim Ring: Ensures a secure and vibration-resistant seal for enhanced sound clarity.
- Large Gauge Compression Terminals: Allows for high-current connections and improved signal transmission.
- Protective Magnet Cover: Shields the magnet from damage and helps maintain sound quality.
- 2" High-Temperature Voice Coil: Handles higher power levels with excellent heat resistance for sustained, high-output performance.
Specifications:
- Dynamic Power Handling: 800 Watts
- Nominal Power Handling: 400 Watts
- Impedance: Dual 4Ω Voice Coil
- Resonant Frequency (fs): 41.702 Hz
- D.C. Voice Coil Resistance (Re): 3.2Ω x 2
- Mechanical Quality Factor (Qms): 2.230
- Electrical Quality Factor (Qes): 0.447
- Total Quality Factor (Qts): 0.372
- Equivalent Air Volume (Vas): 8.417 m
- Mass of Diaphragm/Coil (Mms): 93.321 g
- Force Factor (BL): 9.745
- Sound Pressure Level (SPL): 84.3 dB

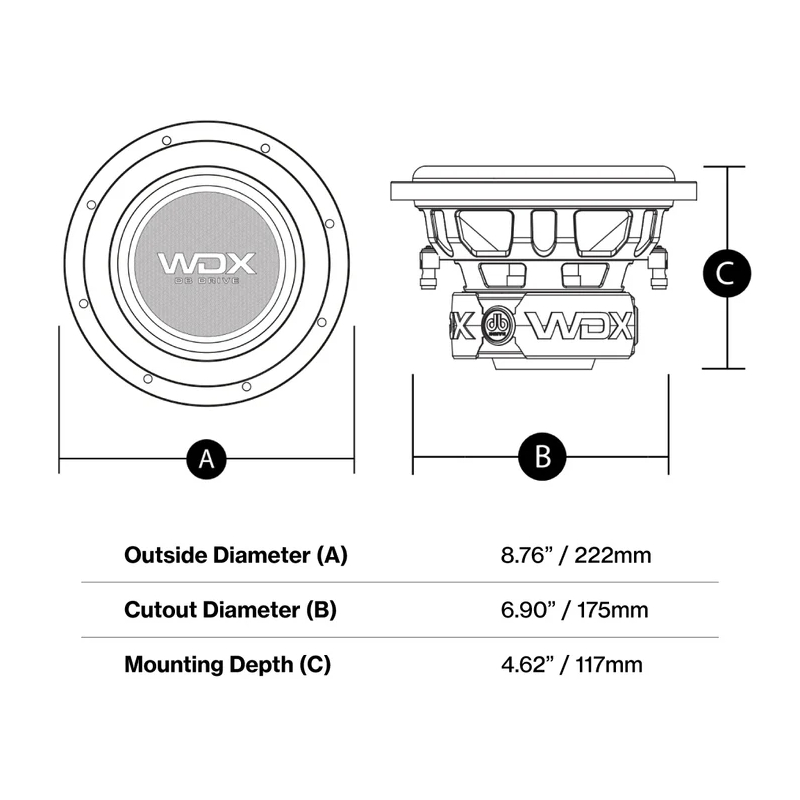

- Outside Diameter: 8.76" / 222mm
- Cutout Diameter: 6.90" / 175mm
- Mounting Depth: 4.62" / 117mm
- UPC: 811536037725
- Weight: 8.4
