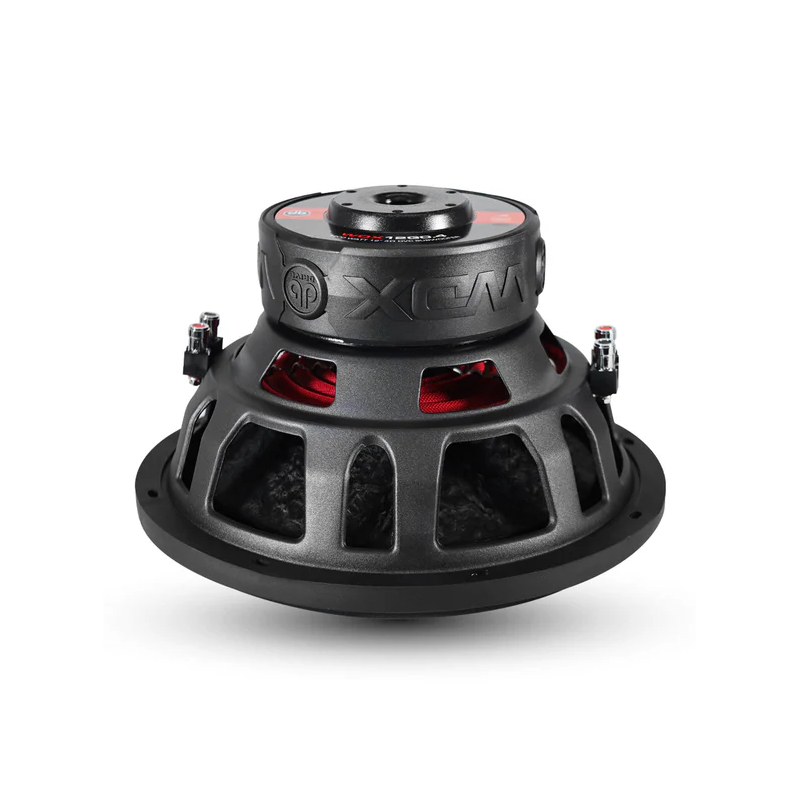

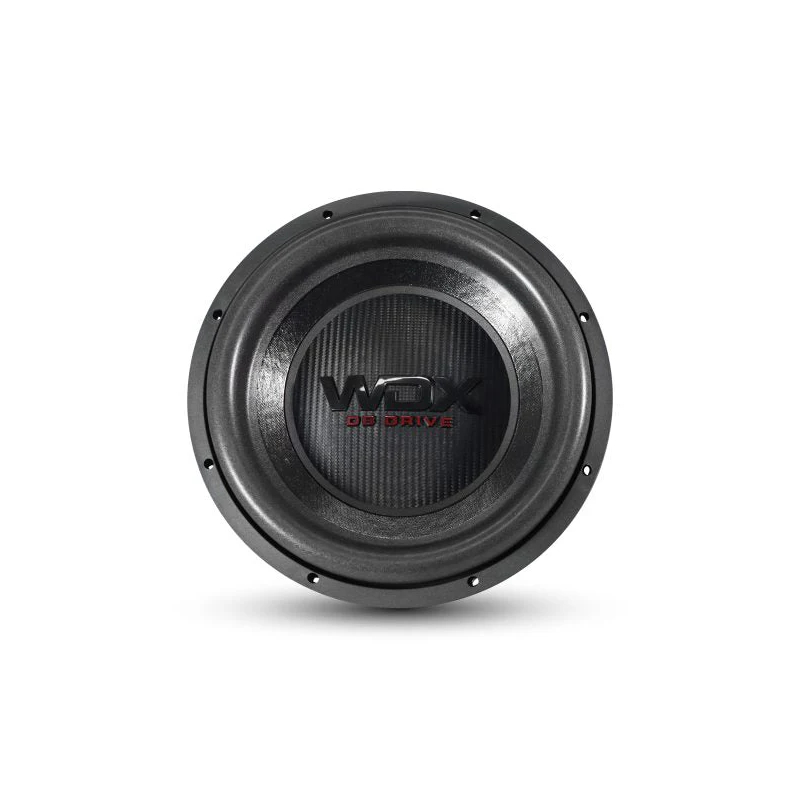

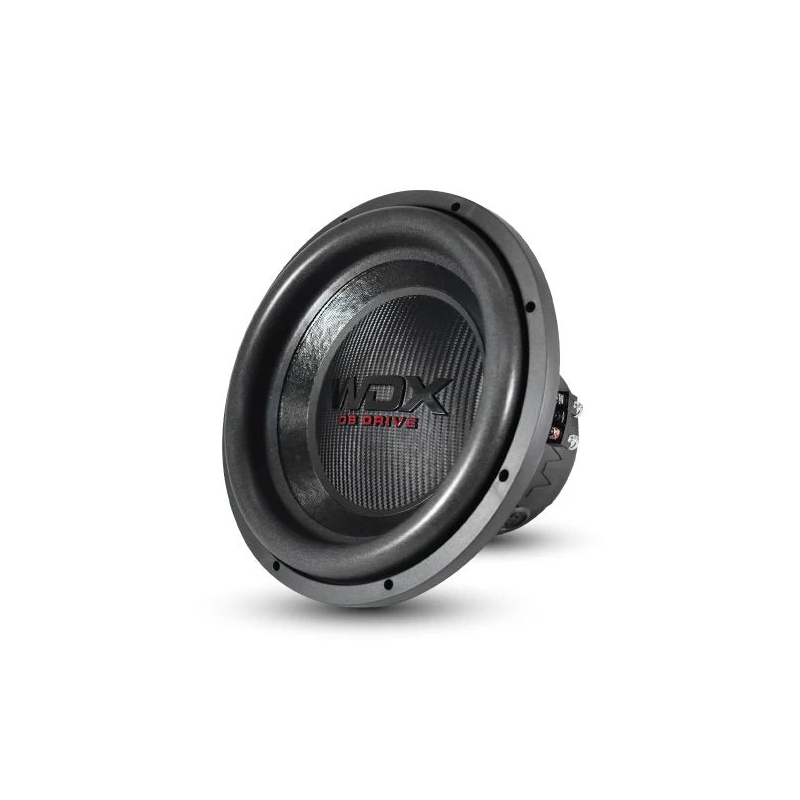

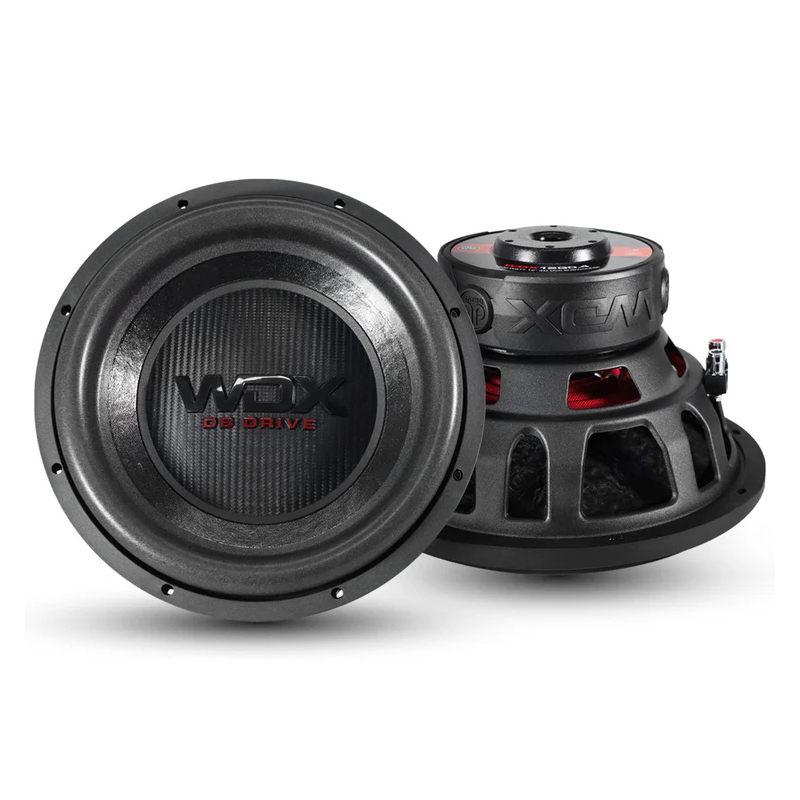

DB Drive WDX12G0.4 WDX G0 Series 12" 600W RMS (1200W Peak Power Handling) 4-Ohm, Dual Voice Coil Stamped-Frame Car Subwoofer (sold individually)
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Feel the Power with Every Beat!
Experience earth-shaking bass with the DB Drive WDX12G0.4 12-inch subwoofer. Designed for audiophiles and car audio enthusiasts alike, this subwoofer boasts an impressive 600W RMS and a peak power handling of 1200W, delivering deep, powerful sound for all your music needs. Featuring a high-temperature 2.5” voice coil, reinforced paper cone, and double-stitched foam surround, this subwoofer is built to endure high-performance audio sessions with clarity and precision.
Built for Durability and Longevity
The WDX12G0.4 is engineered to withstand the toughest conditions, with a stamped cast steel vented basket that promotes optimal airflow, keeping the subwoofer cool even under heavy load. The reinforced paper cone and rubber gasket trim ring enhance durability, ensuring a long-lasting, high-quality audio experience. The large gauge compression terminals make installation easy and secure, while the protective magnet cover shields the components for added protection.
Precision-Driven Sound Performance
Every detail of the WDX12G0.4 is designed to offer exceptional sound accuracy and stability. Dual poly-cotton dampeners provide additional control, ensuring clean and precise bass at all power levels. Whether you’re cranking up the volume or enjoying subtle low-end frequencies, this subwoofer delivers consistent, high-performance sound. Elevate your car audio system with the DB Drive WDX12G0.4 and feel the difference in every beat.
- Diameter : 12 Inch
- Maximum Power : 1200 Watts
- Sensitivity : 85.2 dB
- Impedance : 4 Ohm
- Peak Power Handling : 1200 Watts
- Number of Voice Coils : Dual
- Mounting Depth : 6.51 Inches
- RMS Power Handling : 600 Watts
Features:
- Reinforced Paper Cone: Delivers a balance of lightweight responsiveness and enhanced durability for improved bass accuracy and performance.
- Dual Poly-Cotton Dampeners: Reduces distortion for clearer sound reproduction.
- Stamped Cast Basket: Provides structural rigidity while maintaining efficient airflow for cooler operation and consistent performance.
- Rubber Gasket Trim Ring: Ensures a secure and vibration-resistant seal for enhanced sound clarity.
- Large Gauge Compression Terminals: Allows for high-current connections and improved signal transmission.
- Protective Magnet Cover: Shields the magnet from damage and helps maintain sound quality.
- Ground-Up Engineering Design: Crafted by DB Drive engineers for extreme performance and deep bass impact.
- 2.5" High-Temperature Voice Coil: Accommodates increased power handling and enhances thermal efficiency for superior long-term performance.
Specifications:
- Dynamic Power Handling: 1200 Watts
- Nominal Power Handling: 600 Watts
- Impedance: Dual 4Ω Voice Coil
- Resonant Frequency (fs): 34.798 Hz
- D.C. Voice Coil Resistance (Re): 3.4 x 2Ω
- Mechanical Quality Factor (Qms): 2.876
- Electrical Quality Factor (Qes): 0.673
- Total Quality Factor (Qts): 0.545
- Equivalent Air Volume (Vas): 34.645 m
- Mass of Diaphragm/Coil (Mms): 241.691 gr
- Force Factor (Bl): 11.556 N/A
- Sound Pressure Level (SPL): 85.2 dB
- Outside Diameter: 9.96" / 252mm
- Cutout Diameter: 9.07" / 230mm
- Mounting Depth: 5.85" / 14.85mm
- UPC: 811536037749
- Weight: 24.6
