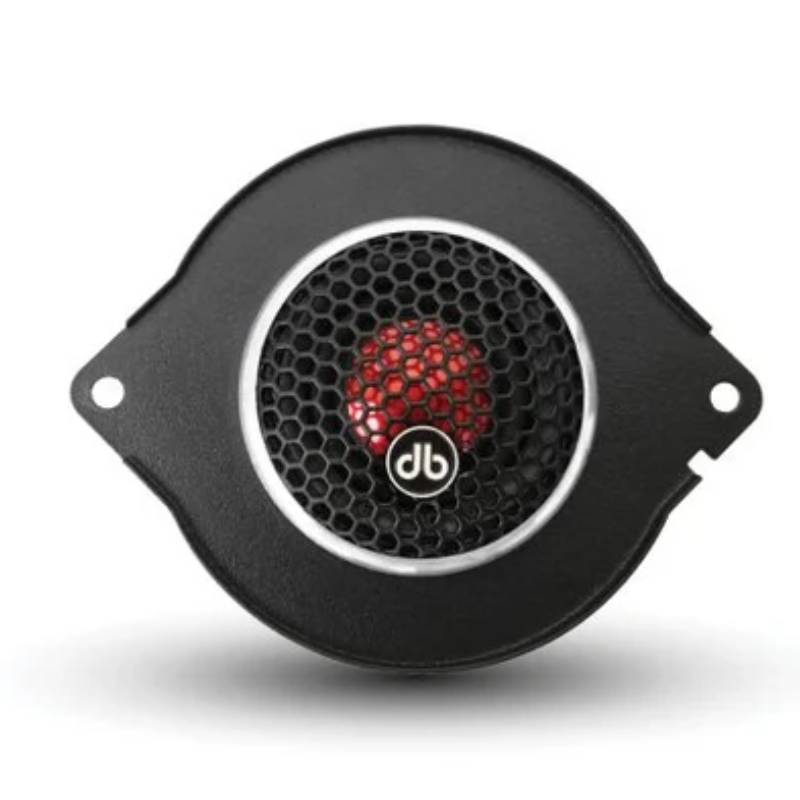

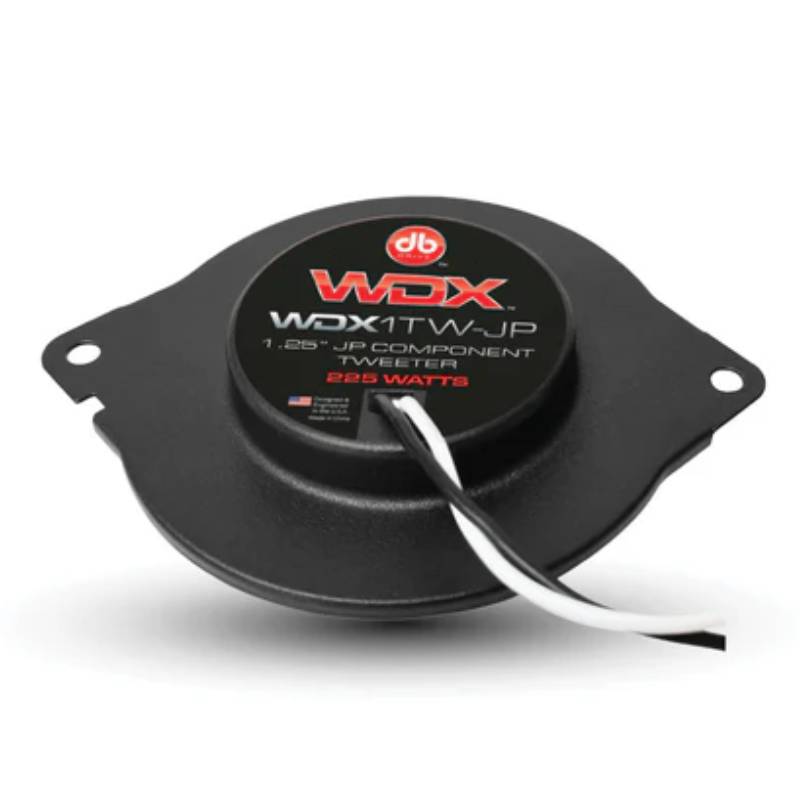

DB Drive WDX1TW-JP WDX Series 1.25" 225W Max Power @ 4-Ohms, Aluminum Dome Jeep Tweeter (Jeep OEM Fit)(PAIR)
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 1.25" Aluminum Dome Tweeter
- • Rear Resonance Chamber
- • Passive Crossover
- • Plug and Play Harness
- • Owner's Manual
High-Efficiency Aluminum Dome Tweeters for Crisp, Powerful Highs
Experience exceptional high-frequency clarity with our 1.25" Aluminum Dome Tweeters, built to deliver crisp, detailed sound without distortion — even at high volumes. Powered by a lightweight yet incredibly strong neodymium magnet, these tweeters offer enhanced efficiency and crystal-clear audio in a compact design. With high sensitivity, they produce impressive volume and sharp detail with minimal power, making them the perfect upgrade for anyone looking to elevate their audio system’s highs without the need for heavy amplification.
Smooth, Distortion-Free Highs with Easy Plug-and-Play Installation
Enjoy smoother, distortion-free highs with our tweeters featuring an integrated Rear Resonance Chamber, expertly designed to control air pressure and vibrations for naturally extended frequency response. Paired with a Passive Crossover, it ensures your tweeters only receive clean, crisp high frequencies — protecting your system and enhancing overall sound balance. Installation is a breeze thanks to the included Plug and Play Harness, offering a quick, no-cut, no-splice setup for a clean, professional upgrade to your factory or aftermarket audio system.
- Diameter : 1.25 Inch
- Sensitivity : 101.4 dB
- Frequency Response : 4000 - 22500 Hz
- Peak Power Handling : 225 Watts
- Vehicle Make : Jeep
- RMS Power Handling : 150 Watts
Features:
- 1.25" Aluminum Dome: This tweeter features a 1.25-inch aluminum dome, designed to deliver crisp, bright, and accurate high-frequency sounds. The aluminum material adds stiffness while remaining lightweight, allowing it to reproduce clear treble notes without distortion, even at higher volumes.
- Neodymium Magnet: Built with a neodymium magnet, which is much stronger and lighter than traditional ferrite magnets. This allows for a more compact tweeter design with powerful magnetic force, improving efficiency, sound clarity, and reducing overall weight.
- High Sensitivity: The tweeter is highly sensitive, meaning it can produce louder, clearer sound with less power. This makes it an excellent choice for systems where you want impactful, detailed high frequencies without needing a high-powered amplifier.
- Rear Resonance Chamber: Includes a rear resonance chamber that helps control internal air pressure and vibrations behind the tweeter diaphragm. This design extends the lower end of the tweeter’s frequency range and reduces distortion, resulting in smoother, more natural highs.
- Passive Crossover Included: Comes equipped with a passive crossover to filter out lower frequencies, ensuring only the appropriate high frequencies reach the tweeter. This not only protects the tweeter but also improves the overall balance and clarity of your sound system.
- Plug and Play Harness: Designed for easy installation, the included plug-and-play harness allows for a quick, hassle-free connection to your vehicle’s factory or aftermarket audio system without the need for cutting or splicing wires. Perfect for clean, reliable upgrades.
Specifications:
- Max Power: 225 Watts
- Nominal Power: 150 Watts
- Frequency Response: 4KHz - 22.5KHz
- Impedance: 4Ω
- Sensitivity: 101.4dB
- UPC: 811536038272
- Weight: 5
