Kenwood  DMX1058XR On Sale

• Satellite Radio Ready : Yes
• DIN : 1
• Preamp Voltage : 5 volts
• Display Size : 10.1 Inch
• Audio/Video Inputs : 4
• Bluetooth : Yes
• Aux Input : Yes
• MP3 Playback : Yes
• WMA Playback : Yes
• HD Radio : Yes
• Preamp Outputs : Front, Rear & Sub
• Rear View Camera Input : Yes
• Apple CarPlay : Yes
• Android Auto : Yes
• USB Mirroring : Yes

Features:

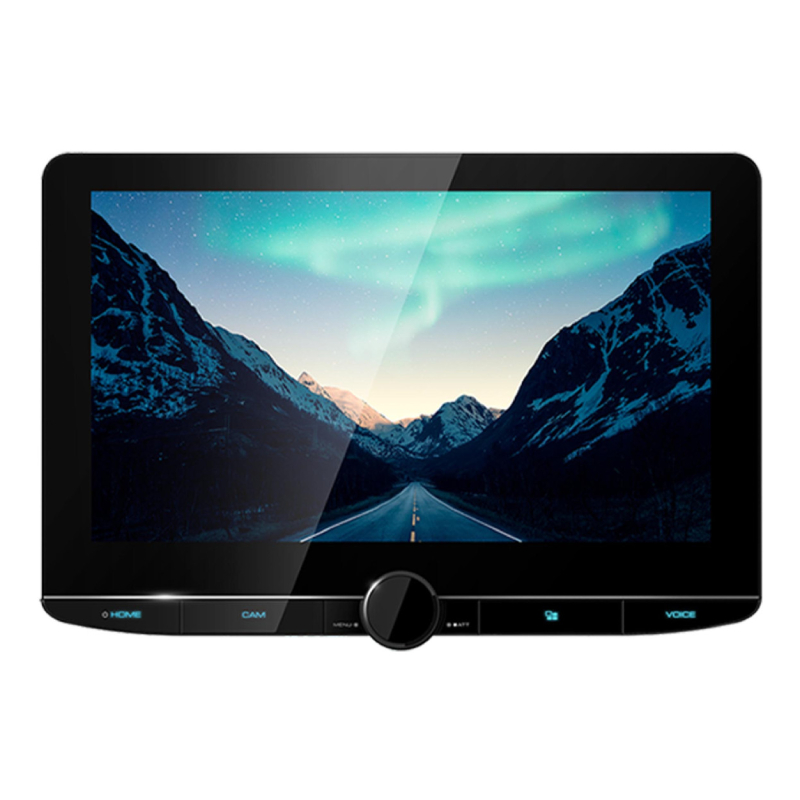

• Brilliant Display: Stunning 10.1" HD Capacitive Touchscreen for crystal-clear visuals

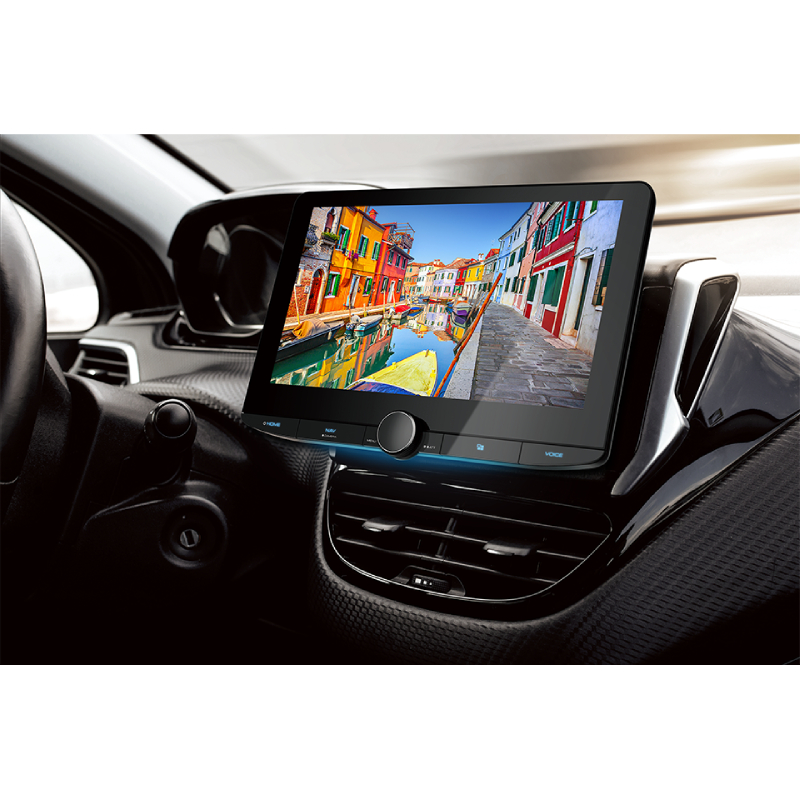

• Flexible Design: Floating Panel with 4-way Position Adjustment for the perfect viewing angle

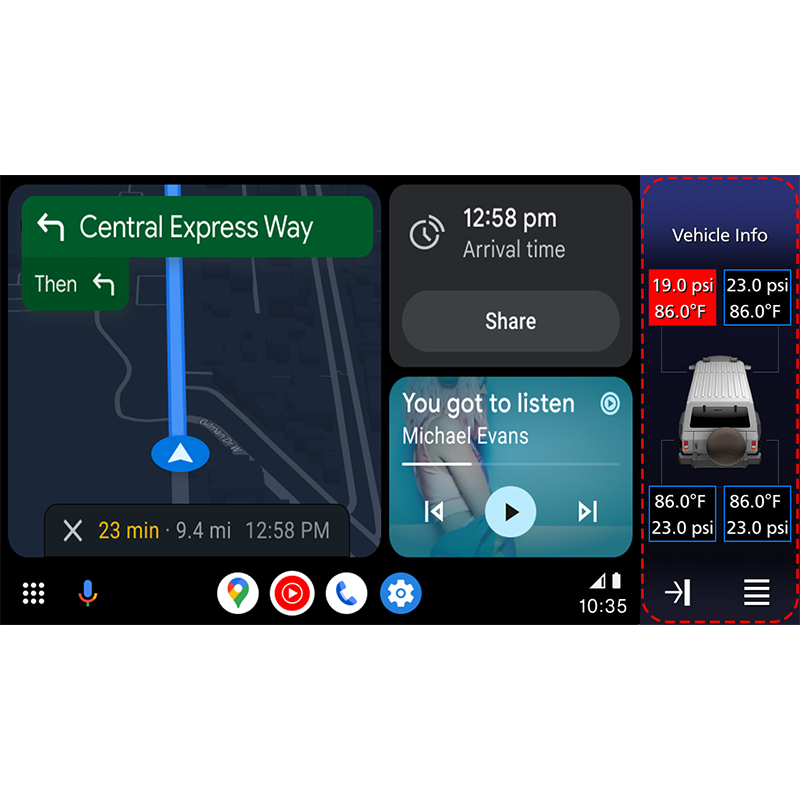

• Seamless Android Auto: Enjoy both wired and wireless Android Auto™ for easy, safe connectivity

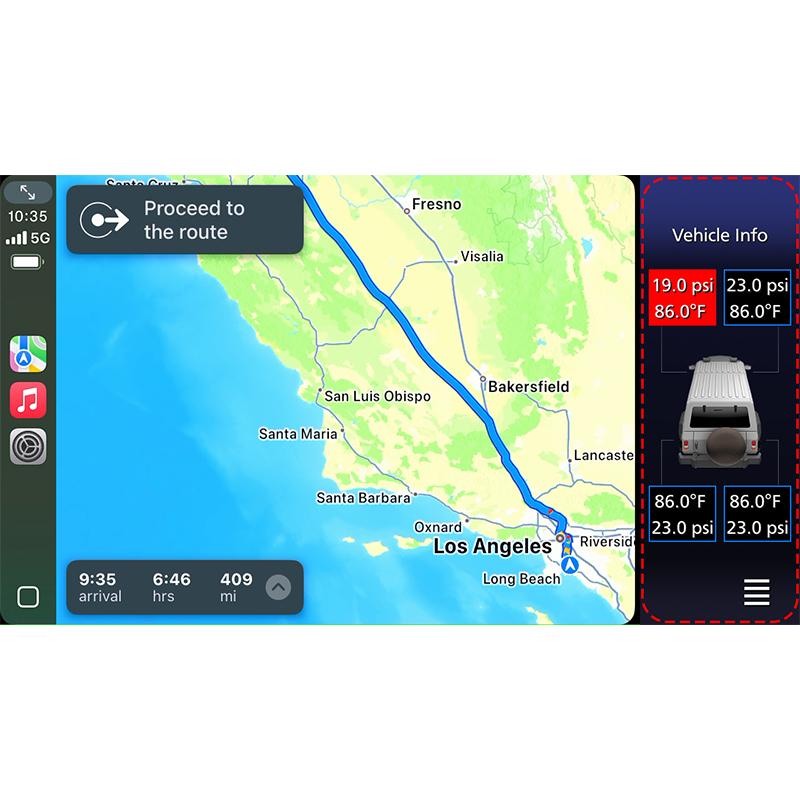

• Effortless Apple CarPlay: Wirelessly or wired, stay connected with Apple CarPlay® anytime
• Premium Sound: Stream high-resolution audio wirelessly for top-tier sound quality
• Smartphone Freedom: Mirror your phone wirelessly and control apps right from the big screen
• Complete Camera Coverage: Connect up to 4 cameras for total situational awareness
• HD Camera Ready: Front and rear HD camera support for crystal-clear monitoring
• Ultimate Connectivity: Built-in Bluetooth, HD Radio, and Wi-Fi keep you connected everywhere
• Powerful Audio Outputs: Three 5V preouts plus digital optical output for booming, crisp sound systems

Specifications:

General

• Operating Voltage: 12V DC Car Battery
• Set Weight: 2.5Kg / 5.6lb
• Chassis Dimensions (WxHxD): 178mm x 50mm x 158mm / 7 x 2 x 6-1/4 inch
• Chassis Weight: 1.3kg / 2.9lb
• Monitor Dimensions (WxHxD): 262mm x 181mm x 52mm / 10-5/16 x 7-1/8 x 2-1/16 inch
• Monitor Weight: 1.1Kg / 2.4lb

Monitor Section:

• Picture Size: 10.1 inches (diagonal) wide
• Width x Height: 223.7 x 125.8 mm / 8-13/16 x 4-15/16 inch
• Display System: LCD panel
• Drive System: TFT active matrix system
• Number of Pixels: 2,764,800 (1280H x 720V x RGB)
• Effective Pixels: 99.99%
• Pixel Arrangement: RGB striped arrangement

USB Interface Section:

• Connector Type: Type-C
• USB Standard: USB 2.0 High Speed
• File System Supported: FAT16/32, exFAT, NTFS
• Max Power Supply Current: DC5V = 3.0A
• Audio Decoder Formats: MP3, WMA, AAC, WAV, FLAC, Vorbis
• Video Decoder Formats: MPEG1/2, MPEG4, WMV, H.264, MKV

Bluetooth Section:

• Technology: Bluetooth Ver5.2
• Frequency: 2.402 – 2.480 GHz
• Max Communication Range: Approx. 10m (32.8ft) line of sight
• Audio Codecs Supported: SBC, AAC, LDAC

Digital FM:

• Frequency Range: 87.9 MHz - 107.9 MHz (200kHz step)
• Frequency Response: 20 Hz - 20 kHz (±3.0 dB)
• Signal-to-Noise Ratio (S/N): 80dB (Stereo)

Digital AM:

• Frequency Range: 530 kHz - 1700 kHz (10kHz step)
• Frequency Response: 40 Hz - 15 kHz (±3.0 dB)
• Signal-to-Noise Ratio (S/N): 80dB (Stereo)

FM:

• Frequency Range: 87.9 MHz - 107.9 MHz (200kHz step)
• Usable Sensitivity: 7.3 dBf
• S/N 30dB: 0.7 μV / 75Ω
• Frequency Response: 30 Hz - 15 kHz (±3.0 dB)
• S/N (dB): 70 dB (Mono)
• Selectivity: Over 80 dB (±400 kHz)
• Stereo Separation: 45 dB (1 kHz)

AM:

• Frequency Range: 530 kHz - 1700 kHz (10 kHz step)
• Usable Sensitivity: 30 dBμ

Video:

• Color System of External Video Input: NTSC/PAL
• External Video Input Level (RCA jacks): 1 Vp-p / 75 Ohms
• Video Input Level (RCA jacks): 1 Vp-p / 75 Ohms

Audio:

• Maximum Power Output (Front & Rear): 50W x 4
• Typical Power Output (Front & Rear): 29W x 4 (4Ω, 1kHz, 10% THD)
• Output Frequency Band: 20 Hz - 88,000 Hz
• Preout Level: 5V / 10 kOhms
• Preout Impedance: ≤ 300 Ohms
• Speaker Impedance: 4 - 8 Ohms

• UPC: 019048240842
• Weight: 8
