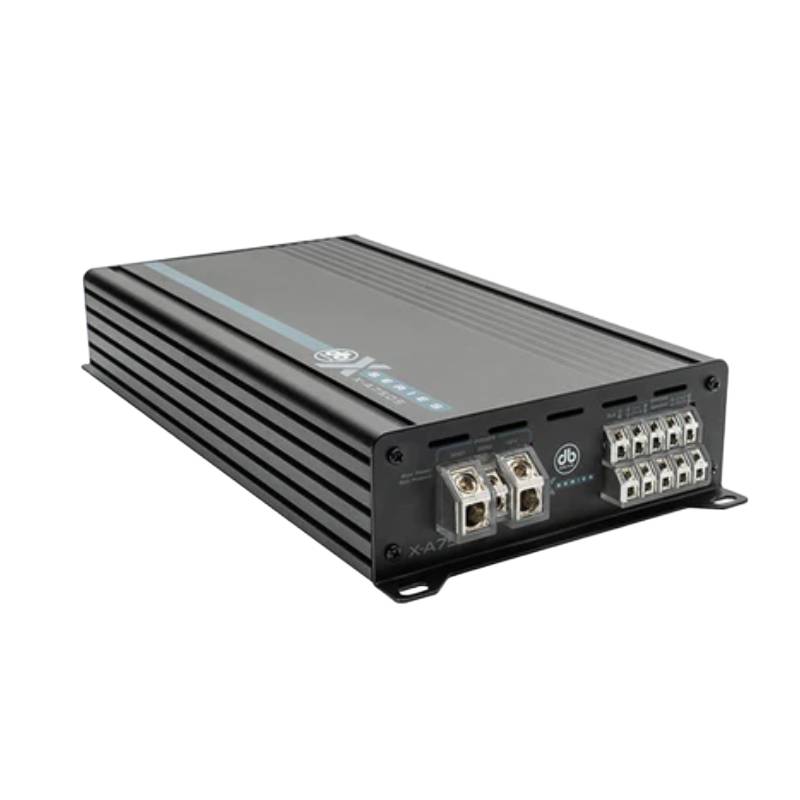

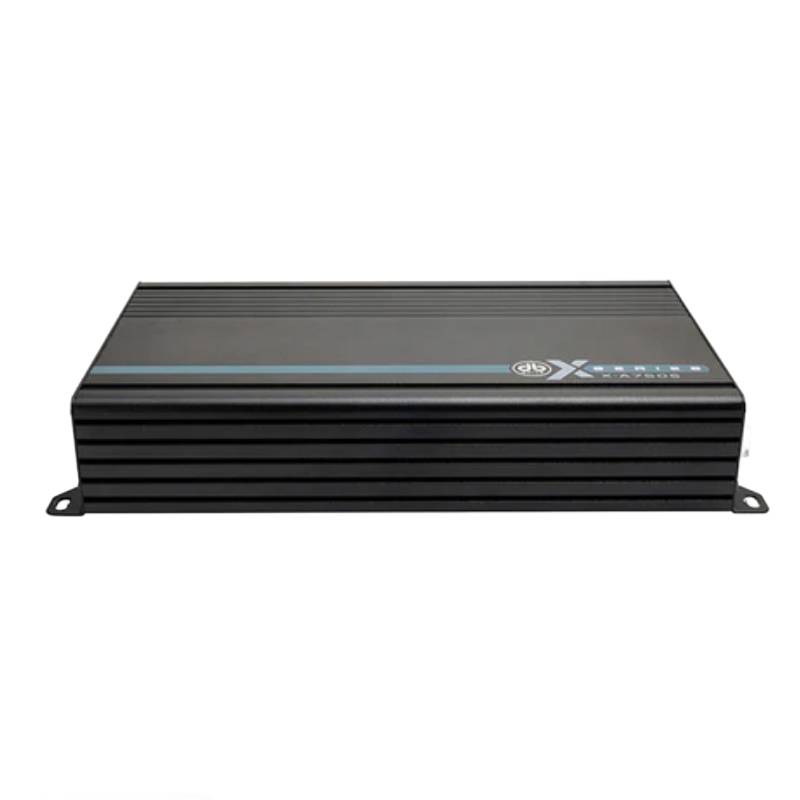

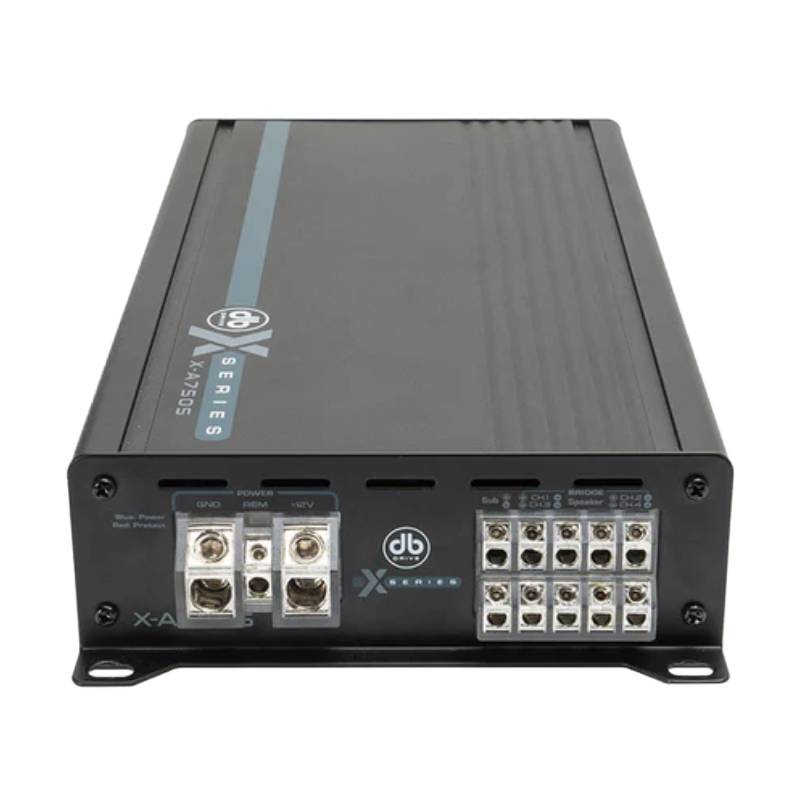

DB Drive X-A7505 X-Series 5-Channel 75W RMS x 4 + 5th Sub Channel 250W RMS x 1 at 4 Ohm, Class-D Full Range Car amplifier
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Power, Precision, and Effortless Installation
Experience bold, powerful sound with Class D Technology that runs cooler, cleaner, and more efficiently than traditional amplifiers. Enjoy hassle-free installation with direct connect speaker terminals designed for secure, no-fuss connections. Plus, the illuminated large gauge power inputs make wiring easy in any lighting while ensuring maximum power delivery for unbeatable performance.
Smart Power, Total Protection, and Real-Time Performance Monitoring
Experience flawless audio with the advanced PWM Mosfet Power Supply, delivering maximum efficiency and ultra-clean sound with zero distortion. Stay protected with the built-in Audio Protection Circuit (APC) that safeguards your gear from overheating and electrical mishaps. Plus, keep your system running at its best with the SESI Signal Evaluation Status Indicator, giving you real-time visual feedback on your audio performance.
Stay Cool and Take Control of Your Sound
Keep your system cool and performing flawlessly with the CHM Collective Heat Management system, designed to efficiently manage heat during intense listening sessions. Take full control of your bass with the included wired remote, letting you fine-tune the low-end from the driver’s seat without missing a beat. Together, they deliver reliable, customizable sound built for serious audio enthusiasts.
- Maximum Power : 950 Watts
- Number of Channels : 5
- Frequency Response : 20-20000 Hz
- Amplifier Class : D
Features:
- Class D Technology: High-efficiency amplifier design that delivers powerful, clean sound while running cooler and drawing less power than traditional amps.
- Direct Connect Speaker Terminals: Allows for quick, secure, and hassle-free speaker wire connections without the need for additional adapters.

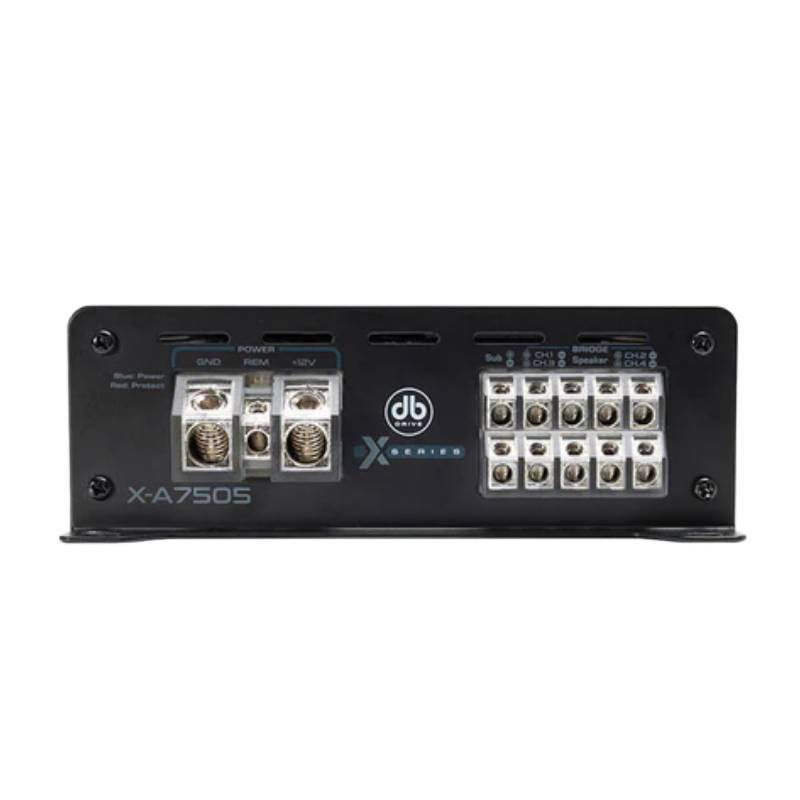

- Illuminated Large Gauge Power Wire Inputs: Power connections feature built-in illumination for easy, error-free installation, even in dim lighting, while supporting thick cables for maximum current flow.
- PWM Mosfet Power Supply: Advanced power supply design that boosts overall efficiency and reduces unwanted electrical noise for clearer, distortion-free audio.
- APC - Audio Protection Circuit: An onboard safety system that shields the amplifier and speakers from damage caused by overheating, short circuits, or other electrical problems.
- SESI - Signal Evaluation Status Indicator: A visual indicator that shows the real-time status of your audio signal, making it easy to monitor performance and troubleshoot if needed.
- CHM - Collective Heat Management: Integrated cooling system that effectively disperses heat to keep the amplifier running reliably, even under heavy loads.
- Bass Remote: Included: Comes with a wired bass remote control so you can conveniently adjust the bass level on the fly from the driver's seat.
Specifications:
- Total Dynamic Power output: 950 Watts
- 4 x 75 Watts + 1 x 250 Watts @ 4-Ohms
- 4 x 150 Watts + 1 x 350 Watts @ 2-Ohms
- Frequency Response: 20Hz-20KHz
- Input Sensitivity: 0.2V - 6V
- Input Impedance: 10K
- Signal to Noise Ratio: 90dB
- Remote Gain Level Control: 0.2-6V

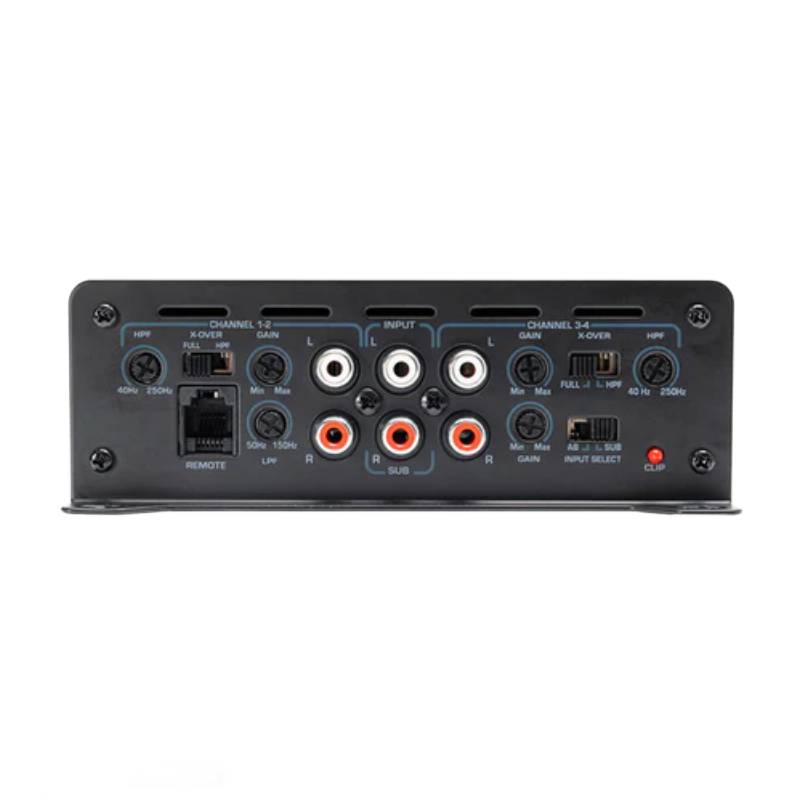

- High Pass Filter: 40Hz-250Hz
- Low Pass Filter: 50Hz-150Hz
- Variable Bass Boost: 0-12dB
- UPC: 811536039217
- Weight: 0
