DB Drive WDX PRO5000.1D WDX PRO Series 1250W RMS x 1 at 4 Ohm, Class-D Mono Subwoofer Car Amplifier
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • WDX PRO5000.1D Amplifier Unit
- • Bass Remote Control with Integrated Monitoring
- • Mounting Hardware
- • WDXPRO_AMPLIFIER_MANUAL
Crystal-Clear Sound, Smart Bass Control & Energy-Efficient Power in Every Drive
Elevate your audio experience with ATC Audiophile RCA Connectors, built to deliver flawless, crystal-clear sound without unwanted noise. ACT Adaptive Crossover Technology fine-tunes your system automatically, guaranteeing smooth, distortion-free bass and perfectly balanced performance. Powered by High-Efficiency Full Range Class D technology, this amp delivers booming, high-output sound while staying cool and energy-smart — so you can turn it up without worries.
Robust Connections, Maximum Power & Built-In Safety for Your Sound System
Experience hassle-free installation with heavy-duty 4-gauge Direct Connect Speaker Terminals that ensure strong, reliable connections for your audio system. The dual 0-gauge power wire inputs provide maximum current flow, delivering the power your system needs for explosive performance. Plus, the built-in APC Audio Protection Circuit safeguards your amplifier and subwoofer from electrical faults and overloads, giving you peace of mind while you enjoy your music.
Real-Time Monitoring, Instant Bass Control & Cool, Reliable Performance
Take full control of your sound with the SESI Signal Evaluation Status Indicator, which alerts you instantly to clipping or distortion for flawless audio. Easily adjust your bass levels on the fly with the included remote, while keeping track of voltage, temperature, and signal health for ultimate system awareness. Thanks to the CHM Collective Heat Management, your amplifier stays cool and performs consistently—even during the most intense listening sessions.
- Maximum Power : 5000 Watts
- Number of Channels : 1
- Frequency Response : 15-20000 Hz
- Amplifier Class : D
Features:
- ATC - Audiophile RCA Connectors: Premium RCA connectors engineered to deliver clean, noise-free audio signals for superior sound clarity and performance.
- ACT - Adaptive Crossover Technology: Automatically adjusts your amplifier’s crossover settings to perfectly match your subwoofer and system for smooth, distortion-free bass.
- High-Efficiency Full Range Class D Technology: An advanced amplifier design that delivers powerful, full-range audio output while running cooler and using less power than traditional amplifiers.
- 4-Gauge Direct Connect Speaker Terminals: Heavy-duty, user-friendly speaker terminals designed for 4-gauge wires, ensuring secure, reliable connections and clean power transfer.

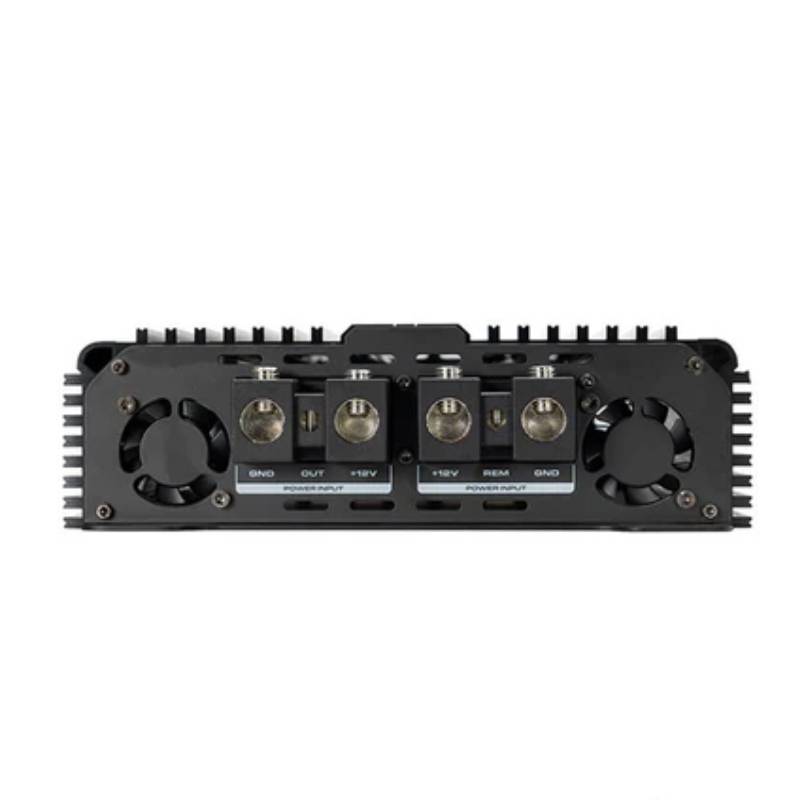

- Dual 0-Gauge Power Wire Inputs: Massive dual power inputs capable of handling thick 0-gauge cables for consistent, high-current delivery to fuel your system’s performance.
- APC - Audio Protection Circuit: An integrated safety system that shields your amplifier and subwoofer from overloads, short circuits, and electrical faults.
- SESI - Signal Evaluation Status Indicator: A real-time visual monitor that instantly alerts you to issues like clipping or distortion, helping maintain clean, optimized sound output.
- Bass Remote with Voltage, Temperature, and Signal Status Indicator: A wired remote control that lets you tweak bass levels on the fly while monitoring amp voltage, temperature, and signal health for total control.
- CHM - Collective Heat Management: An intelligent thermal management system that evenly disperses heat, preventing overheating and ensuring consistent, reliable performance even at high volumes.
Specifications:
- 1 x 5000 Watts @ 1 ohm
- 1 x 2500 Watts @ 2 ohms
- 1 x 1250 Watts @ 4 ohms
- Working Voltage: 12-15 Volts
- Frequency Response: 15 Hz - 20k Hz
- Signal to Noise Ratio: 95dB
- Damping Factor: ≥200
- Low Level Input: 6V - 0.2mV
- Variable Bass Boost Frequency: 35 Hz - 70 Hz
- Bass Boost EQ Gain: 0dB - 12dB
- High Pass Filter Variable: 15 Hz - 8k Hz
- Low Pass Filter Variable: 40 Hz - 20 Hz
- Minimum working Impedance: 1 Ohm
- UPC: 811536038562
- Weight: 0
- Authorized Internet Dealer
Warranty: 0 Months Onlinecarstereo.com warranty.
0 Months warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
