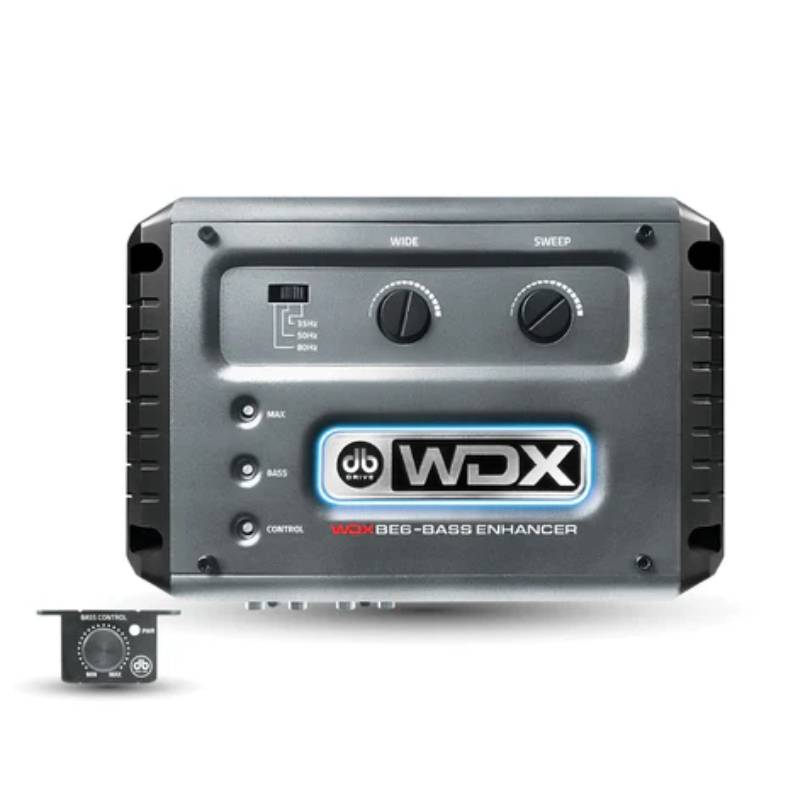

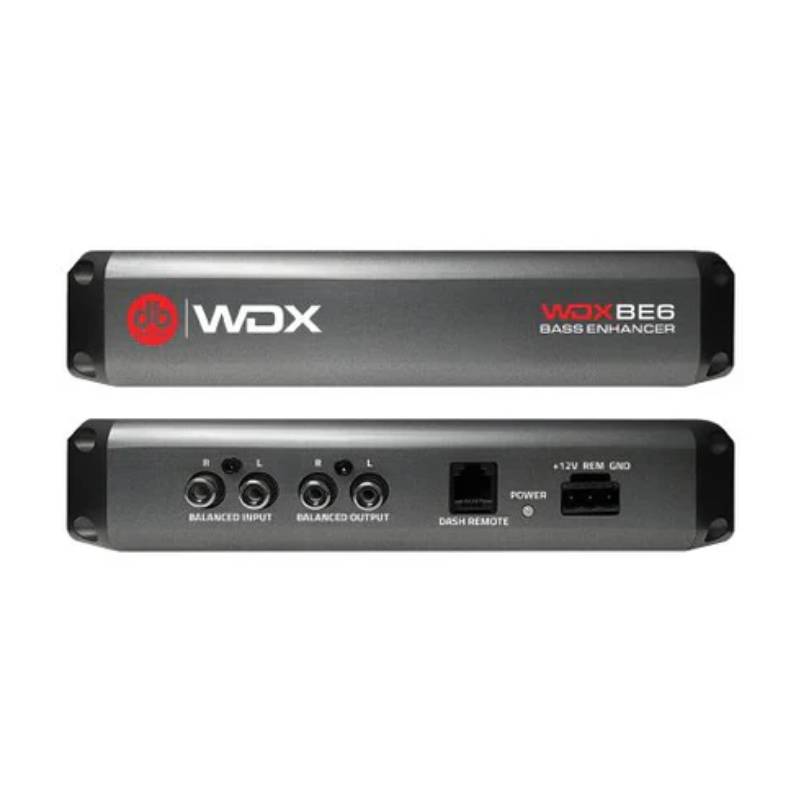

DB Drive WDXBE6 Digital Bass Enhancer
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • WDXBE6 Digital Bass Enhancer Unit
- • Dash-Mount Remote Control
- • Installation Wiring
- • WDXBE6-Manual-Update
Ultimate Digital Bass Enhancement Processor with Remote Control — Precision, Power, and Style for Your Car Audio
Experience powerful, crystal-clear bass like never before with advanced 2-channel digital bass restoration and precision parametric equalization for total low-end control. Enjoy clean, distortion-free sound with selectable subsonic filtering, balanced inputs, ground isolation, and an internal output limiter — all powered by an efficient PWM power supply. Complete with a dash-mount remote and illuminated logo, this unit brings pro-level bass performance and style right to your vehicle’s audio system.
Features:
- 2 Channel Digital Bass Restoration: Restores and enhances low-frequency audio signals on two channels, improving bass quality that may have been lost in compressed or older recordings.
- Parametric Bass Equalization: Allows precise adjustment of bass frequencies by letting you control the level, center frequency, and bandwidth of the bass boost for optimal sound customization.
- Variable Center Frequency Control: Lets you select the specific frequency point where bass enhancement occurs, giving you control over which part of the low end is emphasized.
- Selectable PFM (Programmable Frequency Match) Subsonic Filter Switch: Provides a switchable filter to remove extremely low, inaudible bass frequencies that can waste amplifier power and damage subwoofers.
- Selectable Balanced/Non-Balanced RCA Inputs: Offers the option to use balanced inputs for reduced noise and signal interference, or non-balanced inputs for standard connections.
- Selectable Ground Isolation Switch: Helps eliminate ground loop noise (a common humming sound) by adjusting the grounding configuration between connected audio components.
- Internal Selectable Output Gain Limiter: Protects your system by capping the maximum output signal level, preventing distortion and potential speaker or amplifier damage.
- PWM (Pulse Width Modulated) Power Supply: Uses an efficient, high-speed switching power supply that ensures consistent voltage and power delivery for stable performance.
- Illuminated Logo: Adds a visual aesthetic by lighting up the product’s logo when the unit is powered on, often matching the rest of your system’s lighting.
- Dash Mount Remote Control Included: Comes with a wired remote you can mount on your dashboard, allowing you to conveniently adjust bass levels from the driver’s seat.
Specifications:
- Max Input Level: 15V RMS
- Max Output Level: 13.5V Peak
- Frequency Response: 10Hz - 100KHz +/-1dB
- Total Harmonic Distortion: 0.003%
- Signal to Noise Ratio: 130dB
- Balanced Input Noise Rejection: >60dB
- Input Impedance: 10K Ohms
- Output Impedance: 150 Ohms
- Power Supply: High Headroom PWM
- Power Dra: 150 mA
- Recommended Fuse Rating: 1 Amp
- UPC: 811536038159
- Weight: 0
