We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Experience the ultimate in compact performance with a Class-D design that runs cool, NexD switching technology for crystal-clear sound, and 100 watts x 4 channels of pure power to bring your door speakers to life with punch and precision.
Feel the bass come alive with a powerful 300W mono channel that delivers deep, punchy lows to your 10" or 12" subwoofer, transforming every track with rich, immersive sound. Take full control of your audio experience with built-in high- and low-pass filters, allowing you to precisely shape your soundstage. Plus, the adjustable frequency range from 50–500 Hz lets you fine-tune your system to perfection, ensuring crystal-clear clarity and tight bass response no matter your music style.

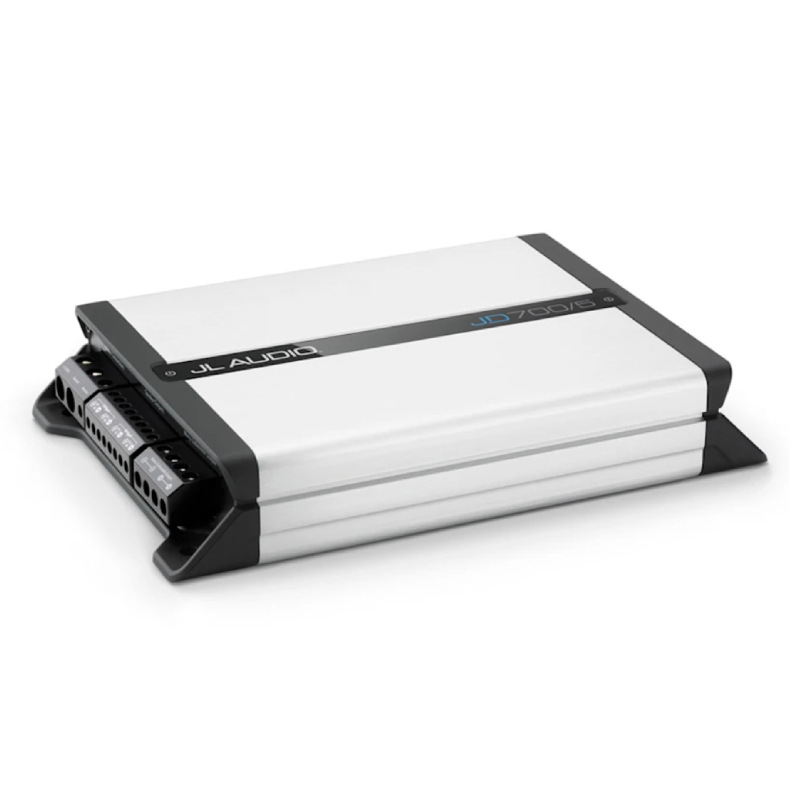

Say goodbye to guesswork with LED clipping rings that make setting input levels quick and foolproof, ensuring your sound is always perfectly balanced. Experience the perfect blend of style and strength with a rugged industrial design featuring sleek molded end caps. Built to last, the durable aluminum chassis not only keeps your amplifier cool under pressure but also protects it from the toughest conditions for long-lasting performance.
Glow with confidence thanks to bright LED indicators that keep you informed of your system’s status at a glance. Enjoy crystal-clear sound with differential-balanced inputs that eliminate interference—even when using standard RCA cables. Experience all the power you need without the bulk, as this compact amplifier delivers monster output and premium audio fidelity in a sleek, space-saving design.
Features:
Specifications:
General:
Channels: 5
Amplifier Class: Class D
Operating Voltage: 10.5–16 VDC
Warranty: 2 years
Physical Dimensions:
Height: 2.10" (53 mm)
Width: 11.86" (242 mm)
Depth: 7.50" (190 mm)
Weight: 6.55 lbs (2.97 kg)
Power Ratings (RMS):
@ 14.4V, 4 Ohm (<1% THD):
Main: 75W x 4
Sub: 180W x 1
@ 14.4V, 2 Ohm (<1% THD):
Main: 100W x 4
Sub: 300W x 1
@ 12.5V, 4 Ohm (<1% THD):
Main: 60W x 4
Sub: 180W x 1
@ 12.5V, 2 Ohm (<1% THD):
Main: 90W x 4
Sub: 300W x 1
Signal-to-Noise Ratio (A-weighted, 20 Hz - 20 kHz):
Main Channels (Full Power): >104 dB
Subwoofer Channel (Full Power): >80 dB
Main Channels (1W): >84 dB
Subwoofer Channel (1W): >60 dB
Damping Factor:
@ 4 Ω: >150/50 Hz
@ 2 Ω: >75/50 Hz
THD+N @ Rated Power:
Main Channels: <1% @ 2 Ω
Subwoofer Channel: <1% @ 2 Ω
Frequency Response (+0, -1dB):
Main Channels: 12 Hz – 22 kHz
Subwoofer Channel: 7 Hz – 500 Hz

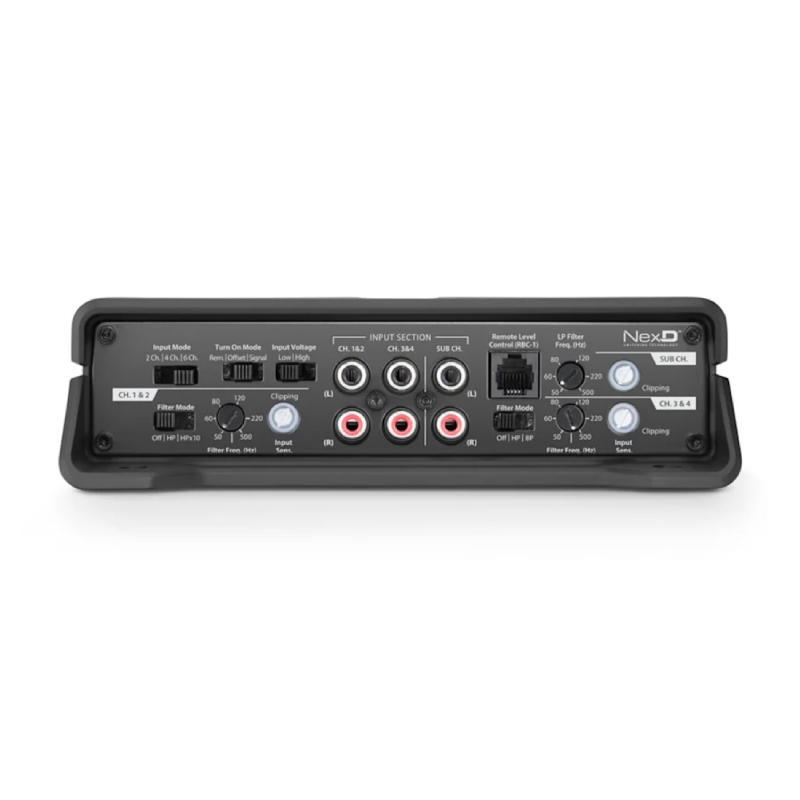

Input Voltage Range @ RCA Inputs:
Switchable from 200 mV–2 V RMS (Low)
Switchable from 800 mV–8 V RMS (High)
Fuse and Wiring:
Fuse Rating: 40 A
Recommended Fuse Types: AFS, AGU, or MaxiFuse™
Minimum Power/Ground Wire Gauge: 4 AWG
Protection Circuits:
Input Under/Over Voltage
Over Temperature
Output Short Circuit
Signal Processing:
Channels 1 & 2:
Filter Modes: Off, Low-pass, or High-pass x10
Filter Slope: 12 dB/octave
Frequency Range: 50 Hz – 500 Hz (x10: 500 Hz – 5 kHz)
Channels 3 & 4:
Filter Modes: Off, High-pass, or Bandpass
Filter Slope: 12 dB/octave
Frequency Range: 50 Hz – 500 Hz
Subwoofer Channel:
Filter Modes: Off or Low-pass only
Filter Slope: 12 dB/octave
Frequency Range: 50 Hz – 500 Hz
Additional Features:
Bass Boost EQ: 0 to +12 dB @ 45 Hz
Optional Remote Level Control (RBC-1)
Remote Level Modes: Sub Channel only
Channel Input Mode Switch: Yes (2/4/6 Channels)
