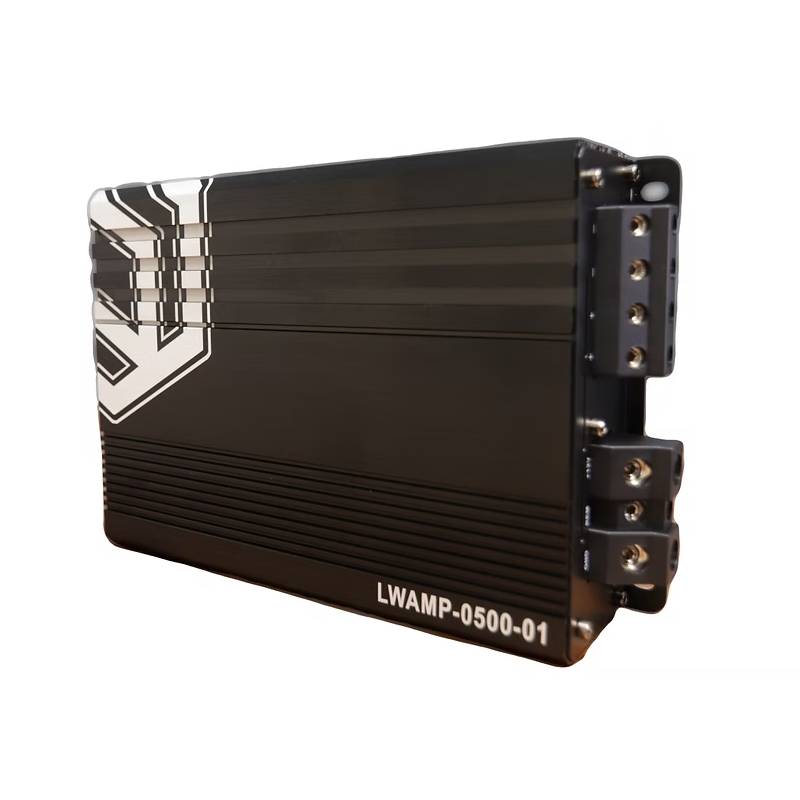

LinksWell LWAMP-0500-01 500W RMS @ 1-Ohm, Class-D Mono Car Amplifier
We are a LINKSWELL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (1) D-Class Mono Subwoofer Amplifier
- • Owner's Manual
Why Choose LinksWell LWAMP-0500-01 Mono Subwoofer Amplifier?
Heavy-Hitting Bass in a Compact Footprint
Pushing a true 500 Watts RMS at 1-Ohm (350W @ 2-Ohms / 260W @ 4-Ohms), this ultra-efficient Class-D monoblock packs serious muscle into a tiny 7” x 5.5” x 2” chassis that easily tucks away under any seat. With built-in variable low-pass and subsonic filters to fine-tune your sound, plus an included dash-mounted remote bass knob for on-the-fly adjustment, it delivers maximum hit and efficiency to any subwoofer setup.
Frequently Asked Questions (FAQ)
- • Why does my subwoofer have no output even though the amplifier has power?
Check the RCA inputs, remote turn-on wire, fuse, and speaker wiring. A missing audio signal is a common cause.
- • Why is my bass weak even with the gain turned up?
Check the low-pass crossover, subwoofer polarity, and amplifier gain. Improper tuning can reduce bass output.
- • Why does the amplifier get extremely hot?
Ensure it has proper ventilation and that the speaker load matches the amplifier's rated impedance.
- • Why do I hear engine whine through my subwoofer?
Check the amplifier ground, RCA cable routing, and power wire placement. Poor grounding is a common source of noise.
- • Why does my subwoofer make a popping sound when the system turns on?
Inspect the remote turn-on wire and amplifier wiring. Improper turn-on sequencing can cause speaker pops.
- • Can I wire multiple subwoofers to this amplifier?
Yes, as long as the combined impedance stays within the amplifier's supported operating range.
- • Why is my bass distorted at higher volume?
The gain may be set too high or the input signal may be clipping. Reduce the gain and retune the system.
- • How do I properly set the gain for clean bass?
Start with the gain low, then slowly increase it until the bass is strong without distortion. Avoid using the gain as a volume control.
- Number of Channels : 1
- Frequency Response : 10-200 Hz
- RMS Power Output : 500 Watts
- Amplifier Class : D
Power Output:
- 500 Watts x1 @1 ohm
- 350 Watts x1 @ 2 ohms
- 260 Watts x1 @ 4ohms
Specifications:
- Frequency Response: 10Hz – 200Hz
- Signal-to-Noise Ratio: <85dB
- Input Sensitivity: 0.2V – 6V
- Variable Subsonic Filter: 10Hz – 40Hz
- Variable Low-Pass Filter: 40Hz – 200Hz
- Operating Voltage Range: 12V – 16V
- Dimensions: 7″ (L) x 5.5″ (W) x 2″ (H)
- UPC:
- Weight: 0
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
