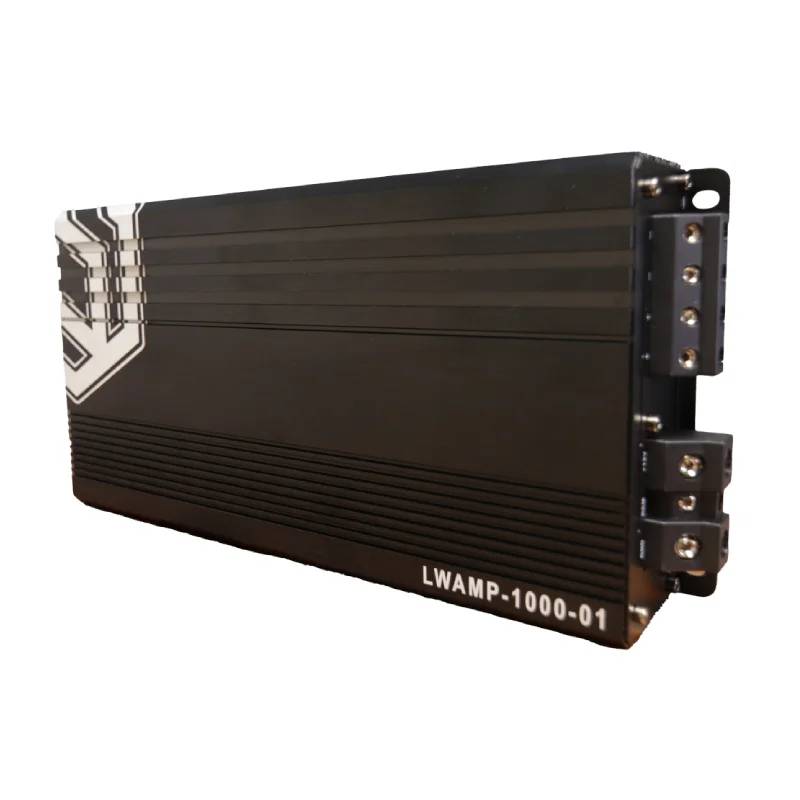

LinksWell LWAMP-1000-01 1000W RMS x 1 at 1 Ohms, Class-D Mono Subwoofer Car Amplifier
We are a LINKSWELL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (1) D-Class Mono Subwoofer Amplifier
- • Owner's Manual
Why Choose LinksWell LWAMP-1000-01 Mono Subwoofer Amplifier?
Maximum Bass Power in a Sleek Design
Pound your subwoofers with brutal, high-efficiency power using the LinksWell LWAMP-1000-01 Mono Subwoofer Amplifier. Delivering an impressive 1,000 Watts RMS at 1-Ohm (700W @ 2-Ohms / 400W @ 4-Ohms), this Class-D monoblock generates deep, accurate low-end while maintaining low current draw on your electrical system. Measuring a compact 10.25” x 5.5” x 2”, it slides seamlessly into tight installs, giving you full control over your bass response with variable low-pass and subsonic filters built right in.
Frequently Asked Questions (FAQ)
- • Why does my amplifier go into protect mode after a few minutes?
Check the speaker impedance, wiring, and ventilation. Overheating or a shorted speaker wire can trigger protection mode.
- • Why is it not producing any bass?
Verify the RCA inputs, remote turn-on wire, fuse, and speaker connections. Also make sure the low-pass filter is enabled.
- • Why does it get very hot during normal use?
Ensure there is adequate airflow around the amplifier and that the connected subwoofer load matches the recommended impedance.
- • Why is my bass distorted even at moderate volume?
The gain may be set too high or the input signal may be clipping. Reduce the gain and retune the amplifier.
- • Why do I hear engine whine through my subwoofer?
Check the amplifier ground, RCA cable routing, and power wire placement. Poor grounding is a common cause of noise.
- • Why won't the amplifier turn on?
Inspect the fuse, battery power, ground connection, and remote turn-on wire. A missing 12V remote signal will prevent startup.
- • Can I connect two subwoofers to this amplifier?
Yes, as long as the combined impedance stays within the amplifier's supported operating range.
- • Why does it make a popping sound when the system powers on?
Check the remote turn-on wiring and amplifier connections. Improper turn-on sequencing can create speaker pops.
- • Why does the bass sound weak even with the gain turned up?
Verify the crossover settings, subwoofer polarity, and enclosure design. Incorrect tuning can reduce bass performance.
- • How do I set the amplifier gain correctly?
Start with the gain at its minimum, then gradually increase it until the bass is loud and clean without audible distortion.
- Number of Channels : 1
- Frequency Response : 10-200 Hz
- RMS Power Output : 1000 Watts
- Amplifier Class : D
Power Output:
- 1,000 Watts x1 @1 ohm
- 700 Watts x1 @ 2 ohms
- 400 Watts x1 @ 4ohms
Specifications:
- Volt Working range: 12 ~ 16
- Frequency Response: 10hz ~ 200hz
- Signal to Noise Ratio: <85db
- Input Sensitivity: 6v ~ .2v
- Variable SubSonic Filter: 10hz ~ 40hz
- Low pass Filter Variable: 40hz ~ 200hz
- Dimensions (LxWxH): 10.25″ x 5.5″ x 2″
- UPC:
- Weight: 0
