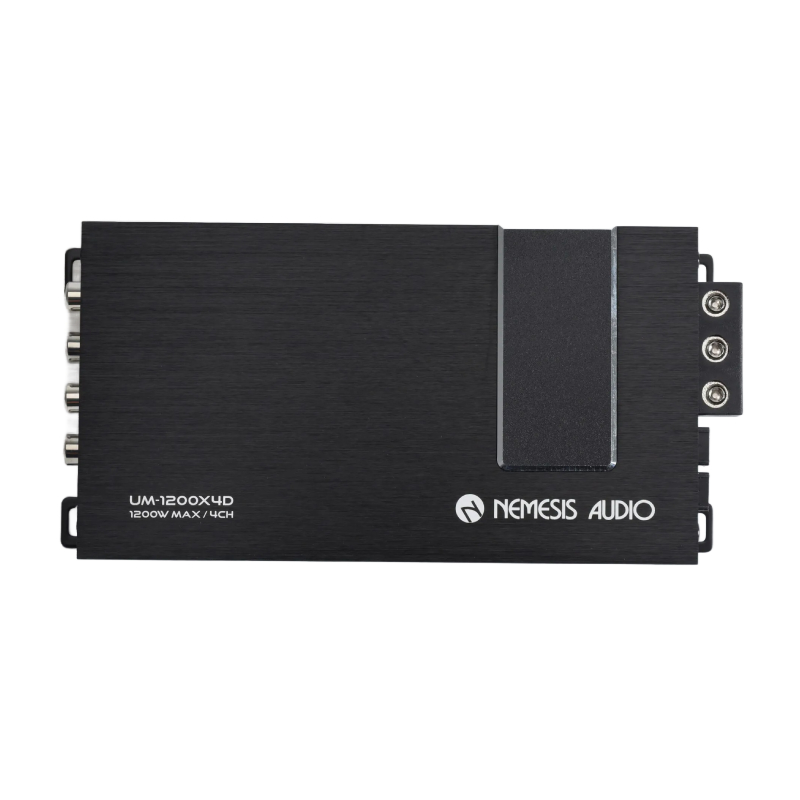

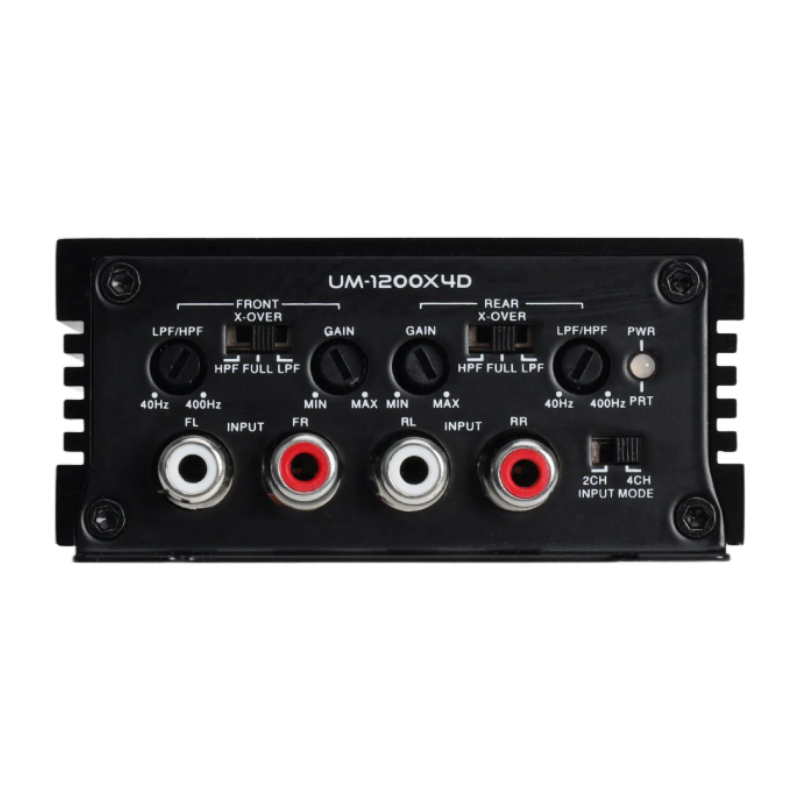

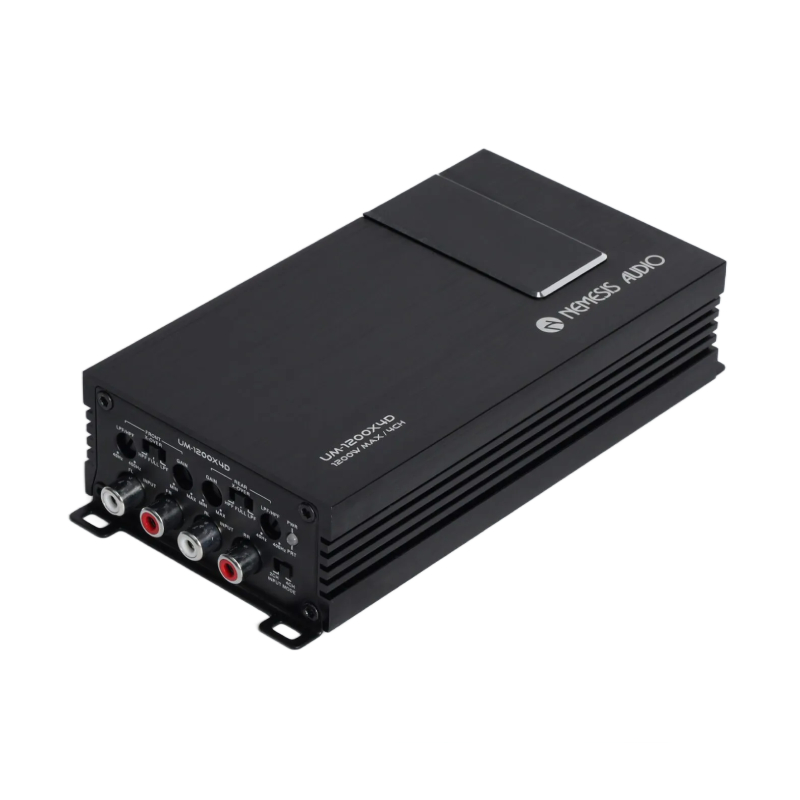

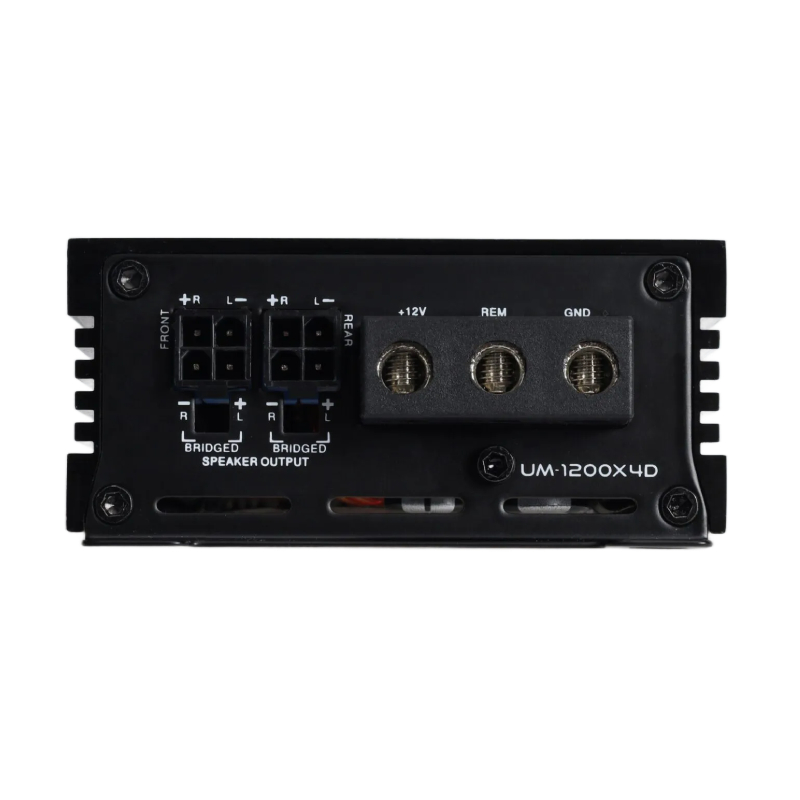

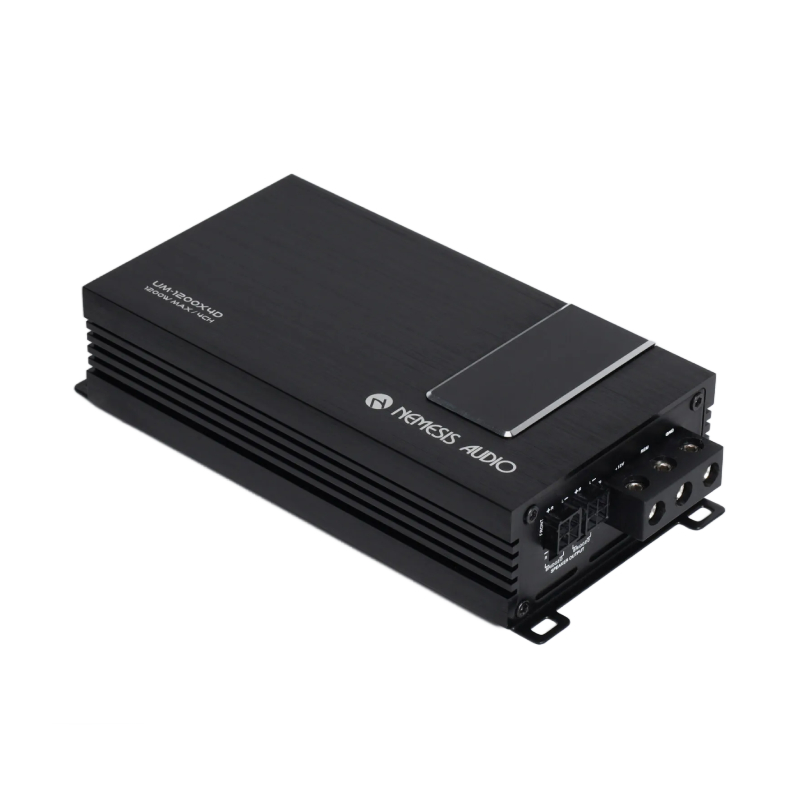

Nemesis Audio  UM-1200X4D

Ultra Micro Series 4-Channel 1200W Max Power, Class-D Full Range Car Amplifier

Item #96298

Condition:   Brand New

Product Highlights

  • Ultra Micro Series
  • 4-Channel
  • 1200W Max Power
  • Class-D Full Range Car Amplifier

  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$239.99

Reg. Price $339.99  Save $100.00
Add Extended Warranty
  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logo. Learn More

Nemesis Audio Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Nemesis Audio

Nemesis Audio UM-1200X4D Ultra Micro Series 4-Channel 150W RMS x 4 at 2 Ohm, Class-D Full Range Car Amplifier


Nemesis Audio

We are a Nemesis Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Ultra Micro Series 4-Channel Class-D Car Amplifier
  • • Owner's Manual
Delivers Crisp Clarity and Deep Bass

Enjoy powerful, crystal-clear sound with up to 600W max bridged output and 150W RMS per channel at 2Ω, featuring a full 20Hz–20kHz frequency response and a versatile 40Hz–400Hz crossover range for precision tuning and performance.

Precision Audio Control and Robust Protection

Compact yet powerful, this amplifier delivers ultra-clean sound with < 0.3% THD, a signal-to-noise ratio over 90 dB, and wide input sensitivity from 0.25V to 10V—all in a space-saving design measuring just 171.7mm x 84.4mm x 40.5mm (6.76″ x 3.33″ x 1.6″).


SPECIFICATIONS


  • Maximum Power : 1200 Watts
  • Number of Channels : 4
  • Frequency Response : 20-20000 Hz
  • RMS Power Output : 4x100 Watts
  • Channel Separation : Yes
  • Amplifier Class : D

FEATURES


Features:

  • Ultra-Micro Class D Design: Compact 4-channel amplifier engineered to deliver high output while saving valuable installation space
  • 600W RMS Total Power: Provides up to 600W RMS across four channels for powerful full-range system performance
  • 2-Ohm Stable Operation: Delivers 150W RMS x 4 channels at 2 ohms for flexible speaker configurations
  • 4-Ohm Performance: Produces 100W RMS x 4 channels at 4 ohms for clean, efficient power delivery
  • Bridged Output Capability: Supports 300W RMS x 2 channels when bridged at 4 ohms for higher-power speaker applications
  • Wide Frequency Response: 20 Hz–20 kHz range supports detailed reproduction across the audible spectrum
  • Adjustable Crossover: 40 Hz–400 Hz crossover range allows system tuning for different speakers and applications
  • Flexible Input Sensitivity: 0.25V–10V input range accommodates a wide variety of source units and signal levels
  • Low-Distortion Audio: Less than 0.3% THD helps maintain clean and accurate sound reproduction
  • Space-Saving Chassis: Measures only 6.76" x 3.33" x 1.6", making it suitable for tight installation locations



Specifications:

  • Type: 4-Channel Ultra Micro Class D Amplifier
  • Max Power: 1200W total
  • RMS Power: 600W total
  • Power @ 4 Ohm: 100W x 4 channels RMS
  • Power @ 2 Ohm: 150W x 4 channels RMS
  • Bridged Power @ 4 Ohm: 300W x 2 channels RMS
  • Frequency Response: 20 Hz – 20 kHz
  • Crossover Range: 40 Hz – 400 Hz
  • Input Sensitivity: 0.25V – 10V
  • Signal-to-Noise Ratio: >90 dB
  • Total Harmonic Distortion: <0.3%
  • Channels: 4
  • Dimensions: 6.76" x 3.33" x 1.6" (171.7 x 84.4 x 40.5 mm)
  • Amplifier Class: Class D
  • UPC:
  • Weight: 11
  • Authorized Internet Dealer
Warranty: 0 Months Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 0 Months from the original date of purchase with proper return authorization.
