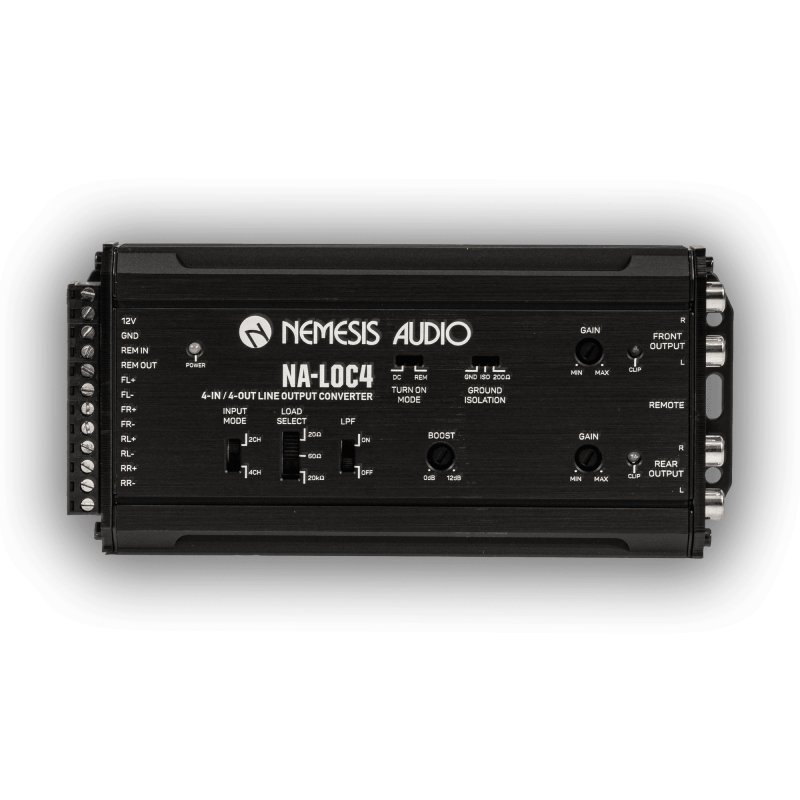

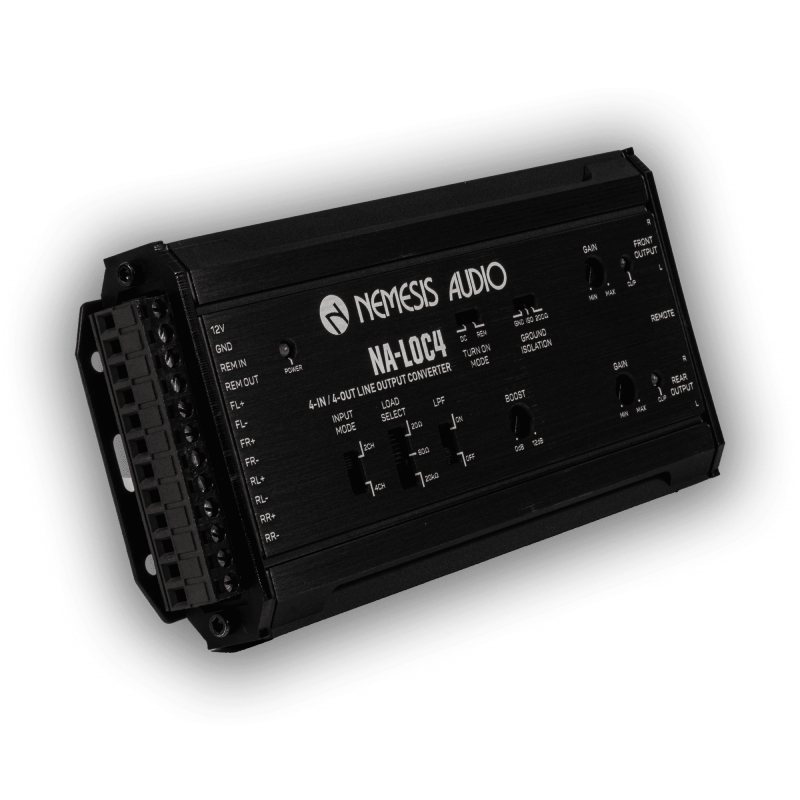

Nemesis Audio  NA-LOC4

4-Channel Active Line-Output Converter and Line Driver

Item #96577

Condition:   Brand New

Product Highlights

  • 4-Channel Active Line-Output Converter and Line Driver
  • Converts Speaker-Level Signals to RCA Outputs
  • Provides Clean Signal for Aftermarket Amplifiers
  • Designed for Integration with Factory Audio Systems

  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
CYBER WEEK DEALS!
Save 5% on Line Output Converters, Pre-Amps & Line Drivers!

Use Code: CYBW5

Ends in:

$109.99

Reg. Price $123.99  Save $14.00
Add Extended Warranty
  Free 1-Year Warranty Included!

No Credit needed for acima logoLearn More

Nemesis Audio Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Nemesis Audio

Nemesis Audio NA-LOC4 4-Channel Active Line-Output Converter and Line Driver


Nemesis Audio

We are a Nemesis Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
Bring Out the Beast in Your Factory Audio

Who says stock sound systems have to stay boring? The Nemesis Audio NA-LOC4 lets you unleash serious volume and clarity without replacing your factory head unit. With four channels of high-level inputs handling up to 40 volts, it converts speaker signals into strong RCA outputs, pumping out up to 9.5 volts for clean, distortion-free power. Whether you're driving door speakers or subwoofers, this converter makes sure your amps get the full signal they deserve, all while keeping your factory setup intact.

Smart Features That Know What You Want

This little box is smarter than it looks. It turns on automatically using DC offset or audio signal detection, so it powers up right when your music starts. The input load switch helps avoid factory shut-off issues, while the adjustable bass boost adds up to 12 decibels of punch right where it counts. Want to tweak it from the driver's seat? Use the included remote bass controller. From the LED clip indicator to the selectable ground isolation, every feature is built to keep your sound clean, powerful, and completely under your control.


SPECIFICATIONS


  • Number of Channels : 4

FEATURES


Features:

  • Active Line Output Converter: Converts high-level speaker signals to low-level RCA outputs for amplifier integration.

  • 4-Channel High-Level Input Handling: Accepts speaker-level inputs up to 40 volts for seamless connection to factory head units.
  • 4-Channel RCA Outputs: Provides up to 9.5 volts of output for strong and clean signal delivery to aftermarket amplifiers.
  • Factory System Compatibility: Designed to integrate with factory audio systems without signal degradation.
  • Automatic Turn-On Capability: Supports DC offset and audio signal detection for reliable system activation.
  • Selectable Input Load Switch: Offers 20, 60, or 20K ohm settings to prevent factory radio shut-off or diagnostic errors.
  • Adjustable Bass Boost: Provides up to 12 dB of boost fixed at 45 Hz for enhanced low-frequency response.
  • Rear Channel Filter Option: Switchable full-range or low pass filter at 250 Hz to tailor rear output signal.
  • Input Mode Selector: Switch between 2-channel or 4-channel input operation to match system configuration.
  • 12V Remote Turn-On Output: Sends a turn-on signal to activate connected amplifiers or signal processors.
  • Ground Isolation Switch: Helps reduce unwanted ground loop noise and alternator whine during system setup.
  • Molex Connector Terminals: Simplifies wiring for speaker-level inputs and power connections.
  • Remote Bass Controller Included: Wired level control allows convenient bass adjustment from the front seat.
  • LED Clipping Indicator: Visual alert signals when output approaches distortion for accurate tuning.
  • Low Distortion Output: Maintains audio clarity with total harmonic distortion of 0.01 percent.
  • Wide Frequency Response: Accurately processes audio from 10 Hz to 20,000 Hz.
  • High Signal-to-Noise Ratio: Greater than 110 dB for clean signal transfer and low background noise.



Specifications:

  • Model Number: NA-LOC4
  • Input Type: 4-channel speaker-level inputs (up to 40V)
  • Output Voltage: Up to 9.5V RCA
  • Frequency Response: 10Hz – 20kHz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal-to-Noise Ratio: > 110dB
  • Turn-On Mode: DC offset or audio signal detection
  • Load Selector: 20Ω / 60Ω / 20kΩ
  • Bass Boost: Adjustable 0–12dB boost fixed at 45Hz
  • Crossover Mode: Selectable full-range or low-pass filter (rear channels only) at 250Hz
  • Input Mode Selector: 2-channel or 4-channel input configuration
  • 12V Output: Provides remote turn-on signal for amplifiers
  • Ground Isolation Switch: Selectable for eliminating ground or alternator noise
  • Clip Indicator: LED signal clip light
  • Connectors: Molex terminals for speaker and power input connections
  • Remote Control: Wired bass level knob included
  • UPC: 677478848627
  • Weight: 1
  • Authorized Internet Dealer
