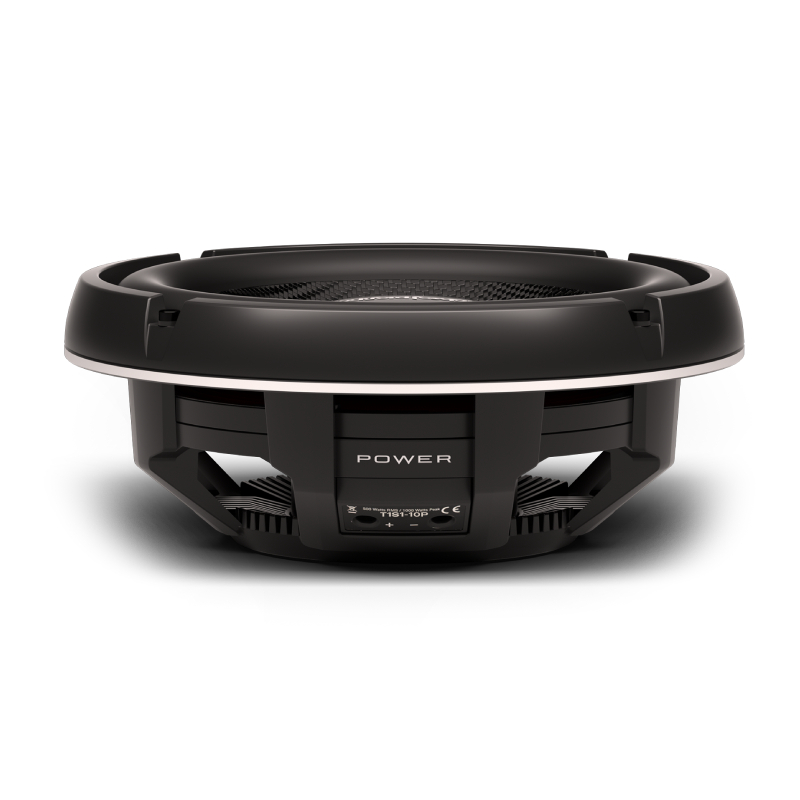

Rockford Fosgate T1S1-10P Power Series 10" 500W RMS (1000W Peak Power Handling) 1 Ohm, Single Voice Coil Shallow-Mount Component Car Subwoofer for Ported Enclosures
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
-
- • 10" Power Series Single Voice Coil Shallow-Mount Component Car Subwoofer
- • Aluminum Trim Ring (installed)
- • (12) 1-5/8" Allen Head Screws
- • 4mm Allen Head Bit
- • Owner's Manual
Why Choose Rockford Fosgate T1S1-10P Component Car Subwoofer?
Shallow-Mount Power That Still Hits Hard
The Rockford Fosgate T1S1-10P is built for car audio enthusiasts who want serious bass without needing a huge enclosure. Its shallow-mount design makes it perfect for tighter installs, but it still delivers strong, controlled low-frequency output. Tuned for ported enclosures, it uses air movement and box design to push out deeper, more efficient bass that feels bigger than its size suggests.
Built for Clean, Reliable High-Power Performance
This sub is engineered to stay consistent even when you push it hard for long periods. With CEA-2031 certified power handling, it is designed to run under continuous demand without losing stability. The Klippel-verified motor system fine-tunes the internal structure to reduce distortion, so your bass stays tight, accurate, and controlled even at higher volumes.
Easy Install, Clean Finish, Real-World Flexibility
Rockford Fosgate makes installation straightforward with the FlexFit mounting system, giving you slight adjustment room to get everything lined up properly. Spring terminals support up to 10-gauge wire for solid power transfer, and the included aluminum trim ring adds a clean finished look once installed. Designed for ported enclosures around 1.38 cubic feet tuned to 40 Hz, it delivers efficient, deep bass that fits perfectly into real-world custom car audio setups.
Frequently Asked Questions (FAQ)
- • Why isn't the bass as strong as expected?
Check the enclosure volume, amplifier output, polarity, and gain settings. The wrong box can noticeably reduce bass performance and overall output.
- • What amplifier power should I use?
Use an amplifier matched to the subwoofer's RMS rating and 1-ohm load. Clean power and proper gain settings help deliver strong performance.
- • Why does it sound weak in a shallow enclosure?
Limited airspace can affect low-frequency response. Make sure the enclosure meets the recommended volume and is properly sealed.
- • Will it fit under my vehicle's seat?
The shallow design suits space-limited installations, but mounting depth and magnet clearance still need to be checked carefully.
- • Why does the bass distort at higher volume?
Clipping, excessive gain, or insufficient clean power can cause distortion. Lower the gain and verify the amplifier is properly matched.
- • Why does the vehicle rattle when the bass hits?
Strong output can vibrate trim, panels, and enclosure hardware. Tighten loose parts and add sound-deadening material where needed.
- • Why does the cone move but produce little bass?
Check polarity, enclosure sealing, amplifier output, and crossover settings. Phase cancellation can make the bass sound noticeably weaker.
- • Why does it sound better in another enclosure?
Enclosure volume, construction, and tuning strongly affect bass response. Use a box designed around the woofer's specifications for best results.
- • Why does it get hot during extended use?
Some heat is normal, but excessive heat can indicate overdriving or clipping. Reduce the gain and volume if it becomes unusually hot.
- • What should I check if it suddenly stops working?
Check the amplifier, fuse, speaker wiring, terminals, impedance, and audio signal. Test each connection before replacing the subwoofer.
- Diameter : 10 Inch
- Sensitivity : 82 dB
- Impedance : 1 Ohm
- Frequency Response : 32-250 Hz
- Peak Power Handling : 1000 Watts
- Top Mount Depth : 3.01 Inches
- Shallow Mount : Yes Inch
- Number of Voice Coils : Single
- Suggested Ported Box Volume : 1-1.50 Cubic ft.
- Mounting Depth : 3.01 Inches
- RMS Power Handling : 500 Watts
Features:
- High-Output Shallow-Mount Ported Bass Engineering: The Rockford Fosgate T1S1-10P is designed for compact installations while still delivering strong low-frequency performance, optimized specifically for ported enclosure use to maximize bass efficiency in space-limited builds.
- CEA-2031 Certified Continuous Power Performance Standard: Engineered to meet CEA-2031 requirements, this subwoofer is capable of handling its rated power under continuous demand, ensuring stable and consistent performance during long listening sessions.
- Precision Tuned Klippel Verified Motor System: Using advanced Klippel laser-based analysis, the motor structure, voice coil alignment, and suspension are optimized to reduce distortion and deliver accurate, controlled bass response at high output levels.
- Flexible Installation with FlexFit Mounting System: The slotted FlexFit basket design allows slight positional adjustments during installation, making it easier to achieve proper alignment across different enclosure configurations.
- High-Current Spring Terminal Connectivity System: Spring terminals support up to 10-gauge wire, providing secure connections and efficient power transfer for reliable system performance.
- Premium Aluminum Trim Ring Finishing Detail: Includes an aluminum trim ring that mounts over the woofer flange, delivering a clean, professional appearance and compatibility with optional grille protection accessories.
- Optimized Ported Enclosure Performance Design: Engineered for vented enclosures with a recommended internal volume of 1.38 cubic feet, paired with a 4-inch port tuned to 40 Hz for efficient bass output and deeper low-frequency extension.
Specifications:
- Size: 10-inch
- Impedance (Ohms): 1
- Cone Material: Carbon/PMI/Glass Fiber
- Surround Material: Synthetic Polymer
- Basket Material: Cast Aluminum
- Grille: None included
- Free-Air: No
- Dual Voice Coil: No
- Sensitivity: 82 dB at 1 watt
- Frequency Response: 32 – 250 Hz
- Max RMS Power Handling: 500 W
- Peak Power Handling (Watts): 1000 W
- Top Mount Depth (inches): 3.06
- Bottom Mount Depth (inches): N/A
- Cutout Diameter or Length (inches): 9.13
- Frame Width: 10.86
- Frame Length: 10.86
- Vas (liters): 13.1
- Fs (Hz): 42
- Qts: 0.95
- Xmax (millimeters): 15
- UPC: 780687366773
- Weight: 12
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
