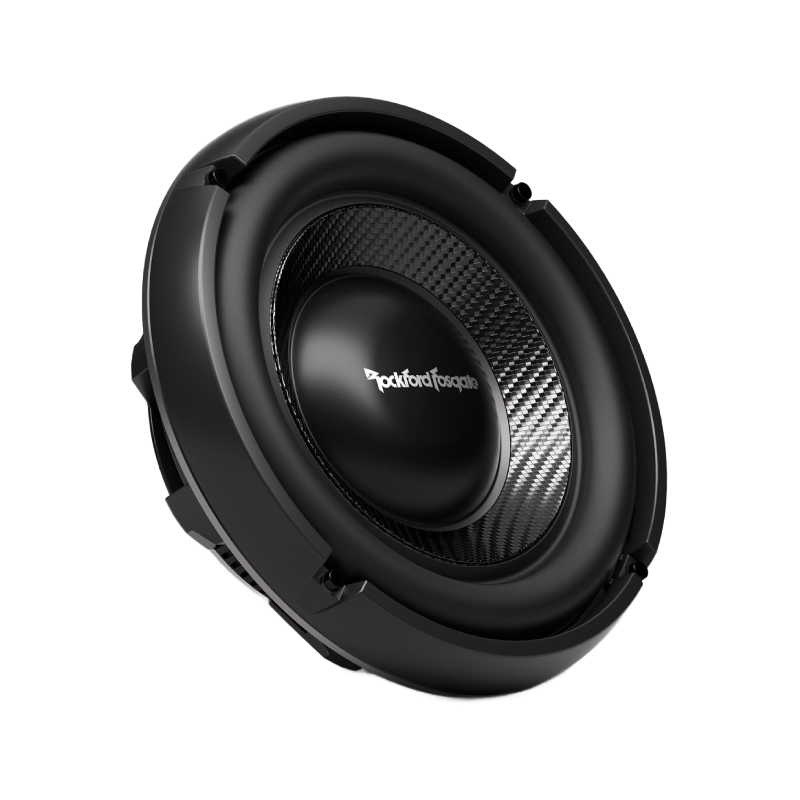

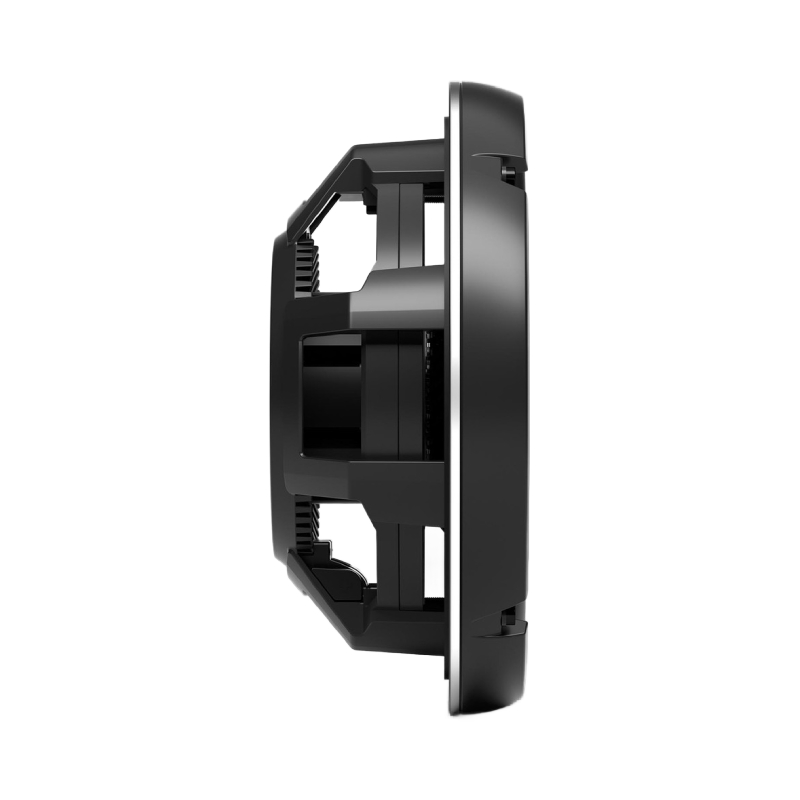

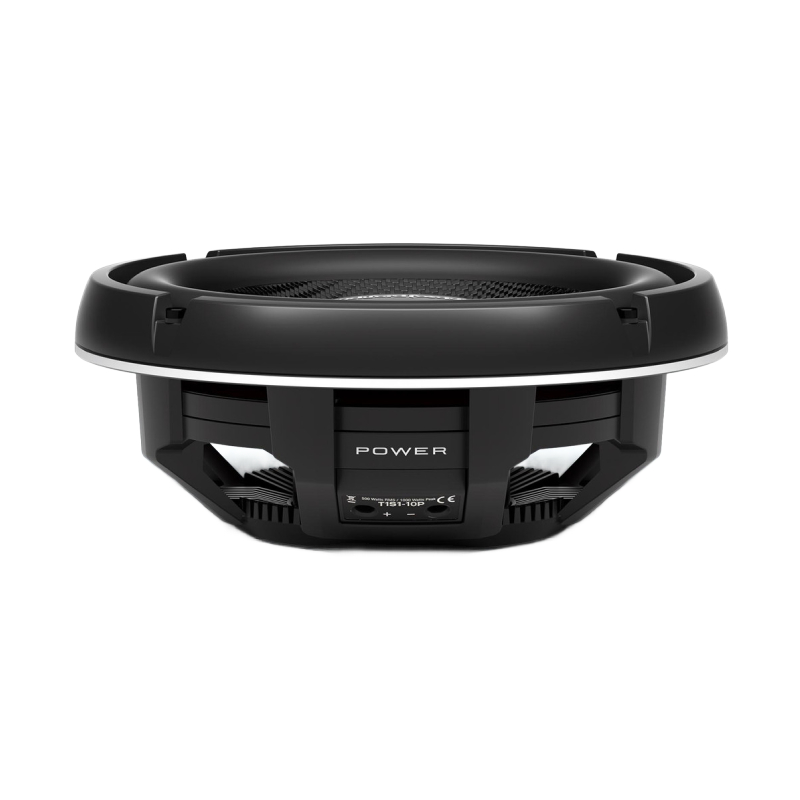

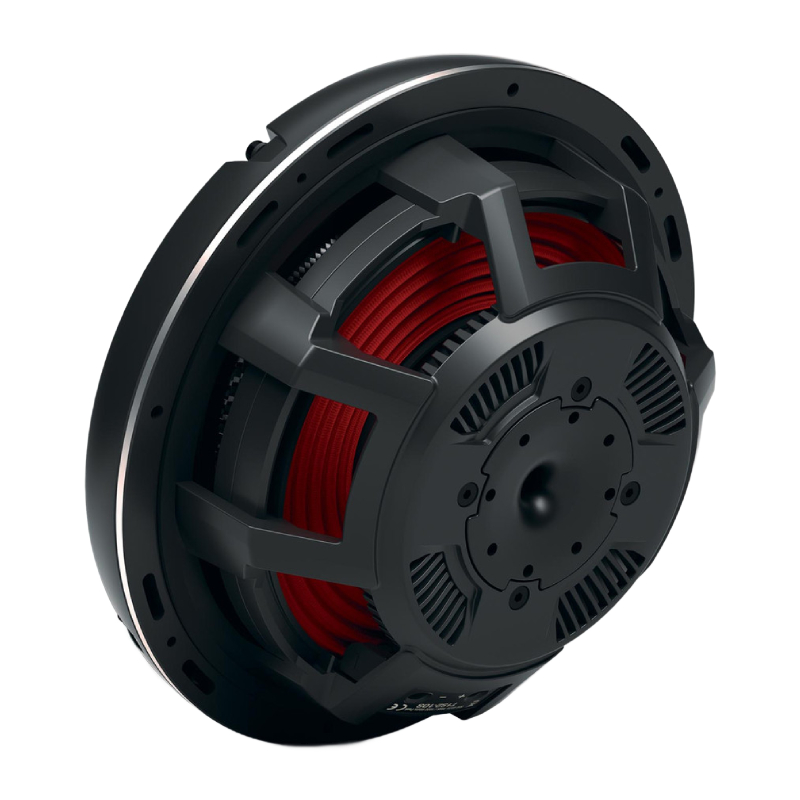

Rockford Fosgate T1S1-10S Power Series 10" 500W RMS (1000W Peak Power Handling) 1 Ohm, Single Voice Coil Shallow-Mount Component Car Subwoofer for Sealed Enclosures
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
-
- • 10" Power Series Single Voice Coil Shallow-Mount Component Car Subwoofer
- • Aluminum Trim Ring (installed)
- • (12) 1-5/8" Allen Head Screws
- • 4mm Allen Head Bit
- • Owner's Manual
Why Choose Rockford Fosgate T1S1-10S Component Car Subwoofer?
Big Bass in a Small Space, No Compromises
The Rockford Fosgate T1S1-10S is built for people who want serious bass even when space is tight. Its shallow-mount design makes it perfect for compact sealed enclosures, so you can get strong low-end output without needing a huge box. Even with its smaller footprint, it still delivers the kind of controlled, impactful bass that Power Series is known for, making it a solid upgrade for tight installs that still demand performance.
Clean Power Delivery and Rock Solid Reliability
This sub is engineered to handle real-world power, not just short bursts. With CEA-2031 certified performance, it is built for continuous power handling so your bass stays consistent even during long listening sessions. The Klippel verified motor system takes things further by optimizing alignment and reducing distortion, giving you cleaner, more accurate bass that stays tight when you turn it up.
Easy Installation with a Clean, Finished Look
Rockford Fosgate also made sure installation feels straightforward and professional. The FlexFit basket gives you slight adjustment room so lining it up in different enclosure setups is easier. Spring terminals support up to 10-gauge wire for solid connections, and the included aluminum trim ring adds a clean finished look once installed. Designed for sealed enclosures around 0.53 cubic feet, it delivers tight, controlled bass that works with almost any music style without getting muddy or loose.
Frequently Asked Questions (FAQ)
- • Why isn't the bass as strong as expected?
Check the enclosure volume, amplifier output, polarity, and gain settings. The wrong box can noticeably reduce bass performance and overall output.
- • What amplifier power should I use?
Use an amplifier that matches the woofer's RMS rating and 1-ohm load. Clean power and proper gain settings help achieve strong performance.
- • Why does it sound weak in a shallow enclosure?
Limited airspace can affect low-frequency response. Make sure the enclosure meets the recommended volume and is properly sealed.
- • Why does the bass distort at higher volume?
Clipping, excessive gain, or insufficient clean power can cause distortion. Lower the gain and verify the amplifier is properly matched.
- • Why does the vehicle rattle when the bass hits?
Strong output can vibrate trim, panels, and enclosure hardware. Tighten loose parts and add sound-deadening material where needed.
- • Can I install it under a vehicle seat?
It can work in space-limited applications, but check mounting depth, magnet clearance, and enclosure airspace before installation.
- • Why does the cone move but produce little bass?
Check polarity, enclosure sealing, amplifier output, and crossover settings. Phase cancellation can make the bass sound noticeably weaker.
- • Why does it sound better in another enclosure?
Enclosure volume, construction, and tuning strongly affect bass response. Use a box designed around the woofer's specifications for best results.
- • Why does it get hot during extended use?
Some heat is normal, but excessive heat can indicate overdriving or clipping. Reduce the gain and volume if it becomes unusually hot.
- • What should I check if it suddenly stops working?
Check the amplifier, fuse, speaker wiring, terminals, impedance, and audio signal. Test each connection before replacing the subwoofer.
- Diameter : 10 Inch
- Sensitivity : 82 dB
- Impedance : 1 Ohm
- Frequency Response : 26-250 Hz
- Peak Power Handling : 1000 Watts
- Shallow Mount : Yes Inch
- Number of Voice Coils : Single
- Suggested Ported Box Volume : 0.5-0.75 Cubic ft.
- Mounting Depth : 3.01 Inches
- RMS Power Handling : 500 Watts
Features:
- High-Performance Shallow-Mount Power Series Engineering: The Rockford Fosgate T1S1-10S is designed for compact installations while still delivering serious low-frequency output, engineered to maintain strong performance even in space-limited sealed enclosure setups.
- CEA-2031 Certified Continuous Power Reliability: Built to meet CEA-2031 standards, this subwoofer is capable of handling its rated power under continuous demand, ensuring stable long-term performance during real-world listening conditions.
- Precision Optimized Klippel Verified Motor System: Klippel laser-based analysis is used to fine-tune the motor structure, voice coil alignment, and suspension, resulting in reduced distortion and highly accurate bass reproduction.
- Flexible Installation with FlexFit Mounting Design: The slotted FlexFit basket allows slight positioning adjustments during installation, making it easier to achieve proper alignment across a variety of enclosure configurations.
- High-Current Spring Terminal Connectivity System: Spring terminals support up to 10-gauge wire, providing secure connections and efficient power transfer for reliable system performance.
- Premium Aluminum Trim Ring Finishing System: Includes an aluminum trim ring that mounts over the woofer flange, offering a clean finished look and compatibility with the optional grille system for added protection.
- Optimized Sealed Enclosure Performance Design: Engineered specifically for sealed box applications with a recommended internal volume of 0.53 cubic feet, delivering tight, accurate bass response with controlled low-frequency output suitable for all music styles.
Specifications:
- Size: 10-inch
- Impedance (Ohms): 1
- Cone Material: Carbon/PMI/Glass Fiber
- Surround Material: Synthetic Polymer
- Basket Material: Cast Aluminum
- Grille: None included
- Free-Air: No
- Dual Voice Coil: No
- Sensitivity: 82 dB at 1 watt
- Frequency Response: 26 – 250 Hz
- Max RMS Power Handling: 500 W
- Peak Power Handling (Watts): 1000 W
- Top Mount Depth (inches): 3.06
- Bottom Mount Depth (inches): N/A
- Cutout Diameter or Length (inches): 9.13
- Frame Width: 10.86
- Frame Length: 10.86
- Vas (liters): 13.1
- Fs (Hz): 42
- Qts: 0.95
- Xmax (millimeters): 15
- UPC: 780687366780
- Weight: 12
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
