Rockford Fosgate  M2D4-10S-G2 On Sale

Gen 2 M2 Series 10" 1600W Peak Power Handling 4 Ohm, Dual Voice Coil RGB Marine Subwoofer with White and Stainless Grilles Included - For Sealed Enclosures

Item #96757

Condition:   Brand New

Product Highlights

  • Gen 2 M2 Series
  • 10"
  • 1600W Peak Power Handling
  • 4 Ohm
  • Dual Voice Coil
  • RGB Marine Subwoofer
  • White and Stainless Grilles Included
  • For Sealed Enclosures

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Special offer:

$395.99

Discount Already Applied!
Reg. Price $539.99  Save $144.00
In Stock
In Stock

Limited Stocks left!
Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

Rockford Fosgate M2D4-10S-G2 Gen 2 M2 Series 10" 400W RMS (1600W Peak Power Handling) 4 Ohm, Dual Voice Coil Sealed RGB Marine Subwoofer with White and Stainless Grilles Included - For Sealed Enclosures


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

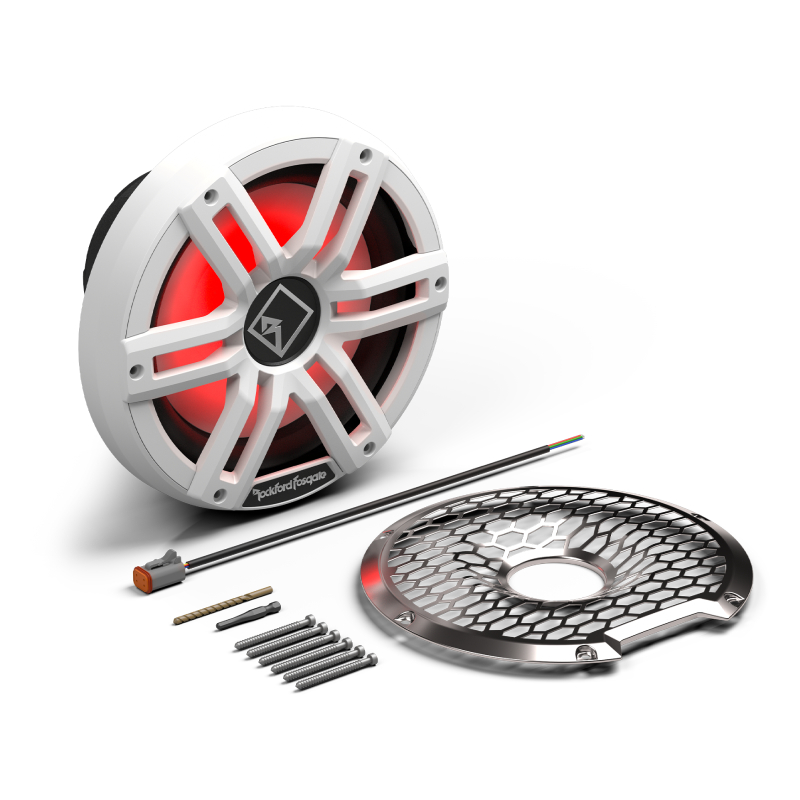

What's Inside?
  • • (1) 10" Dual Voice Coil Sealed RGB Marine Subwoofer (White)

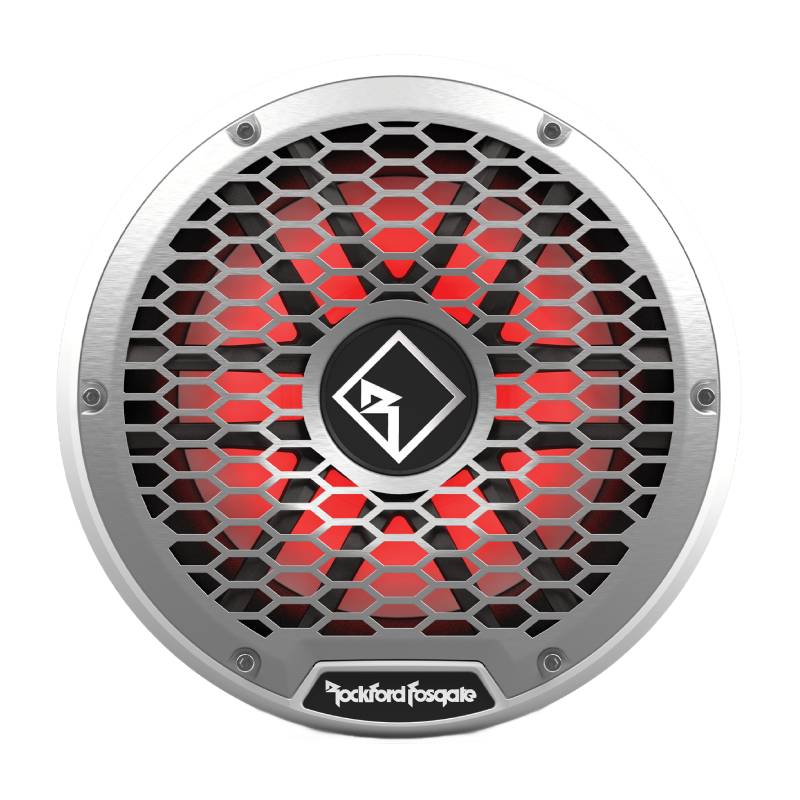

  • • Stainless steel grille
  • • Sport grille (White)
  • • Grille frame (White)
  • • 11" LED power harnesses with 4-pin Deutsch connector on one end
  • • (6) 3" Stainless steel Allen head screws
  • • 4mm Allen head bit
  • • 4.5mm Drill bit (for fiberglass enclosures only)
  • • Rockford Fosgate contact information
  • • Owner's Manual




Why Choose Rockford Fosgate M2D4-10S-G2 Marine Subwoofer?

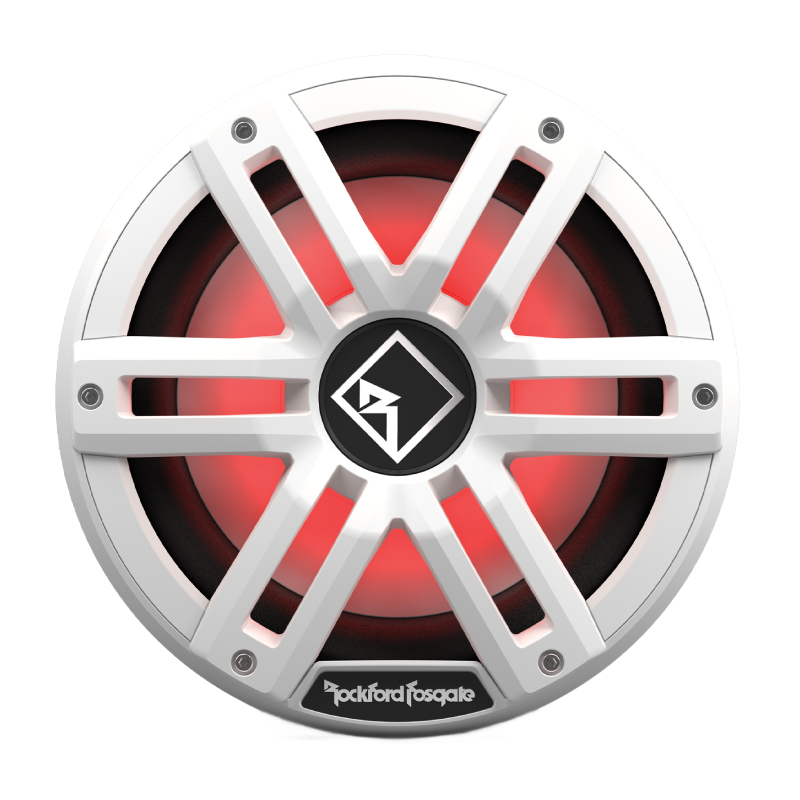

Rockford Fosgate M2D4-10S-G2 Marine Subwoofer Front View
Compact Size and Massive Bass

Experience big bass in tight spaces with a design optimized for small sealed enclosures. Precision-engineered using COMSOL Multiphysics software, the suspension and motor assembly deliver smooth, controlled performance. The vented T-yoke boosts power handling without bottoming out, while the VAST vertical attach surround increases effective cone area by up to 25% for even bigger output. Built to last, the chemically bonded co-molded surround ensures a strong, durable attachment.

Rugged Durability with Superior Sound

Built to endure, the ultra-high temperature PA66 frame with 30% glass fill and UV inhibitors ensures long-lasting structural integrity. Stay protected in all conditions with a vented motor and water-repelling nano-coated mesh. Enjoy high-performance audio from the injection-molded mineral-filled polypropylene cone with UV protection, delivering smooth low and midrange frequencies with clean high-frequency roll-off. Installation is a breeze with integrated Deutsch™/Amphenol™ connectors and industry-first molded in-frame connectors with spade terminals for reliable, error-free wiring.

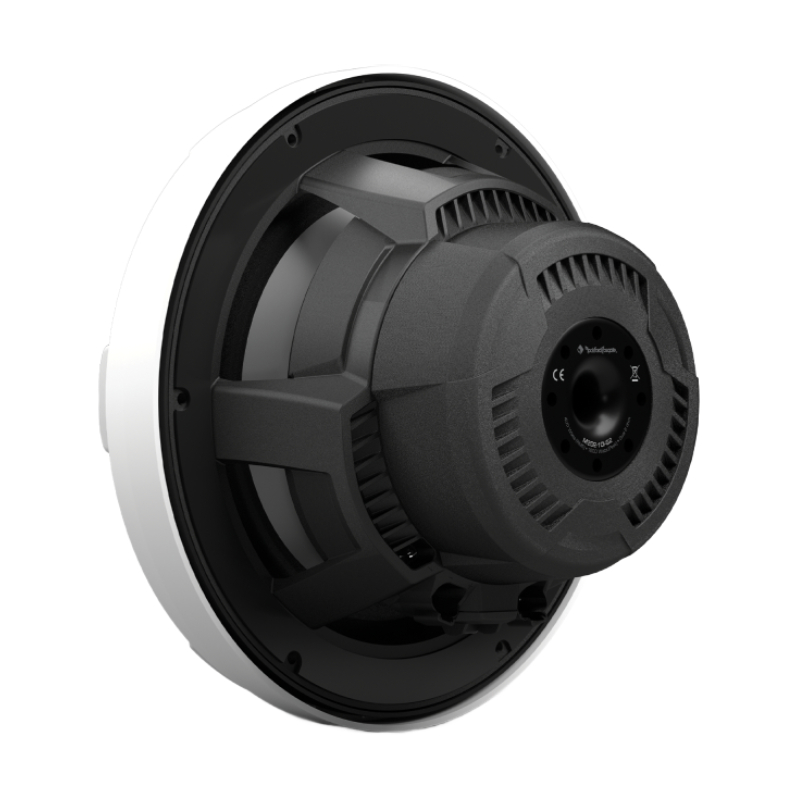

Rockford Fosgate M2D4-10S-G2 Marine Subwoofer Rear Angle View
Rockford Fosgate M2D4-10S-G2 Marine Subwoofer Left Angle View
Vibrant Lighting and Rugged Durability

Take your setup to the next level with ultra-bright, wide-angle RGB LEDs for colorful, reliable illumination. Quick impedance switching via the VERSA switch lets you choose series or parallel configuration without extra wiring, while fully insulated silicone tinsel leads provide flexible, durable connections. Built to last, the 100% UV-stable Centrex grille and optically clear RGB encapsulation ensure long-lasting brilliance, and gold-plated marine-grade brass terminals resist corrosion. Customize your look with Rockford Fosgate® PMX-RGB Color Optix™ controller (optional) and choose your style with the interchangeable two-piece grille (stainless-steel or sport design).




Frequently Asked Questions (FAQ)


  • • Why isn't the bass as deep as expected?
    Check the enclosure volume, polarity, amplifier settings, and available power. This subwoofer is optimized for sealed enclosures.
  • • What sealed enclosure size should I use?
    The recommended sealed volume is 0.5–1.25 cubic feet. Staying within this range helps maintain controlled and consistent bass response.
  • • Why doesn't it fit my existing 10-inch opening?
    Not all 10-inch subwoofers have identical dimensions. This version requires an 8.98-inch cutout and about 4.7 inches of mounting depth.
  • • Can I use it without a sealed enclosure?
    It is designed for sealed installations. Using a different enclosure type can change the subwoofer's response and overall performance.
  • • How should I wire the dual voice coils?
    The dual 4-ohm voice coils can be configured for a 2-ohm or 8-ohm final load. Choose the configuration supported by your amplifier.
  • • Why does the amplifier go into protection mode?
    Check the voice-coil wiring, final impedance, power connections, and ground. An incorrect load can cause the amplifier to protect itself.
  • • Why does the subwoofer distort at high volume?
    Excessive gain, amplifier clipping, or heavy bass boost can cause distortion. Use clean power and stay near the 400-watt RMS rating.
  • • Why isn't the Color Optix lighting working?
    Check the RGB harness, power, ground, connectors, and controller setup. The lighting circuit uses a separate electrical connection.
  • • Why does it rattle after installation?
    Loose hardware, enclosure panels, or air leaks can cause vibration. Secure the enclosure and check all mounting screws and joints.
  • • Can I use a 400-watt amplifier with this subwoofer?
    Yes. It is rated for 400 watts RMS. Match the amplifier to the selected 2-ohm or 8-ohm load and set the gain correctly.

SPECIFICATIONS


  • Diameter : 10 Inch
  • Sensitivity : 83 dB
  • Impedance : 4 Ohm
  • Frequency Response : 22-250 Hz
  • RMS Power Range : 400 Watts
  • Peak Power Handling : 1600 Watts
  • Color : White
  • Mounting Depth : 4.70 Inches

FEATURES


Features:

  • Space-Smart Design: Optimized for small sealed enclosures when space is limited
  • Precision Engineering: COMSOL Multiphysics software optimizes suspension and motor assembly
  • Power Boost: New vented T-yoke improves performance without bottoming out
  • Bigger Bass Output: VAST vertical attach surround increases effective cone area by up to 25%
  • Durable Construction: Chemically bonded co-molded surround ensures a stronger attachment
  • Rugged Frame: Ultra-high temperature PA66 with 30% glass fill injection-molded frame and UV inhibitors
  • Moisture & Heat Protection: Vented motor design with water-repelling nano-coated mesh
  • High-Performance Cone: Injection-molded mineral-filled polypropylene cone with UV protection
  • Smooth Sound: Excellent low and midrange reproduction with smooth high-frequency roll-off
  • Easy Wiring: Integrated Deutsch™/Amphenol™ connectors simplify installation and prevent errors
  • Smart Connectivity: Industry-first molded in-frame connectors plus conventional spade terminals
  • Waterproof Seals: Front/rear silicone seal on Deutsch™ connector protects against water ingress
  • Vibrant RGB Lighting: Ultra-bright wide-angle LEDs provide reliable, colorful illumination

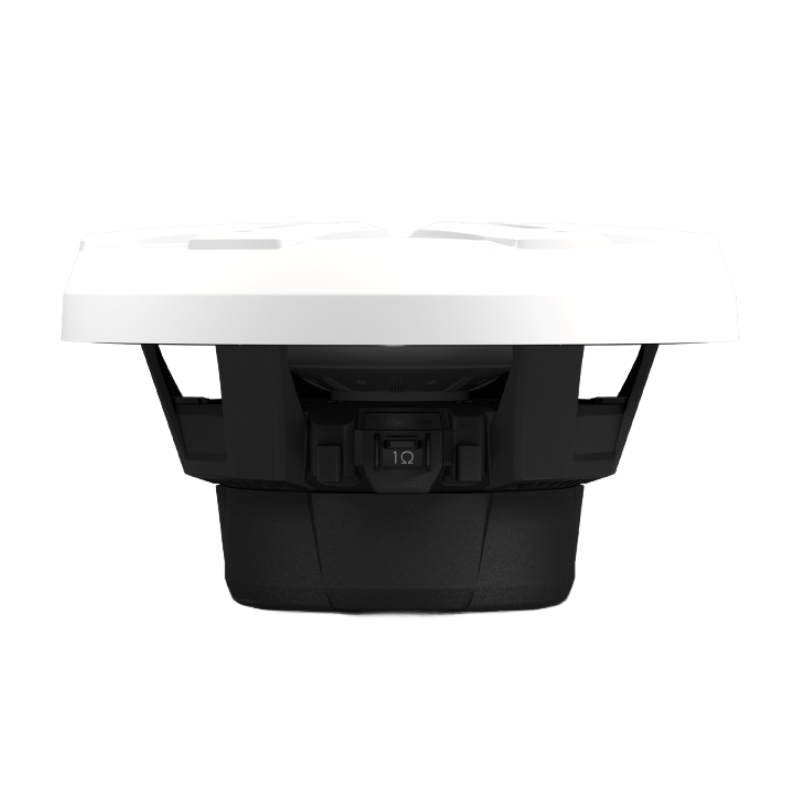

  • Quick Impedance Switching: VERSA switch allows series or parallel configuration without extra wiring
  • Flexible Wiring: Fully insulated silicone tinsel leads for durability
  • UV-Resistant Grille: 100% UV-stable Centrex plastic construction
  • Clear Lighting: Optically clear UV-stable RGB encapsulation for lasting brilliance
  • Corrosion-Resistant Terminals: Gold-plated marine-grade brass connectors
  • Customizable Colors: Adjust lighting with Rockford Fosgate® Color Optix™ controller (optional)

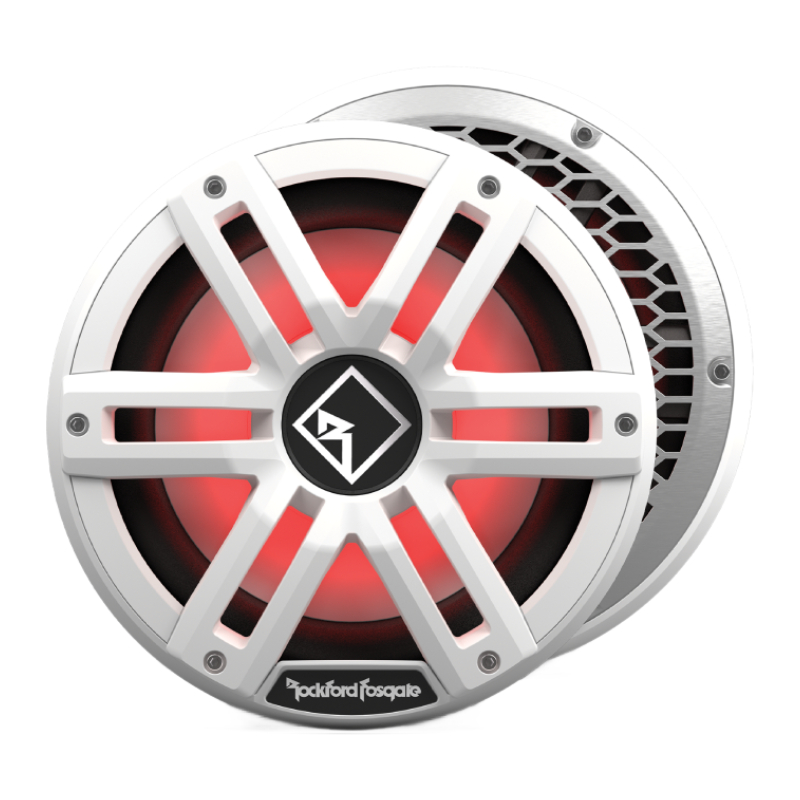

  • Interchangeable Grille: 2-piece design allows stainless-steel or “sport” option



Specifications:

  • Size: 10"
  • Voice Coil Type: Dual Voice Coil
  • Frequency Response: 22 Hz – 250 Hz
  • Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
  • Power Handling: 400 Watts RMS / 1600 Watts Peak
  • Voice Coil Diameter: 2" (51 mm)
  • Magnet Weight: 55.04 oz. (1.56 kg)
  • Fs (Hz): 30
  • Re (Ohms): 6.4
  • Le (mH): 4.88
  • Sd (cm²): 363
  • Qms: 7.69
  • Qes: 0.66
  • Qts: 0.61
  • Vas: 25.2
  • SPL (dB @ 1W/1m): 83
  • Xmax (mm): 13
  • Speaker Connector: Deutsch™ and 1/8" Spade
  • Sealed Box Volume (Vb): 0.5 cu. ft. (14.2 liters) – 1.25 cu. ft. (35.4 liters)
  • Cutout Diameter: 8.98" (228 mm)
  • Mounting Depth: 4.70" (119.35 mm)
  • UPC: 780687367428
  • Weight: 16
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
