Metra Electronics  AXDSPX-GM33

DSP Interface with T-Harness for Select 2021-2024 Chevrolet, GMC, and Buick Vehicles

Item #96833

Condition:   Brand New

Product Highlights

  • DSP Interface
  • T-Harness
  • 2021-2024
  • GMC Chevrolet Buick
  • Plug-and-Play

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$536.99

Reg. Price $636.99  Save $100.00
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Metra Electronics Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Metra Banner for OCS

Metra Electronics AXDSPX-GM33 DSP Interface with T-Harness for Select 2021-2024 Chevrolet, GMC, and Buick Vehicles


Authorized Dealer Stamp

We are a Metra Electronics authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

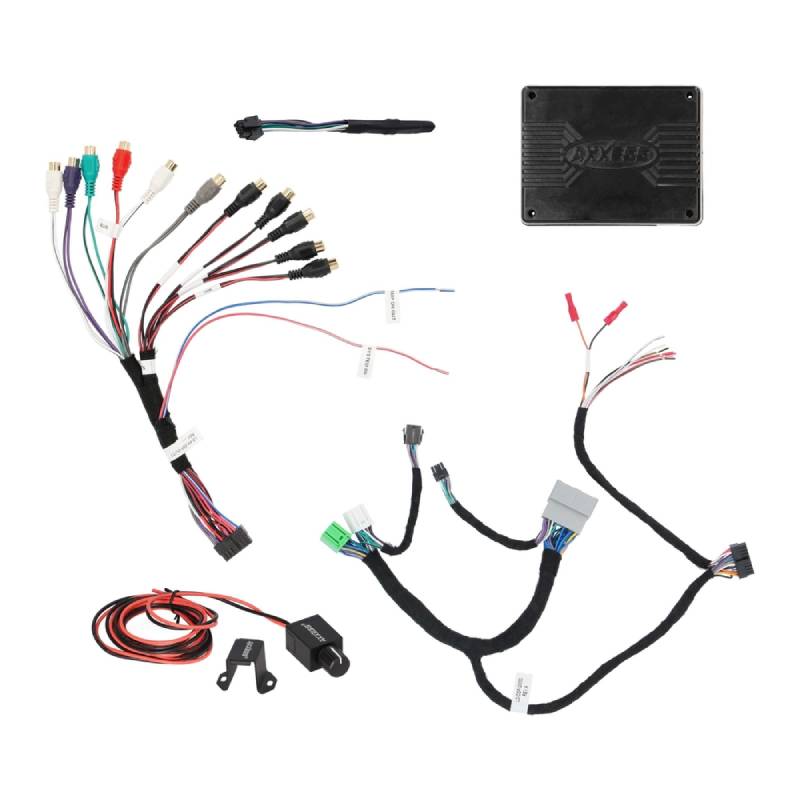

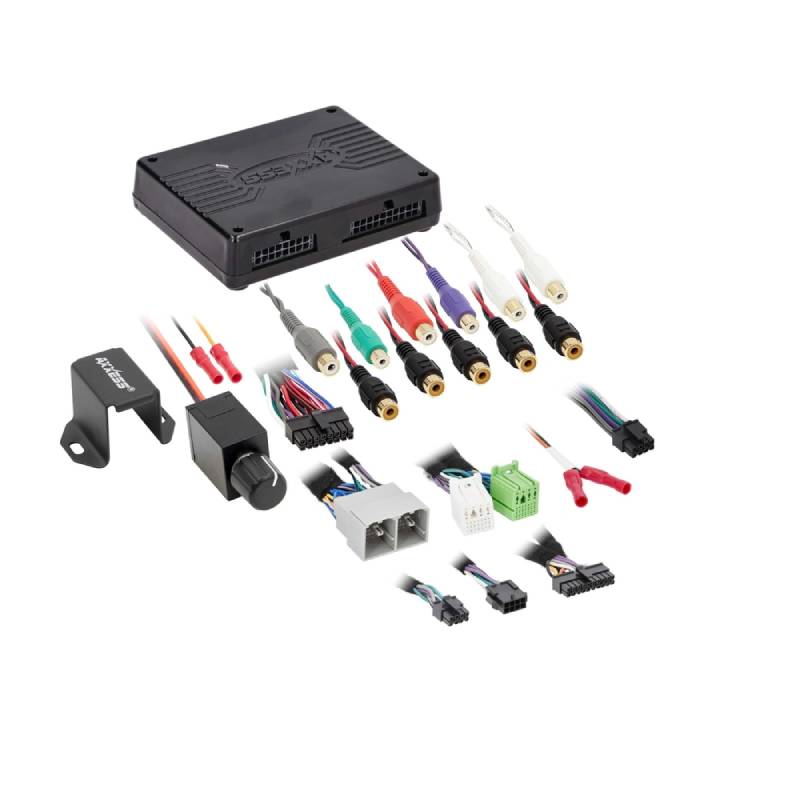

What's Inside?
  • •AXDSPX-GM33 interface
  • •Vehicle T-Harness
  • •Output Harness
  • •LD-DSP-RPAD2LD-DSP-RPAD2
  • •Wired remote bass knob
  • Owner's Manual
Complete DSP Package with T-Harness

Enhance your GM vehicle’s sound system with this all-in-one DSP package and T-harness, designed for select 2021–2024 non-amplified models. The package includes the AXDSP-X and a vehicle-specific T-harness for easy behind-the-radio installation. With a 31-band graphic or 5-band parametric EQ, flexible filters, multiple inputs/outputs, and independent tuning on each channel, you’ll enjoy professional-grade audio customization.

Advanced DSP Interface with OEM Feature Retention

Upgrade your vehicle’s audio while keeping all essential factory features with this advanced DSP solution. It retains OnStar® voice prompts, chimes, parking sensor alerts, and cross path detection, all with adjustable levels for a seamless OEM experience. With wireless tuning via a mobile app, configuration storage, password protection, and included harnesses plus bass knob, you get powerful customization and easy installation.


SPECIFICATIONS



FEATURES


Features:

  • DSP package with T-harness for select 2021-2024 GM
  • Designed for non-amplified models
  • Package includes the AXDSP-X and vehicle-specific T-harness
  • 31-band graphic EQ or 5-band Parametric EQ
  • Selectable high pass, low pass, or bandpass filters on each channel
  • 6 inputs and 10 individually assignable outputs
  • Independent equalization on each of the 6 outputs
  • Selectable slope (12, 24, 36, or 48db per octave)
  • Each channel can be delayed independently for up to 10ms
  • Easy behind the radio installation in most applications
  • Can be used with OE and aftermarket radios
  • Clipping detection and limiting circuits
  • Retains OE voice prompts (OnStar) and factory chimes
  • Retains parking sensor and cross path detection alerts with adjustable chime level
  • Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
  • Read, write, and store configurations for future recall
  • Password-protect feature is available in the mobile app
  • Includes output harness and vehicle-specific t-harness
  • Includes resistor pad and bass knob
  • Micro “B” USB updatable



Specifications:

  • Signal-to-Noise Ratio: 105 dB
  • THD (Total Harmonic Distortion): 0.03%
  • Frequency Response: 20 - 20000 Hz
  • Max Output Level: 5 volts
  • Total Number of Outputs: 10
  • Total Number of Inputs: 6
  • Speaker Level Inputs: No
  • Line Driver: No
  • Built-in Bass Reconstruction: Yes
  • Equalizer Bands: 31 Band Graphic EQ band
  • Built-in Crossover: Band-Pass (BP),Low-Pass (LP),High-Pass (HP)
  • UPC:
  • Weight: 1.14
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
