Metra Electronics  AXDSPX-HK5

DSP Interface with Amplifier Bypass Harness for Select 2020-2025 Kia and Hyundai Vehicles

Item #96834

Condition:   Brand New

Product Highlights

  • DSP Interface
  • Amplifier Bypass
  • 2020-2025
  • Kia Hyundai
  • Plug-and-Play

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$482.99

Reg. Price $582.99  Save $100.00
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Metra Electronics Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Metra Banner for OCS

Metra Electronics AXDSPX-HK5 DSP Interface with Amplifier Bypass Harness for Select 2020-2025 Kia and Hyundai Vehicles


Authorized Dealer Stamp

We are a Metra Electronics authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

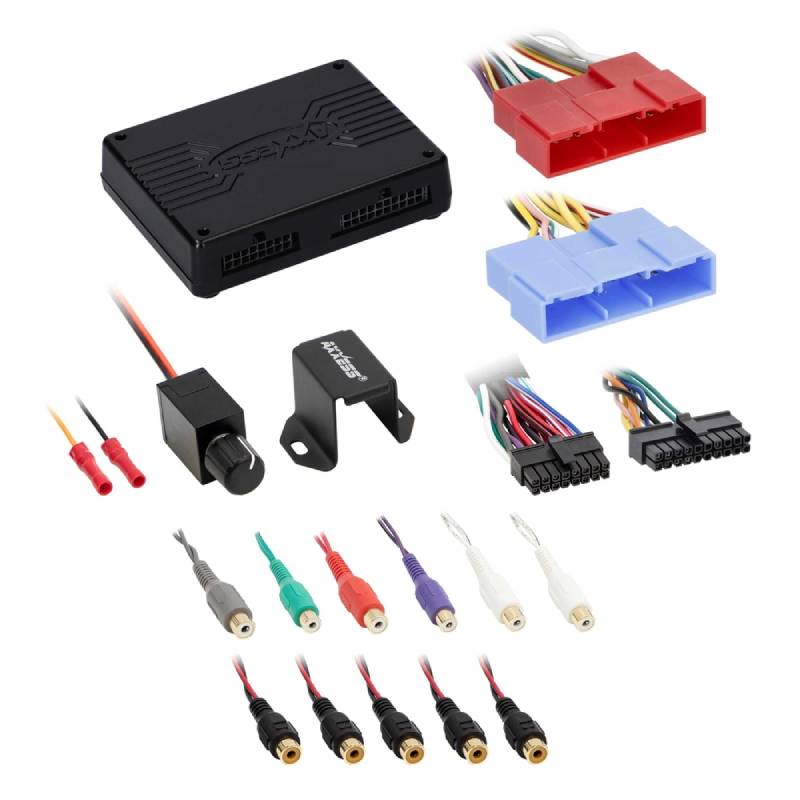

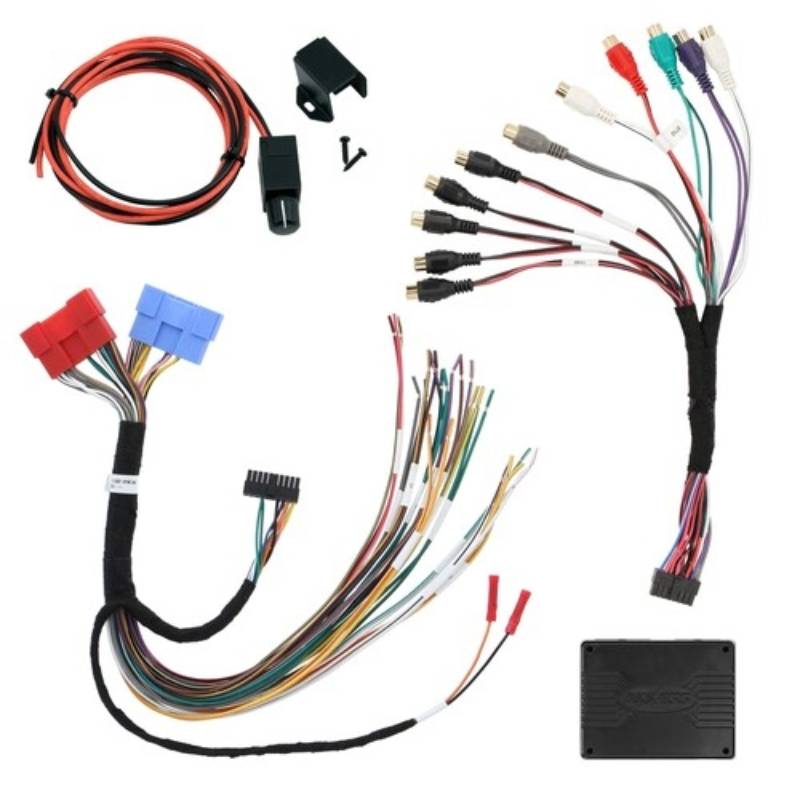

What's Inside?
  • •AXDSP-X Unit
  • •Vehicle-Specific T-Harness
  • •Amplifier Bypass Harness
  • •DSP Interface
  • •Bass knob
  • Owner's Manual
DSP Interface with Amp Bypass Harness

Upgrade your 2020–2025 Hyundai or Kia with this DSP and amplifier bypass harness for a powerful audio upgrade. The package includes the AXDSP-X and a vehicle-specific T-harness, making installation simple while working with both factory and aftermarket radios. With a 31-band EQ, flexible filters, multiple inputs/outputs, independent tuning, and retention of OE voice prompts like BlueLink/UVO, you’ll enjoy professional-grade sound with factory functionality.

DSP Interface with Factory Chime Retention

Easily upgrade your sound system while keeping key factory features like chimes, parking sensors, and cross-path detection alerts. This DSP solution works seamlessly with S/PDIF digitally controlled amplified systems, eliminating the need to retain the factory amplifier. With wireless tuning via a smart device app, configuration storage, password protection, and USB updates, you get powerful customization and long-term flexibility.


SPECIFICATIONS



FEATURES


Features:

  • DSP with amplifier bypass harness for 2020-up Hyundai/KIA
  • Package includes the AXDSP-X and vehicle-specific T-harness
  • 31-band graphic EQ or 5-band parametric EQ
  • Selectable high pass, low pass, or bandpass filters on each channel
  • 6 inputs and 10 individually assignable outputs
  • Independent equalization on each of the 6 outputs
  • Selectable slope (12, 24, 36, or 48db per octave)
  • Each channel can be delayed independently for up to 10 ms
  • Easy installation behind the radio in most applications
  • Can be used with OE and aftermarket radios
  • Clipping detection and limiting circuits
  • Retains OE voice prompts (BlueLink/UVO) with adjustable level
  • Retains and adjust factory chimes, parking sensor and cross-path detection alerts
  • Chimes and voice prompts go through the aftermarket amplifier
  • Retains the ability to work with S/PDIF digitally controlled amplified systems
  • Factory amplifier does NOT need to be retained
  • Wiring to be completed at the amplifier location
  • Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
  • Read, write, and store configurations for future recall
  • Password-protect feature is available in the mobile app
  • Micro “B” USB updatable
  • UPC:
  • Weight: 1.5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
