Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

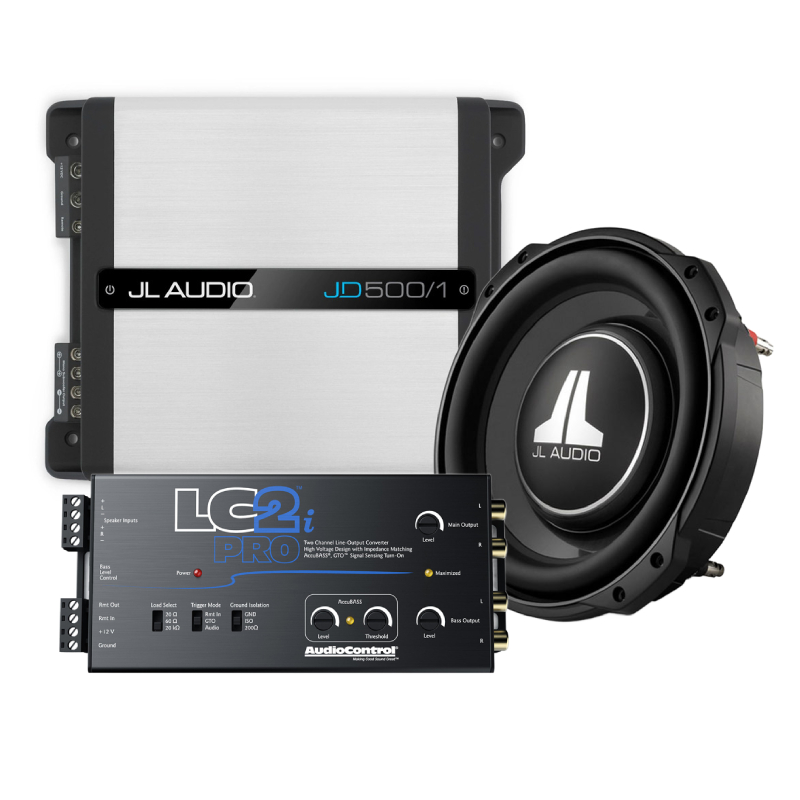

AudioControl LC2i PRO 2-Channel Line Output Converter with ACCUBASS + JL Audio JD500/1 JD Series 500W RMS x 1 at 2 Ohms, Class-D Mono Subwoofer Car Amplifier + JL Audio 10TW3-D4 TW3 Series 10" 800W Peak Power Handling 4 Ohm, Dual Voice Coil Shallow-Mount Car Subwoofer
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • LC2i PRO 2-Channel Line Output Converter
- • LC2i PRO ACR-1
- • LC2i PRO 20" Phone Cable
- • LC2i PRO Speaker and Power connectors
- • LC2i PRO Owner's Manual
- • LC2i PRO Warranty Information
- • JD500/1 Monoblock Subwoofer Amplifier
- • JD500/1 2.5mm Hex key
- • JD500/1 3mm Hex key
- • JD500/1 Owner's Manual
- • 10TW3-D4 10" Dual Voice Coil Shallow-Mount Car Subwoofer
- • 10TW3-D4 Voice coil connection warning
- • 10TW3-D4 Owner's Manual
Excellent Signal Processor
A better version of the renowned LC2i, the AudioControl LC2i-PRO is an excellent signal processor to add to your car's audio system, allowing you to get the best audio quality possible from it even if you have made some modifications or additions to your vehicle's audio setup.
Power Handling
The AudioControl LC2i-PRO has two speaker-level inputs, and it can handle a power output of 400 Watts RMS. It has main and bass pre-amp level outputs to connect your amplifiers with, while it also has a control knob so that you can tweak its output. Lastly, it also has selectable switches, such as load select, trigger mode, and ground isolation options.
Restore the Stereo Quality
You can also restore the lost bass quality output from factory stereos designed to have a toned-down low-frequency performance to protect your car's factory speakers from blowing off. With the LC2i-PRO, you get the heart-pounding bass that you deserve with the help of its famous AccuBASS circuitry.
Nex-D Switching Technology Efficiency in a Sleek Aluminum Chassis
Delivering a powerful 500 watts at 2 ohms and 250 watts at 4 ohms, the JL Audio JD500/1 features cutting-edge NexD™ Switching Technology for maximum efficiency and minimal distortion, all packed into a stylish extruded aluminum chassis for seamless control and connectivity.
Customizable Low-Pass Filter, Versatile Inputs, and Automatic Turn-On for Powerful Bass
With a customizable low-pass filter ranging from 50-500 Hz, adjustable bass boost for deeper low-end performance, and versatile input options that support both line-level and speaker-level signals, the JD500/1 also features automatic turn-on technology, ensuring seamless and powerful bass with every use.
Easy System Expansion, Precision Control, and Remote Subwoofer Adjustment
The JD500/1 makes system expansion easy with preamp outputs, offers precise input sensitivity adjustments with a convenient LED clipping indicator, and allows effortless subwoofer control from the driver’s seat when paired with the optional RBC-1 remote.
Shallow-mount Design
A car subwoofer with a shallow-mount design and comes with a lot of impressive features, the JL Audio 10TW3-D4 is the perfect upgrade for your car's factory subs. This 10-inch subwoofer has the ability to put in some heart-pounding bass and would not need too much space to be installed inside your vehicle.
Polypropylene Cone and a Rubber Surround
It has a mica-filled polypropylene cone and a rubber surround, which gives the subwoofer the needed rigidity and durability to withstand the effects of extended usage at high volume levels while being able to produce an accurate bass response with only minimal distortion.
Produce a Clean and Punchy Low-frequency Performance
It uses JL Audio's DMA-optimized motor design, which helps reduce the distortion while being able to produce a clean and punchy low-frequency performance. It also has JL Audio's famous Concentric Tube Suspension, which significantly improves the subwoofer's excursion, allowing for more air pressure, and resulting in louder and better bass performance.
Deep and Loud With Less Distortion
The JL Audio 10TW3-D4 has a power output of 400 Watts RMS and can reach up to 800 Watts of peak power. It has a frequency response of 24 up to 200 Hz and a sensitivity rate of 82.1 dB, which allows the subwoofer to go really deep and loud with less distortion
Learn how to wire subwoofers

- Vehicle Make : Toyota
- Vehicle Model : Tundra
LC2i PRO 2-Channel Line Output Converter with ACCUBASS
Features:
- Two channels of active speaker level inputs (up to 40V input handling)
- Fixed and variable outputs with discrete level controls
- AccuBASS® processing for correction of bass roll-off
- Load Selection Switch
- GTOTM Signal Sensing
- Ground Isolation Switch
- ACR-1 dash remote inluded
- Compact design
Specifications:
Inputs
- Speaker Level Input: 1 (2 channels)
- Maximum Speaker Level Input: 40 Vrms / 400 W (20k ohms setting)
- Input Impedance (selectable): 20 ohms, 60 ohms, 20k ohms
Outputs
- Preamp Outputs: 2 (2 channels main, 2 channels bass)
- Maximum Output Level: 9.5Vrms/13V peak
- Output Gain: +/- 12 dB
- Output Impedance: 150 ohms
Performance
- Total Harmonic Distortion: 0.01%
- Signal to Noise: >110 dB
- Frequency Response: 20 Hz – 50 kHz ±1 dB
Control
- Remote In / GTO™ Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)
General
- Current Draw: 200 mA
- Recommended Fuse Rating: 1 A
Weights & Dimensions
- Dimensions: 6.9″L x 3″D x 1″H (including speaker connectors)
- Weight: 0.75 lbs. (0.34 kg)
JD500/1 JD Series 500W RMS x 1 at 2 Ohms, Class-D Mono Subwoofer Car Amplifier
Features:
- Power Output: 500 W x 1 @ 2 Ω / 250 W x 1 @ 4 Ω (14.4V, 1% THD)
- NexD™ Switching Technology: Ensures high efficiency and ultra-low distortion with real-world power output
- Chassis Design: Extruded aluminum chassis with controls on the input panel and power/speaker connections on the opposite end
- Low-Pass Filter: 12 dB / octave with continuously variable frequency selection from 50-500 Hz
- Bass Boost EQ: Adjustable for enhanced low-frequency performance
- Input Options: Dual-range, differential-balanced inputs support both line-level and speaker-level signals
- Automatic Turn-On: Activated by signal sensing or DC-offset sensing
- Preamp Outputs: Easily pass signals to another amplifier for expansion
- LED Clipping Indicator: Surrounds the input sensitivity control, allowing quick and accurate sensitivity adjustments
- Optional Remote Level Control: Compatible with the RBC-1 for subwoofer level adjustments from the driver’s seat (sold separately)
Specifications:
Rated Continuous (RMS) Power @ 14.4 V
- @ 4 ohms: 250 W RMS x 1
- @ 3 ohms: 350 W RMS x 1
- @ 2 ohms: 500 W RMS x 1
- @ 1.5 ohms: N/A
Rated Continuous (RMS) Power @ 12.5 V
- @ 4 ohms: 225 W RMS x 1
- @ 3 ohms: 300 W RMS x 1
- @ 2 ohms: 400 W RMS x 1
- @ 1.5 ohms: N/A
General Specifications
- Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
- S/N Ratio, referred to highest rated power: >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W: >60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 ohms: >1000 / 50 Hz
- Damping Factor @ 2 ohms: >500 / 50 Hz
- THD+N @ Rated Power: <1% @ 2 ohms per Ch.
- Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
- Min.Copper Power / Ground Wire Gauge: 4 AWG wire
- Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)
Signal Processing
- Filter Mode(s): Low-Pass only
- Filter Slope(s): 12 dB/octave
- Filter Frequency Range: 50 Hz - 500 Hz
- Detented, Calibrated Filter Freq. Potentiometer: No
- Filter Defeat Function: No
- Infrasonic Filter: No
- Bass Boost EQ: Yes
- Output Polarity Switch: No
- Remote Subwoofer Level Control: Optional (RBC-1)
- Remote Bass EQ Boost Control: No
- Pass-Through Preamp Output: Buffered
Physical Specifications
- Height (H): 2.10 in / 53 mm
- Width (W): 9.50 in / 242 mm
- Depth (D): 7.50 in / 190 mm
10TW3-D4 TW3 Series 10" 800W Peak Power Handling 4 Ohm, Dual Voice Coil Shallow-Mount Car Subwoofer
Features:
- Core Technology: Based on TW5 thin-line subwoofers
- Mounting Depth: Shallow mounting depth of 3.25 / 3.50 inches
- Excursion Capability: Higher excursion capability than W3v3 subwoofers
- Innovative Structure: "Concentric tube" structure built into the injection-molded cone body
- Spider Support: Full annular spider support
- Motor Placement: Large motor structure placed further forward in the speaker
- Enclosure Optimization: Optimized for small enclosures
- Mounting Design: Tab-ear mounting design to maximize cone area within mounting footprints
- Linear Excursion: Long linear excursion capability of 0.60 inches / 15.2 mm, one-way
- Pole Vent: No pole vent, allowing close mounting to the rear wall of the enclosure
- Motor Design: DMA-optimized motor designs
- Patented Technology 1: “Floating cone attach method” technology
- Patented Technology 2: “Concentric tube” architecture
- Frame: Cast alloy frame
- Cone: Injection molded, mica-filled polypropylene cone
- Surround: Rubber surround
- Caps: Aluminum-alloy dust cap and rear cap with JL Audio logo
- Build Quality: Precision-built in the USA at JL Audio’s Miramar, Florida factory with global components
- Bass Quality: Deep, powerful, and accurate bass suitable for more applications than ever before
Specifications:
- Size: 10 inches
- Impedance (Ohms): 4
- Cone Material: Mica-filled IMPP
- Surround Material: Rubber
- Port Diameter (inches): N/A
- Port Length (inches): N/A
- Free-Air: No
- Dual Voice Coil: Yes
- Sensitivity: 82.1 dB at 1 watt
- Frequency Response: 24 - 200 Hz
- Max RMS Power Handling: 400 W
- Peak Power Handling (Watts): 800 W
- Top Mount Depth (inches): 3 1/4
- Bottom Mount Depth (inches): N/A
- Cutout Diameter or Length (inches): 9 9/16
- Frame Width: 10.47 inches
- Frame Length: 11.17 inches
- Vas (liters): 19.82
- Fs (Hz): 32.3
- Qts: 0.62
- Xmax (millimeters): 15.2 mm
Box Requirements:
- Ideal Sealed Box Volume: 0.5 cubic feet
- Minimum Sealed Box Volume: N/A
- Maximum Sealed Box Volume: N/A
- Ideal Ported Box Volume: 0.6 cubic feet
- Minimum Ported Box Volume: N/A
- Maximum Ported Box Volume: N/A
- UPC:
- Weight: 24
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
