JL Audio  C6-653

C6 Series 6.5" 100W Power Peak Handling 4 Ohms, 3-Way Component Car Speaker System

Item #97012

Condition:   Brand New

Product Highlights

  • 6.5 inch car speakers
  • 100W RMS component system
  • 4 ohm car speaker
  • 3-way audio system
  • high quality car audio

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Special offer:

$1,699.99

Reg. Price $1,799.99  Save $100.00
In Stock
In Stock

Limited Stocks left!
Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

JL Audio Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


JL Audio Banner for Onlinecarstereo

JL Audio C6-653 C6 Series 6.5" 50W RMS (100W Power Peak Handling) 4 Ohms, 3-Way Component Car Speaker System


We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

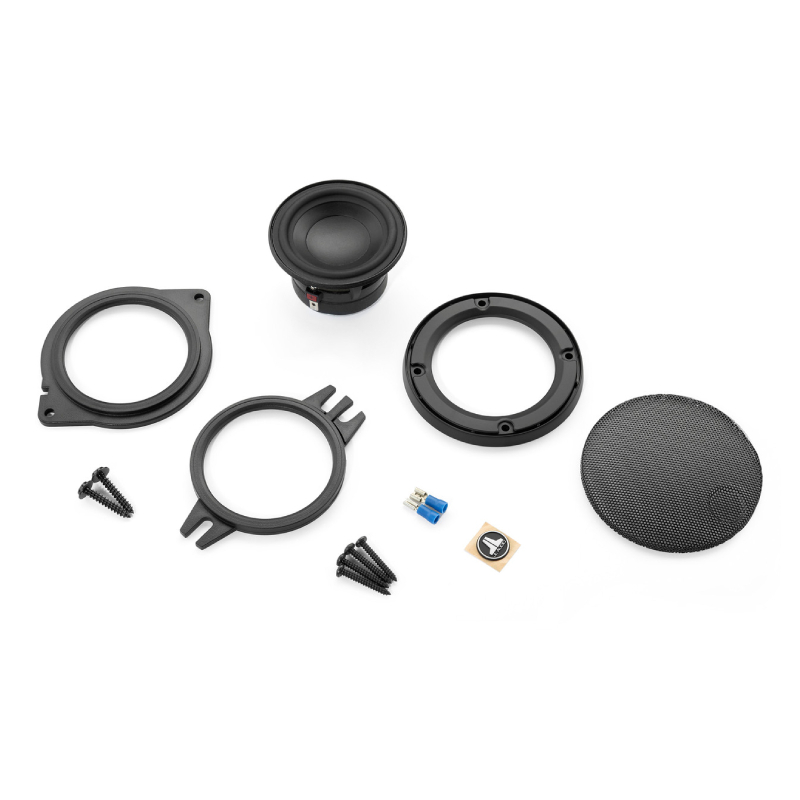

What's Inside?
  • • (2) midranges
  • • (2) 0.185" female crimpable connectors
  • • (2) 0.110" female crimpable connectors
  • • (8) 1-1/4" mounting screws
  • • (2) grille frames, grilles and JL Audio logo badges
  • • (4) OEM adapter rings
  • Owner's Manual




Why Choose JL Audio C6-653 Component Systems?

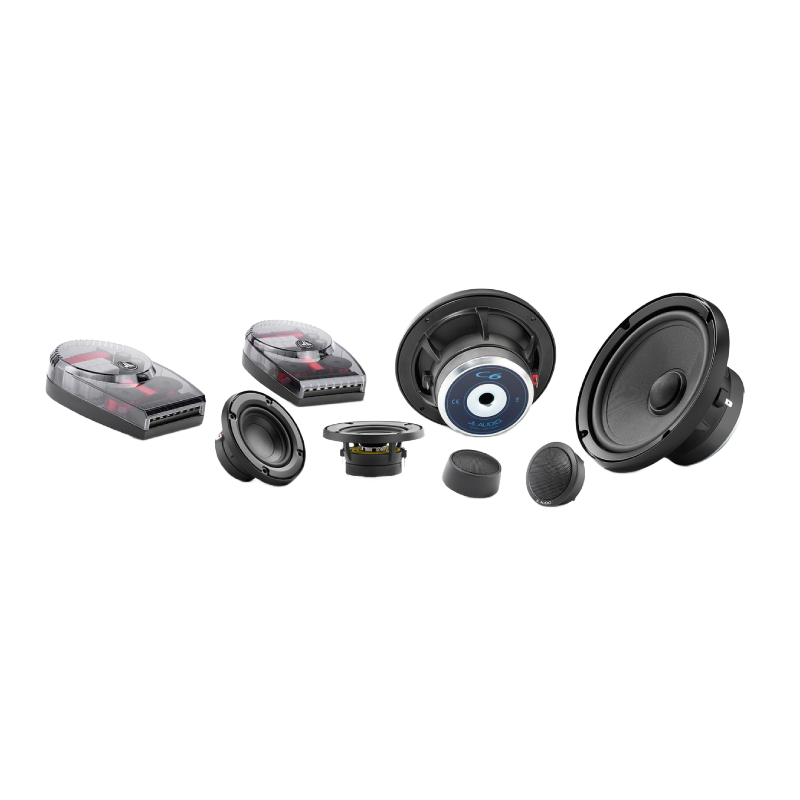

JL Audio C6-653 Component Systems Showing Three-Quarter Front View with Fine Mesh Grille
C6 Series 6.5" Premium Car Speakers

Upgrade your drive with the C6 Series 6.5" component speakers, engineered to deliver crystal-clear highs and powerful lows for a true audiophile experience. Featuring a silk dome tweeter and advanced crossover network, every detail of your music comes through with precision and balance. With DMA-optimized woofers designed to minimize distortion and maximize performance, these speakers bring studio-quality sound straight to your car.

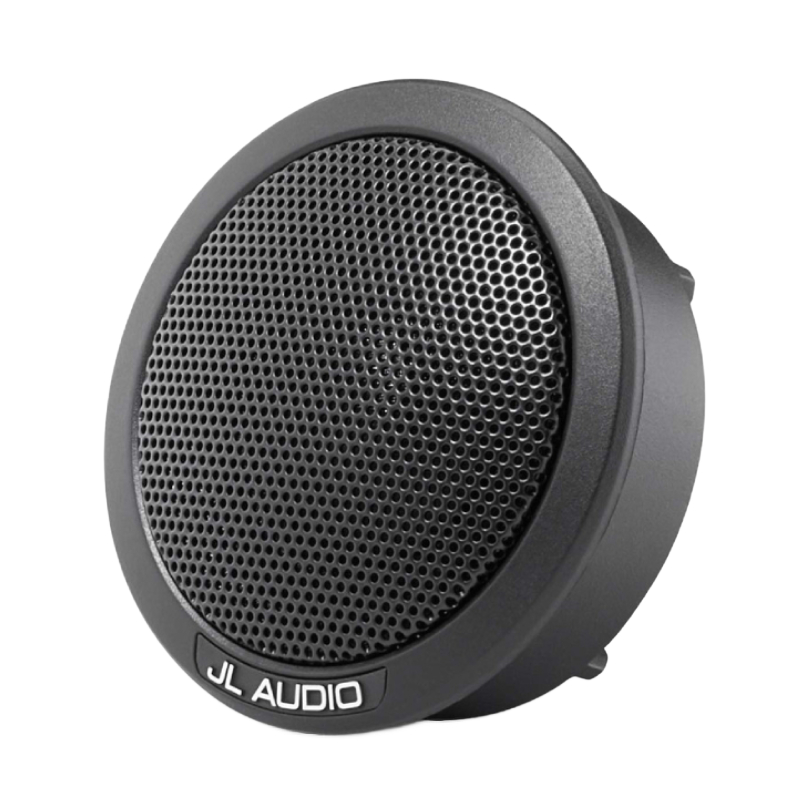

Silk Dome Tweeters with Premium Crossovers

Experience crisp, detailed highs with edge-driven silk dome tweeters that deliver balanced sound and wide coverage while staying protected from damage. Fine-tune your listening with premium passive crossover networks, offering 4 levels of tweeter adjustment for custom sound control. Built with high-quality components and housed under a durable polycarbonate cover, these speakers ensure lasting performance and premium audio clarity.

JL Audio C6-653 Component Systems in a Black Flush-Mount Pod

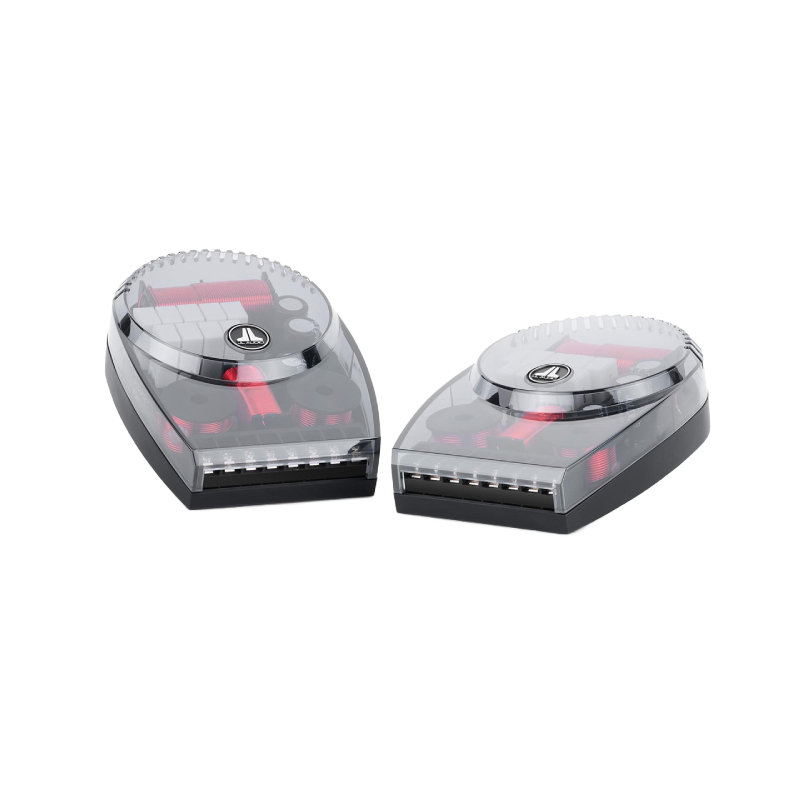

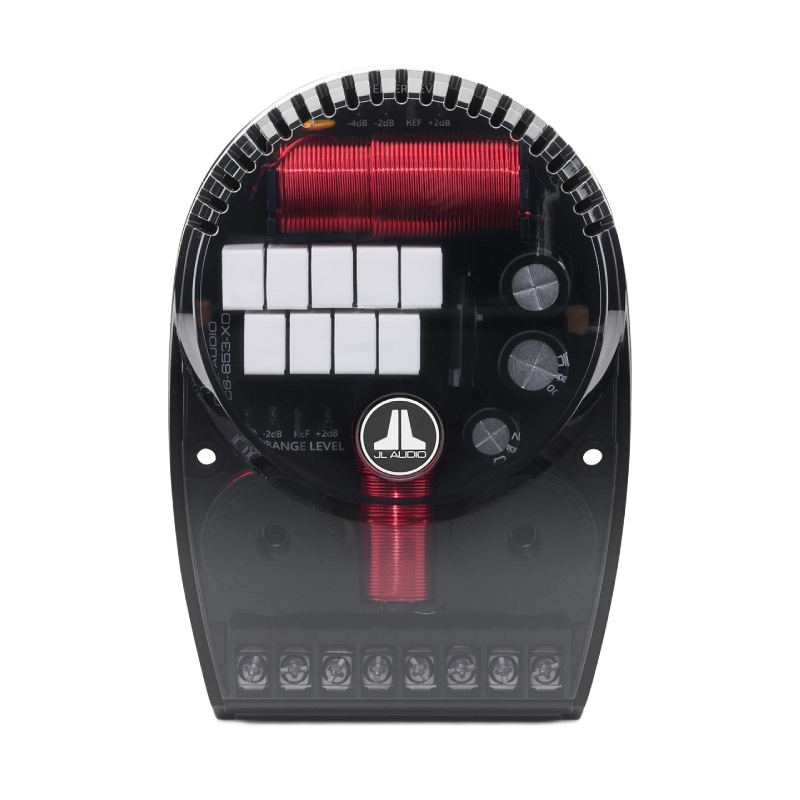

JL Audio C6-653 Component Systems Passive Crossover Networks
JL Audio C6 High-Performance Speakers

Built for power and precision, the JL Audio 6.5" C6 component speakers combine advanced cast-alloy frames with Elevated Frame Cooling for long-lasting performance. Their oversized woofer voice coil delivers greater power handling and minimizes distortion, even at higher volumes. Perfectly adaptable to 25–150W amplifiers, these speakers provide clear, dynamic sound for any car audio setup.




Frequently Asked Questions (FAQ)


  • • Why am I getting absolutely no sound from my midranges and tweeters after unboxing and wiring the C6-653?
    The C6-653 premium 3-way system does not include passive crossover networks in the box. It is designed strictly for active configurations, meaning you must route each of the 6 drivers to its own dedicated amplifier channel and use an external DSP to configure the crossover points.
  • • Why do my C6-653 speakers sound harsh or too bright?
    Incorrect tweeter placement or crossover settings can make the highs sound overly bright. Adjusting the tweeter level or aiming the tweeters differently often improves the sound.
  • • Why do the 6.5-inch woofers lack mid-bass punch and sound hollow even when supplied with plenty of power?
    This is usually caused by an out-of-phase wiring error or a leaky door cavity. Ensure the positive and negative speaker leads aren’t reversed on one side of the car, which causes phase cancellation. Adding sound-deadening material to seal the door cavity will maximize mid-bass response.
  • • What are the correct active crossover settings I should input into my DSP for this 3-way system?
    While tuning depends on your vehicle's acoustics, safe baseline settings are: Woofers from 50Hz to 350Hz; Midranges from 350Hz to 4kHz; Tweeters from 4kHz and up. Always use a minimum 12dB or 24dB/octave slope to protect the smaller drivers from damage.
  • • Can I power this complete C6-653 3-way system using a standard 2-channel or 4-channel car amplifier?
    Not directly. Because it requires active processing, a single side needs 3 separate channels (Woofer, Mid, Tweeter). To power the full stereo set, you must use a dedicated 6-channel amplifier (like the JL Audio XDM600/6) or a combination of multiple amplifiers.
  • • Why do the silk dome tweeters sound too quiet compared to the midranges and woofers in my initial tune?
    This is due to a mismatch in driver sensitivities. The 6.5-inch woofer is inherently more efficient than the 2.75-inch midrange. You must use your DSP's output level settings to balance the system by turning down the woofer gains to match the midrange and tweeter levels.
  • • Why is there little or no bass after installing the C6-653
    This is often caused by incorrect speaker polarity or poor door sealing. Double-check the wiring and consider adding sound-deadening material for improved bass response.
  • • Do the JL Audio C6-653 speakers need a break-in period?
    Yes. Many users notice smoother sound and slightly improved bass after several hours of normal listening as the speaker suspension loosens naturally.

SPECIFICATIONS


  • Diameter : 6.5 Inch
  • Sensitivity : 87.37 dB
  • Frequency Response : 53-21000 Hz
  • RMS Power Range : 50 Watts
  • Woofer Composition : Polypropylene
  • Tweeter Composition : Silk Dome
  • RMS Power Handling : 100 Watts

FEATURES


Features:

  • Premium Audio Quality: The C6 Series 6.5" component speakers combine a full-frame woofer, silk dome tweeter, and premium passive crossovers for an exceptional car audio experience.
  • DMA-Optimized Woofers: The proprietary motor, suspension, and cone design reduce distortion, enhance transient response, and optimize the woofer’s high-frequency output for seamless tweeter integration.
  • Silk Dome Tweeters: The edge-driven silk dome tweeter delivers detailed, balanced sound with wide coverage and built-in solid-state protection to prevent failure.
  • Passive Crossover Networks: Each C6 component system includes premium filter networks with 4-level tweeter adjustment, featuring polyester film, electrolytic capacitors, and air-core inductors under a protective polycarbonate cover.
  • Advanced Frame Design: The JL Audio 6.5" C6 component speakers feature durable cast-alloy frames with Elevated Frame Cooling, reflecting years of woofer design expertise.
  • Powerfully Adaptable: The C6 speaker system delivers superb sound across 25–150W amplifiers, with an oversized woofer voice coil for enhanced power handling and reduced distortion at high volumes.



Specifications:

  • Speaker Size: 6.5" woofer, 1" tweeter
  • Driver Design: 2-way
  • Woofer Material: Mineral-filled polypropylene with rubber surround
  • Tweeter Type/Size: Silk dome, 1" (25 mm)
  • Impedance: 4 Ω
  • Frequency Response: 53 Hz – 21 kHz
  • Power Handling: 25–150 W RMS
  • Sensitivity: 87.37 dB (6.5"), 96 dB (1" tweeter)
  • Top-Mount Depth: 2.60" (woofer), 0.875" (tweeter)
  • Grilles Included: Black steel mesh with plastic mounting ring
  • Connections: Spade connectors
  • Mounting Dimensions (6.5" Woofer)
  • Frame Diameter: 6.5"
  • Mounting Hole: 5.46"
  • Mounting Depth: 2.60"
  • Grille Protrusion: 1"
  • Tweeter Mounting
  • Flush Mount Diameter: 2.13"
  • Surface Mount Diameter: 2.11"
  • Flush Mount Depth: 1.85"
  • Frontal Protrusion: 0.30" (flush), 1.04" (surface)
  • UPC: 699440991346
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
