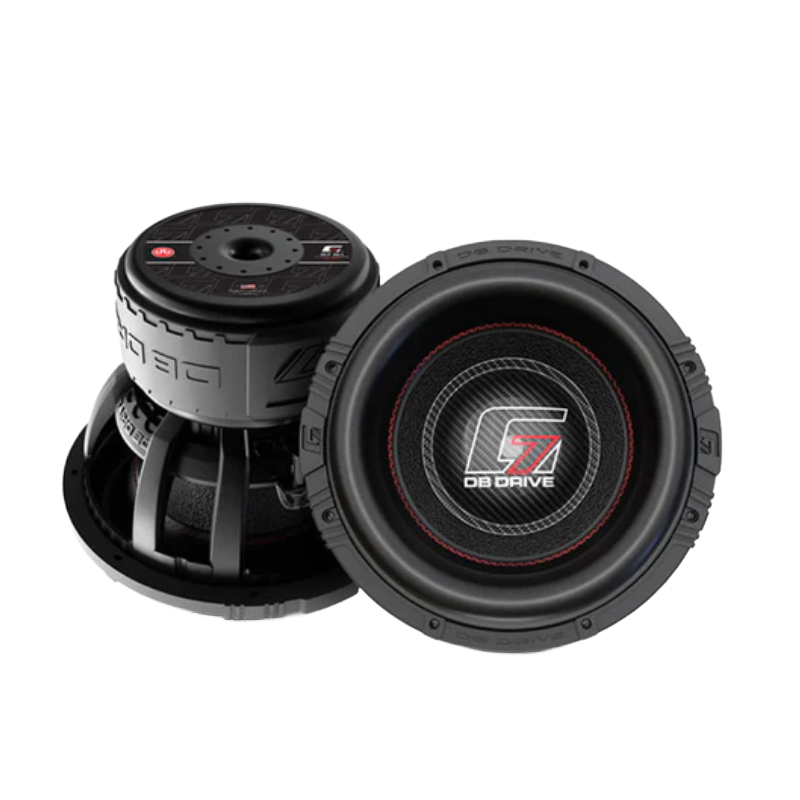

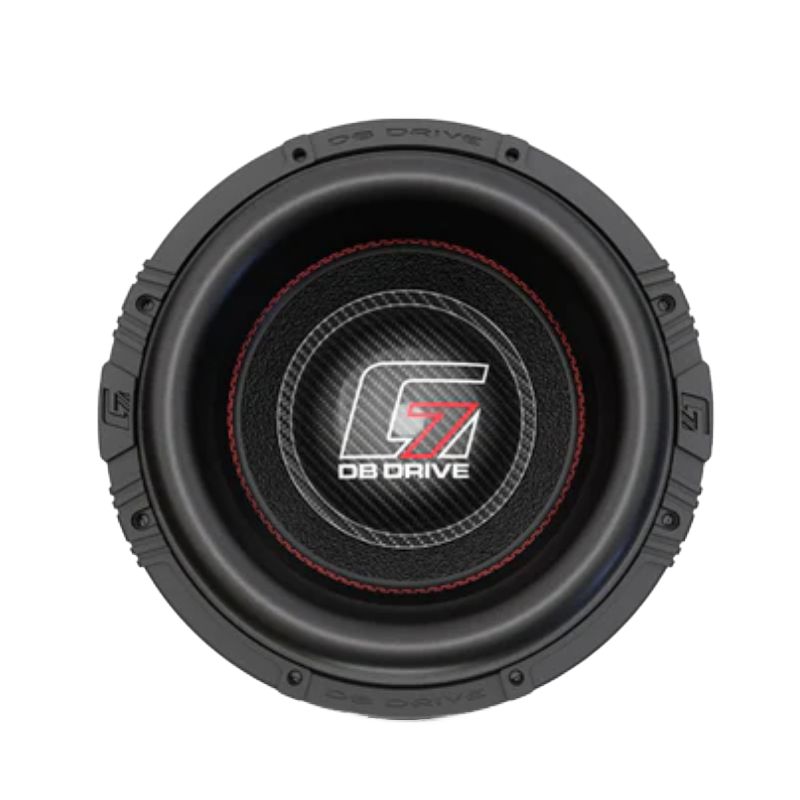

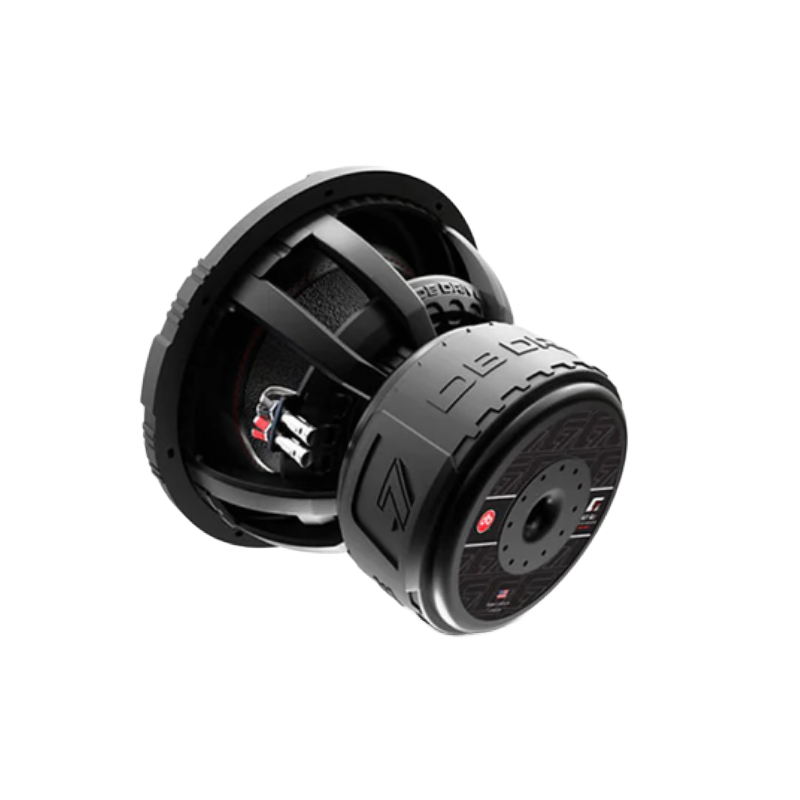

DB Drive G7 12.1 G7 Series 12" 4000W RMS (8000W Peak Power Handling) 1 Ohm, Dual Voice Coil Component Car Subwoofer
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Premium Build for Maximum Performance and Durability
Designed for audiophiles who demand excellence, this subwoofer features a high-excursion foam surround for deep, accurate bass response, a true carbon fiber dust cap for lightweight strength and improved clarity, and a custom die-cast aluminum basket that ensures rigidity and optimal heat dissipation during high-power playback.
Engineered for Power, Precision, and Reliability
Built to handle extreme performance, this subwoofer features triple-layer progressive dampeners for superior cone control and long-lasting durability, large-gauge push terminals for secure and efficient connectivity, and a 3-inch high-temperature 4-layer voice coil designed to deliver exceptional power handling and accurate sound reproduction.
Powerful Magnet System for Maximum Performance
Engineered for strength and stability, this subwoofer features a triple-stacked Y35 ferrite oxide magnet that delivers intense motor force and precise control, paired with a custom rubber protective magnet band that enhances durability and safeguards the magnet structure for long-lasting reliability.
- Diameter : 12 Inch
- Sensitivity : 82.7 dB
- Impedance : 1 Ohm
- Peak Power Handling : 8000 Watts
- Number of Voice Coils : Dual
- RMS Power Handling : 4000 Watts
Features:
- Surround: High-excursion foam surround
- Dust Cap: True carbon fiber dust cap
- Basket: Custom die-cast aluminum basket
- Dampeners: Triple-layer progressive dampeners
- Terminals: Large-gauge push speaker terminals
- Voice Coil: 3-inch high-temperature 4-layer voice coil
- Magnet Band: Custom rubber protective magnet band
- Magnet: Triple-stacked Y35 ferrite oxide magnet
Specifications:
- Structure: 12" (30.48cm) Woofer
- Dynamic Power Handling: 8000 Watts
- Nominal Power Handling: 4000 Watts
- Impedance: Dual 1Ω Voice Coil
- Resonant Frequency (Fs): 29.41Hz
- D.C. Voice Coil Resistance (Re): 2 x 1Ω
- Mechanical Quality Factor (Qms): 2.108
- Electrical Quality Factor (Qes): 0.443
- Total Quality Factor (Qts): 0.366
- Equivalent Air Volume (Vas): 21.01L
- Mass of Diaphragm/Coil (Mms): 439.84g
- Force Factor (Bl): 16.03
- Sound Pressure Level (SPL): 82.7dB

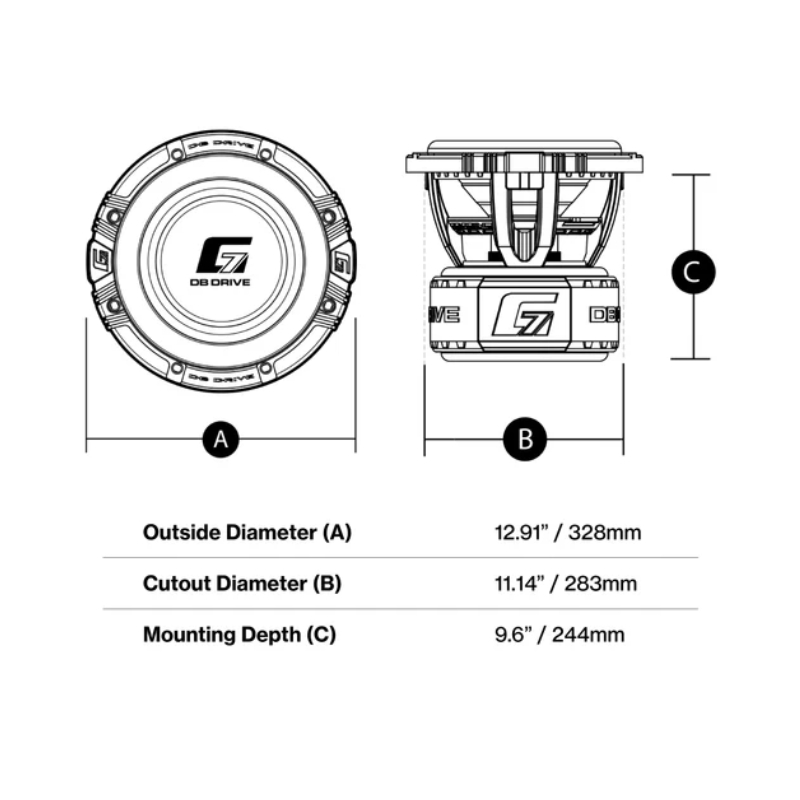

- Overall Diameter: 12.91" / 328mm
- Mounting Depth: 9.6" / 244mm
- Cutout Diameter: 11.14" / 283mm
- UPC:
- Weight: 15
