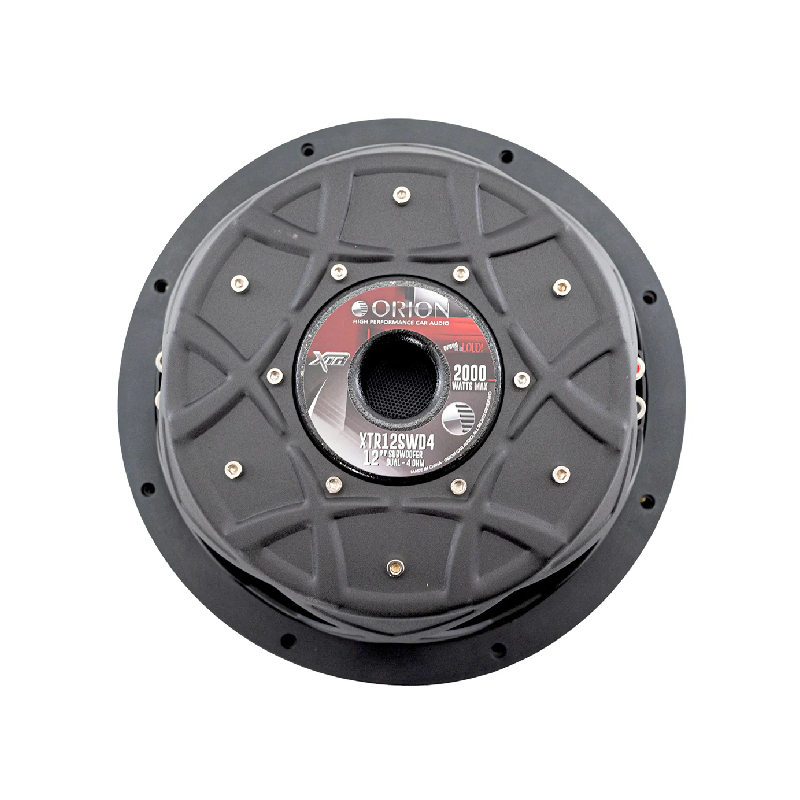

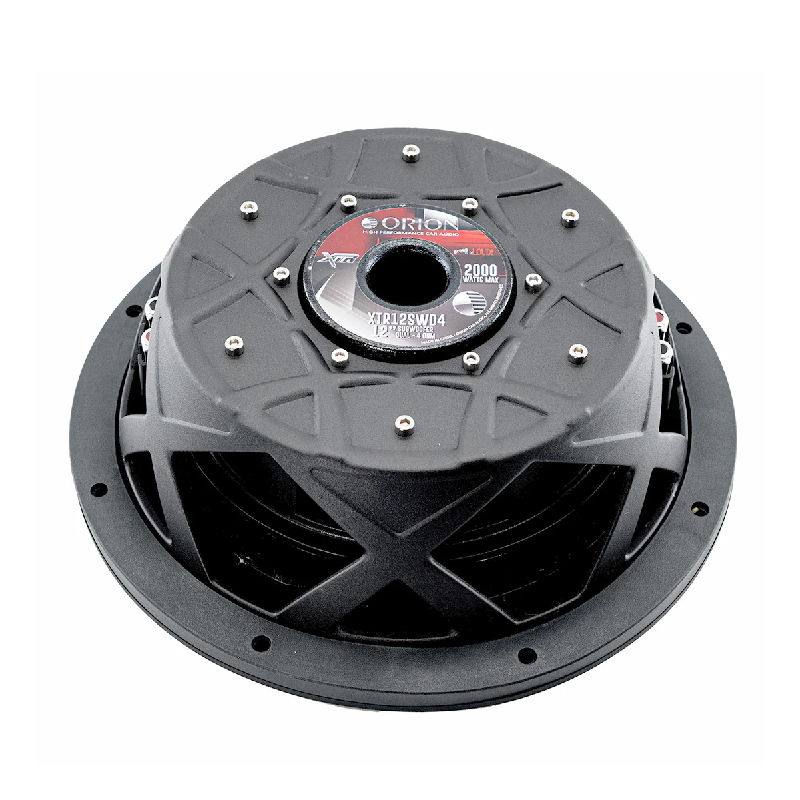

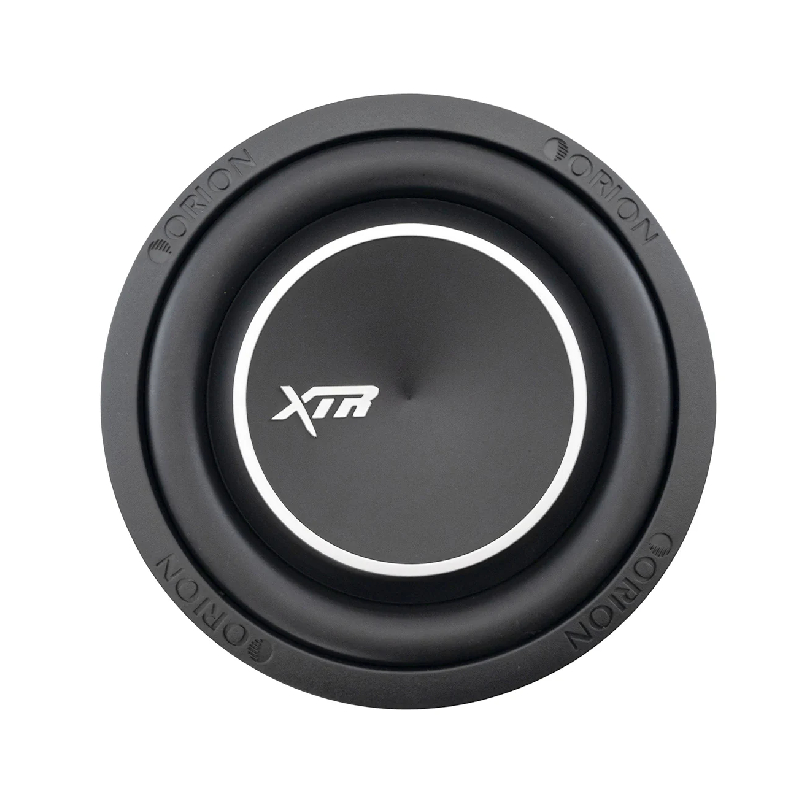

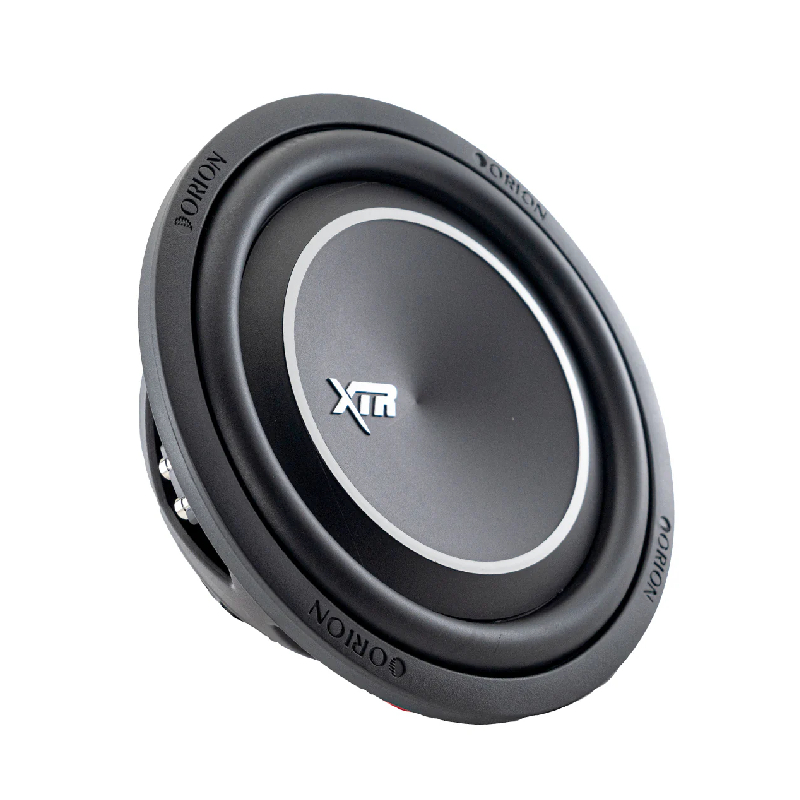

Orion  XTR12SWD4

XTR Shallow Series 12" 2000W Peak Power Handling 4 Ohm, Dual Voice Coil Component Car Subwoofer

Item #97129

Condition:   Brand New

Product Highlights

  • XTR Shallow Series
  • 12" Component Car Subwoofer
  • 2000W Peak Power Handling
  • 4 Ohm Impedance
  • Dual Voice Coil Design

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$149.95

Reg. Price $159.95  Save 6%
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logo. Learn More

Orion Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

Orion XTR12SWD4 Shallow Series 12" 500W RMS (2000W Peak Power Handling), 4 Ohm, Dual Voice Coil Component Car Subwoofer


We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 12" 2000W Peak Power Handling, 4 Ohm, Dual Voice Coil Component Car Subwoofer
  • • Owner's Manual




Why Choose Orion XTR12SWD4 Car Subwoofer?






High-Power Dual Voice Coil Design

Built for serious bass enthusiasts, the dual 4-ohm voice coils deliver flexible wiring options and reliable power handling, while the UV-coated paper/fiber cone ensures strength, precision, and dynamic sound performance that brings your music to life.

Durable and Vibration-Free Construction

Designed for superior longevity and performance, the NBR rubber surround allows deep, controlled bass with smooth cone movement, while the heavy-gauge stamped steel basket reinforces structural strength and reduces vibrations for cleaner, more precise audio output.

Compact Design with Reliable Connectivity

Built for convenience and performance, the nickel-plated push terminals provide secure, corrosion-resistant connections for consistent power delivery, while the shallow mount design ensures easy installation in tight spaces without sacrificing deep, powerful bass output.


Orion XTR12SWD4 Highlights


HIGH POWER

500W RMS Output

Handles 500 watts RMS and up to 2,000 watts peak power for deep, powerful bass performance.

DUAL VOICE COIL

Dual 4-Ohm Configuration

The dual 4-ohm voice coils provide flexible wiring options for building and matching a variety of bass systems.

SHALLOW MOUNT

3.58-Inch Mounting Depth

The ultra-shallow design fits tight spaces, making it ideal for under-seat installations and compact enclosures.

DEEP BASS RESPONSE

28Hz–300Hz Frequency Range

Provides a broad low-frequency response for deep, controlled bass that adds impact to your car audio system.

DURABLE BUILD

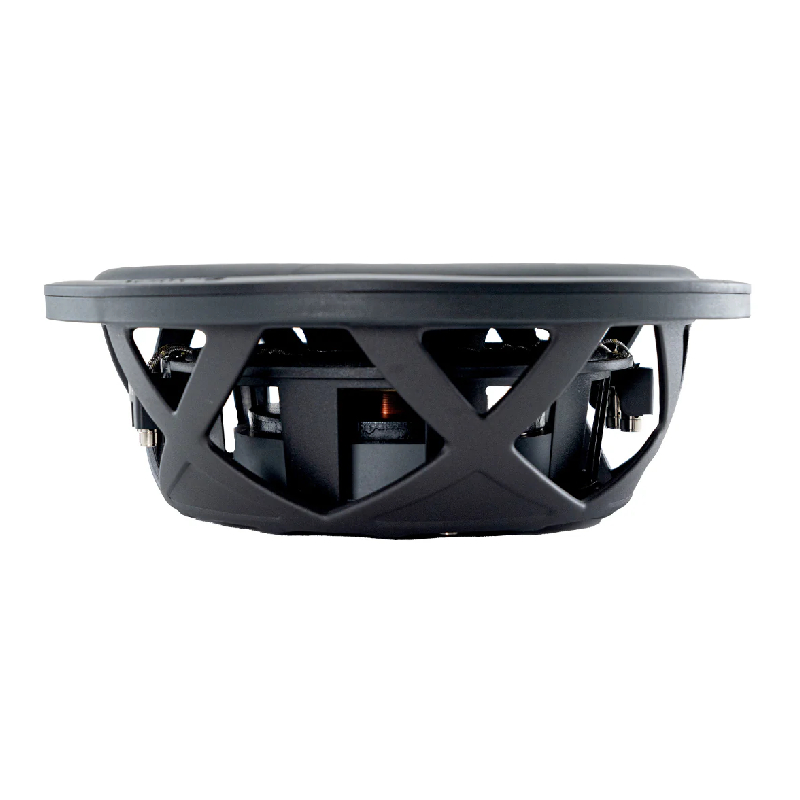

Heavy-Gauge Steel Basket

The heavy-gauge stamped steel basket increases structural integrity while helping reduce unwanted vibration during high-output operation.

DURABLE MATERIALS

UV-Coated Cone & NBR Surround

The UV-coated paper and fiber blend cone works with the durable NBR surround for responsive, controlled bass performance.

SPACE-SAVING DESIGN

12-Inch Shallow Subwoofer

A full-size 12-inch subwoofer in a space-conscious design, ideal for compact trunks, shallow enclosures, and stealth audio upgrades.


Frequently Asked Questions (FAQ)


  • • Why Doesn’t the XTR12SWD4 Fit the Same Cutout as My Other Slim 12-Inch Sub?
    Shallow 12-inch subwoofers can use different basket dimensions, and one customer specifically noted that the required opening was larger than other slim 12-inch models. The XTR12SWD4 calls for an approximately 11.02-inch cutout, so measuring the enclosure before installation is important.
  • • Can I Install the XTR12SWD4 in a Very Small Sealed Box?
    The shallow design saves mounting depth, but that does not mean every compact enclosure will provide the correct internal air volume. Online feedback includes a report of a subwoofer being damaged when paired with an undersized sealed enclosure, so following the enclosure requirements is important.
  • • Why Does My XTR12SWD4 Sound Weak Even Though the Amplifier Is Powerful?
    Amplifier wattage alone does not determine bass output. Enclosure volume, box construction, wiring impedance, crossover settings, and gain adjustment all affect performance. The XTR12SWD4 is rated for 500W RMS, so the complete system should be configured around that specification.
  • • How Should I Wire the Dual 4-Ohm Voice Coils?
    The XTR12SWD4 uses two 4-ohm voice coils, giving you different final impedance options depending on how the coils are connected. The amplifier must be selected according to the resulting load rather than simply the subwoofer's individual 4-ohm coil rating.
  • • Why Is My Shallow XTR12SWD4 Hitting Harder Than I Expected?
    A shallow mounting depth does not necessarily mean weak bass. Orion specifies a 500W RMS rating, a 28–300Hz frequency response, and a 12-inch cone, while customer feedback includes reports of strong and deep bass from the shallow design.
  • • Why Does My XTR12SWD4 Need More Tuning After Installation?
    Customer feedback indicates that some installations may require additional tuning. Adjusting amplifier gain, low-pass filtering, enclosure design, and the final voice-coil impedance can change the way the subwoofer integrates with the rest of the system.
  • • Why Did My XTR12SWD4 Stop Working After Only a Short Time?
    One online customer report describes a related XTR shallow-subwoofer installation that failed after about two months, while other owners report satisfactory operation. Such reports do not establish a general failure rate, so installation, enclosure specifications, amplifier setup, and warranty status should be checked when troubleshooting an individual unit.
  • • Will the XTR12SWD4 Work Under a Truck or SUV Seat?
    Its 3.58-inch mounting depth makes it suitable for many space-restricted builds, including some under-seat applications. However, the enclosure itself still needs enough internal space and clearance around the basket, terminals, and cone.
  • • Why Does My XTR12SWD4 Have Less Bass After Changing the Box?
    Changing from one enclosure design to another can significantly alter subwoofer performance. Customer feedback specifically highlights the importance of following enclosure recommendations, while the XTR12SWD4 is described by Orion as optimized for compact sealed enclosures.
  • • What Should I Check If My XTR12SWD4 Is Not Performing as Expected?
    Start with the basics: verify both voice coils are wired correctly, confirm the amplifier sees the intended impedance, inspect the enclosure dimensions and construction, and check gain and crossover settings. Orion also recommends purchasing through an authorized dealer for warranty and service support.

SPECIFICATIONS


  • Diameter : 12 Inch
  • Sensitivity : 85 dB
  • Impedance : 4 Ohm
  • Frequency Response : 28-300 Hz
  • Peak Power Handling : 2000 Watts
  • Shallow Mount : Yes Inch
  • Number of Voice Coils : Dual
  • Mounting Depth : 3.58 Inches
  • RMS Power Handling : 500 Watts

FEATURES


Features:

  • Dual 4 Ohm Voice Coils: Offers flexible wiring configurations with durable 3-inch copper-wound coils designed for high power handling and longevity.
  • UV-Coated Paper/Fiber Cone: Provides exceptional rigidity and responsiveness, delivering accurate and dynamic sound performance.
  • NBR Rubber Surround: Ensures long-lasting durability while allowing extensive cone excursion for deep, controlled bass output.
  • Exclusive Heavy-Gauge Stamped Steel Basket: Enhances structural integrity and minimizes unwanted vibration for cleaner audio performance.
  • Nickel-Plated Push Terminals: Delivers secure, corrosion-resistant connections for consistent power flow and easy installation.
  • Shallow Mount Design: Optimized for compact spaces, allowing flexible installation without compromising bass performance.



Specification:

  • Subwoofer Size: 12 (Inches)
  • Voice Coil Configuration: Dual 4-ohm
  • Power Handling (Peak): 2000 Watts
  • Power Handling (RMS): 500 Watts
  • Sensitivity: 85 dB
  • Frequency Response: 28 Hz - 300 Hz
  • Dustcap Material: Polypropylene
  • Cone Material: UV Coated Paper / Fiber Blend Cone
  • Surround Material: NBR
  • Magnet Information: Ceramic
  • Dimensions (L x W x H): 13.94" x 13.82" x 5.67" (354.28 x 351.03 x 144.02mm)
  • Mounting Depth: 91mm / 3.58 (Inches)
  • Cutout Diameter: 280mm / 11.02 (Inches)
  • Overall Diameter: 324mm / 12.76 (Inches)
  • UPC: 818550019768
  • Weight: 11.15
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
