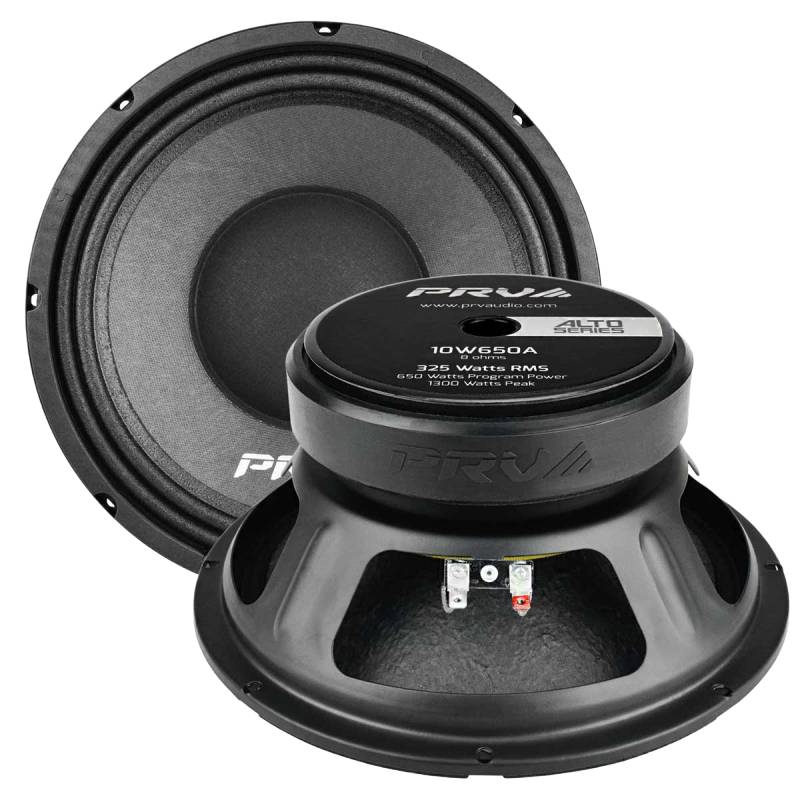

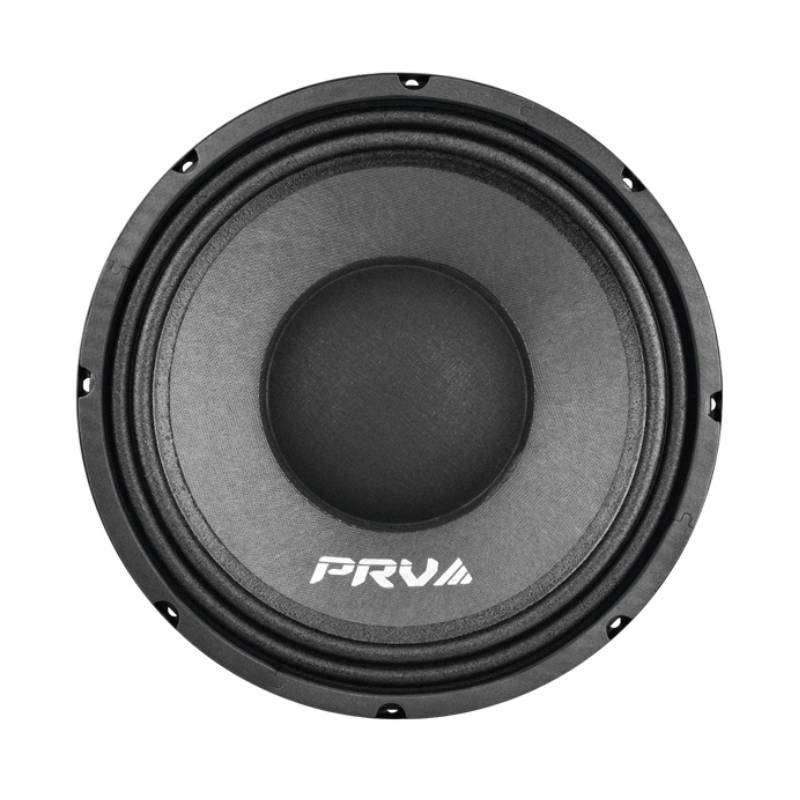

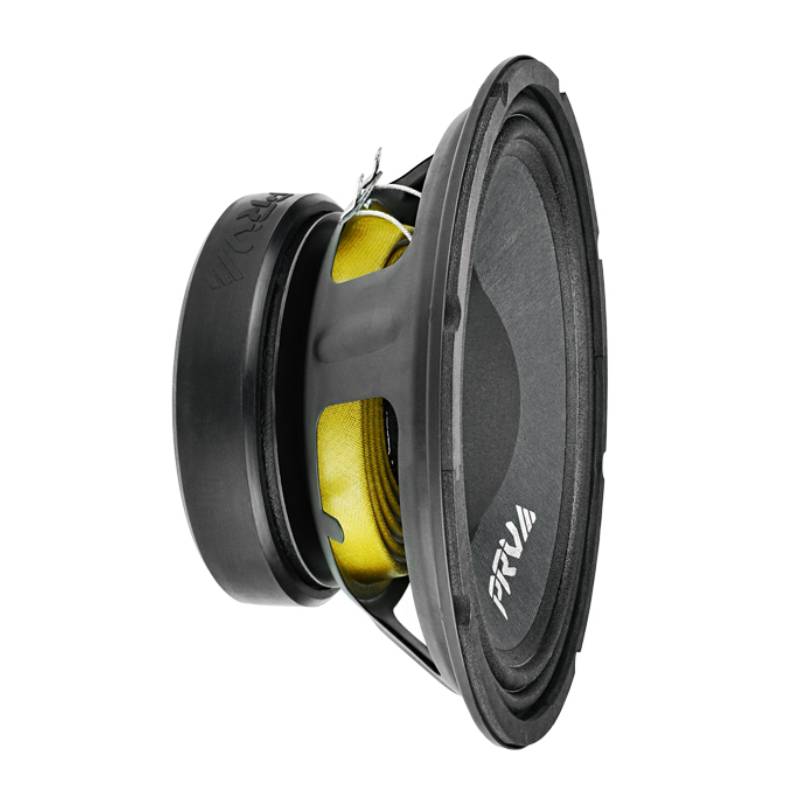

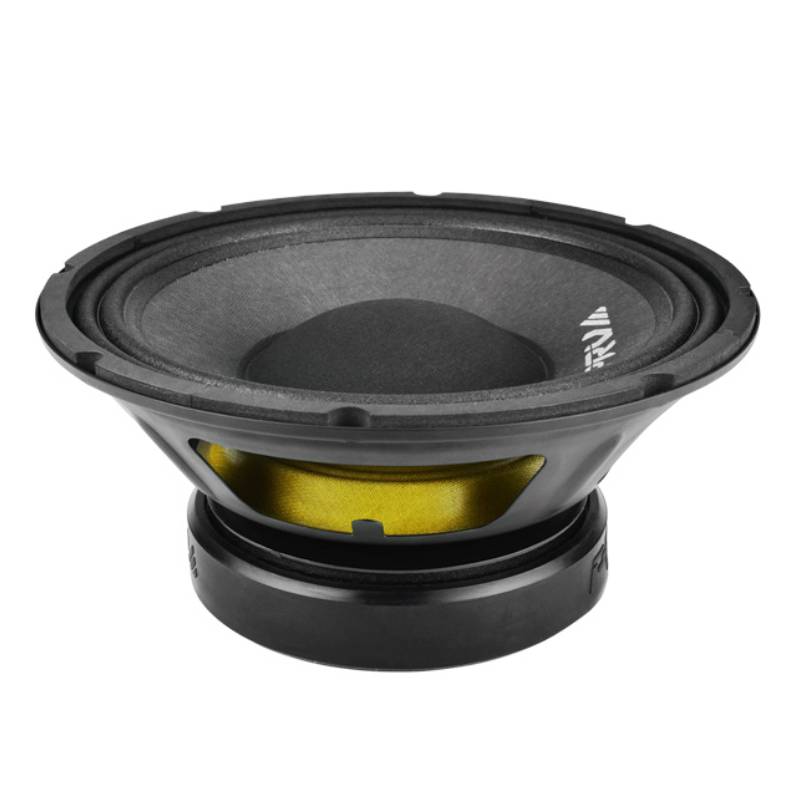

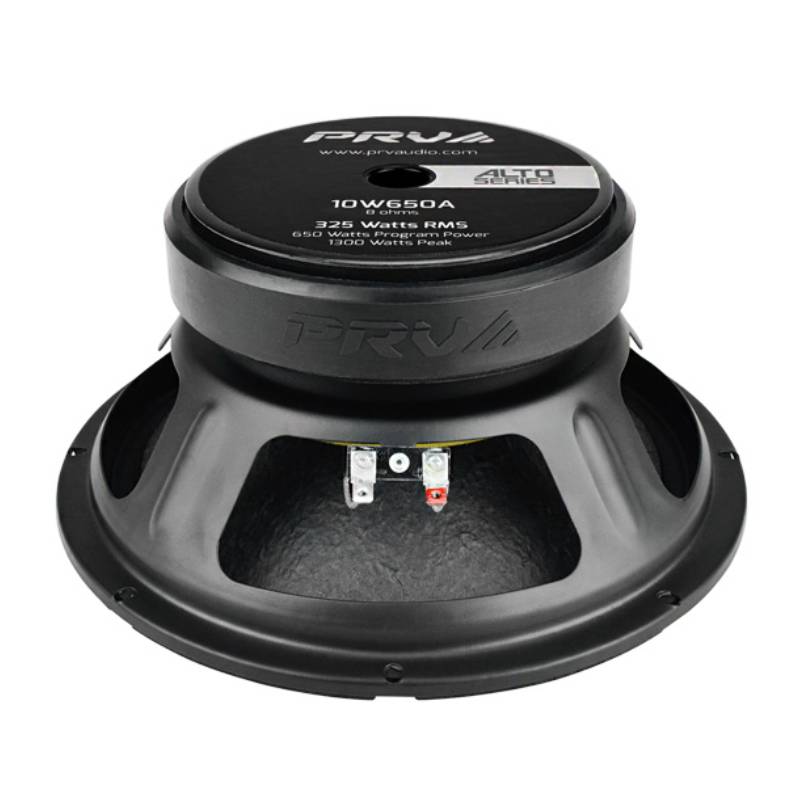

PRV Audio 10W650A ALTO Series 10" 325W RMS (650W Peak Power Handling) at 8-Ohms, Midbass Car Speaker (Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" ALTO Series Midbass Car Speaker
- • Installation Accessories
- • Owner's Manual
Smooth Power With Balanced Sound You Can Feel
The PRV Audio 10W650A brings a perfect mix of output and musicality for car audio enthusiasts who want clean and controlled midbass. Designed with the ALTO Series approach, it delivers a smooth and natural tonal balance while still hitting hard when needed. With 97 dB sensitivity and 650 watts program power, it gives you strong output without demanding too much from your amplifier, making it ideal for efficient systems that still want serious presence.
Compact Strength With Flexible Setup Options
This speaker is built to fit into a wide range of setups without sacrificing performance. Covering 75 Hz to 5500 Hz, it works great as a midbass in 2 way systems or as a midrange in 3 way builds, giving you flexibility when designing your system. The 2.5 inch CCAW voice coil on a Kapton former keeps things stable under load, while the non pressed composite paper cone delivers smooth and accurate sound. Whether you are running sealed or vented enclosures, the 10W650A gives you tight midbass punch, clean clarity, and reliable performance in a compact, easy to install package.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio 10W650A not produce the deep bass I expected?
The 10W650A is designed as a woofer that performs best in the midbass and upper bass range. If you want very deep bass, pairing it with a dedicated subwoofer is recommended.
- • Can I use the PRV Audio 10W650A in a sealed enclosure?
Yes. It can work in different enclosure designs, but the final performance depends on using an enclosure that matches the recommended specifications for the speaker.
- • Why does my 10W650A make a popping sound during heavy bass?
Popping is often caused by overpowering the speaker, using an enclosure that is too small or too large, or setting the crossover too low. Proper tuning helps prevent excessive cone movement.
- • Is the PRV Audio 10W650A good for a daily driving audio system?
Yes. Many users choose it for daily systems because it delivers strong bass response while maintaining good efficiency and musical accuracy.
- • Why does my amplifier go into protection mode when powering the 10W650A?
This can happen because of incorrect wiring, an impedance mismatch, poor grounding, or amplifier overheating. Inspecting the installation usually identifies the cause.
- • Can I run two PRV Audio 10W650A woofers on one amplifier?
Yes, as long as the combined impedance is within the amplifier's supported range and the amplifier provides enough clean RMS power.
- • Why does my enclosure rattle more after installing the PRV Audio 10W650A?
The increased bass output can expose loose panels, mounting hardware, or enclosure joints that were not noticeable with your previous speaker.
- • Does the PRV Audio 10W650A require a break in period?
Some users notice slight changes after several hours of normal playback, but enclosure design and system tuning have a much greater impact on performance.
- • Why does my PRV Audio 10W650A get warm after extended listening?
A moderate increase in temperature is normal during long listening sessions. Excessive heat may indicate amplifier clipping, overpowering, or inadequate system tuning.
- • How can I get tighter bass from the PRV Audio 10W650A?
Use the recommended enclosure, apply proper crossover settings, supply clean amplifier power, and ensure the enclosure is well built and free from air leaks for the best bass performance.
- Diameter : 10 Inch
- Sensitivity : 97 dB
- Impedance : 8 Ohm
- Frequency Response : 72-5500 Hz
- Peak Power Handling : 650 Watts
- Design : 1 Way
- RMS Power Handling : 325 Watts
Features:
- Refined Output Engineering: Designed from the ALTO Series philosophy to deliver a smooth, natural tonal balance while maintaining strong dynamic presence for demanding car audio systems.
- Efficient High SPL Performance: With 97 dB sensitivity, this midbass driver produces powerful output with less amplifier strain, ideal for efficient system builds.
- Solid Power Handling Capability: Rated at 650 watts program power, providing dependable performance for high output applications without sacrificing clarity.
- Wide Frequency Versatility: Covers 75 Hz to 5,500 Hz, making it suitable for both midbass duties in 2 way systems and midrange roles in 3 way configurations.
- Precision Voice Coil Design: Built with a 2.5 inch CCAW voice coil on a Kapton former to ensure consistent thermal stability and reliable operation under load.
- Advanced Cone Composition: Features a non pressed composite paper cone that minimizes breakup and maintains smooth, accurate sound reproduction.
- Lightweight Dustcap Efficiency: A woven cloth dustcap reduces moving mass while improving cooling, contributing to enhanced sensitivity and tonal clarity.
- Flexible Enclosure Compatibility: Performs effectively in both sealed and vented enclosures, offering adaptability across various car audio setups.
- Controlled Midbass Response: Engineered for tight and defined midbass output, delivering punch without overwhelming the overall sound balance.
- Built for Multi Purpose Use: Suitable for car audio systems, instrument amplification, and professional audio environments where clarity and output are critical.
Specifications:
- Nominal Diameter: 10″ (254 mm)
- Nominal impedance: 8 Ohms
- Rated AES Power Handling (RMS): 325 Watts
- Program Power: 650 Watts
- Sensitivity 2.83V at 1m 97 dB
- Frequency Response at -10dB: 75 – 5,500 Hz
- Voice Coil Diameter: 2.5″ (65.5 mm)
- Voice Coil Wire: CCAW
- Voice Coil Winding Depth: 13.0 mm
- Former Material: Kapton
- Magnetic Gap Depth: 8.0 mm
- Frame Material: Stamped Steel
- Overall Diameter: 10.10” (257 mm)
- Front Mount Baffle Cutout: 9.25” ( 235 mm)
- Mounting Depth: 4.3” (110 mm)
- Overall Depth: 4.72” (120 mm)
- UPC: 799928734820
- Weight: 11.25
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
