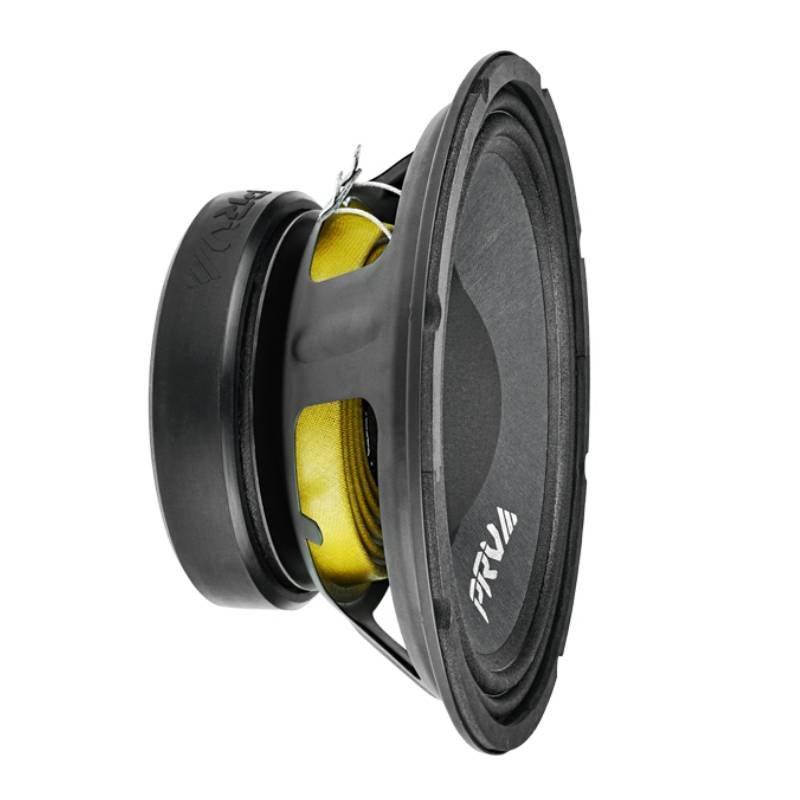

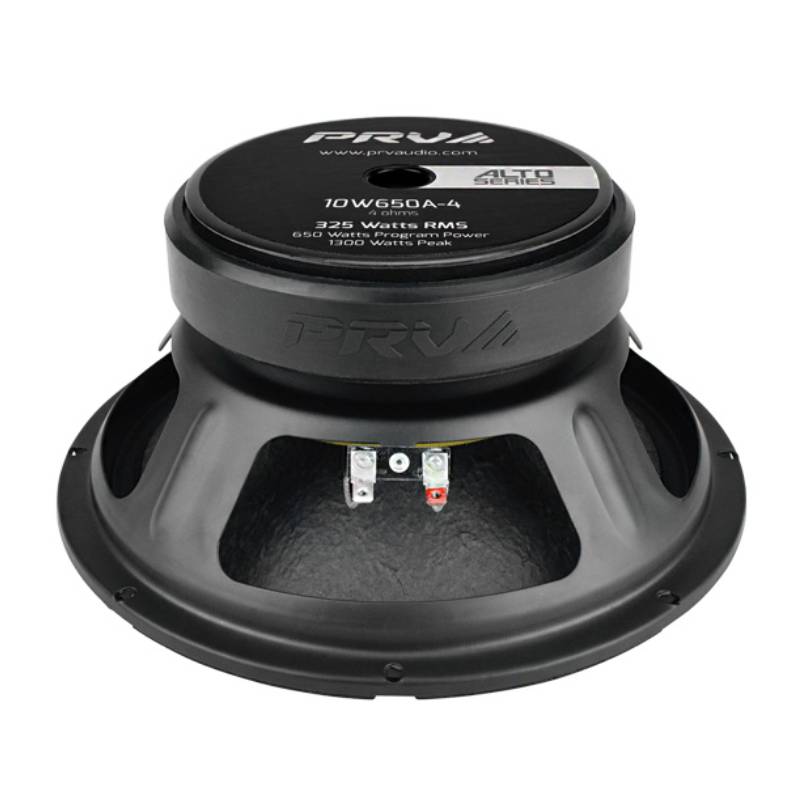

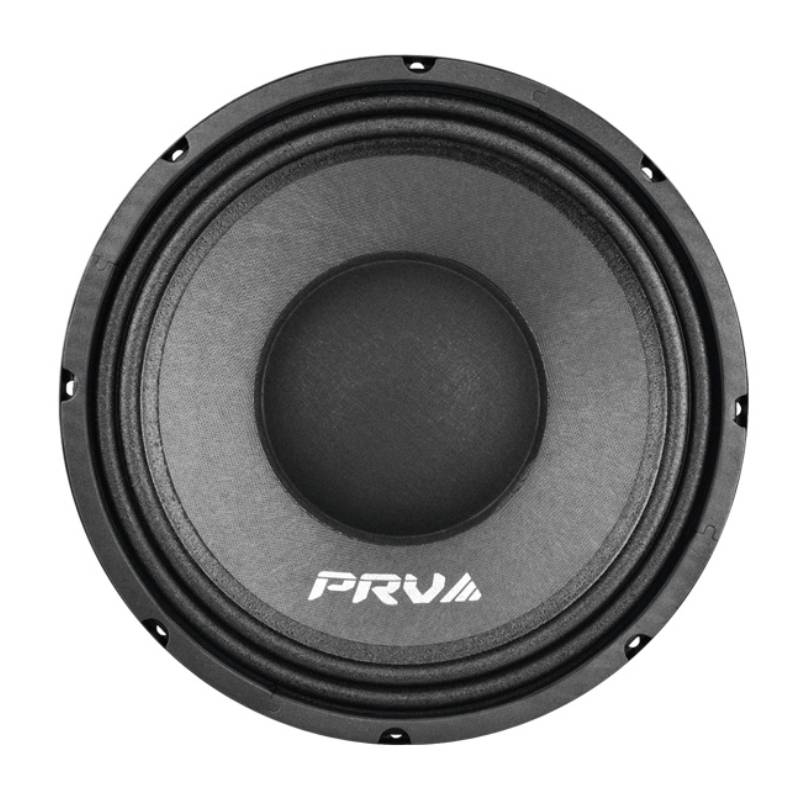

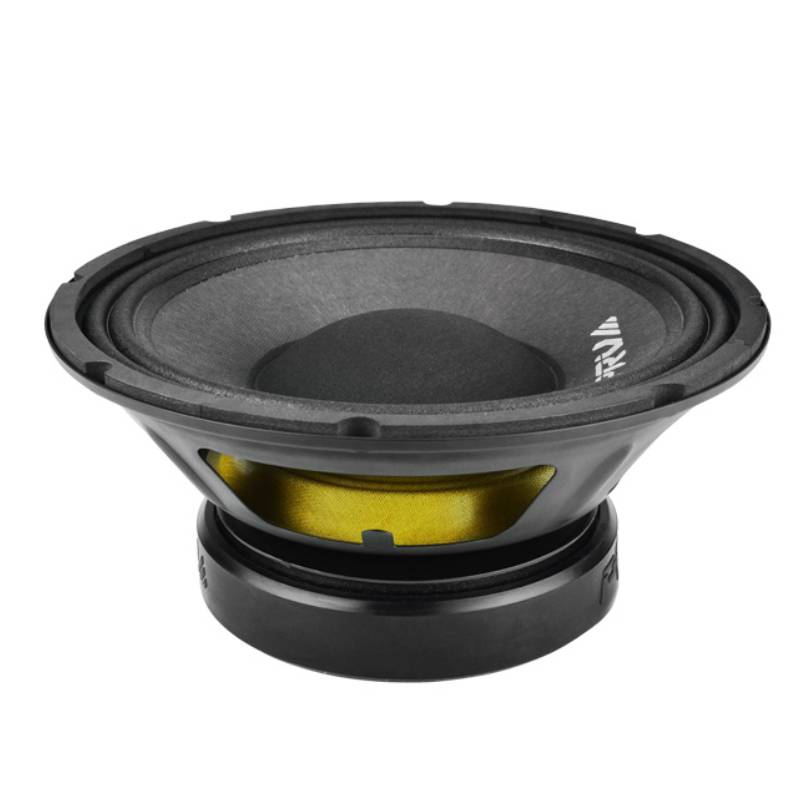

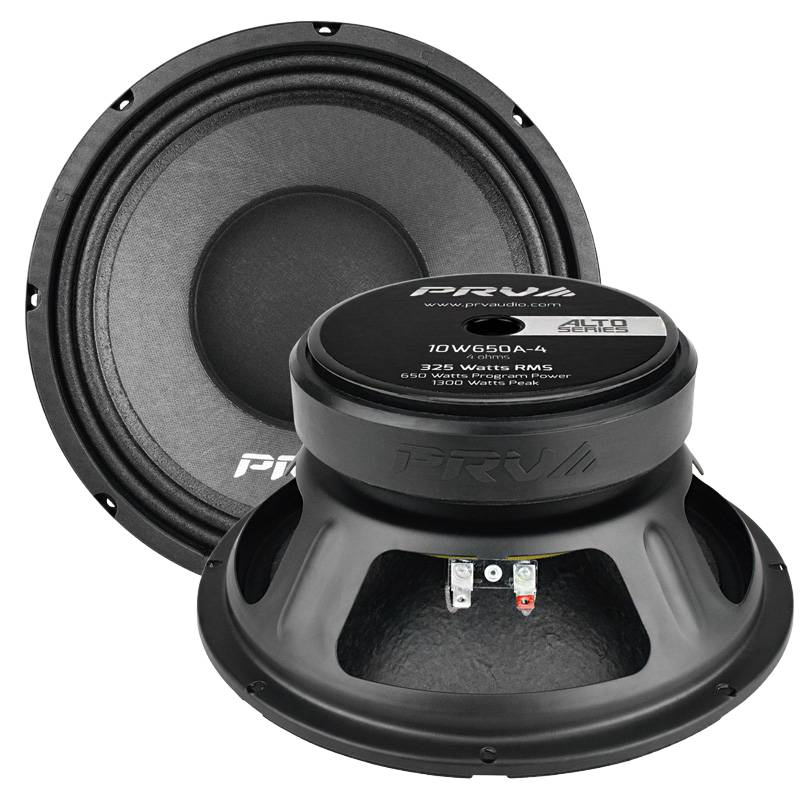

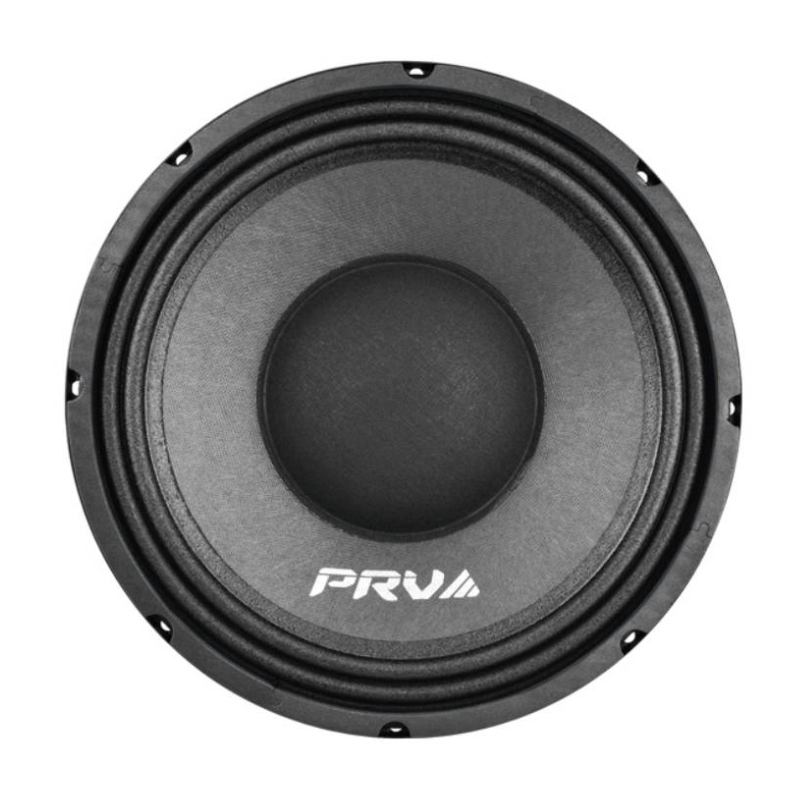

PRV Audio 10W650A-4 ALTO Series 10" 325W RMS (650W Peak Power Handling) at 4-Ohms, Midbass Car Speaker
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" ALTO Series Midbass Car Speaker
- • Installation Accessories
- • Owner's Manual
Clean Power and Smooth Sound in One Compact Driver
The PRV Audio 10W650A-4 is built for car audio enthusiasts who want strong output without sacrificing sound quality. Tuned with the ALTO Series philosophy, it delivers a smooth and natural sound signature while still bringing solid midbass punch. With 97 dB sensitivity and 650 watts program power, it gives you loud and efficient performance that keeps your system sounding full and dynamic without overworking your amplifier.
Flexible Performance That Fits Your Build
Designed with a 4 ohm configuration, this speaker makes system matching easier whether you are running multiple drivers or a simple setup. Its wide 75 Hz to 5500 Hz range allows it to work perfectly as a midbass in 2 way systems or a midrange in 3 way builds. The 2.5 inch CCAW voice coil on a Kapton former ensures reliable performance under load, while the composite paper cone keeps sound smooth and accurate. With the ability to perform in both sealed and ported enclosures, the 10W650A-4 gives you tight, controlled output and the flexibility to build your system your way.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio 10W650A-4 sound boomy instead of tight?
Boomy bass is often caused by an enclosure that is too large, incorrect tuning, or excessive bass boost. Matching the enclosure to the speaker's specifications can improve bass control.
- • Can I install the PRV Audio 10W650A-4 in my vehicle doors?
While it is possible in some custom builds, the 10W650A-4 is typically used in dedicated enclosures where it can deliver stronger and more consistent bass performance.
- • Why does my 10W650A-4 lose output after playing for a long time?
Reduced output may occur if the amplifier enters thermal protection, system voltage drops, or the amplifier begins limiting power during extended use.
- • Is the PRV Audio 10W650A-4 suitable for live sound speaker cabinets?
Yes. Many users install it in portable PA and custom loudspeaker cabinets where strong low-frequency output and high efficiency are needed.
- • Why do I hear air noise coming from my speaker box?
Air leaks around the speaker, terminal cup, or enclosure seams can create unwanted noise. Sealing all joints and mounting surfaces usually fixes the problem.
- • Can I bridge my amplifier to power the PRV Audio 10W650A-4?
Yes, provided your amplifier supports bridged operation at the correct 4 Ohm load and delivers clean RMS power within the speaker's recommended limits.
- • Why does the cone move too much on certain songs?
Excessive cone movement is usually caused by low-frequency content below the speaker's operating range or an improperly adjusted crossover. A correctly set high-pass filter helps protect the woofer.
- • Does the PRV Audio 10W650A-4 work well with horn speakers?
Yes. It is commonly paired with midrange drivers and horn tweeters to create a complete high-output sound system with balanced frequency coverage.
- • Why is my amplifier clipping before the speaker reaches full performance?
Improper gain settings, insufficient amplifier power, or electrical voltage drops can cause clipping early. Correct gain adjustment and a healthy charging system improve performance.
- • How can I improve the bass response of my PRV Audio 10W650A-4?
Build the enclosure to the recommended specifications, use a properly matched amplifier, apply the correct crossover settings, and eliminate enclosure air leaks to maximize bass output and accuracy.
- Diameter : 10 Inch
- Sensitivity : 97 dB
- Impedance : 4 Ohm
- Frequency Response : 75-5500 Hz
- Peak Power Handling : 650 Watts
- Design : 1 Way
- RMS Power Handling : 325 Watts
Features:
- Balanced ALTO Series Tuning: Carefully voiced to deliver a natural and smooth sound signature while maintaining strong dynamics for high performance car audio systems.
- Efficient Power Delivery: With 97 dB sensitivity, this driver achieves high sound pressure levels with minimal amplifier demand for efficient builds.
- Reliable Power Handling: Rated at 650 watts program power, providing consistent output and durability under demanding listening conditions.
- Flexible Frequency Coverage: Operating from 75 Hz to 5,500 Hz, making it suitable for midbass roles in 2 way systems or midrange duties in 3 way setups.
- Optimized 4 Ohm Configuration: Designed for easier amplifier matching, allowing more flexible wiring options in multi speaker car audio systems.
- Precision Voice Coil Engineering: Features a 2.5 inch CCAW voice coil on a Kapton former for improved heat resistance and long term reliability.
- Smooth Response Cone Design: Built with a non pressed composite paper cone to reduce breakup and maintain accurate, natural sound reproduction.
- Lightweight Cooling Dustcap: Woven cloth dustcap lowers moving mass while enhancing airflow for improved sensitivity and thermal control.
- Versatile Enclosure Compatibility: Performs efficiently in both sealed and ported enclosures, adapting to a wide range of installation styles.
- Clean and Controlled Output: Delivers tight midbass response with clear tonal balance, ideal for daily listening and high output audio systems.
Specifications:
- Nominal Diameter: 10″ (254 mm)
- Nominal impedance: 4 Ohms
- Rated AES Power Handling (RMS): 325 Watts
- Program Power: 650 Watts
- Sensitivity 2.00V at 1m: 97 dB
- Frequency Response at -10dB: 75 – 5,500 Hz
- Voice Coil Diameter: 2.5″ (65.5 mm)
- Voice Coil Wire: CCAW
- Voice Coil Winding Depth: 13.0 mm
- Former Material: Kapton
- Magnetic Gap Depth: 10.00 mm
- Frame Material: Stamped Steel
- Overall Diameter: 10.10” (257 mm)
- Front Mount Baffle Cutout: 9.25” ( 235 mm)
- Mounting Depth: 4.3” (110 mm)
- Overall Depth: 4.72” (120 mm)
- UPC: 0602938021845
- Weight: 10.49
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
