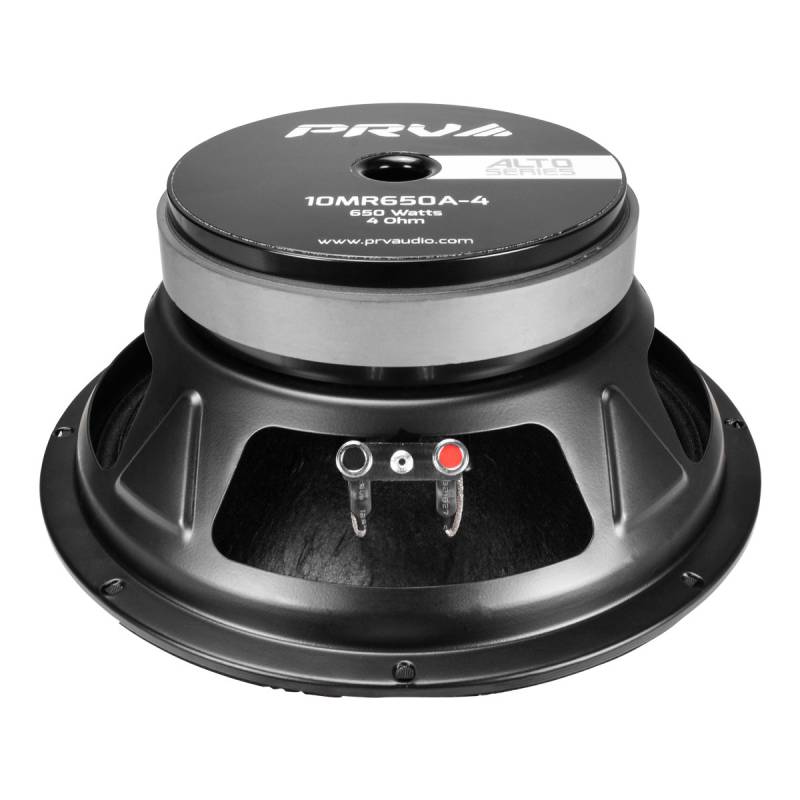

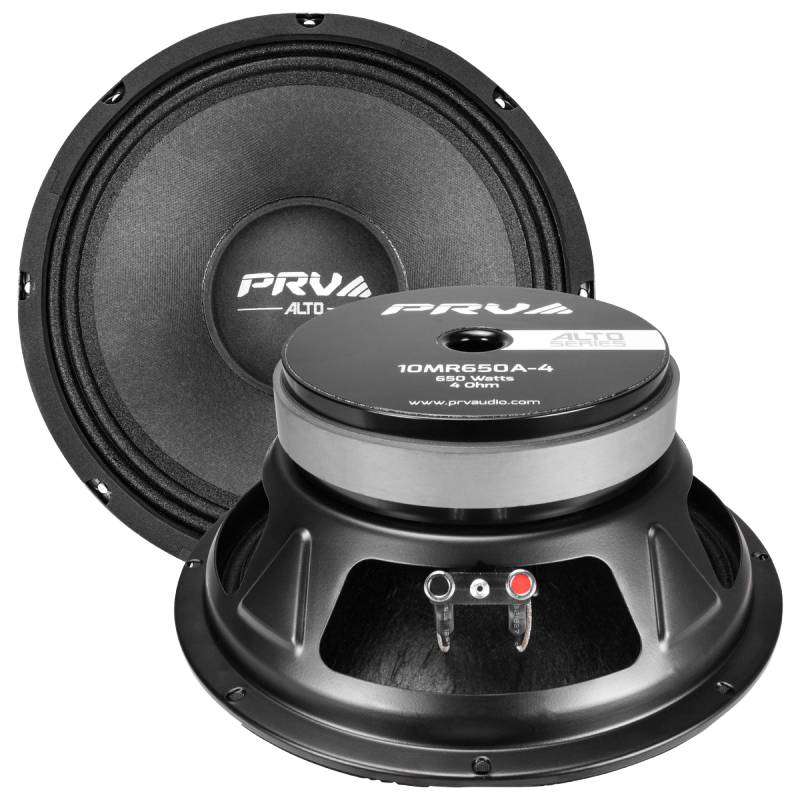

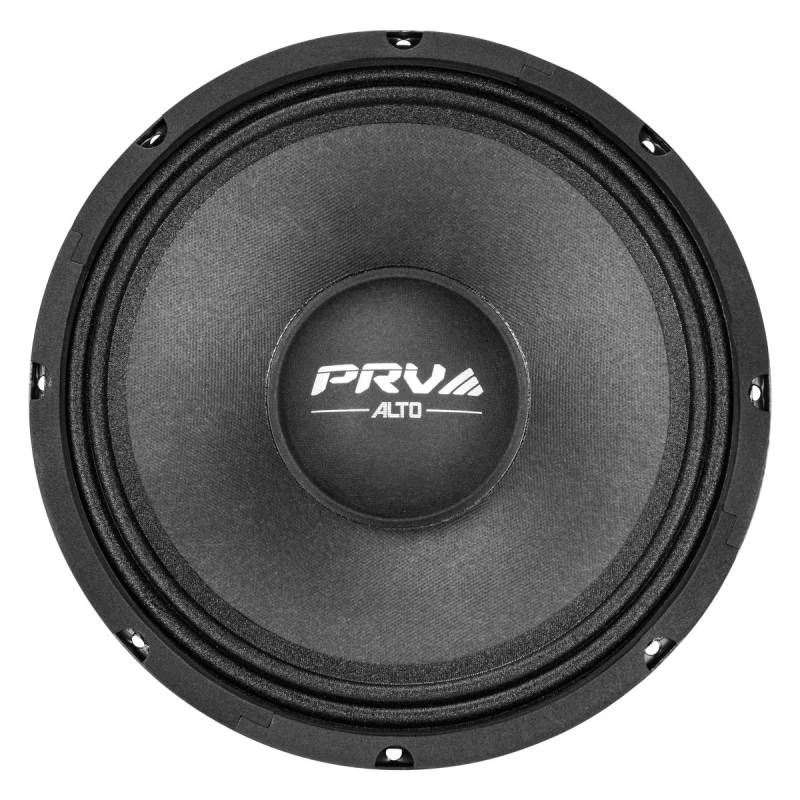

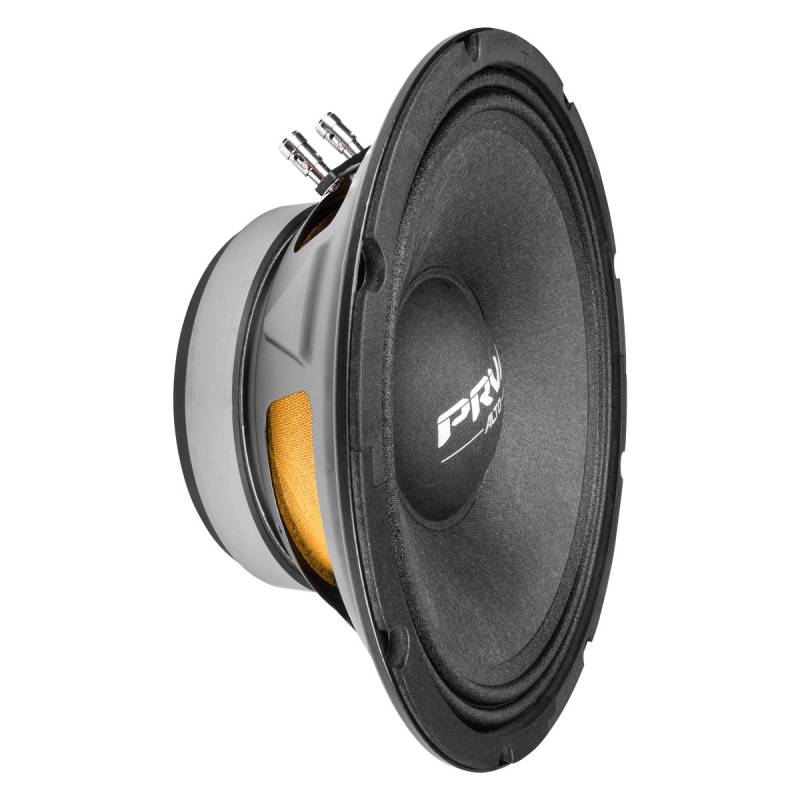

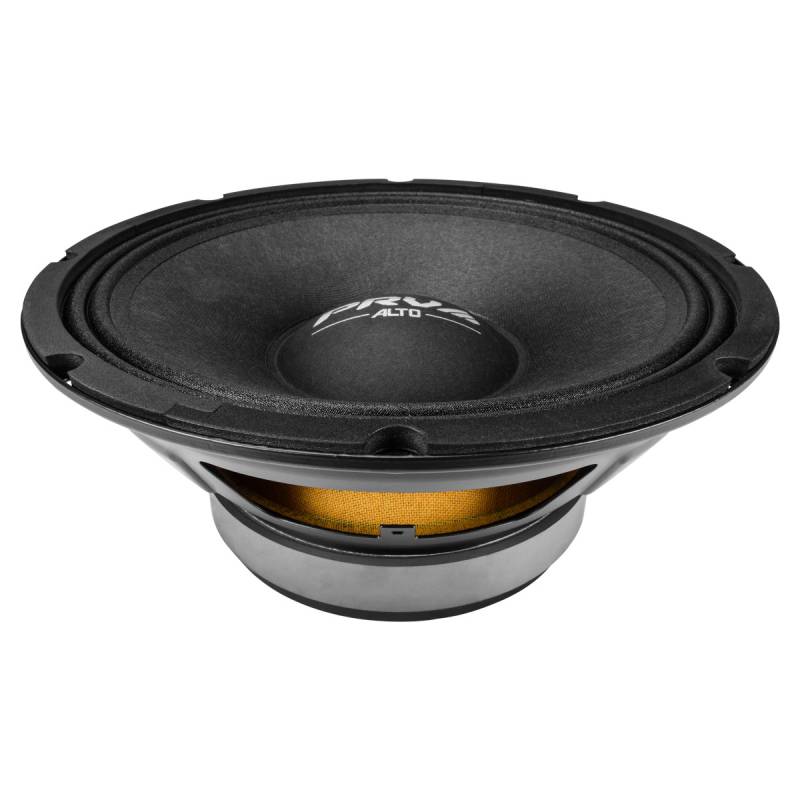

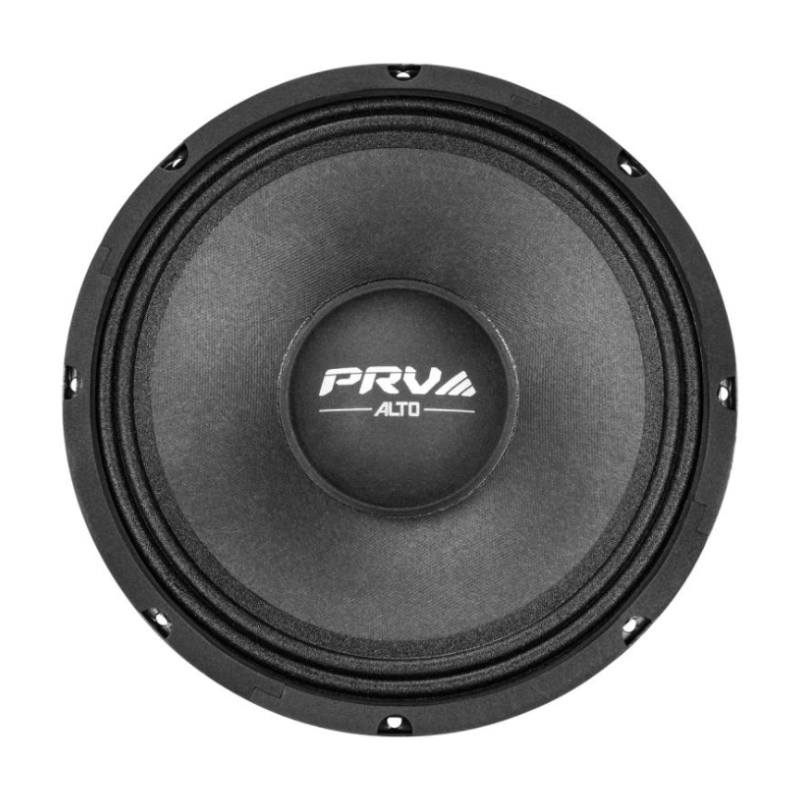

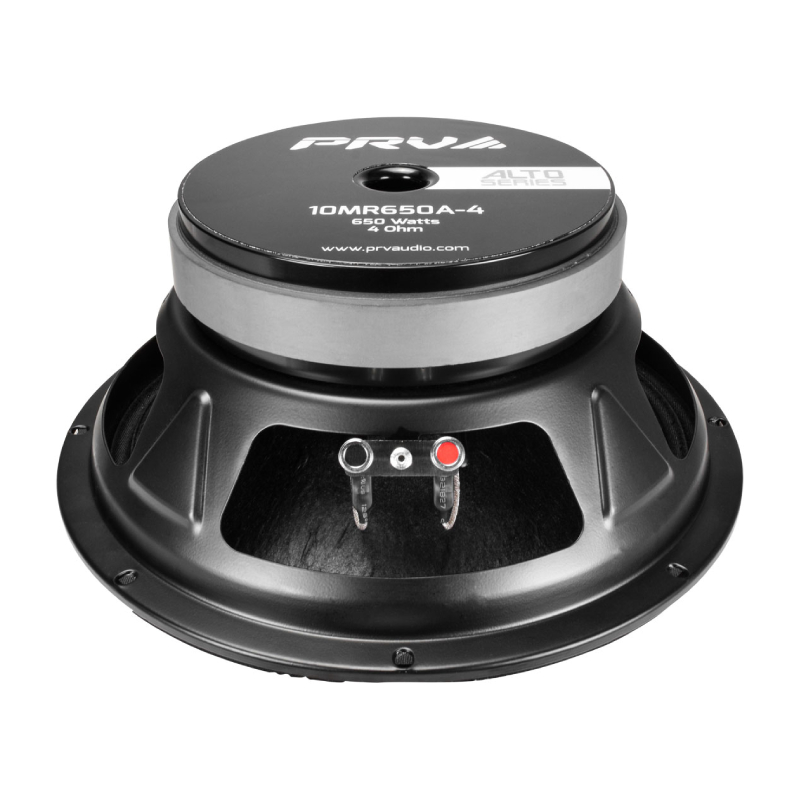

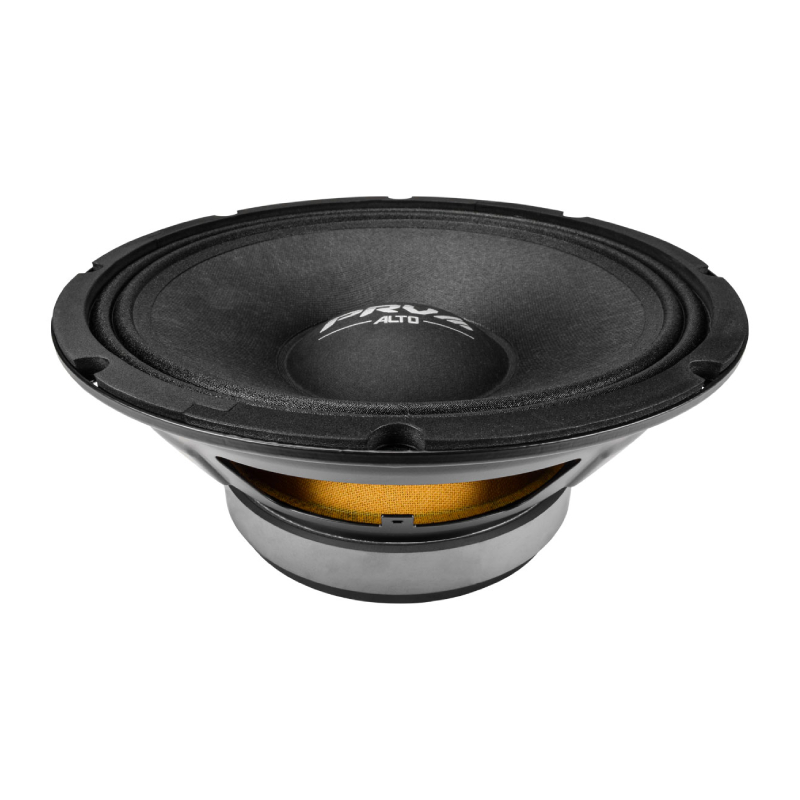

PRV Audio 10MR650A-4 ALTO Series 650W RMS (1300W Peak Power Handling) at 4-Ohms, Midrange Car Speaker
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" ALTO Series Midrange Car Speaker
- • Installation Accessories
- • Owner's Manual
Pure Loud Energy Without the Strain
When you want your system to hit hard without making your amp work overtime, the PRV Audio 10MR650A-4 is ready for that job. With a high 97.5 dB sensitivity, it turns power into serious sound pressure with ease, making it perfect for loud daily setups or competition builds. The 80 Hz to 6,500 Hz range keeps things flexible, while the focused 350 Hz to 4,000 Hz vocal zone pushes voices right to the front of your soundstage. With 325W RMS and 650W program power handling, it stays controlled and consistent even when you push it hard for long sessions.
Clean Vocals and Tight Midbass Control
This midrange is tuned to keep your vocals sharp and natural even when everything around it is loud. The improved excursion control with 5.22 mm Xmax helps maintain clean midbass response without distortion when the volume climbs. That means more punch, more clarity, and less breakup when your system is working at full tilt. It is the kind of speaker that keeps your front stage sounding organized instead of chaotic.
Built Smart for Real World Installs and Tuning
The PRV Audio 10MR650A-4 is designed with real installs in mind, not just specs on paper. Its compact 3.90 inch mounting depth makes it easy to fit in doors and tight custom enclosures. Inside, a 2.5 inch CCAW voice coil on a polyimide glass fiber former keeps heat under control for long term reliability, while the vented pole piece reduces power compression during heavy playback. Pair it with compression drivers and a DSP tuned system, and you get clean transitions, precise crossover control, and a setup that feels dialed in every time you turn it up.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio 10MR650A-4 sound flat after installation?
Flat sound is often caused by incorrect crossover settings, poor equalizer tuning, or insufficient amplifier power. Proper system tuning can dramatically improve vocal presence and detail.
- • Can I run the PRV Audio 10MR650A-4 with a factory radio?
It will produce sound, but most users achieve much better volume and clarity by pairing it with an aftermarket amplifier that provides adequate RMS power.
- • Why do my vocals become distorted before the volume reaches maximum?
This is usually the result of amplifier clipping, excessive gain, or low-quality source audio. Reducing the gain and supplying clean power can eliminate distortion.
- • Is the PRV Audio 10MR650A-4 suitable for custom speaker pods?
Yes. It is frequently installed in custom door panels, kick panels, and speaker pods where high-output midrange performance is desired.
- • Why does my speaker sound louder on one side of the vehicle?
Uneven sound is commonly caused by reversed polarity, different amplifier channel settings, or balance controls that are not centered.
- • Can I pair the PRV Audio 10MR650A-4 with compression drivers?
Yes. It is commonly matched with compression drivers or horn tweeters to create a powerful and balanced high-output sound system.
- • Why does my amplifier get hot while driving the 10MR650A-4?
Amplifier overheating may be caused by low impedance wiring, restricted airflow, or extended high-volume playback. Checking the installation and ventilation can help.
- • Does the PRV Audio 10MR650A-4 require a break in period?
Some users notice slight improvements after several hours of playback, but proper crossover settings and installation have a much greater impact on overall performance.
- • Why does my 10MR650A-4 produce a buzzing sound at certain frequencies?
Buzzing is often caused by loose mounting hardware, vibrating trim panels, or damaged wiring rather than the speaker itself. Inspecting the installation usually identifies the source.
- • How can I make the PRV Audio 10MR650A-4 play louder without losing clarity?
Use a properly matched amplifier, optimize the crossover settings, avoid amplifier clipping, and securely mount the speaker to maximize output while maintaining clean, accurate vocals.
- Diameter : 10 Inch
- Sensitivity : 97.5 dB
- Impedance : 4 Ohm
- Frequency Response : 80-6500 Hz
- Peak Power Handling : 1300 Watts
- RMS Power Handling : 650 Watts
Features:
- High Efficiency Output: 97.5 dB sensitivity delivers strong sound pressure levels with reduced amplifier strain, ideal for competitive and high output builds.
- Optimized Vocal Range: Enhanced response from 350 Hz to 4000 Hz improves vocal presence and clarity for clear front stage projection in loud environments.
- Wide Frequency Coverage: Operates from 80 Hz to 6,500 Hz for flexible integration in two way and multi way pro audio systems.
- Strong Power Handling: Rated at 325W RMS and 650W program power for stable performance under continuous high output use.
- Improved Excursion Control: Xmax of 5.22 mm supports controlled midbass output and reduced distortion at higher volume levels.
- Compact Installation Design: 3.90 inch mounting depth allows easy fitment in tight door panels and custom enclosures.
- Advanced Voice Coil Construction: 2.5 inch CCAW voice coil on a polyimide glass fiber former enhances thermal durability and long term reliability.
- Low Compression Design: Vented pole piece improves heat dissipation to reduce power compression during extended playback.
- System Tuning Flexibility: Designed for seamless DSP integration with compression drivers for precise crossover alignment in high output systems.
Specifications:
- Nominal Diameter: 10″ (254 mm)
- Nominal impedance: 4 Ohm
- Nominal Power Handling: 325 Watts
- Continuous Program Power (RMS): 650 Watts
- Max Peak Power: 1300 Watts
- Sensitivity 2.83V at 1m: 97.5 dB
- Frequency Response at -10DB: 80 – 6,500 Hz
- Voice Coil Diameter: 2.5″ (68 mm)
- Voice Coil Wire: CCAW
- Voice Coil Winding Depth: 15.2 mm
- Former Material: Polyimide
- Magnetic Gap Depth: 9.5 mm
- Frame Material: Stamped Steel
- Overall Diameter: 10.10”(256.5 mm)
- Front Mount Baffle Cutout: 9.20” (233.5 mm)
- Mounting Depth: 3.90”(99 mm)
- Overall Depth: 4.23”(107.5 mm)
- UPC: 602938021845
- Weight: 10.4
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
