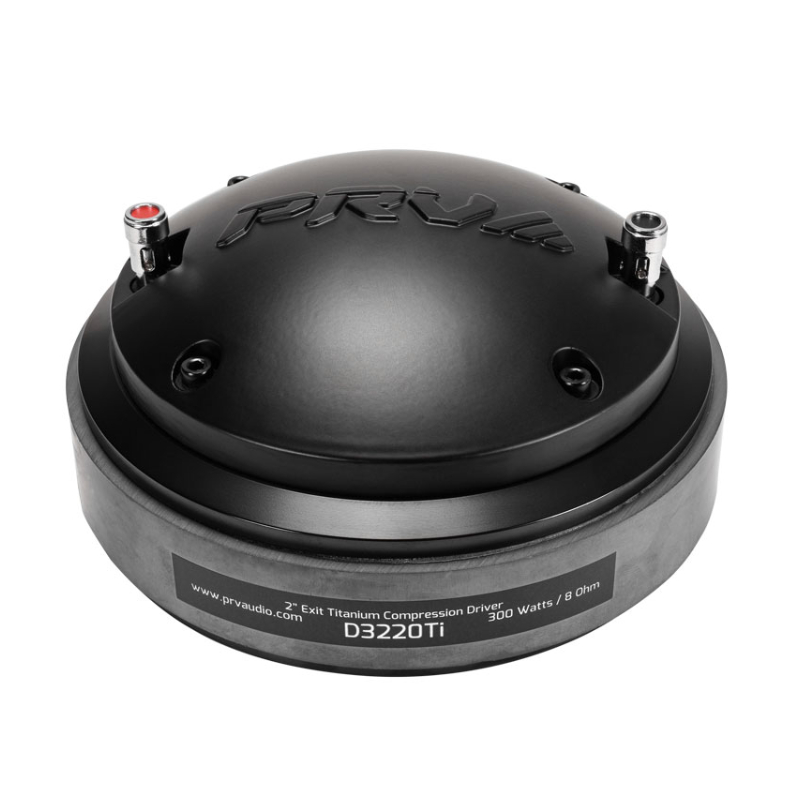

PRV D3220Ti Series 2" 300W RMS (600W Peak Power Handling) 8 Ohm, Exit Titanium Compression Driver (Sold as Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Sharp Highs That Instantly Stand Out
The PRV Audio D3220Ti is made for those who want their highs to cut through with authority. With 108 dB sensitivity, it delivers clear and powerful projection that brings out every detail in your music. Whether you are running a loud daily setup or a full SPL build, this driver ensures your highs stay crisp and present even when the bass is hitting hard.
Clean Detail That Stays Strong at Any Volume

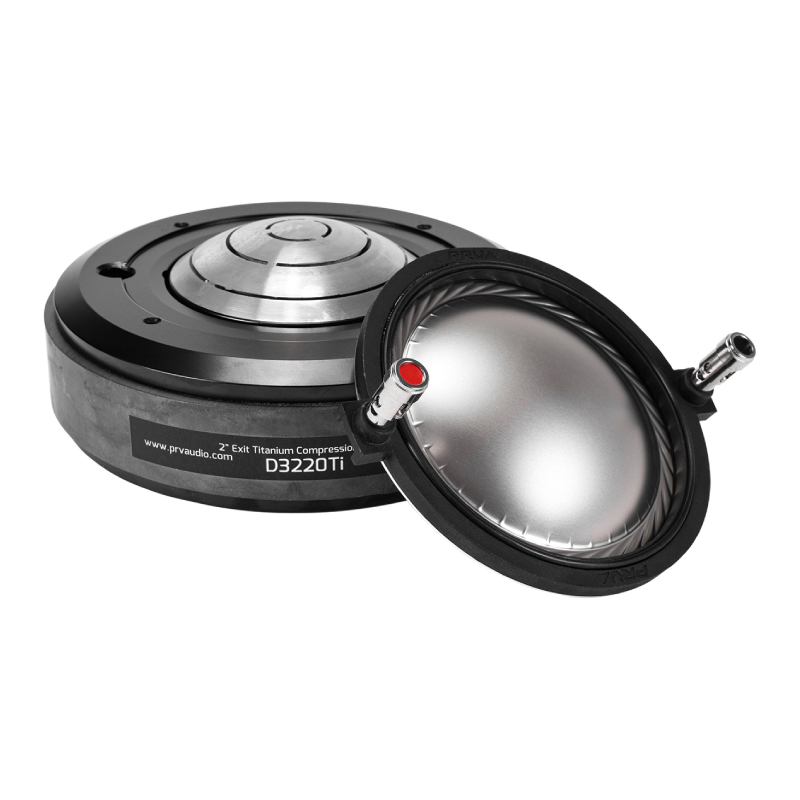

Built with a durable titanium diaphragm, this driver produces accurate, detailed sound that holds its quality over time. The large 3 inch voice coil helps manage heat efficiently, so you can push your system without worrying about performance drop. Covering 1,200 Hz to 17,000 Hz, it delivers bright highs and solid upper mids that make vocals and instruments sound alive and well defined.
Compact Power That Fits Your Build
Designed for flexibility, the compact motor structure makes it perfect for tight installs like door panels and custom setups. With up to 300 watts program power handling, it delivers strong output without distortion. The front mount design makes installation quick and simple, while the 2 inch bolt on exit ensures compatibility with a wide range of horn systems. Add proper DSP tuning, and you get clean, controlled highs that complete your system the right way.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio D3220Ti sound dull compared to my previous compression driver?
A dull sound is often caused by incorrect crossover settings, improper horn selection, or EQ adjustments that reduce high frequencies. Fine tuning the system can restore clarity and detail.
- • Can I install the PRV Audio D3220Ti on my existing horn?
Yes, provided the horn is compatible with the driver's mounting specifications. A properly matched horn helps deliver the intended coverage and efficiency.
- • Why is my PRV Audio D3220Ti cutting in and out during playback?
Intermittent sound is commonly caused by loose wiring, poor terminal connections, amplifier issues, or a diaphragm that is beginning to fail.
- • Does the PRV Audio D3220Ti require a passive crossover?
It can be used with either a passive crossover or an active DSP crossover. The important part is using the correct crossover frequency to protect the compression driver.
- • Why does my PRV Audio D3220Ti produce distortion only at high volume?
This usually indicates amplifier clipping, excessive input power, or crossover settings that allow unwanted low frequencies to reach the driver.
- • Can I replace the diaphragm if my PRV Audio D3220Ti stops working?
Yes. If the compression driver itself is undamaged, replacing the diaphragm is often enough to restore normal performance.
- • Is the PRV Audio D3220Ti a good choice for custom car audio systems?
Yes. It is commonly used in high output car audio builds where clear vocals and detailed high frequency reproduction are important.
- • Why does my PRV Audio D3220Ti make a vibration or rattling noise?
The noise may come from loose horn hardware, mounting screws, a damaged diaphragm, or nearby panels vibrating with the music.
- • Can I pair the PRV Audio D3220Ti with multiple midrange speakers?
Yes. Many installers combine a compression driver with several midrange speakers to achieve balanced coverage and improved vocal projection.
- • How can I extend the lifespan of my PRV Audio D3220Ti?
Use the recommended crossover settings, provide clean amplifier power, avoid clipping, protect the driver from moisture and dust, and inspect the horn, wiring, and mounting hardware on a regular basis.
- Diameter : 2 Inch
- RMS Power Range : 300 Watts
- Peak Power Handling : 600 Watts
Features:
- High Efficiency Output Design: Produces 108 dB sensitivity for clear and powerful high frequency projection.
- Titanium Diaphragm Construction: Ensures crisp sound reproduction with accurate detail and long term durability.
- Large 3 Inch Voice Coil: Provides improved heat dissipation and supports stable performance under high power conditions.
- Wide High Frequency Response: Covers 1,200 Hz to 17,000 Hz for detailed highs and upper midrange clarity.

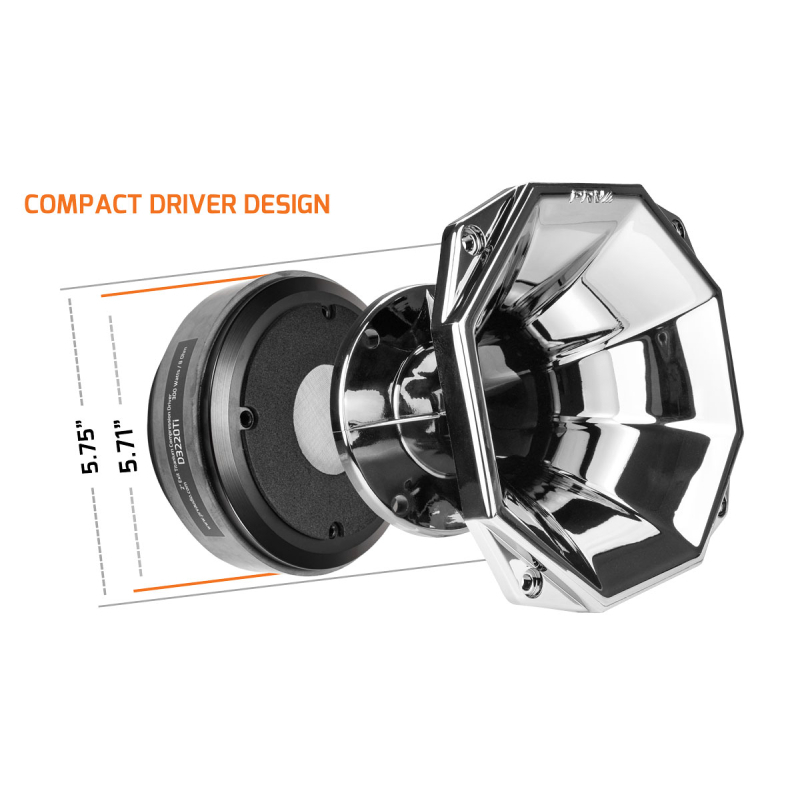

- Compact Motor Structure: Designed for reduced size while maintaining strong output capability for tight installations.
- High Power Handling Capability: Supports up to 300 watts RMS program power for dynamic and distortion free playback.

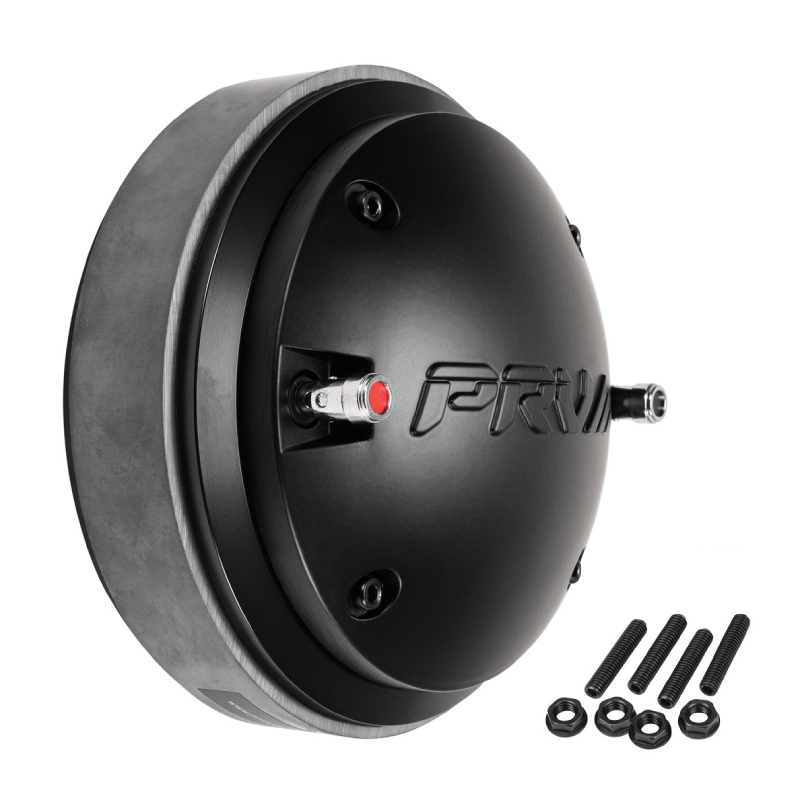

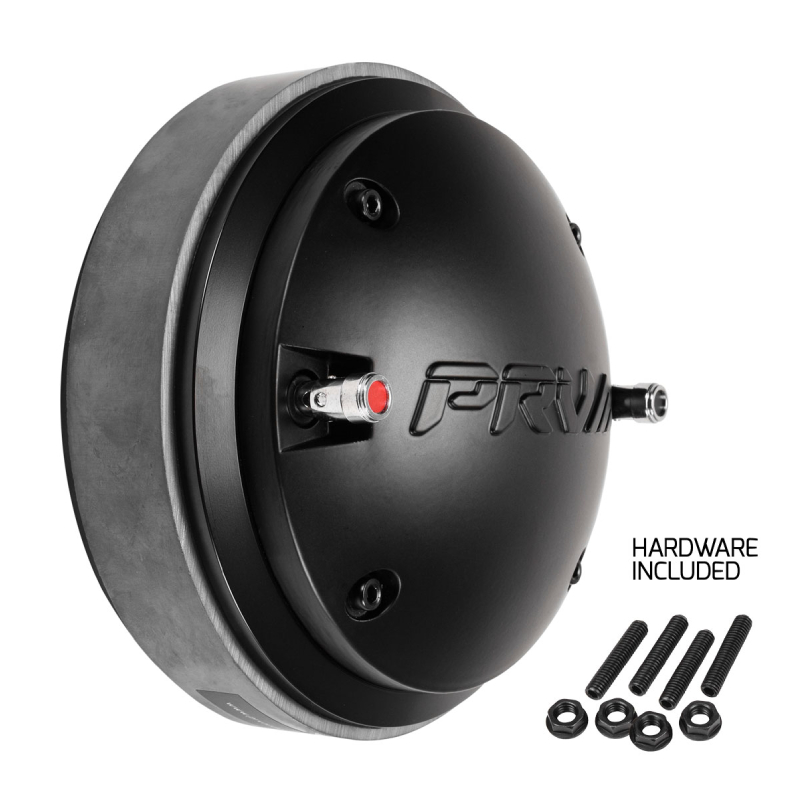

- Front Mount Installation Ready: Allows easy mounting without removing the driver from compatible shallow horns.

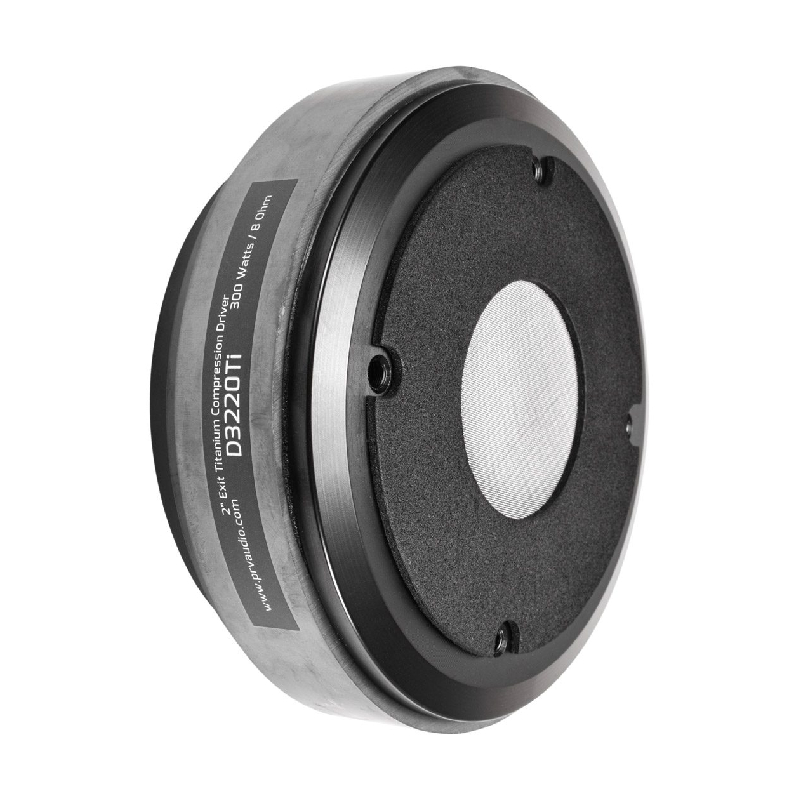

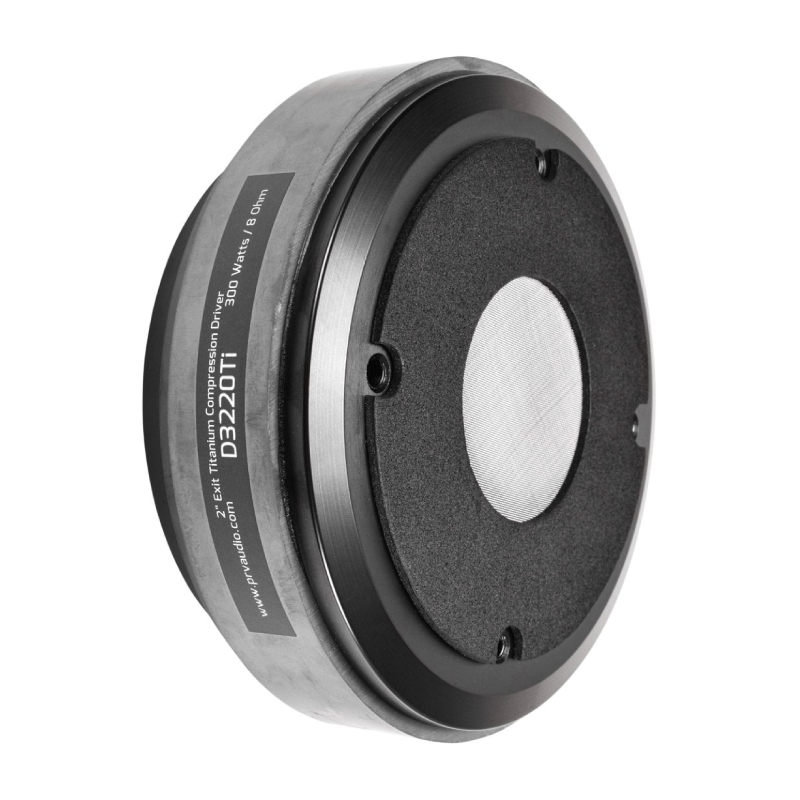

- Bolt On 2 Inch Exit Configuration: Ensures secure compatibility with a wide range of horn systems.
- Optimized for Custom Car Audio Builds: Ideal for door panels, stunt walls, and high output speaker systems.
- DSP Compatible Performance: Designed to work efficiently with recommended crossover settings for clean signal control.
Specifications:
- Exit Throat Diameter: 2” (50 mm)
- Nominal Impedance: 8 Ohm
- Rated Power Handling: 300 W
- Program Power: 600 W
- Peak Power Handling: 1,200 W
- Sensitivity (2.83V @ 1m): 111 dB
- Recommended High-Pass Crossover: 650 Hz (12 dB per octave) for full power handling
- Frequency Response (-10 dB): 450 – 19,000 Hz
- Voice Coil Diameter: 4” (101 mm)
- Voice Coil Wire Material: CCAW (Copper-Clad Aluminum Wire)
- Voice Coil Former Material: Kapton
- Diaphragm Material: Titanium-Mylar
- Flux Density: 2.5 T
- Magnet Material: Neodymium
- UPC: 810075522051
- Weight: 2
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
