PRV Audio 69CX380-4 CX Series 6"x9" 380W RMS (760W Peak Power Handling) 4 Ohm, 2-Way Coaxial Car Speaker (Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
All In One Sound That Just Works

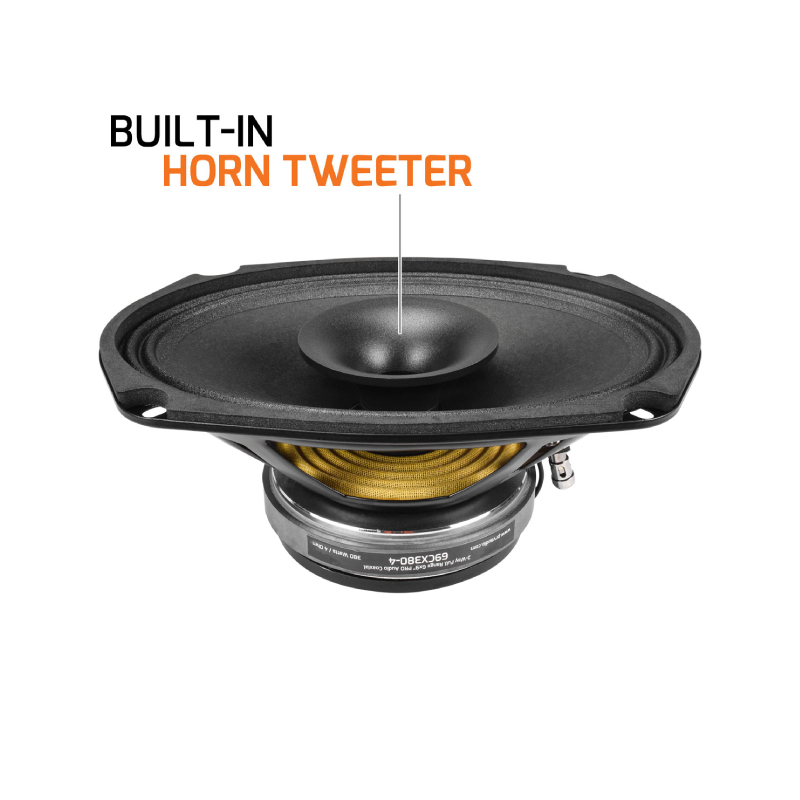

The PRV Audio 69CX380-4 makes upgrading your system simple without sacrificing performance. With its integrated 2 way coaxial design, you get a built in tweeter and inline capacitor that delivers clean highs and solid mids from a single speaker. No extra components, no complicated setup. The full range response from 90 Hz to 20,000 Hz gives you a complete sound experience with punchy midbass and crisp top end that brings your music to life right out of the box.
Loud, Clear, and Easy on Your Amp
This speaker is designed to play loud without demanding too much power. With a strong 97 dB sensitivity, it delivers impressive output even on factory or small aftermarket amplifiers. Rated at 190W RMS and 380W program power, it holds its ground when you turn up the volume, keeping vocals clear and highs detailed. Whether you are running a stock head unit or a dedicated amp, it performs with confidence and consistency.
Built for Easy Install and Long Term Performance
The 69CX380-4 is made for real world installs where fitment and durability matter. Its compact 3.69 inch mounting depth allows it to drop into most factory 6x9 locations with minimal effort. The specially designed spider and double roll surround keep the cone movement controlled for cleaner midbass and reduced distortion. With a durable copper and CCAW voice coil combination and included grill and mounting hardware, you get a reliable setup that looks clean and sounds even better from day one.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio 69CX380-4 sound better after a few days of use?
Many users notice improved sound after the speaker has been played for several hours, as the suspension naturally loosens and the speaker becomes more responsive.
- • Can I replace my factory 6x9 speakers with the 69CX380-4?
Yes. The 69CX380-4 is designed as a popular upgrade for factory 6x9 speaker locations, but you should verify the mounting depth and dimensions before installation.
- • Why is my bass weaker than I expected?
The 69CX380-4 delivers balanced full range sound, but it is not a replacement for a dedicated subwoofer. Adding a subwoofer provides deeper and more impactful bass.
- • Do I need separate tweeters with the 69CX380-4?
No. The speaker features a built in tweeter, allowing it to reproduce both midrange and high frequencies without additional tweeters in most systems.
- • Why do my speakers distort at high volume?
Distortion is commonly caused by amplifier clipping, excessive bass boost, or incorrect gain settings. Proper tuning helps maintain clean audio.
- • Can I power the 69CX380-4 with a factory stereo?
Yes. It will work with most factory head units, although an aftermarket amplifier provides higher output and improved sound quality.
- • Why does my rear deck rattle after installing the 69CX380-4?
The stronger output compared to factory speakers can cause loose trim panels and metal surfaces to vibrate. Adding sound deadening material can reduce rattles.
- • Is the 69CX380-4 suitable for pickup trucks?
Yes. It is commonly installed in trucks that use factory 6x9 speaker locations, offering improved clarity and louder playback.
- • Why is one speaker quieter than the other?
Uneven volume is usually caused by wiring polarity issues, loose connections, or incorrect balance and fade settings rather than the speaker itself.
- • Why do people upgrade to the 69CX380-4?
Many users choose it for its stronger output, cleaner vocals, built in tweeter, and improved overall sound quality compared to factory 6x9 speakers.
- Diameter : 6x9 Inch
- Sensitivity : 97 dB
- Impedance : 4 Ohm
- Frequency Response : 90-20000 Hz
- Peak Power Handling : 760 Watts

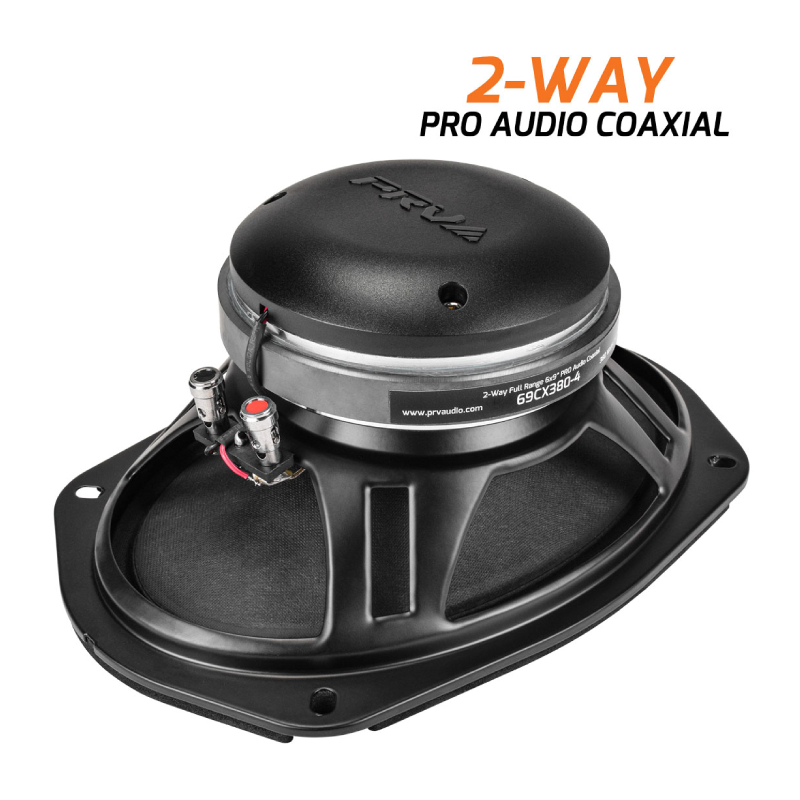

- Design : 2 Way
- RMS Power Handling : 380 Watts
Features:
- Integrated 2-Way Coaxial Design: Built in tweeter with inline capacitor delivers balanced highs and mids from a single speaker without the need for external components.
- Full Range Frequency Response: 90 Hz to 20,000 Hz coverage provides deep midbass and crisp high frequencies for a complete listening experience.
- High Efficiency Output: 97 dB sensitivity ensures strong sound pressure levels with minimal amplifier power requirement.
- Reliable Power Handling: Rated at 190W RMS and 380W program power for consistent performance at elevated listening levels.
- Compact Drop In Fitment: 3.69 inch mounting depth allows easy installation in factory 6x9 locations without major modifications.
- Enhanced Midbass Control: Specially designed spider and double roll surround maintain linear cone movement and reduce distortion.
- Durable Voice Coil Design: Copper and CCAW voice coil combination improves thermal handling and long term reliability.
- Dynamic Sound Reproduction: Engineered for clear vocals, detailed highs, and impactful midbass in both stock and custom systems.

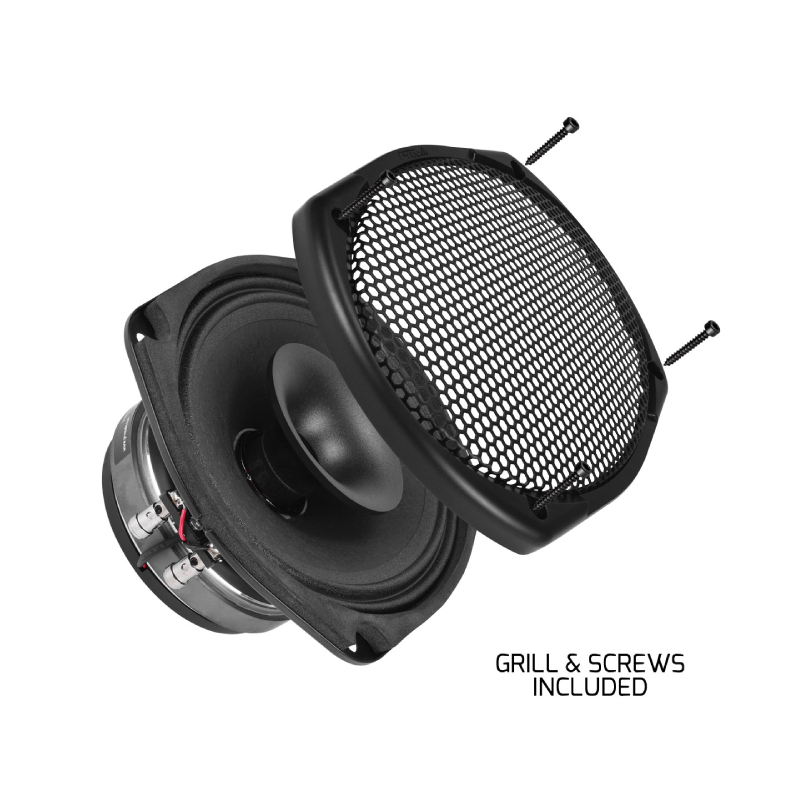

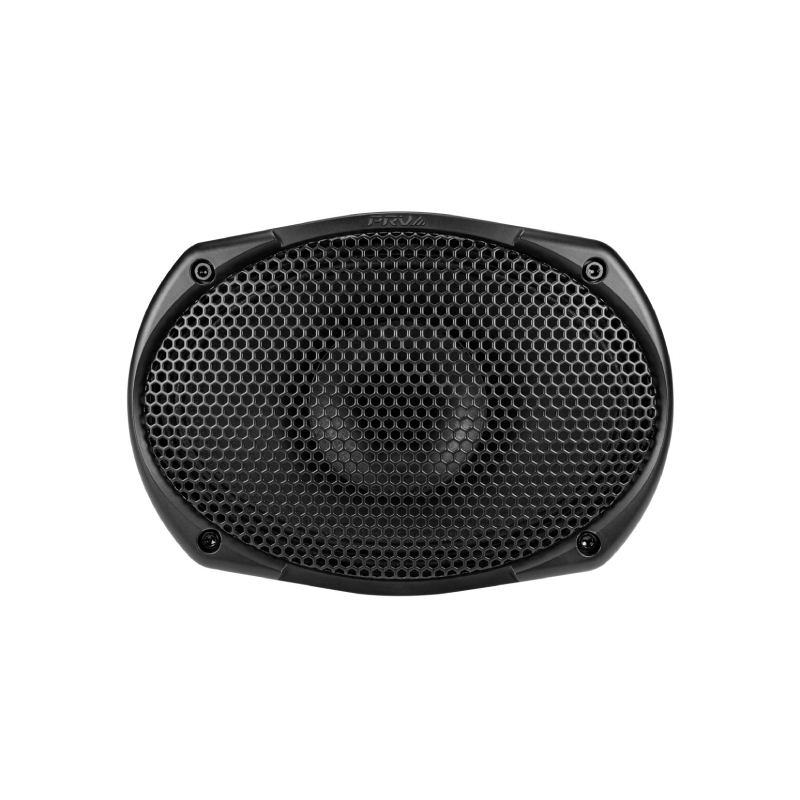

- Complete Installation Package: Includes protective grill and mounting hardware for a clean and secure setup.
Specifications:
- Low Frequency Nominal Diameter: 6×9″ (152×228 mm)
- High Frequency Nominal Diameter: 1″ (25.4 mm)
- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 190 Watts
- Continuous Program Power (RMS): 380 Watts
- Max Peak Power: 760 Watts
- Sensitivity (2.00V @ 1m): 97 dB
- Recommended Hi-Pass Crossover: 110 Hz, 12 dB/octave
- Frequency Response: 90 – 20,000 Hz
- Voice Coil Diameter: LF: 1.5″ (38 mm) / HF: 1.0″ (25 mm)
- Voice Coil Wire: LF: Copper / HF: CCAW
- Voice Coil Winding Depth: LF: 8.0 mm / HF: N/A
- Former Material: Kapton
- Magnetic Gap Depth: 5.0 mm
- Frame Material: Stamped Steel
- Diaphragm Material: Mylar
- UPC: 810075526059
- Weight: 4.7
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
