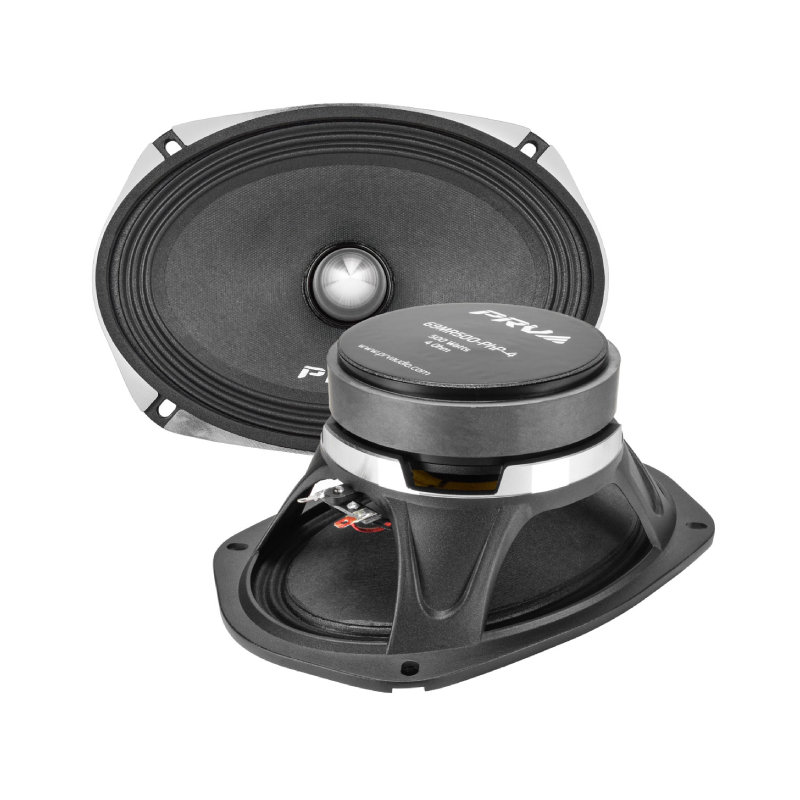

PRV Audio  69MR500-PhP-4

High SPL Series 6"x9" 500W Peak Power Handling 4 Ohm, Midrange Car Speaker (Single)

Item #97362

Condition:   Brand New

Product Highlights

  • 6"x9" Mid Range Car Speaker (Single)
  • High SPL Series
  • 500W Peak Power Handling
  • 4 Ohm Impedance

  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$79.91

Reg. Price $95.89  Save $15.98
Add Extended Warranty
  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

PRV Audio Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

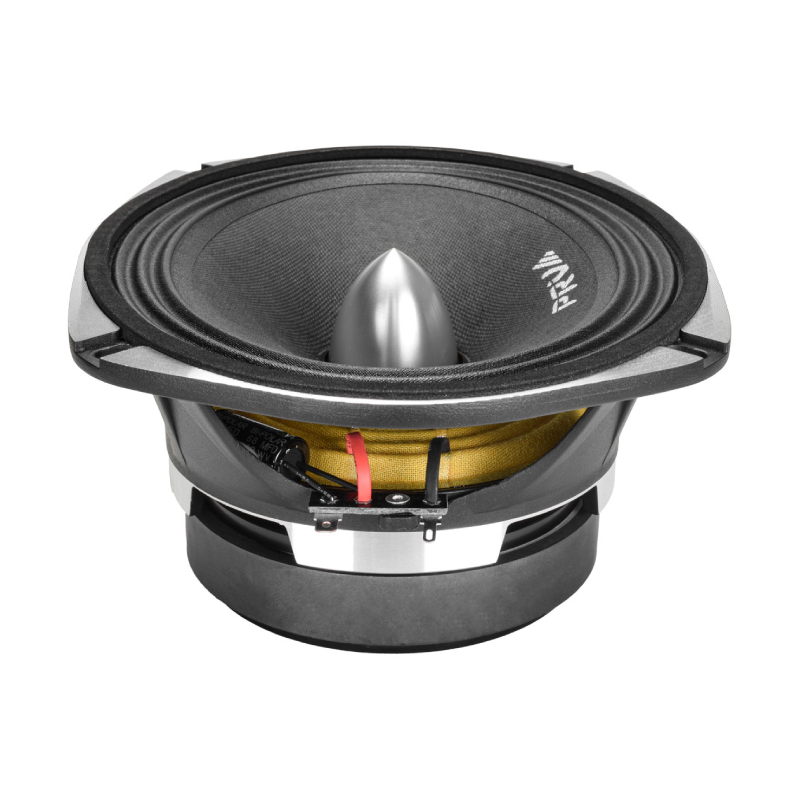

PRV Audio 69MR500-PhP-4 High SPL Series 6"x9" 250W RMS (500W Peak Power Handling) 4 Ohm, Mid Range Car Speaker (Single)


We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?





Focused Midrange Clarity That Cuts Through the Noise

The PRV Audio 69MR500-PhP-4 is built for setups where vocal clarity really matters. With a wide 500 Hz to 12,000 Hz range, it delivers clean and detailed upper mids that keep vocals upfront and easy to hear even in loud systems. The integrated 1 kHz high pass filter helps protect the driver while keeping the sound smooth and controlled, so you get performance without worrying about overdriving it. With 97 dB sensitivity, it stays loud and efficient without needing a heavy amplifier setup.

Clean Output With Strong Control and Stability

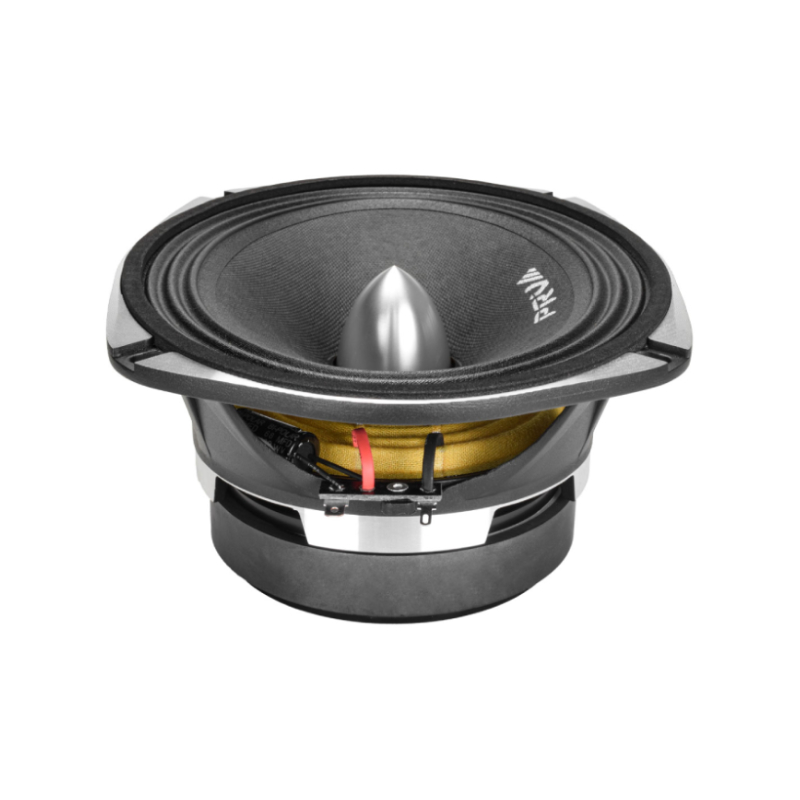

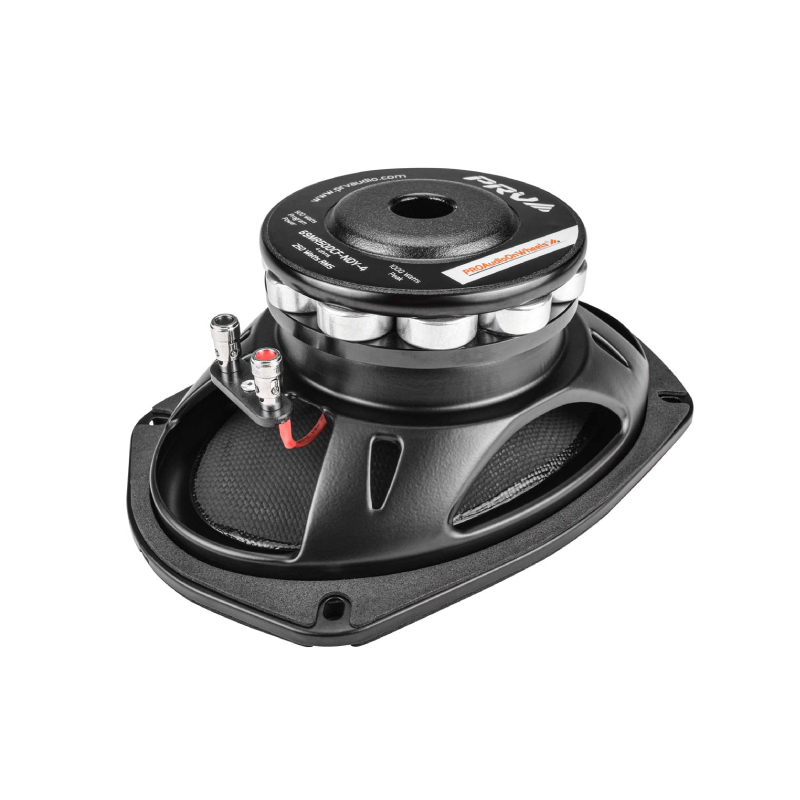

This midrange is designed to stay composed even when the volume climbs. The precision center phase plug improves high frequency dispersion, giving you better clarity and a more open soundstage. A strong ceramic magnet motor structure provides stable magnetic force for consistent performance, while the die cast aluminum frame keeps everything rigid and free from unwanted vibration. Rated at 250W RMS and 500W program power, it holds up well under demanding daily use.

Built for Serious Three Way System Integration

The 69MR500-PhP-4 is made for builders who want a dedicated midrange that integrates smoothly into a full system. Its 1.5 inch copper voice coil on a Kapton former delivers solid thermal stability and long term reliability, even during extended listening sessions. Designed specifically for three way setups, it blends cleanly with tweeters while maintaining strong midrange focus. The result is a front stage that feels tight, balanced, and ready for high output performance.




Frequently Asked Questions (FAQ)


  • • Why does my PRV Audio 69MR500-PHP-4 sound much louder than my stock 6x9 speakers?
    The 69MR500-PHP-4 is designed with high sensitivity and professional audio components, allowing it to produce significantly more output than most factory speakers.
  • • Can I install the 69MR500-PHP-4 in my factory rear deck?
    Yes. It fits many factory 6x9 speaker locations, but you should confirm the mounting depth and cutout dimensions before installation.
  • • Why do vocals overpower the bass in my system?
    The 69MR500-PHP-4 is engineered to deliver strong midrange output. Balancing the system with a dedicated subwoofer and proper crossover settings creates a fuller sound.
  • • What does the PHP phase plug do?
    The phase plug helps improve heat management and supports consistent midrange performance while also contributing to the speaker's distinctive appearance.
  • • Why does my speaker distort during bass heavy tracks?
    This speaker is intended for midrange frequencies. Sending deep bass to it without a high pass crossover can lead to distortion and reduced performance.
  • • Can I use the 69MR500-PHP-4 with horn tweeters?
    Yes. Many custom audio systems pair it with horn tweeters to achieve excellent vocal projection and crisp high frequency detail.
  • • Why does my rear deck shake after installing the 69MR500-PHP-4?
    Its high output can cause loose metal panels, trim pieces, or mounting hardware to vibrate. Reinforcing the mounting area with sound deadening material helps reduce rattles.
  • • Is the 69MR500-PHP-4 a good choice for demo vehicles?
    Yes. Many enthusiasts choose it for demo builds because it delivers loud, clean vocals that remain clear even at high listening levels.
  • • Why is my amplifier clipping before the speaker reaches full performance?
    Clipping usually occurs when the amplifier is underpowered or improperly tuned. Matching the amplifier to the speaker and setting the gain correctly improves overall output.
  • • Why do car audio enthusiasts recommend the 69MR500-PHP-4?
    Its combination of high efficiency, powerful vocal reproduction, durable construction, and strong midrange performance makes it a popular option for custom high output audio systems.

SPECIFICATIONS


  • Diameter : 6x9 Inch
  • Sensitivity : 97 dB
  • Impedance : 4 Ohm
  • Frequency Response : 500-12000 Hz
  • Peak Power Handling : 500 Watts
  • RMS Power Handling : 250 Watts

FEATURES


Features:

  • Wide Midrange Coverage: Frequency response from 500 Hz to 12,000 Hz delivers clear vocals and detailed upper midrange for balanced system performance.
  • Integrated High Pass Protection: Built in 1 kHz high pass filter helps protect the speaker while maintaining clean and accurate sound reproduction.
  • High Efficiency Output: 97 dB sensitivity ensures strong output levels with efficient amplifier usage.
  • Reliable Power Handling: Rated at 250W RMS and 500W program power for consistent performance under demanding conditions.

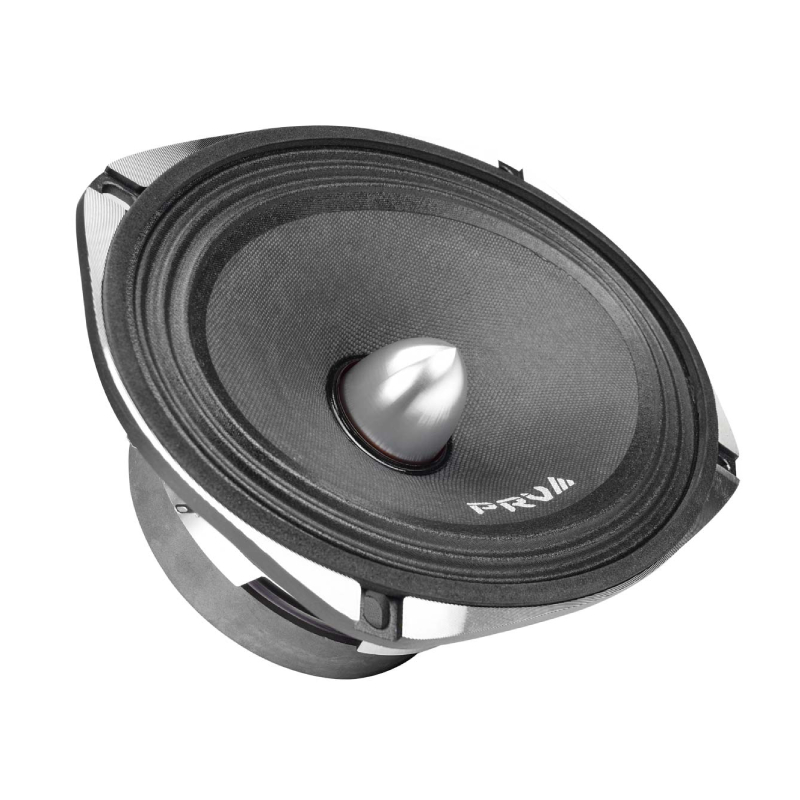

  • Phase Plug Design: Precision center phase plug improves high frequency dispersion and enhances overall clarity.
  • Durable Motor Structure: High power ceramic magnet provides strong magnetic force for stable and controlled performance.
  • Die Cast Aluminum Frame: Reinforced basket construction increases rigidity and reduces unwanted resonance.
  • Efficient Voice Coil Assembly: 1.5 inch copper voice coil on Kapton former supports thermal stability and long term durability.
  • Versatile System Integration: Ideal for three way systems requiring dedicated midrange support with smooth transition to tweeters.



Specifications:

  • Nominal Diameter: 6×9″ (152×228 mm)
  • Nominal Impedance: 4 Ohms
  • Rated AES Power Handling (RMS): 250 Watts
  • Program Power: 500 Watts
  • Sensitivity (2.00V @ 1m): 97 dB
  • Recommended Hi-Pass Crossover: 500 Hz, 12 dB/octave
  • Frequency Response (-10 dB): 500 – 12,000 Hz
  • Voice Coil Diameter: 1.5″ (38 mm)
  • Voice Coil Wire: Copper
  • Voice Coil Winding Depth: 8.5 mm
  • Former Material: Kapton
  • Magnetic Gap Depth: 5.5 mm
  • Frame Material: Die-cast Aluminum
  • UPC: 810075521573
  • Weight: 3
  • Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
