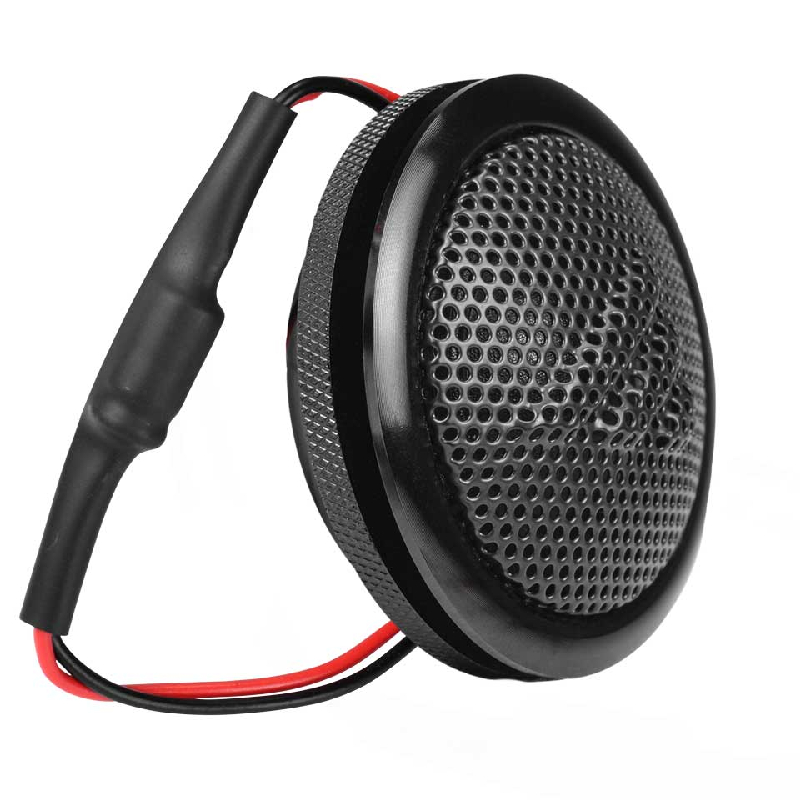

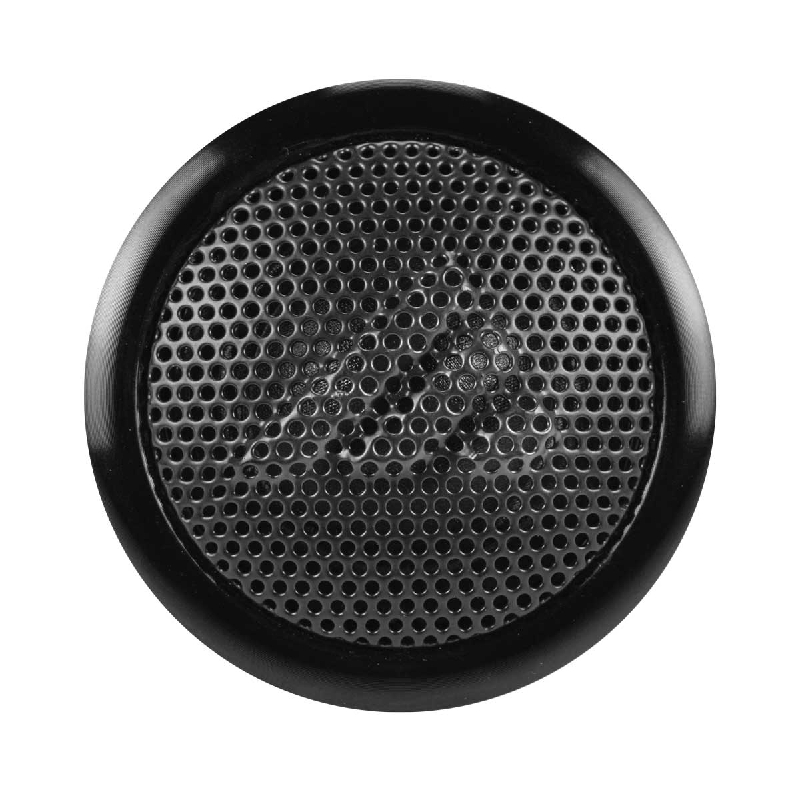

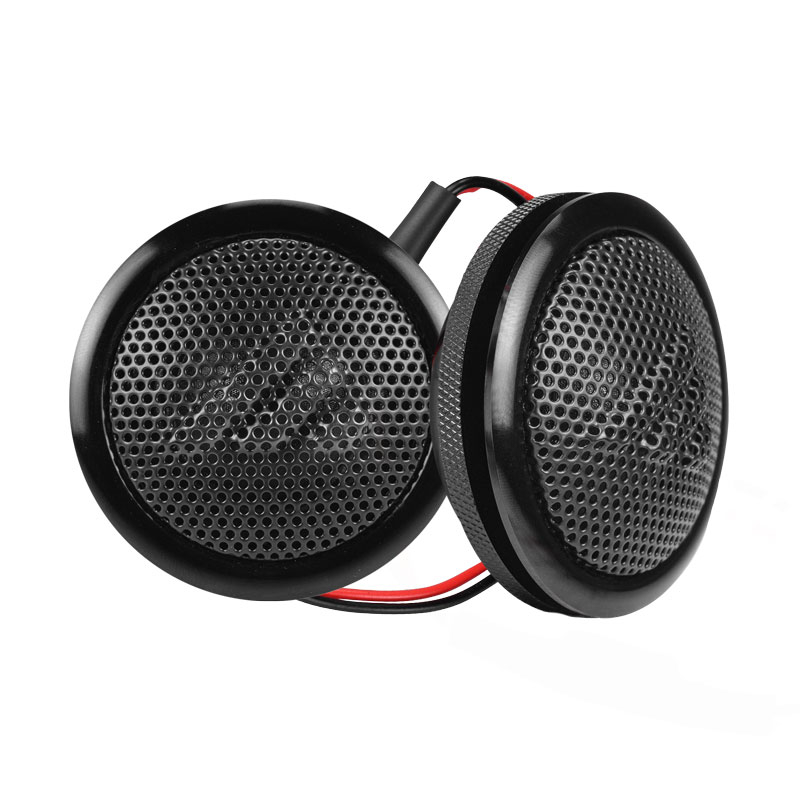

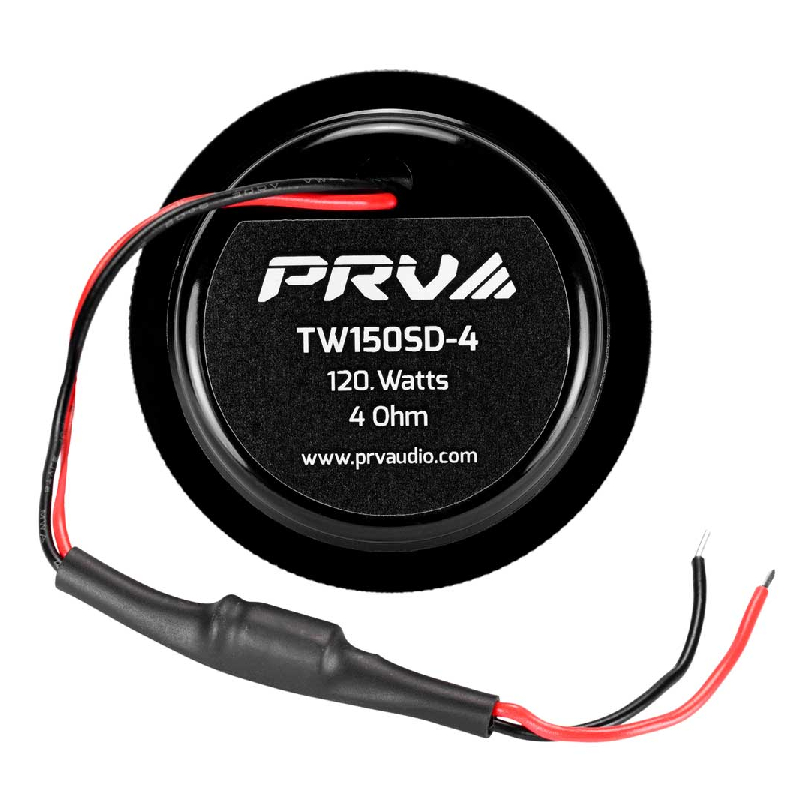

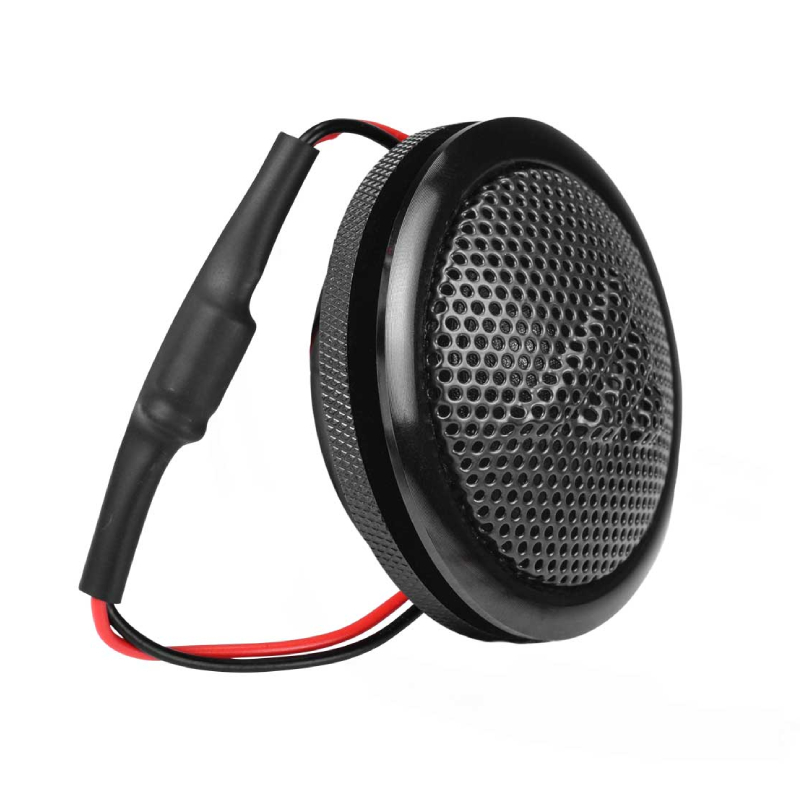

PRV Audio TW150SD-4 Series 2.37" 120W RMS (240W Peak Power Handling) 4 Ohm, Silk Dome Super Car Tweeter (Pair)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Smooth Highs That Feel Natural, Not Harsh
The PRV Audio TW150SD-4 silk dome tweeters are built for people who want clean, refined highs without that sharp, fatiguing edge. The premium silk diaphragm keeps everything smooth and natural, so vocals, cymbals, and instruments come through with real clarity instead of sounding harsh or exaggerated. It’s the kind of upgrade that instantly makes your system feel more balanced and enjoyable on long drives.
Strong Output From a Compact High-Efficiency Design
Inside, a high-efficiency neodymium motor delivers serious output while still keeping the footprint small and install-friendly. With a wide 2,000 Hz to 20,000 Hz frequency range and 94 dB sensitivity, these tweeters don’t need a ton of power to perform loud and clear. They work great with factory systems or upgraded amplifiers, giving you crisp detail and strong presence without stressing your setup.
Built Smart for Power, Protection, and Easy Installation

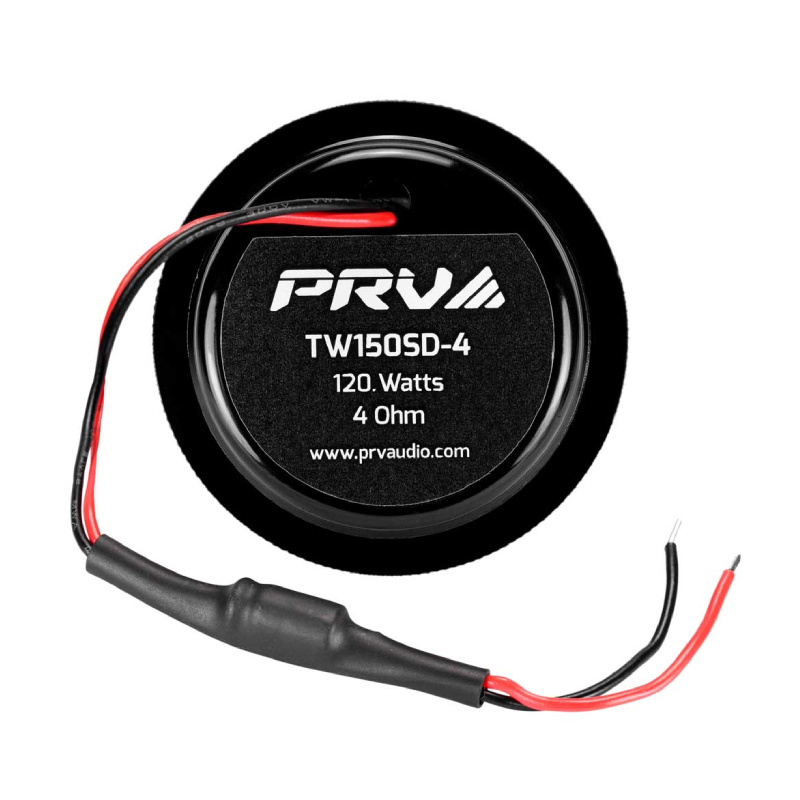

The TW150SD-4 is also designed with real-world installs in mind, featuring a compact flush-mount body that fits cleanly into factory locations with minimal modification. A built-in inline capacitor protects the tweeter by filtering out unwanted low frequencies, keeping the signal clean and safe under load. Add in a durable 1.1-inch Kapton voice coil with CCAW wire and up to 120W RMS handling, and you’ve got a tweeter that stays stable, loud, and reliable even when the system is pushed hard.
Frequently Asked Questions (FAQ)
- • Why does my TW150SD-4 sound too sharp after upgrading my audio system?
Many users experience overly bright highs when the tweeter level is not matched with the midrange speakers. Adjusting the amplifier gain, EQ settings, and crossover frequency can help create a smoother and more natural sound.
- • Can the TW150SD-4 handle high power without damaging the voice coil?
The TW150SD-4 is built for strong performance, but damage can still occur from clipped amplifier signals, excessive boost, or running the tweeter outside its recommended frequency range. Proper tuning is important for long term reliability.
- • Why is my TW150SD-4 not producing enough volume in my car audio setup?
Low output is often caused by incorrect wiring, weak amplifier power, or poor positioning. Checking polarity, amplifier settings, and installation location can improve the tweeter’s efficiency and sound projection.
- • Do I need a crossover when installing the TW150SD-4?
Yes. A proper crossover protects the tweeter from low frequencies that can cause overheating and distortion. Correct crossover settings also help the TW150SD-4 deliver cleaner high frequency response.
- • Why does my TW150SD-4 start distorting when I turn the volume up?
Distortion usually comes from amplifier clipping, excessive treble boost, or pushing the tweeter beyond its limits. Reducing gain levels and properly tuning the system can prevent unwanted noise.
- • Can I use the TW150SD-4 with PRV midrange and woofer speakers?
Yes. Many users combine the TW150SD-4 with PRV midrange and woofer speakers to create a complete sound system with stronger vocals, detailed highs, and improved overall balance.
- • Why does my TW150SD-4 sound quieter than expected after installation?
A weak connection, incorrect impedance matching, or improper amplifier configuration can reduce output. Checking wiring and confirming the amplifier is delivering the correct power can solve this issue.
- • Is the TW150SD-4 suitable for daily driving or only competition builds?
The TW150SD-4 works well for both daily audio systems and high output builds. With proper crossover protection and tuning, it can provide reliable high frequency performance for regular use.
- • Why does my tweeter produce a buzzing sound at certain frequencies?
Buzzing noises are commonly caused by loose mounting, damaged wiring, or a frequency range that is too low for the tweeter. Inspecting the installation and adjusting crossover settings can help remove the issue.
- • How can I get cleaner vocals from my TW150SD-4?
The best results come from balancing the tweeter with the rest of the system. Proper crossover points, equalizer adjustments, and pairing with quality midrange speakers can improve vocal clarity and detail.
- Diameter : 2 Inch
- Sensitivity : 94 dB
- Frequency Response : 2000-20000 Hz
- RMS Power Range : 120 Watts
- Peak Power Handling : 240 Watts
- RMS Power Handling : 120 Watts
Features:
- Crystal-Refined Silk Dome Output: Engineered with a premium silk diaphragm to deliver smooth, natural high-frequency reproduction with reduced harshness and excellent vocal clarity.
- High-Efficiency Neodymium Motor: Utilizes a compact neodymium magnet assembly to achieve strong output and high sensitivity while maintaining a space-saving design for flexible installation.
- Wideband High-Frequency Extension: Covers a broad 2,000 Hz to 20,000 Hz range, ensuring detailed treble response and precise high-end imaging for upgraded car audio systems.
- High Sensitivity Performance: Rated at 94 dB sensitivity, enabling strong output with lower power demand for efficient pairing with factory or aftermarket amplifiers.

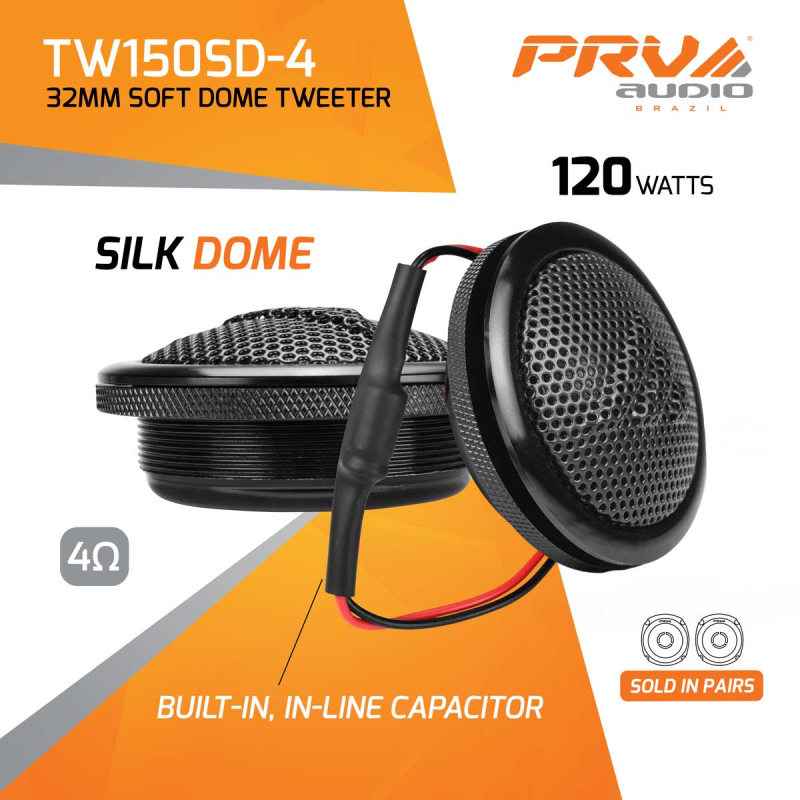

- Integrated Protection Crossover Design: Includes a built-in inline capacitor that helps filter low frequencies, ensuring cleaner signal delivery and protecting the tweeter from unwanted low-end stress.
- Compact Flush-Mount Engineering: Designed with a shallow profile and 2.37” overall diameter for easy flush or surface mounting in factory tweeter locations with minimal modification.
- Durable Voice Coil Construction: Features a 1.1” Kapton former with CCAW wire for improved thermal stability and reliable performance under extended high-output use.
- High Power Handling Capability: Supports up to 120W RMS and 240W peak power, delivering dynamic headroom for demanding audio setups without distortion under proper tuning.
Specifications:
- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 60 W
- Continuous Program Power (RMS): 120 W
- Max Peak Power: 240 W
- Sensitivity (2.00V @ 1m): 94 dB
- Recommended High-Pass Crossover: 3,500 Hz (12 dB per octave) for full powerhandling
- Frequency Response (-10 dB): 2,000 – 20,000 Hz
- Voice Coil Diameter: 1.1” (28 mm)
- Voice Coil Wire Material: CCAW
- Voice Coil Former Material: Kapton
- Diaphragm Material: Silk
- Magnet Material: Neodymium

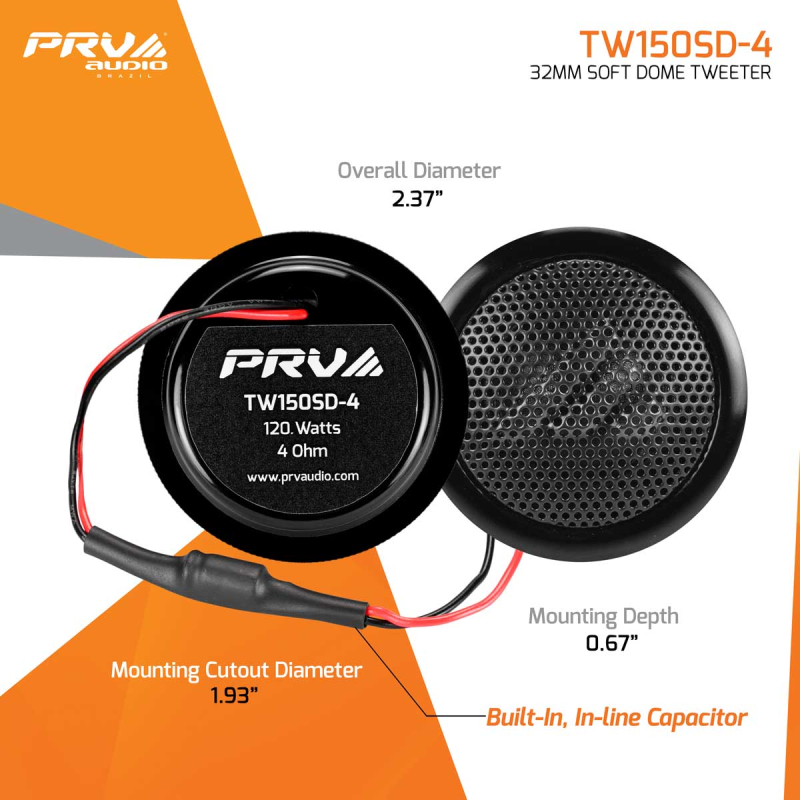

- Overall Depth: 1.03” (26.2 mm)
- Mounting Depth: 0.67” (17 mm)
- Overall Diameter: 2.37” (60.2 mm)
- Baffle Cutout Diameter: 1.93” (50 mm)
- Carton Dimensions (W × L × H): 2.83” × 6.18” × 1.65” (72 × 157 × 42 mm)
- UPC: 810075522723
- Weight: 2
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
