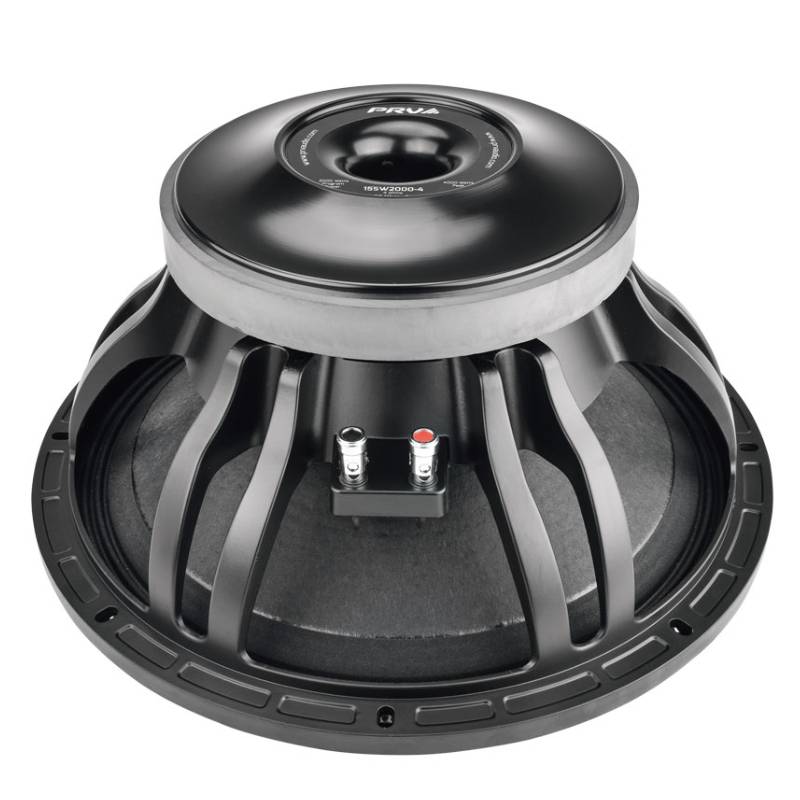

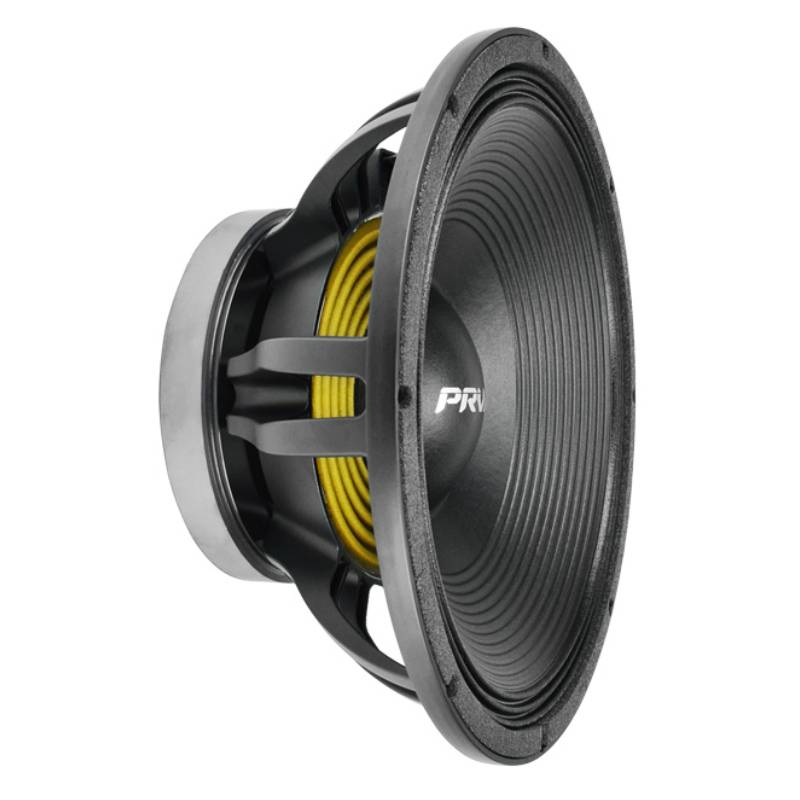

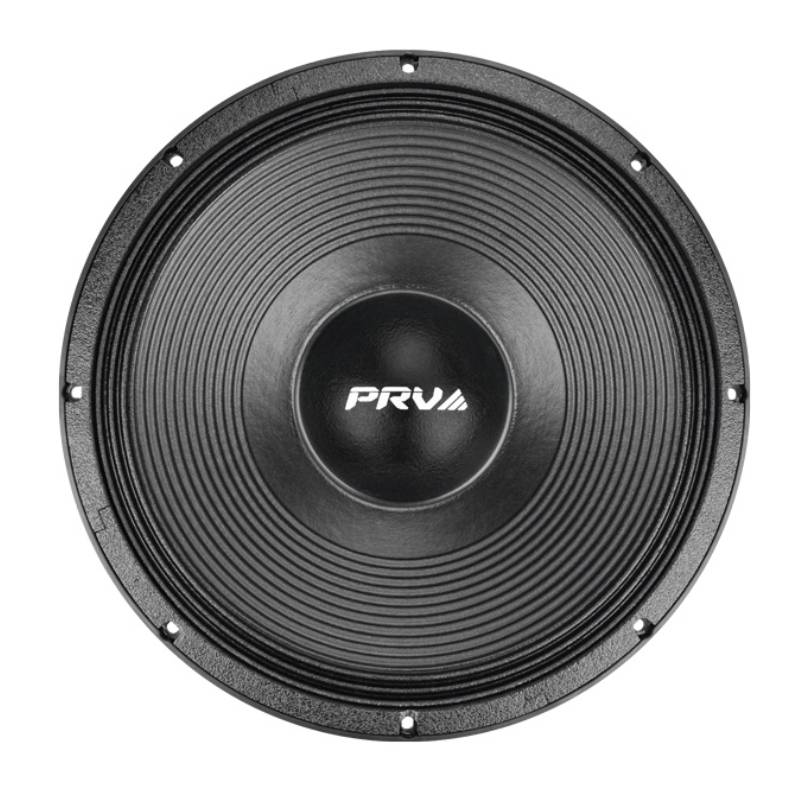

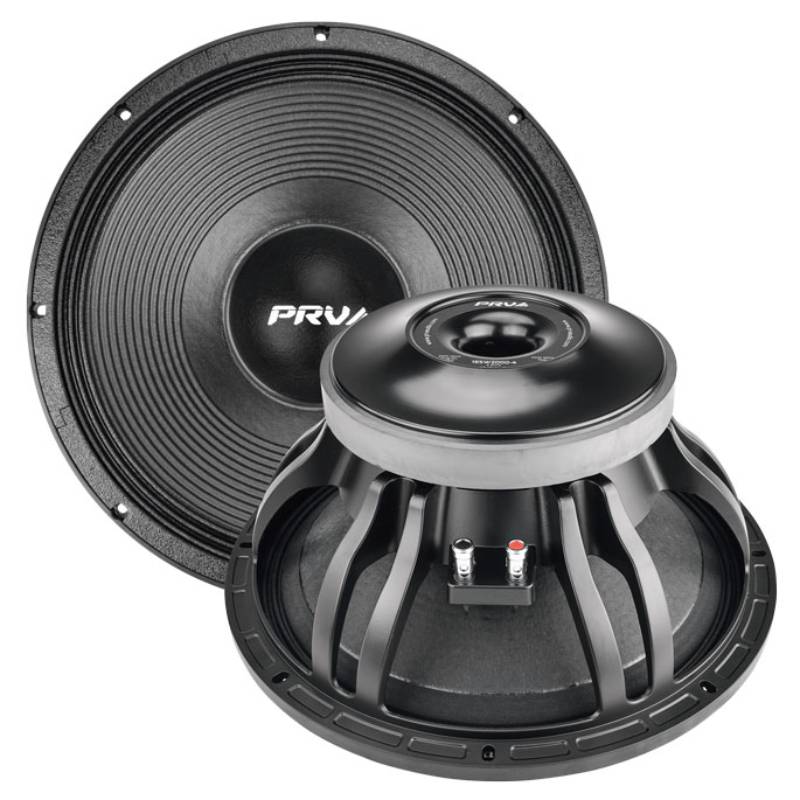

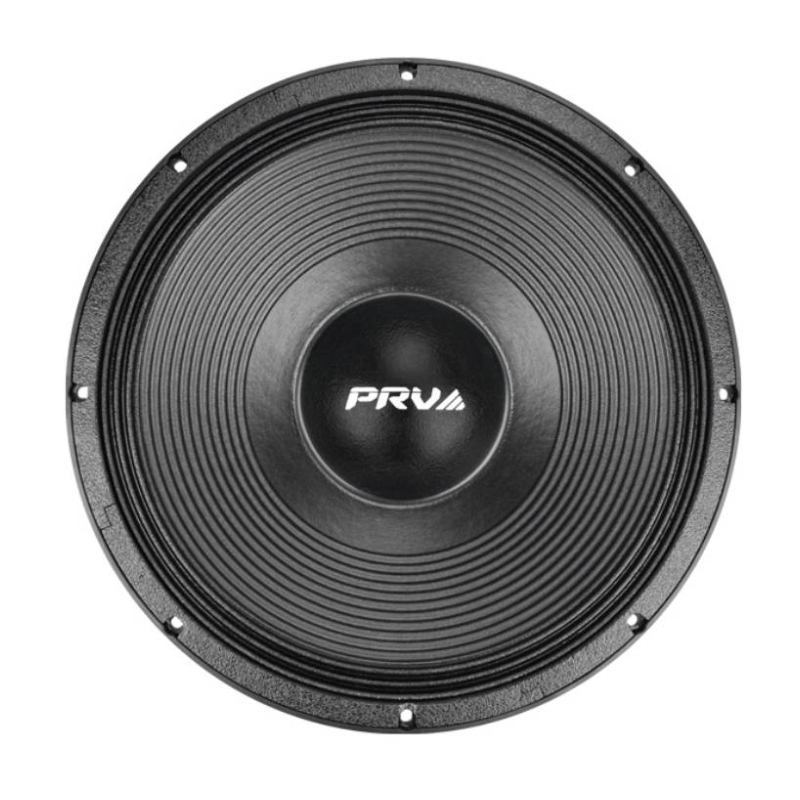

PRV Audio 15SW2000-4 W-Series 15" 1000W RMS (2000W Peak Power Handling) at 4-Ohms, Single Voice Coil Component Car Subwoofer
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 15" W-Series Single Voice Coil Component Car Subwoofer
- • Installation Accessories
- • Owner's Manual
Bass That Hits Hard and Stays Clean
The PRV Audio 15SW2000-4 is built for serious bass lovers who want deep, controlled low frequency power that doesn’t fall apart when you turn it up. With 12.5 mm Xmax, it moves serious air while keeping distortion low and punch tight. Rated at 1000 watts RMS and 2000 watts program power, this sub is ready for high energy car audio systems that demand constant impact without losing clarity.
Cool Running Power Built for Long Sessions
When the volume stays up, this sub keeps its cool thanks to an advanced forced air cooling system that pushes heat away from the voice coil and motor structure. Inside, a 4 inch copper voice coil with split winding on a fiberglass former delivers strong thermal stability and long term durability under heavy load. The high strength BL motor control adds tight cone movement, giving you fast, accurate bass that feels locked in even at extreme output.
Rugged Design With Flexible Install Options
This subwoofer is built like a tank with a rigid die cast aluminum frame that improves stability and reduces unwanted vibration. The double silicone spider and triple roll surround give smooth, controlled excursion so the bass stays clean even when pushed hard. A treated paper cone and reinforced dust cap help it handle real world conditions, while its compact vented enclosure tuning makes it easy to drop into custom car audio builds that need deep, reliable bass performance.
Frequently Asked Questions (FAQ)
- • Is the PRV Audio 15SW2000-4 a good choice for a single subwoofer setup?
Yes. Many users choose the 15SW2000-4 for single subwoofer systems because it delivers strong bass output while allowing flexibility when paired with a properly matched amplifier and enclosure.
- • Why does my PRV Audio 15SW2000-4 sound weak after installation?
Weak bass is often caused by incorrect enclosure dimensions, improper amplifier tuning, reversed polarity, or crossover settings that limit low frequency performance.
- • Can I wire two PRV Audio 15SW2000-4 subwoofers to one amplifier?
Yes. Since each speaker has a 4 Ohm voice coil, multiple wiring options are available depending on your amplifier's supported impedance. Always verify the final load before connecting the system.
- • Does the PRV Audio 15SW2000-4 need a ported enclosure for maximum output?
Many users prefer a ported enclosure because it can produce greater efficiency and stronger bass. However, a properly designed sealed enclosure can also provide accurate and controlled low frequencies.
- • Why does my PRV Audio 15SW2000-4 get warm even at moderate volume?
Some heat is normal during operation. Excessive heat may result from amplifier clipping, incorrect gain settings, or insufficient airflow around the enclosure.
- • How long should I break in the PRV Audio 15SW2000-4 before playing it at full volume?
Many users recommend several hours of moderate listening to allow the suspension to settle naturally. This gradual break in can help optimize performance over time.
- • What crossover settings work well with the PRV Audio 15SW2000-4?
Most systems perform well when using a low pass crossover that keeps only bass frequencies reaching the subwoofer. The ideal setting depends on the rest of your audio system and personal listening preferences.
- • Why is my PRV Audio 15SW2000-4 making a rattling noise?
The source is often loose enclosure hardware, vibrating vehicle panels, or nearby accessories rather than the subwoofer itself. Inspect the installation carefully before assuming the speaker is damaged.
- • Can the PRV Audio 15SW2000-4 keep up with high output door speakers?
Yes. When powered correctly and installed in a properly designed enclosure, it can provide the strong low frequency support needed to complement high output midrange and high frequency speakers.
- • How can I protect my PRV Audio 15SW2000-4 from premature damage?
Use a properly sized amplifier, avoid clipping, install the recommended enclosure, secure all wiring connections, and monitor system voltage during high power use. These practices help extend the life of the subwoofer and maintain consistent performance.
- Diameter : 15 Inch
- Sensitivity : 96 dB
- Impedance : 4 Ohm
- Frequency Response : 45-2300 Hz
- Peak Power Handling : 2000 Watts
- Woofer Composition : Glass Fiber
- Number of Voice Coils : Single
- RMS Power Handling : 1000 Watts
Features:
- High Excursion Bass Performance: Engineered with 12.5 mm Xmax to deliver deep and powerful low frequency output while maintaining control and low distortion.
- Heavy Duty Power Capacity: Handles 1000 watts RMS and up to 2000 watts program power, built for high demand car audio systems requiring consistent output.
- 4 Ohm System Optimization: Designed with a 4 ohm impedance for improved amplifier efficiency and stronger power delivery in modern audio setups.
- Advanced Split Copper Voice Coil: Utilizes a 4 inch inside outside wound copper voice coil on a fiberglass former for enhanced heat resistance and long term durability.
- Efficient Thermal Management Design: Features ventilated motor structure and forced air cooling system to reduce heat buildup and minimize power compression.
- High Strength Motor Assembly: Incorporates a high BL magnetic structure for improved cone control, delivering tight and accurate bass response.
- Reinforced Cone Construction: Built with a thick paper cone reinforced with glass fiber for durability and consistent acoustic performance.
- Precision Suspension Engineering: Equipped with dual silicone spiders and a treated cloth surround to support stable high excursion movement.
- Versatile Enclosure Performance: Optimized for compact vented enclosures, producing deep bass output with efficient integration into custom car audio systems.
Specifications:
- Nominal Diameter: 15″ (310 mm)
- Nominal impedance: 4 Ohms
- Rated AES Power Handling (RMS): 1000 Watts
- Program Power: 2000 Watts
- Sensitivity 2.00V at 1m: 96 dB
- Frequency Response at -10dB: 45 – 2,300 Hz
- Voice Coil Diameter: 4″ (100 mm)
- Voice Coil Wire: Copper
- Voice Coil Winding Depth: 31.0 mm
- Former Material: Glass Fiber
- Magnetic Gap Depth: 12.0 mm
- Frame Material: Die Cast Aluminum
- Overall Diameter: 15.47”(393 mm)
- Front Mount Baffle Cutout: 13.98” (355 mm)
- Mounting Depth: 7.11”(180.5 mm)
- Overall Depth: 7.68”(195 mm)
- UPC: 799928734462
- Weight: 25.9
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
