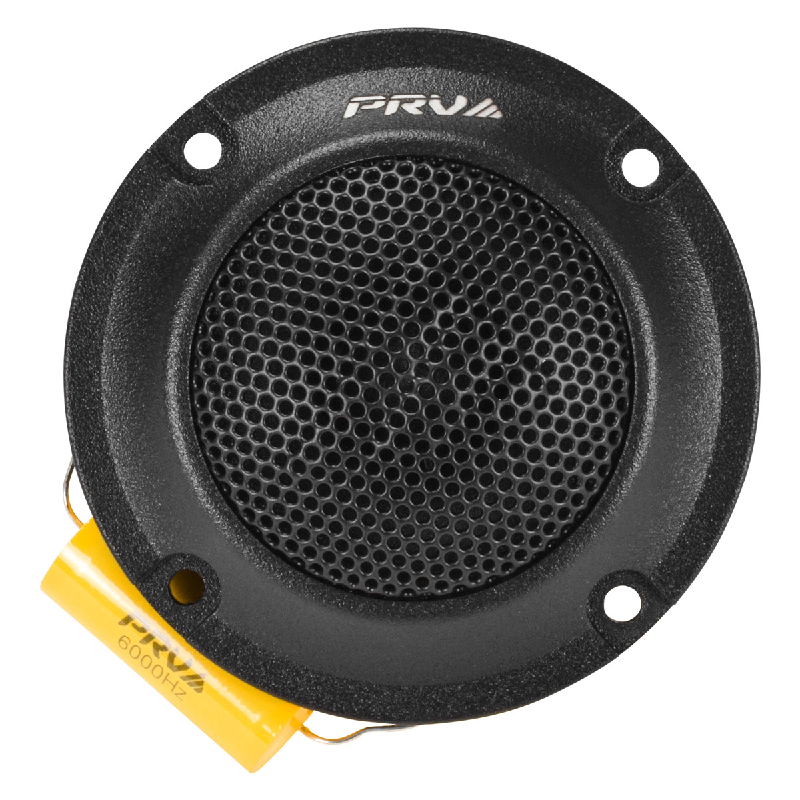

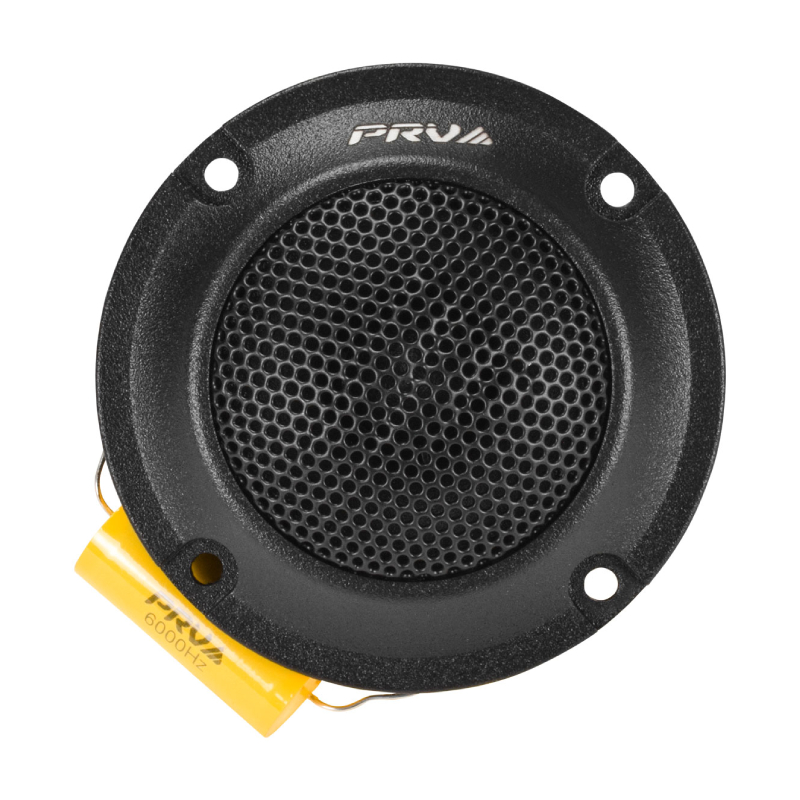

PRV Audio TW400Ti-Nd-4 SLIM Series 2.92" 120W RMS (240W Peak Power Handling) 4 Ohm, Neodymium Titanium Slim Super Car Tweeters (Pair)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

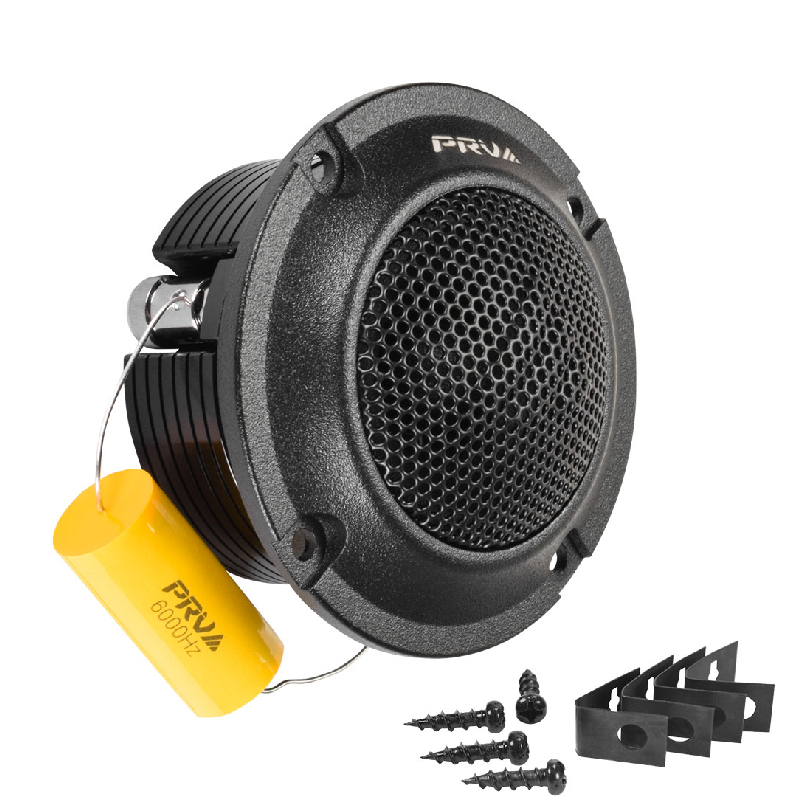

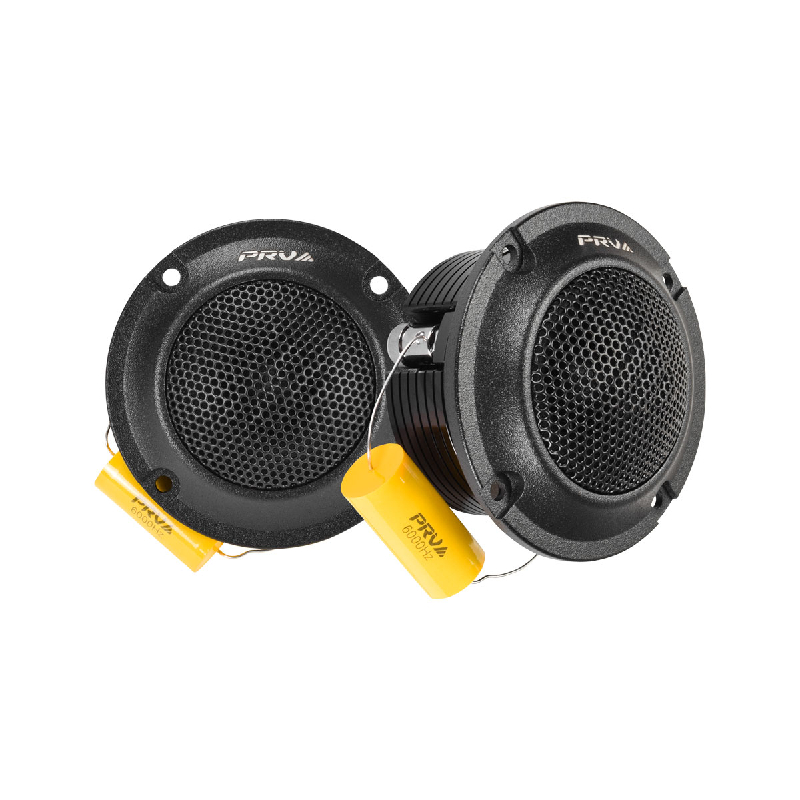

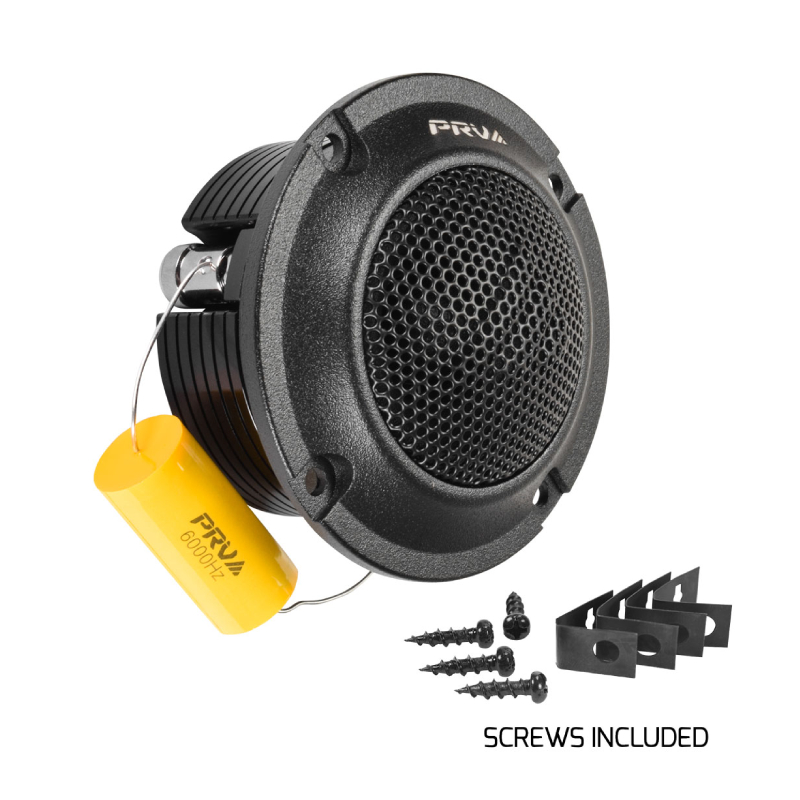

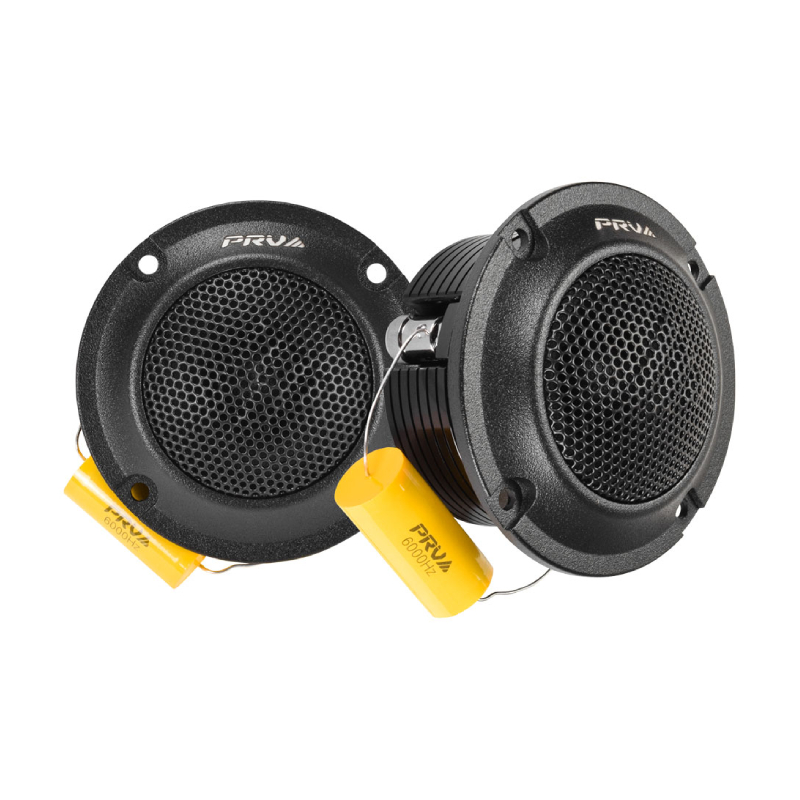

- • (2) 2.92" TW Series Neodymium Titanium Slim Super Car Tweeters
- • Owner's Manual

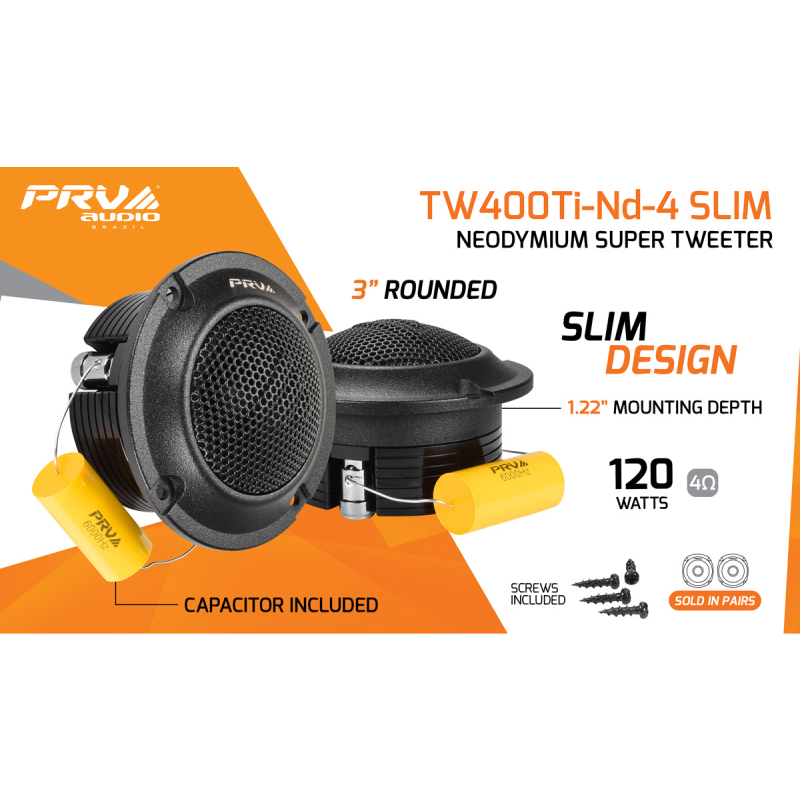

Slim Fit Design That Packs Serious High-End Power
The PRV Audio TW400TI-Nd-4 SLIM is built for installs where space is tight but performance still matters. Its ultra-compact neodymium motor keeps the mounting depth shallow, making it easy to fit into door panels, pillars, or custom builds without major modifications. Even with its small size, it delivers strong, clear highs that instantly upgrade your system’s overall sound.
Crisp Titanium Detail That Cuts Through the Mix
Equipped with a rigid titanium diaphragm, this tweeter delivers sharp, accurate high-frequency reproduction that brings out the smallest details in your music. With 105 dB sensitivity, it produces loud and dynamic highs without needing a lot of power, making it efficient and easy to match with different setups. The wide 4,500 Hz to 20,000 Hz range ensures your highs stay clean, extended, and full of life.
Smart Features for Clean Install and Easy Maintenance
This tweeter is designed with hidden push terminals to keep your installation clean while saving space behind panels. A built-in capacitor helps block unwanted low frequencies, protecting the tweeter and keeping the sound smooth under load. On top of that, the solderless diaphragm system makes maintenance quick and simple, so you can keep your system performing at its best without dealing with complicated repairs.
Frequently Asked Questions (FAQ)
- • Why did I choose the TW400TI-Nd-4 SLIM instead of a standard compression tweeter?
The slim profile is ideal for installations with limited mounting depth, making it easier to fit behind factory panels, custom pods, and tight speaker locations without sacrificing high frequency performance.
- • Why does my TW400TI-Nd-4 SLIM produce a buzzing sound after installation?
Buzzing is often caused by loose mounting hardware, vibrating trim panels, or a damaged connector. Inspect the installation and make sure the tweeter is securely fastened.
- • Can I replace my factory tweeters with the TW400TI-Nd-4 SLIM?
Yes, but factory systems may require custom mounting brackets, proper crossovers, and amplifier upgrades to get the best results and protect the tweeter.
- • Why do my tweeters stop playing after a few minutes of loud music?
This can happen if the amplifier is clipping, the crossover is set too low, or the tweeter's protection circuit is activating due to excessive power.
- • Does the TW400TI-Nd-4 SLIM need a DSP to sound its best?
A DSP is not required, but many users report better sound quality and smoother high frequencies when using one for precise tuning and time alignment.
- • Can the TW400TI-Nd-4 SLIM handle daily high volume listening?
Yes, when paired with the correct crossover and clean amplifier power, it is designed to deliver consistent performance for daily listening at elevated volume levels.
- • Why do the highs sound different after installing new tweeters?
The new tweeters may have higher sensitivity and a wider frequency response than your previous setup. Small adjustments to crossover settings and equalization can help achieve your preferred sound.
- • Is it safe to mount the TW400TI-Nd-4 SLIM behind a factory speaker grille?
Yes, many installers do this successfully as long as the grille does not block the horn opening or create unwanted vibrations that affect sound quality.
- • Why is one TW400TI-Nd-4 SLIM quieter than the other?
A quieter tweeter is commonly caused by reversed polarity, loose wiring, crossover issues, or amplifier channel imbalance. Checking each connection usually identifies the problem.
- • What is the best way to protect the TW400TI-Nd-4 SLIM from failure?
Use the recommended high pass crossover, avoid amplifier clipping, ensure proper wiring, and keep the tweeter securely mounted. Correct tuning and installation greatly improve long term reliability.
- Diameter : 2.92 Inch
- RMS Power Range : 120 Watts
- Peak Power Handling : 240 Watts
Features:

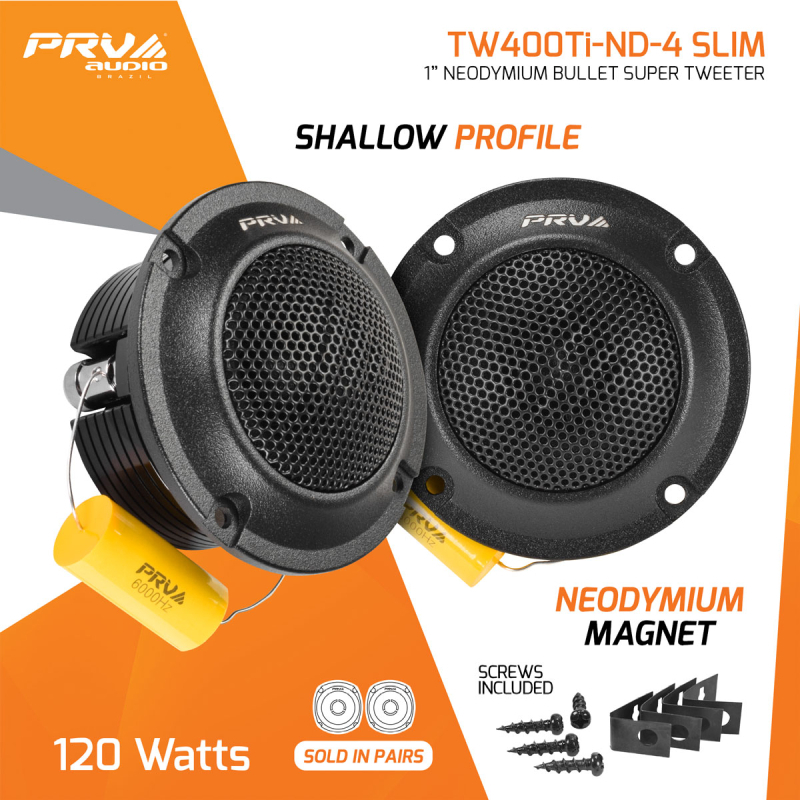

- Ultra-Compact Slim Mounting Design: Engineered with a shallow-depth neodymium motor structure, allowing seamless installation in tight spaces without major modifications.
- Titanium Diaphragm Sonic Accuracy: Built with a rigid titanium diaphragm to produce crisp, detailed, and highly accurate high-frequency reproduction.
- High-Efficiency Output Performance: Delivers 105 dB sensitivity, ensuring strong and dynamic treble output with efficient power usage in any car audio setup.
- Professional Power Handling Capability: Supports up to 120W RMS and 240W peak power, providing reliable performance for high-output systems when properly tuned.
- Extended High-Frequency Response Range: Covers 4,500 Hz to 20,000 Hz, enhancing clarity and delivering precise high-end detail across a wide audio spectrum.

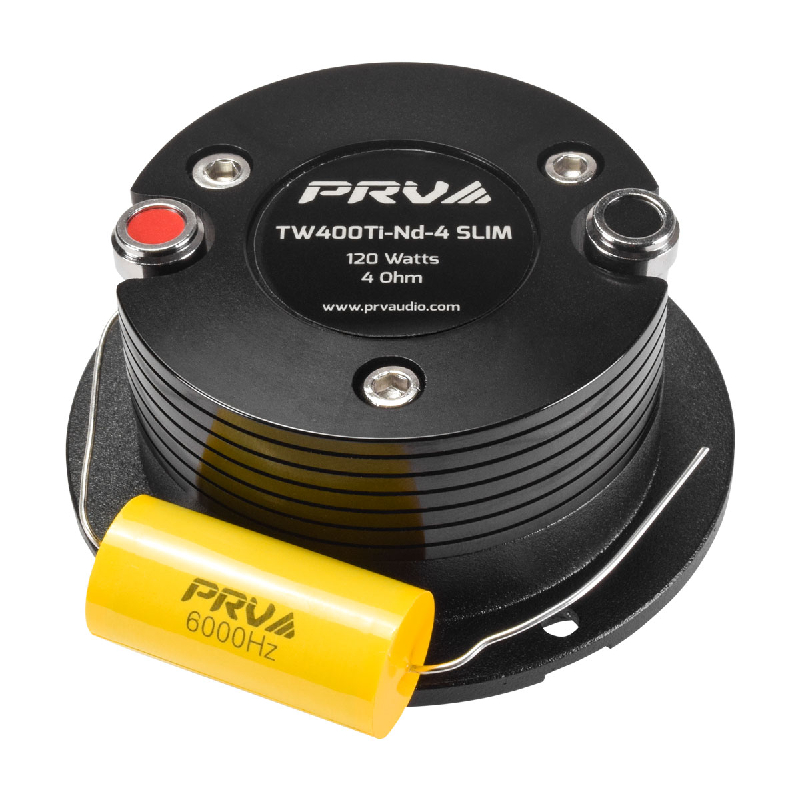

- Integrated Capacitor Protection System: Built-in crossover capacitor attenuates unwanted low frequencies, improving sound quality and protecting the tweeter under load.
- Hidden Terminal Space-Saving Design: Features concealed push terminals that reduce installation footprint and allow for cleaner, more efficient mounting.

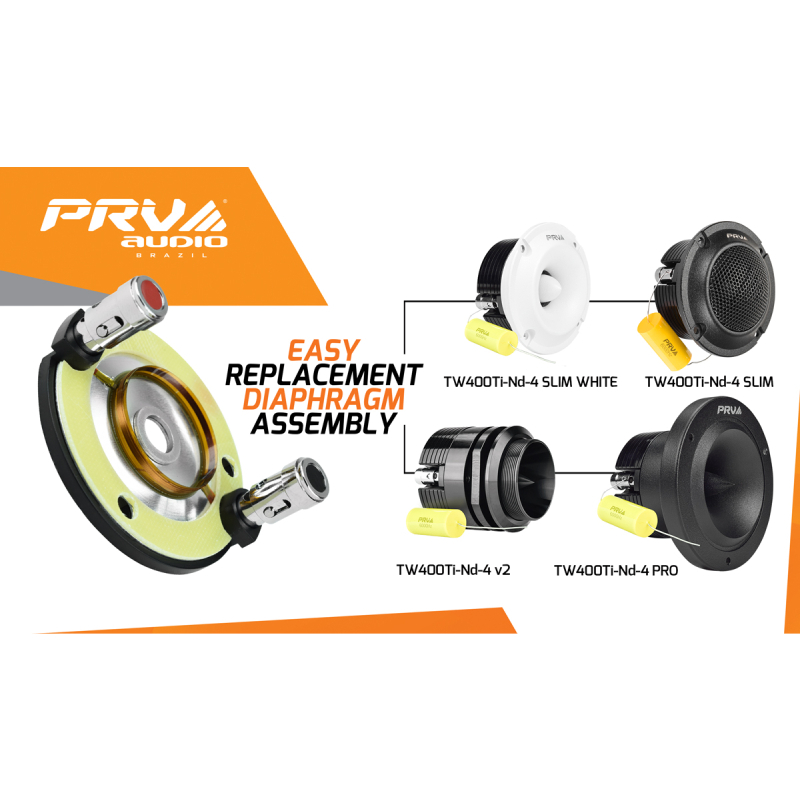

- Solderless Serviceable Diaphragm System: Designed for easy diaphragm replacement without soldering, simplifying maintenance and minimizing downtime.
Specifications:
- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 60 W
- Continuous Program Power (RMS): 120 W
- Max Peak Power: 240 W
- Sensitivity (2.00V @ 1m): 105 dB
- Recommended High-Pass Crossover: 6000 Hz (12 dB/oct) for full power handling
- Frequency Response (-10 dB): 4,500 – 20,000 Hz
- Voice Coil Diameter: 1.0″ (25 mm)
- Voice Coil Wire: CCAW
- Voice Coil Former Material: Kapton
- Diaphragm Material: Titanium
- Flux Density: 1.45 T
- Magnet Material: Neodymium

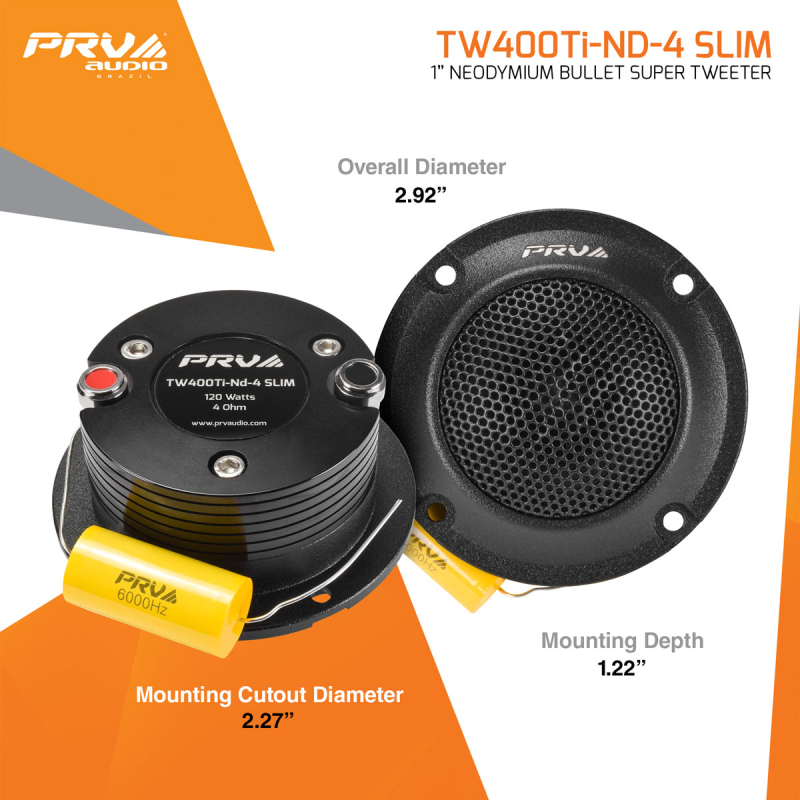

- Overall Depth: 1.93″ (49 mm)

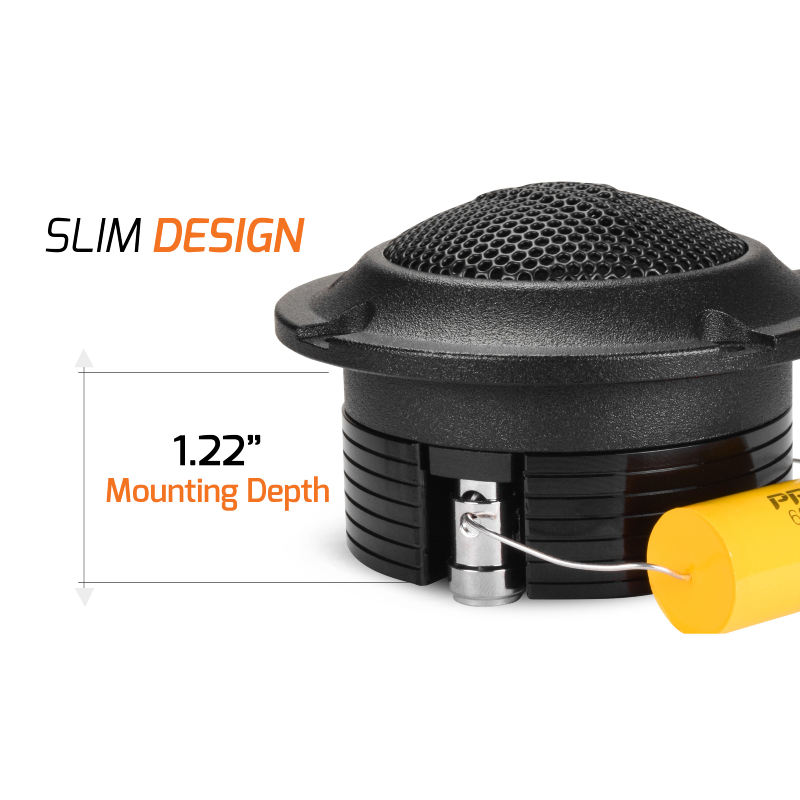

- Mounting Depth: 1.22″ (31 mm)
- Overall Diameter: 2.92″ (74 mm)
- Cutout Diameter: 2.27″ (57.7 mm)
- Carton Dimensions (W × L × H): 6.77″ × 3.15″ × 1.99″ (172 × 80 × 50 mm)
- UPC: 810075521429
- Weight: 2
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
