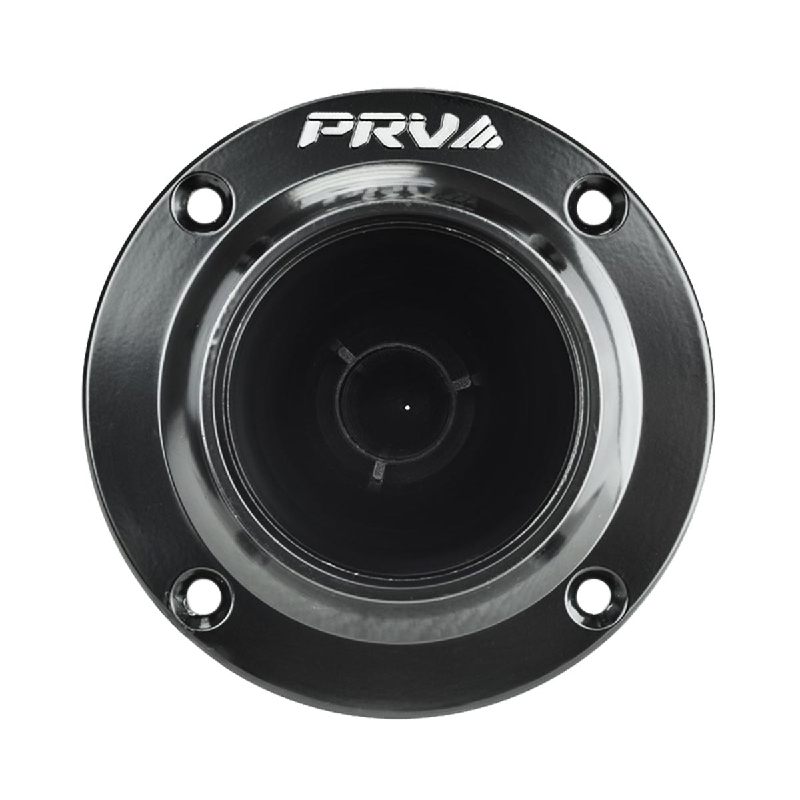

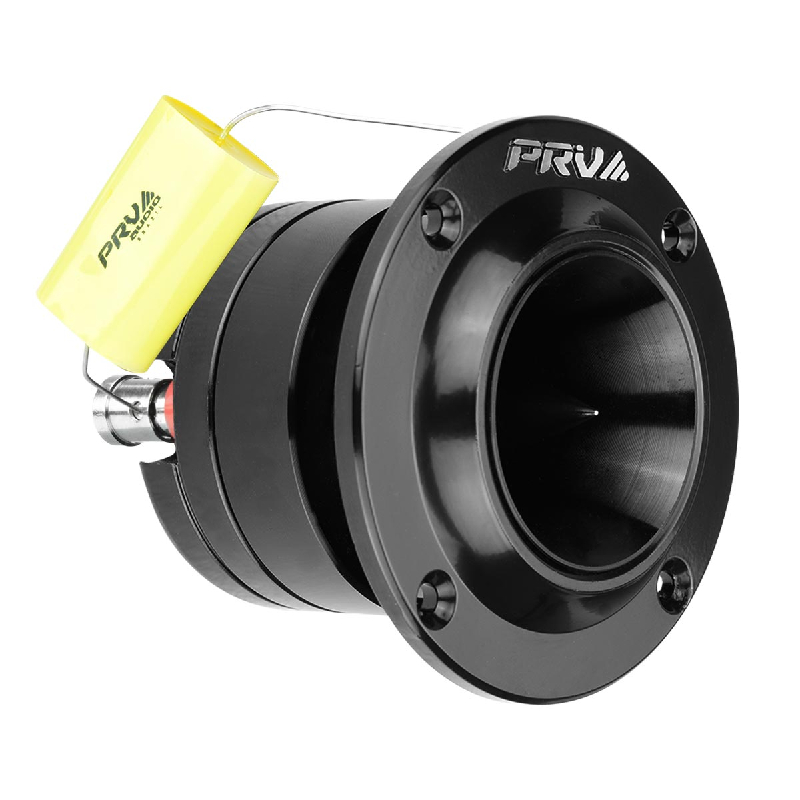

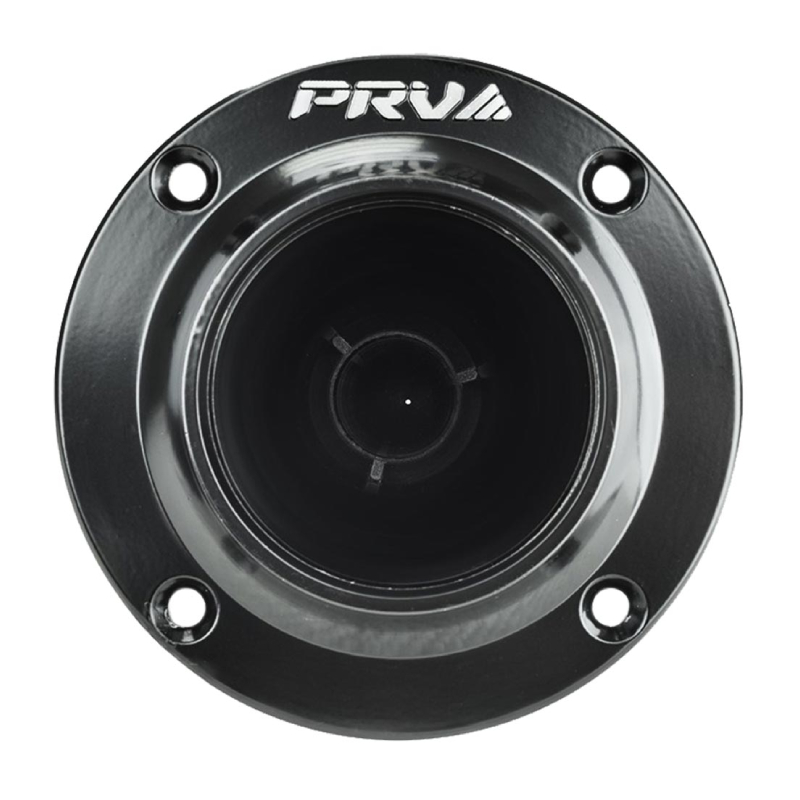

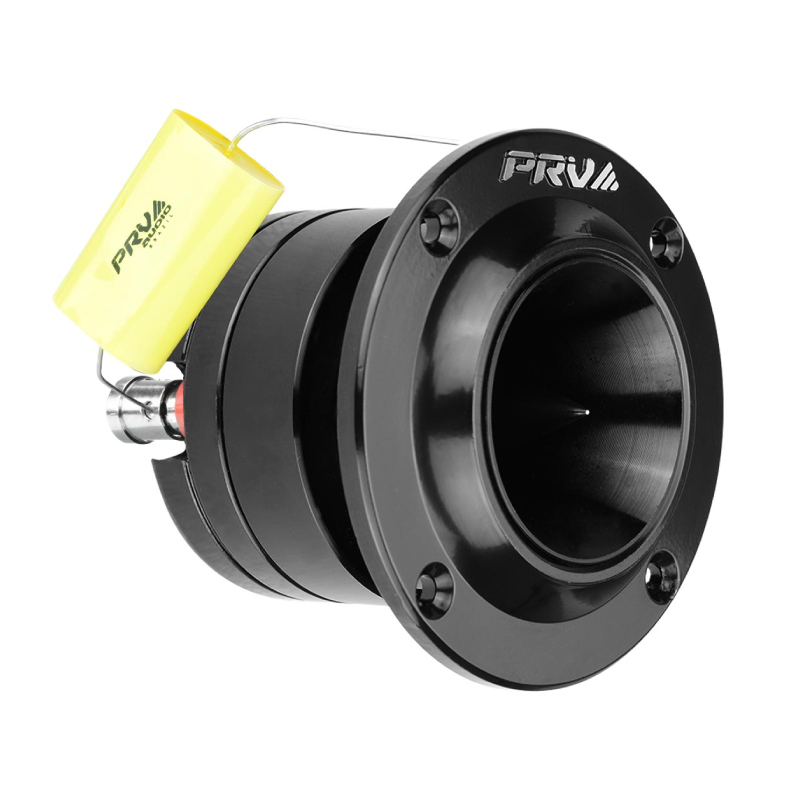

PRV Audio TW450Ti-Nd-4 Series 3.03" 60W RMS (120W Peak Power Handling) 4 Ohm, Neodymium Titanium Bullet Super Car Tweeter (Sold as Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 3.03" TW Series Neodymium Titanium Bullet Super Car Tweeters (pair)
- • Owner's Manual
Compact Bullet Power That Hits Way Above Its Size
The PRV Audio TW450Ti-Nd-4 is built for car audio setups that need serious high-frequency power in a small, efficient package. Its high-impact neodymium motor keeps things lightweight and compact while still delivering strong, punchy treble that cuts through loud systems with ease. This is the kind of tweeter that brings your highs forward without overwhelming the rest of your sound.
Titanium Detail That Brings Every High to Life
At the core is a precision titanium diaphragm paired with a Kapton voice coil former, giving you crisp, accurate, and smooth high-frequency reproduction. With an extreme 107 dB sensitivity, it produces loud, clear output with very little power required, making it perfect for efficient builds or full SPL systems. The wide 4,500 Hz to 20,000 Hz range keeps everything bright and detailed, so vocals and instruments stay clean even at high volume.
Built for Real-World Power and Easy Installation
This tweeter supports 60W RMS and up to 120W program power, giving it enough strength for high-output car audio without losing control. A built-in capacitor protects it by filtering out damaging low frequencies, keeping the sound clean and safe under pressure. With flexible screw-mount design options, it installs easily in different setups, making it a solid choice whether you're upgrading a daily driver or building a full pro-level SPL system.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio TW450Ti-Nd-4 sound weak even with the volume turned up?
Low output is often caused by incorrect crossover settings, low amplifier gain, or wiring issues. Verify your connections and confirm the tweeter is receiving the proper frequency range.
- • Can I pair the TW450Ti-Nd-4 with any midrange speaker?
Yes, but for the best sound quality, match it with a midrange speaker that has similar sensitivity and use the proper crossover point to ensure a smooth transition between drivers.
- • Why do my tweeters crackle during loud music?
Crackling is commonly caused by amplifier clipping, damaged wiring, or sending frequencies below the recommended crossover point to the tweeter.
- • Is the TW450Ti-Nd-4 suitable for competition audio systems?
Yes, many SPL enthusiasts use it in high output systems because it can deliver strong, detailed high frequencies when installed and tuned correctly.
- • Why do the vocals sound too sharp after installing the TW450Ti-Nd-4?
The tweeter may be aimed directly at the listening position or the EQ may have excessive high frequency boost. Small adjustments to aiming and tuning can create a more natural sound.
- • Can I mount the TW450Ti-Nd-4 behind a custom speaker grille?
Yes, provided the grille does not block the horn opening or restrict sound dispersion. A properly designed grille will protect the tweeter without noticeably affecting performance.
- • Why is my amplifier going into protection when the tweeters are connected?
This can happen if the wiring is incorrect, the amplifier sees an improper load, or there is a short circuit. Inspect the wiring and verify the system impedance before powering it on again.
- • Does the TW450Ti-Nd-4 work well for outdoor audio builds?
It is commonly used in outdoor applications such as show vehicles and powersports systems, but it should be installed where it is protected from direct moisture and harsh weather.
- • Why do my left and right tweeters sound unbalanced?
Uneven sound can result from different mounting angles, amplifier channel settings, crossover issues, or wiring polarity. Matching the installation on both sides usually improves stereo balance.
- • How can I get cleaner high frequencies from the TW450Ti-Nd-4?
Use a quality crossover, supply clean amplifier power, avoid excessive EQ boosts, and carefully tune the system. Proper installation and tuning will produce clearer and more detailed highs.
- Diameter : 3.03 Inch
- RMS Power Range : 60 Watts
- Peak Power Handling : 120 Watts
Features:
- High-Impact Neodymium Bullet Engineering: Designed with a powerful neodymium motor to deliver strong, efficient high-frequency output while maintaining a compact and lightweight structure for versatile installations.
- Precision Titanium Diaphragm Clarity: Features a rigid titanium diaphragm combined with a Kapton voice coil former to produce highly detailed, accurate, and smooth high-frequency reproduction.
- Extreme High-Sensitivity Performance: Achieves an impressive 107 dB sensitivity at 2.00V/1m, ensuring loud and clear treble output with minimal amplifier power requirements.
- Professional Power Handling Capability: Supports 60W RMS and up to 120W program power, delivering reliable performance for high-output car audio, pro audio, and SPL systems.
- Wideband Frequency Response Range: Covers 4,500 Hz to 20,000 Hz, providing extended high-frequency reach with excellent clarity and articulation.

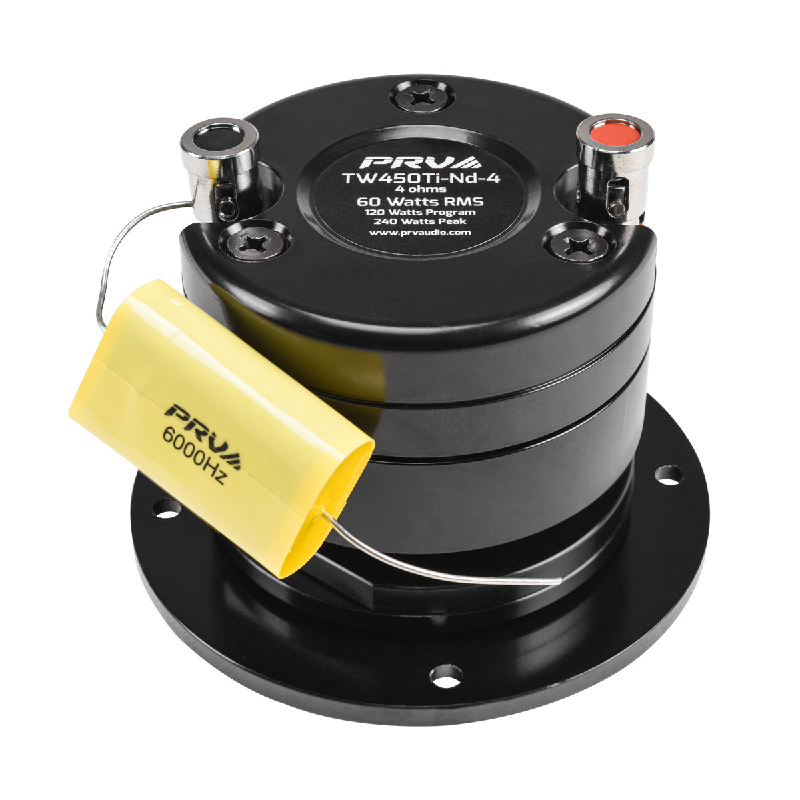

- Integrated Protective Crossover System: Includes a built-in capacitor that helps block damaging low frequencies, ensuring cleaner output and improved driver protection under load.

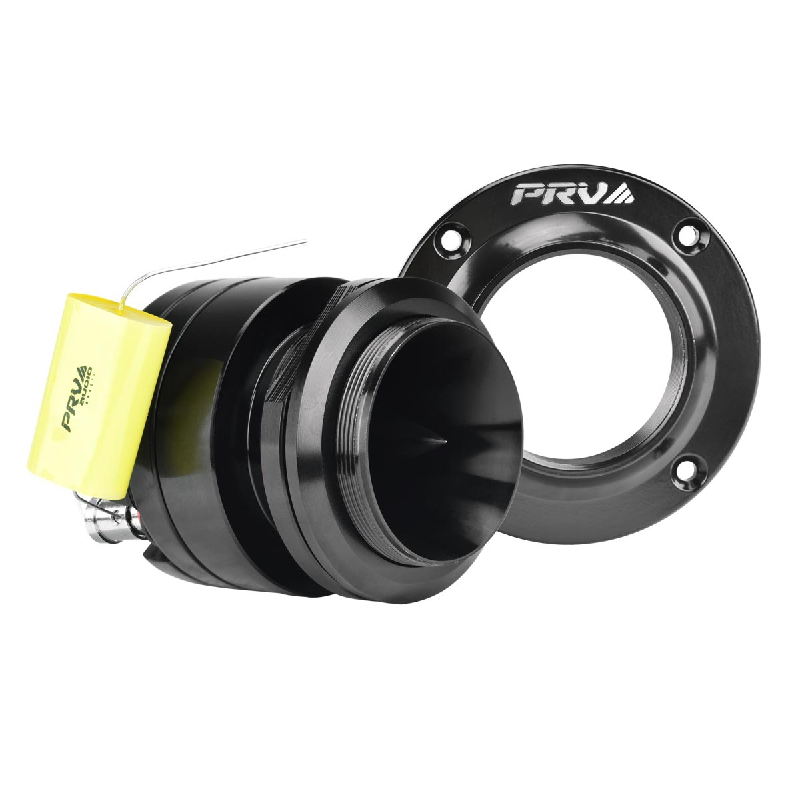

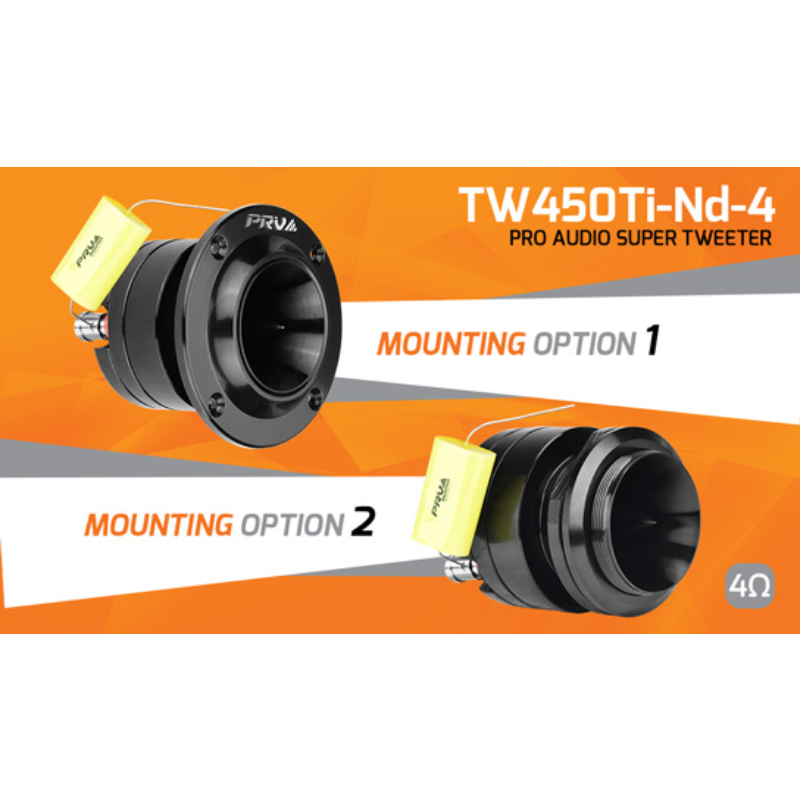

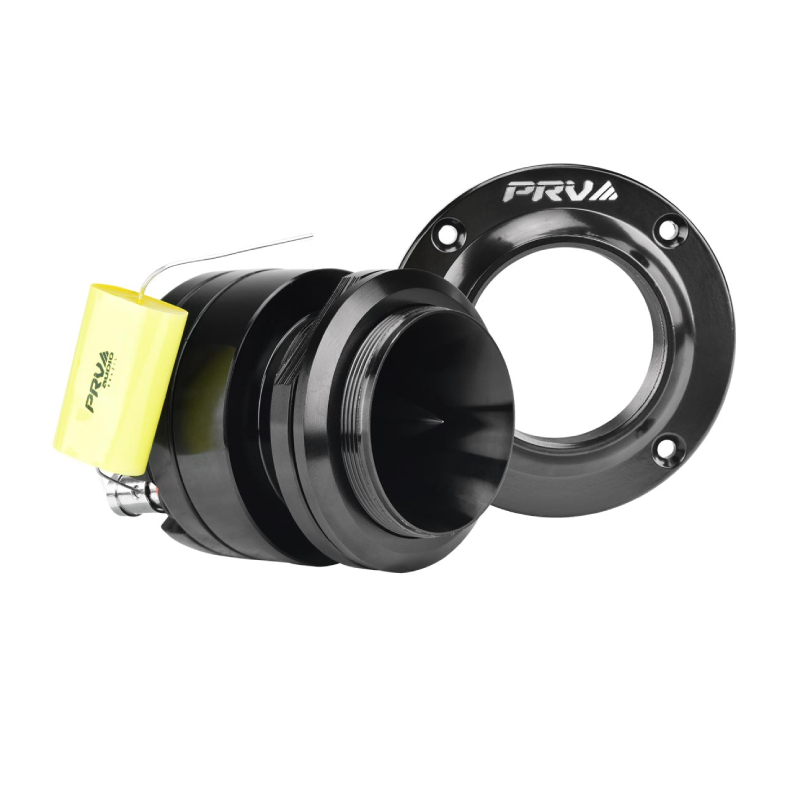

- Flexible Installation Design Options: Equipped with screw-fitting rear mounting and multiple ring options, allowing quick and adaptable installation in various audio setups.
- High-Efficiency Compact Construction: Engineered for high SPL performance in a small footprint, making it ideal for professional-grade mobile and home audio applications.
Specifications:
- Model: TW450Ti-Nd-4
- Type: 1" Bullet Neodymium Super Tweeter
- Nominal Impedance: 4 Ohms
- 60W RMS (AES Rated)
- 120W Program Power
- Sensitivity: 107 dB (2.00V at 1m)
- Frequency Response: 4,500 Hz – 20,000 Hz (-10 dB)
- Recommended Crossover: 6,000 Hz (12 dB/octave high-pass filter)
- Diameter: 1.0" (25.4 mm)
- Material: Aluminum wire
- Former: Kapton
- Diaphragm Material: Titanium
- Magnet Type: Neodymium
- Flux Density: 1.45 Tesla
- Overall Diameter: 3.03" (77 mm)
- Overall Depth: 2.68" (68 mm)
- Mounting Depth: 1.57" (40 mm)
- Cutout Diameter: 1.69" (43 mm)
- Package Size: 3.35" x 3.35" x 3.57"
- UPC: 810075520392
- Weight: 3
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
