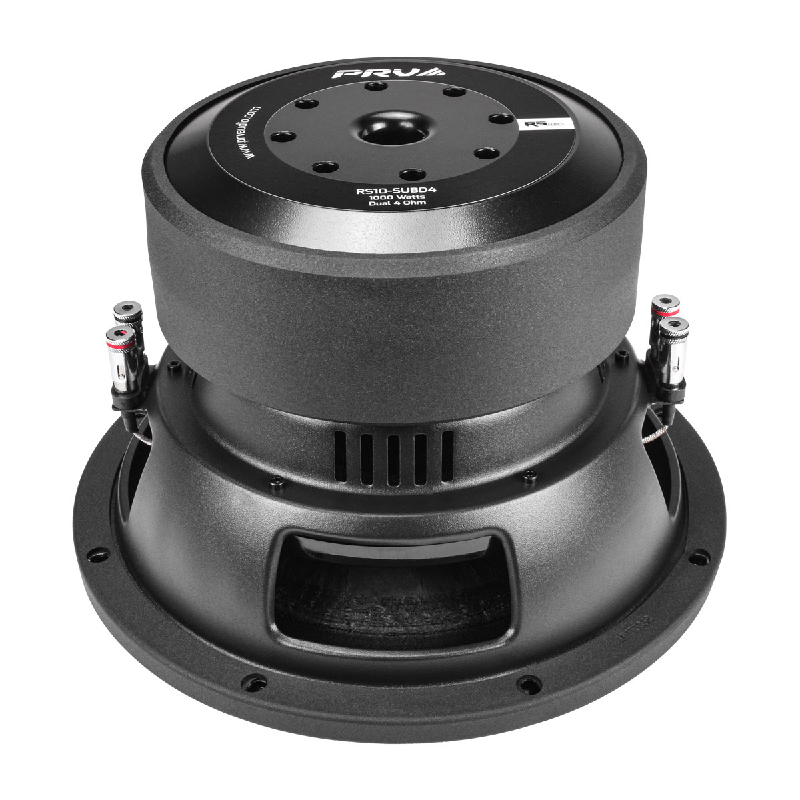

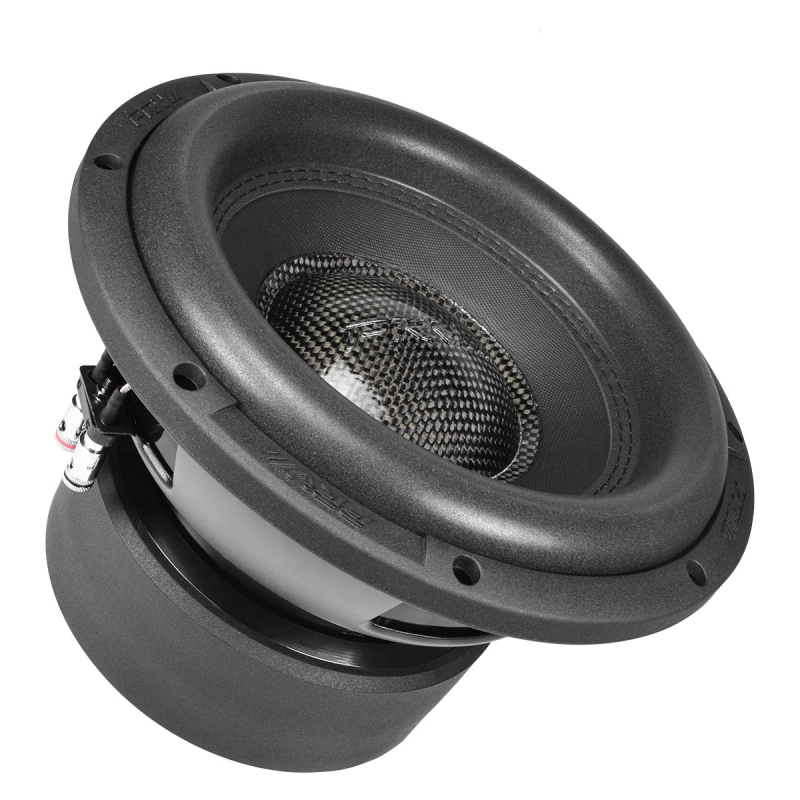

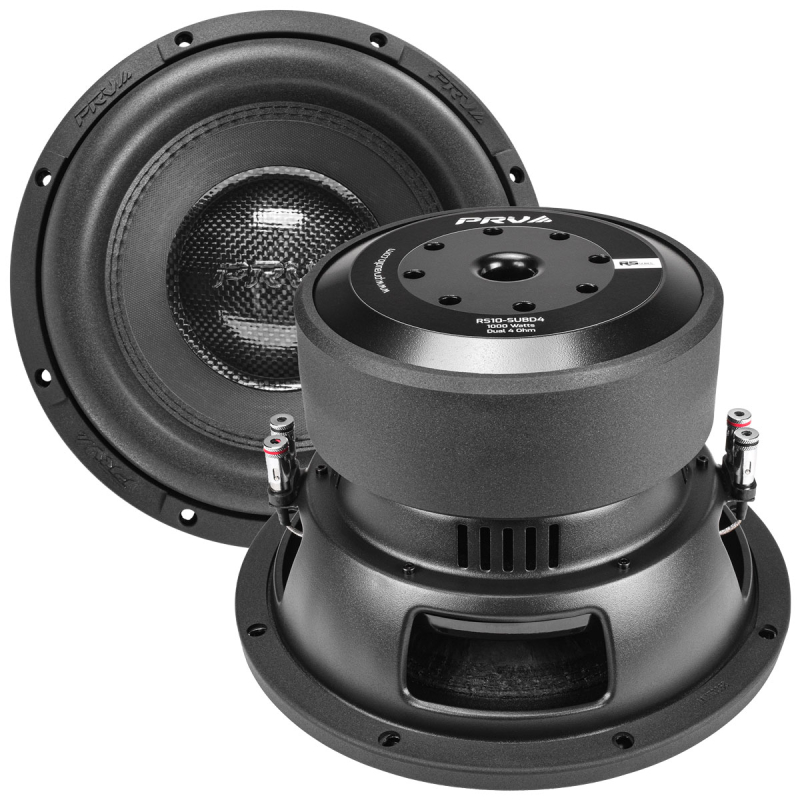

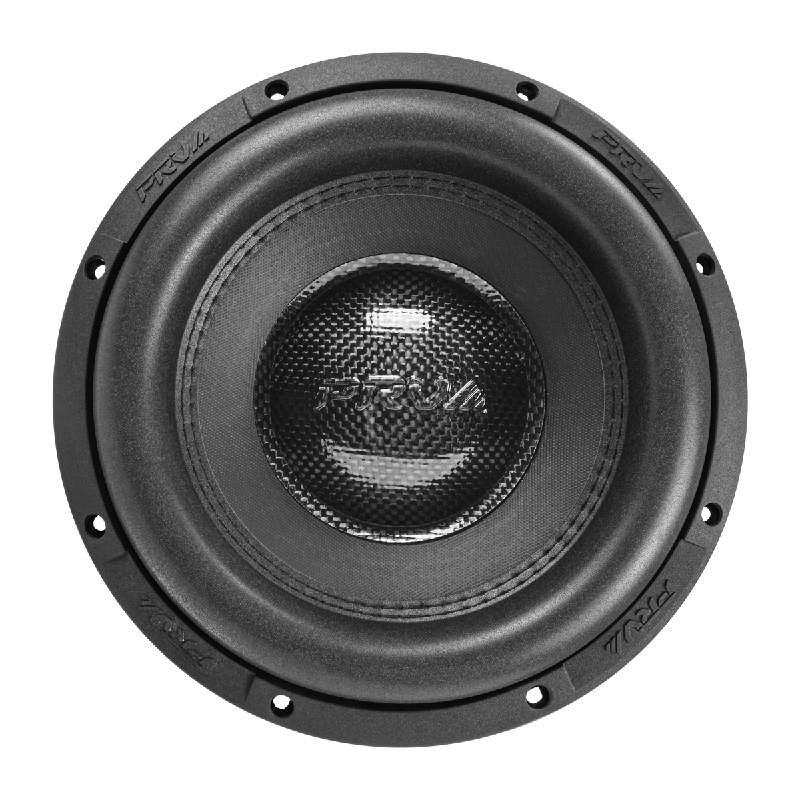

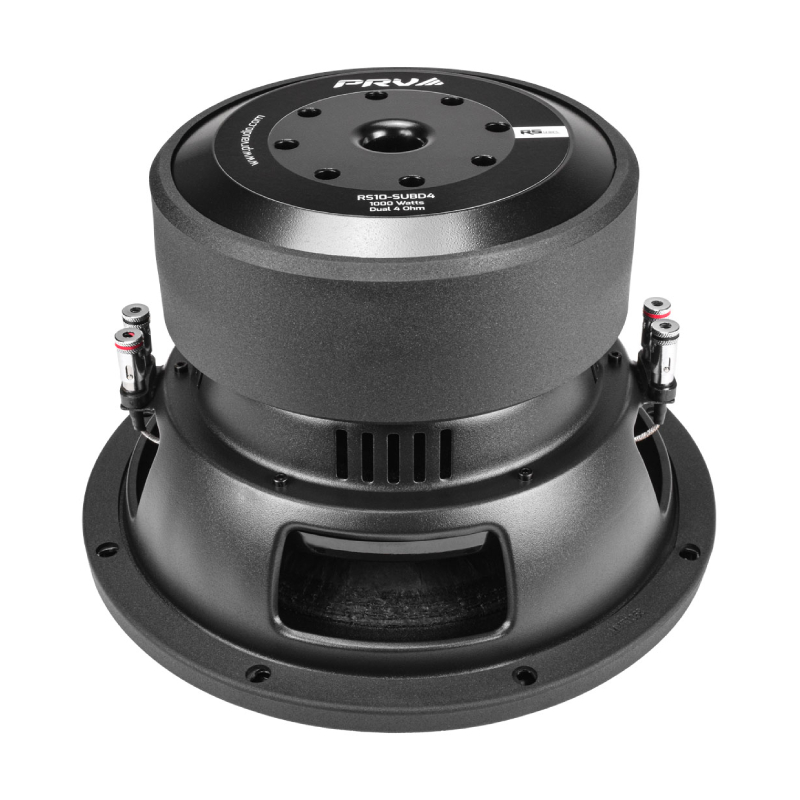

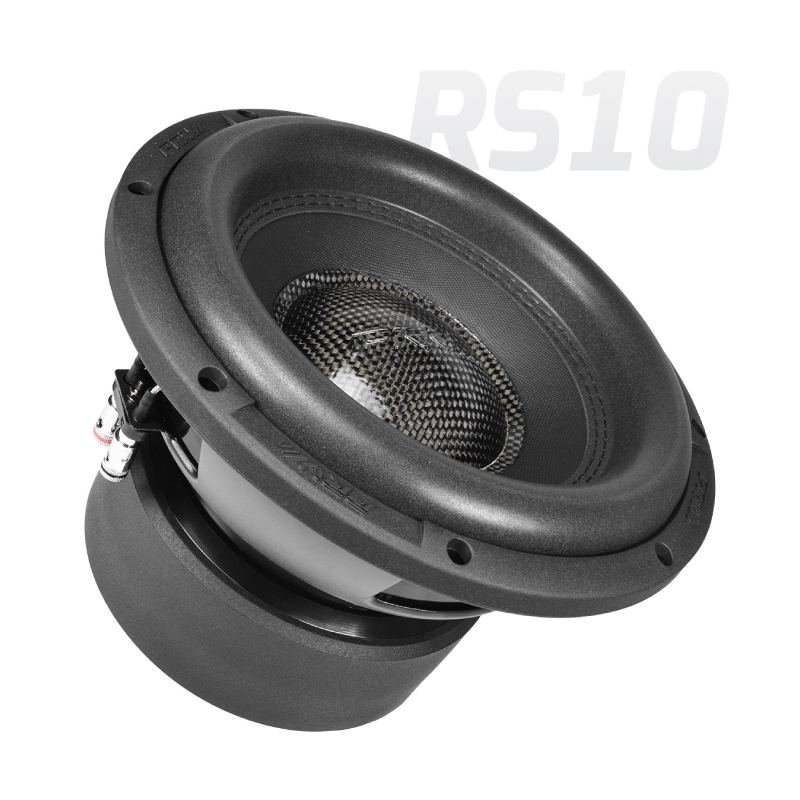

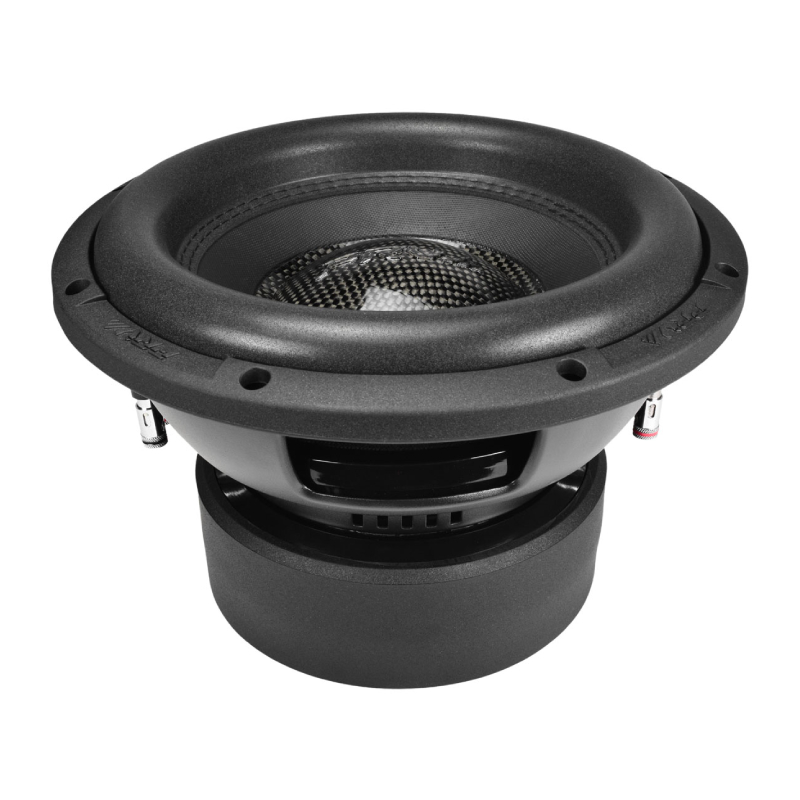

PRV Audio RS10-SUBD4 Series 10" 1000W RMS (2000W Peak Power Handling) 4 Ohm, Dual Voice Coil Stamped Steel Car Subwoofer (Sold as Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" RS Series 1000W 4 Ohm, Dual Voice Coil Stamped Steel Car Subwoofer
- • Owner's Manual
Punchy 10-Inch Bass That Hits With Authority
The PRV Audio RS10-SUBD4 is built for car audio fans who want real low-end power without wasting space or efficiency. This 10-inch sub brings serious impact to daily driving systems, delivering strong, controlled bass that feels tight and musical instead of sloppy or overblown. It’s designed to give your system that solid foundation that you can feel every time the beat drops.
Serious Power Handling Built for Real-World Abuse

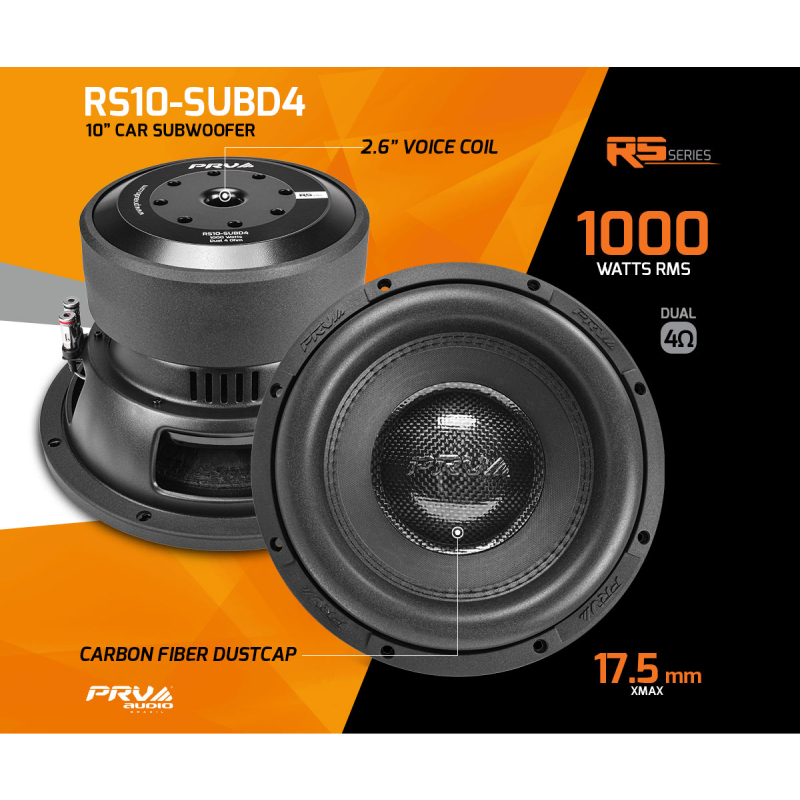

With a 1000W RMS high-power voice coil system made from 4-layer high-temperature copper, this sub is ready for heavy-duty use without losing consistency. The extended 17.5mm Xmax lets it move a lot of air while staying controlled, so your bass stays deep and clean even at high volume. The reinforced motor structure paired with a double stacked magnet gives you stronger cone control and richer low-end response that doesn’t fall apart when pushed hard.
Smart Engineering for Daily Driving and Easy System Matching
Heat is kept in check thanks to the vented back plate and side forced cooling system, helping the sub stay stable during long sessions. Dual 4-ohm voice coils give you flexible wiring options, whether you’re running a simple setup or building a multi-sub system with tuned impedance. Best of all, it’s optimized for efficient power use, meaning it can perform strongly even without extreme electrical upgrades, making it perfect for balanced daily driver builds that still want serious bass on tap.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio RS10-SUBD4 sound powerful at first but weaker after a long drive?
This can happen if the amplifier is overheating, voltage is dropping, or the system is reaching thermal limits. Check your electrical system, amplifier ventilation, and wiring.
- • Can I use the RS10-SUBD4 in a prefab subwoofer box?
Yes, but the enclosure should closely match the recommended internal air volume and tuning specifications. A poorly matched prefab box may reduce bass performance.
- • Why is my RS10-SUBD4 making a scratching sound during bass heavy songs?
A scratching noise may indicate mechanical overexcursion, a damaged voice coil, or debris inside the motor structure. Stop playing the system at high volume until the cause is identified.
- • What amplifier power is best for the RS10-SUBD4?
Choose an amplifier that delivers clean power within the subwoofer's recommended power handling range. Proper gain adjustment is just as important as amplifier size.
- • Why does my subwoofer move a lot but produce very little bass?
This is often caused by an enclosure leak, incorrect box design, poor phase alignment, or a subsonic filter that is not set correctly.
- • Can I install the RS10-SUBD4 in a down firing enclosure?
Yes, many users successfully install it in down firing enclosures, provided there is enough clearance beneath the subwoofer for unrestricted cone movement.
- • Why does my RS10-SUBD4 sound different with different music genres?
Every recording has different bass content and mixing levels. Enclosure tuning, crossover settings, and equalization also affect how various music styles are reproduced.
- • Should I use a capacitor with my RS10-SUBD4 audio system?
A capacitor may help stabilize short bursts of current in some setups, but upgrading the vehicle's electrical system is often a more effective solution for demanding systems.
- • Why does my subwoofer produce a humming noise when the engine is running?
Engine related hum is usually caused by a ground loop, poor grounding, or electrical interference. Inspect your ground connections and signal cable routing.
- • How do I keep my RS10-SUBD4 performing like new?
Avoid excessive clipping, use the correct enclosure, periodically tighten the mounting hardware, inspect the wiring, and keep the subwoofer free from moisture and physical damage.
- Diameter : 10 Inch
- Sensitivity : 84 dB
- Impedance : 4 Ohm
- Peak Power Handling : 2000 Watts
- Number of Voice Coils : Dual
- Mounting Depth : 6.61 Inches
- RMS Power Handling : 1000 Watts
- Free Air : 10
Features:
- High-Impact 10-Inch Bass Performance Design: Engineered to deliver powerful low-frequency output with strong authority while maintaining efficiency in daily car audio systems.
- High-Power 1000W RMS Voice Coil System: Built with a 4-layer high-temperature copper voice coil for superior thermal handling and consistent high-output performance under demanding conditions.
- Extended 17.5mm Xmax Excursion Capability: Features a high-roll U surround and reinforced motor structure designed for deep, controlled bass response with minimal distortion.
- Double Stacked Magnet Motor Assembly: Enhances magnetic strength for improved cone control, richer low-end reproduction, and higher overall output capability.
- Advanced Thermal Management System: Incorporates a vented back plate and side forced cooling design to maintain stable operation during extended high-power use.
- Dual 4-Ohm Wiring Flexibility: Allows versatile amplifier configurations for optimized system tuning, including parallel and series wiring options.
- Optimized for Efficient Power Usage Builds: Designed to perform strongly even with minimal electrical upgrades, making it ideal for balanced daily driver systems.
Specifications:
- Nominal Diameter 10″ (254 mm)
- Nominal impedance 4 + 4 Ohm
- Nominal Power Handling 500 Watts
- Continuous Program Power (RMS) 1000 Watts
- Max Peak Power 2000 Watts
- Sensitivity 1.41V at 1m 84 dB (Parallel VC)
- Voice Coil Diameter 2.6″ (65.5 mm)
- Voice Coil Wire Copper
- Voice Coil Winding Depth 40.0 mm
- Former Material Black Aluminum
- Magnetic Gap Depth 10.0 mm
- Frame Material Stamped Steel
- Equivalent Volume Vas 8.22 l
- Excursion (Xmax) 17.5 mm
- Free Air Resonance Fs 48.5 Hz
- Mechanical Factor Qms 10.00
- Electrical Factor Qes 0.74
- Total Factor Qts 0.69
- Cone Area Sd 330 cm²
- Mechanical Mass Mms 198.7 g
- Bl Factor 11.76 Tm
- Dc Resistance (Parallel VC) Re 1.7 Ohm
- Inductance Le 1.54 mH at 1 kHz
- Mechanical Mass Without Air Mmd 195.3 g
- Mechanical Compliance Cms 0.054 mm/N
- Overall Diameter 10.37″ (263.5 mm)
- Front Mount Baffle Cutout 9.13″ (232 mm)
- Mounting Depth 6.61″ (168 mm)
- Overall Depth 7.16″ (182 mm)
- Carton Dimensions W x L x H 11.61″ x 11.61″ x 7.87″ (295 x 295 x 200 mm)
- UPC: 810075526332
- Weight: 24.5
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
