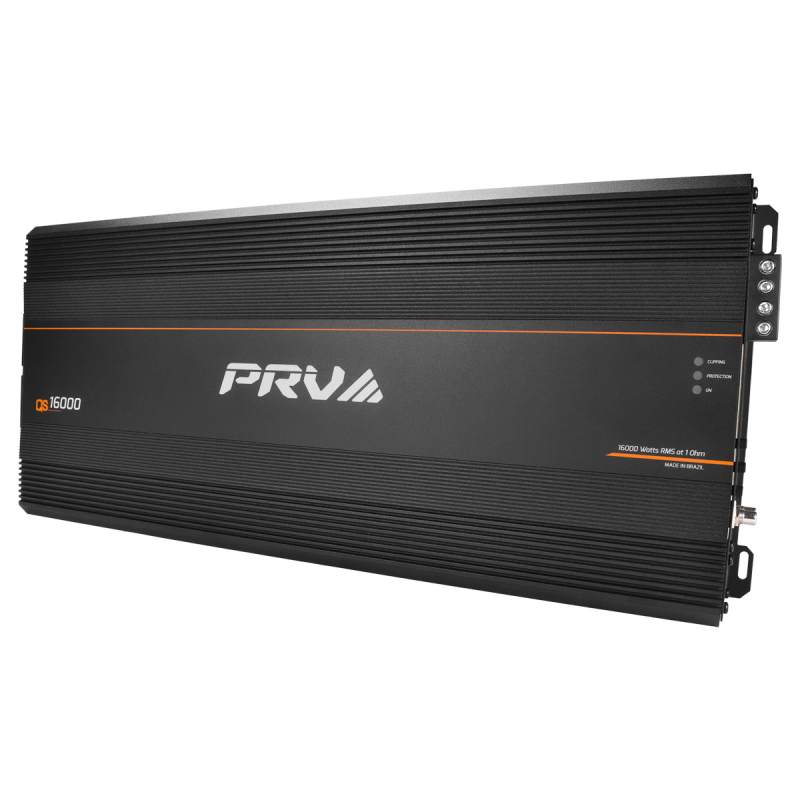

PRV Audio  QS16000 1 OHM

QS Series 16000W Max Power, Class-D Mono Subwoofer Car Amplifier

Item #97473

Product Highlights

  • QS Series
  • 16000W Max Power
  • Class-D
  • Mono
  • Subwoofer
  • Car Amplifier

  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Rockford Fosgate Banner

PRV Audio QS16000 1 32000W Max Power 1 Ohm, Class-D Mono Subwoofer Car Amplifier


We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • QS Series 16000W Max Power 1 Ohm, Class-D Mono Subwoofer Car Amplifier
  • Owner's Manual
16000W Extreme Output for Show-Level Builds

Built with Class-D Brazilian technology for stuntwalls, demo builds, and PRO mids/highs at show volume, this amplifier delivers a massive 16000W TRUE RMS. Its 1-Ohm stable single-channel design allows efficient power distribution across multiple speakers, while the regulated supply sustains 75–85% efficiency for maximum output with reduced strain on the vehicle’s electrical system.

Full-Range Capability with Smart System Protection

This amplifier drives woofers, midbass, midrange, titanium or phenolic drivers, and PRO stage loudspeakers with full-range clarity. Its 24.25″ × 10.25″ × 3″ aluminum heatsink chassis simplifies placement in large installations, while 4-way intelligent protection guards against high/low voltage, shortage, and over-current for safe, reliable performance.

Real-Time Monitoring with Purpose-Built Clarity

Power, Protect, and Clip LEDs provide live system feedback to ensure distortion-free maximum output, while the QS Series is engineered specifically for loud and clean mids/highs — for deep SPL bass applications, the RS Series is the proper choice.


SPECIFICATIONS


  • Maximum Power : 32000 Watts
  • Low Frequency Response : 20 Hz
  • High Frequency Response : 10000 Hz
  • Number of Channels : 1
  • Frequency Response : 20-10000 Hz
  • RMS Power Output : 16000 Watts
  • Amplifier Class : D
  • Fuse Rating : 800 A

FEATURES


Features:

  • Extreme Power: 16000W TRUE RMS Class-D Brazilian technology built for stuntwalls, demo builds, and PRO mids/highs at show volume
  • 1 Ohm Stable: Single-channel design for wiring multiple speakers and splitting power efficiently
  • High Efficiency: Regulated supply maintains 75–85% efficiency for maximum output with reduced electrical strain
  • Wide Frequency Use: Suitable for woofers, midbass, midrange, titanium/phenolic drivers and PRO stage loudspeakers
  • Compact Build: Aluminum heatsink chassis (24.25″ W × 10.25″ L × 3″ H) for easier placement in large installs
  • Intelligent Protection: 4-way protection with high/low voltage, shortage and over-current safeguarding
  • Top LED Monitoring: Power / Protect / Clip indicators for live status and distortion-free max output
  • QS Series Purpose: Designed for loud, clean mids/highs — choose RS Series if deep SPL bass is the priority



Specifications:

  • Impedance: 1 Ohm
  • Channels: 1 Channel
  • Rated RMS Power at 14.0 V at 1 Ohm: 16000 Watts
  • Rated RMS Power at 14.0 V at 2 Ohm: 10000 Watts
  • Average Efficiency: 78%
  • Operating Voltage: 9 to 16 Volts
  • Musical Current Draw: 950 A
  • Minimum Power Wire Input: Dual (OFC) 00 Gauge wires
  • Protection Fuse or Circuit Breaker: 800 Amps
  • Minimum Speaker Wire Output: 2 Gauge
  • Frequency Response (-3dB): 20 – 10,000 Hz
  • Min. Input Sensitivity for Max. Output: 200 mV
  • Signal Input: 1 Pair RCA
  • Signal to Noise: >90 dB
  • Protection System: Low & High Supply Voltage / Shortage on Output / Low Impedance on Output
  • Heat Sink Type: Heavy Duty Cast Aluminum
  • Dimensions (W x D x H): 24.25” x 10.25” x 3”
  • Weight: 21 Lbs
  • UPC: 810075526547
  • Weight: 21
  • Authorized Internet Dealer
Warranty: 0 Months Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 0 Months from the original date of purchase with proper return authorization.
