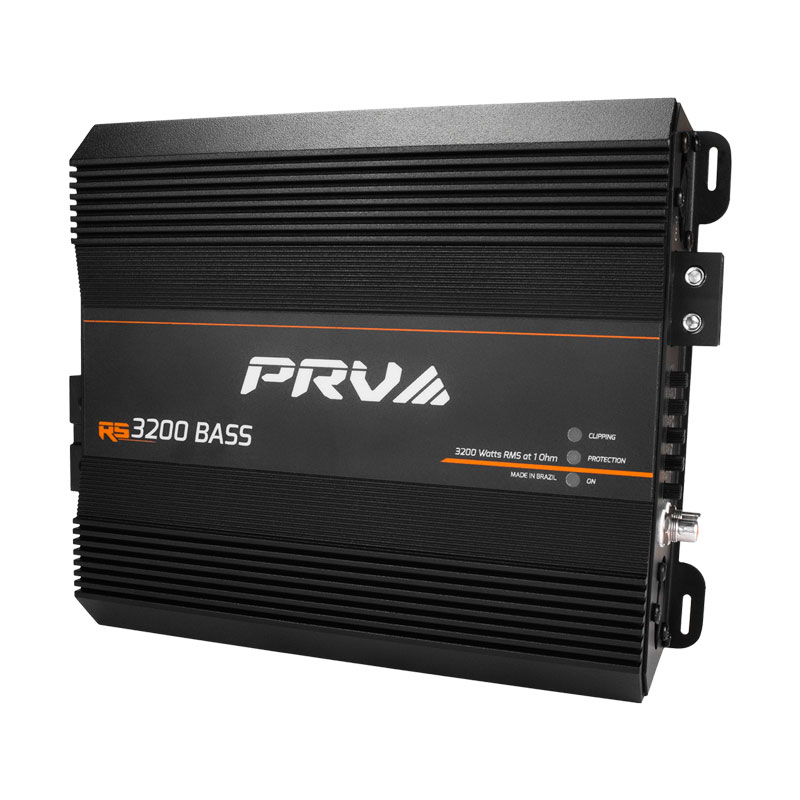

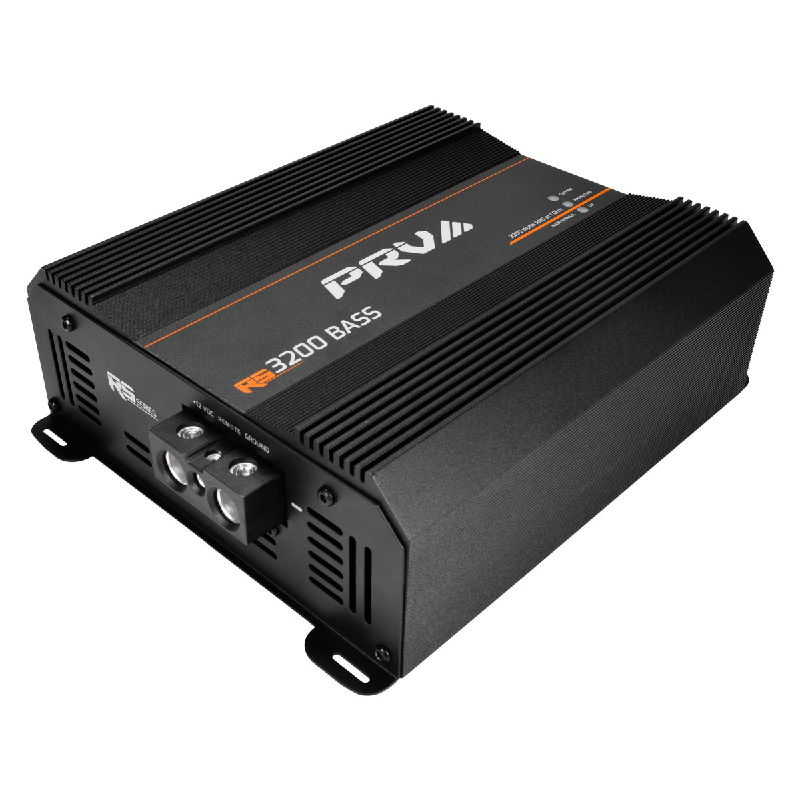

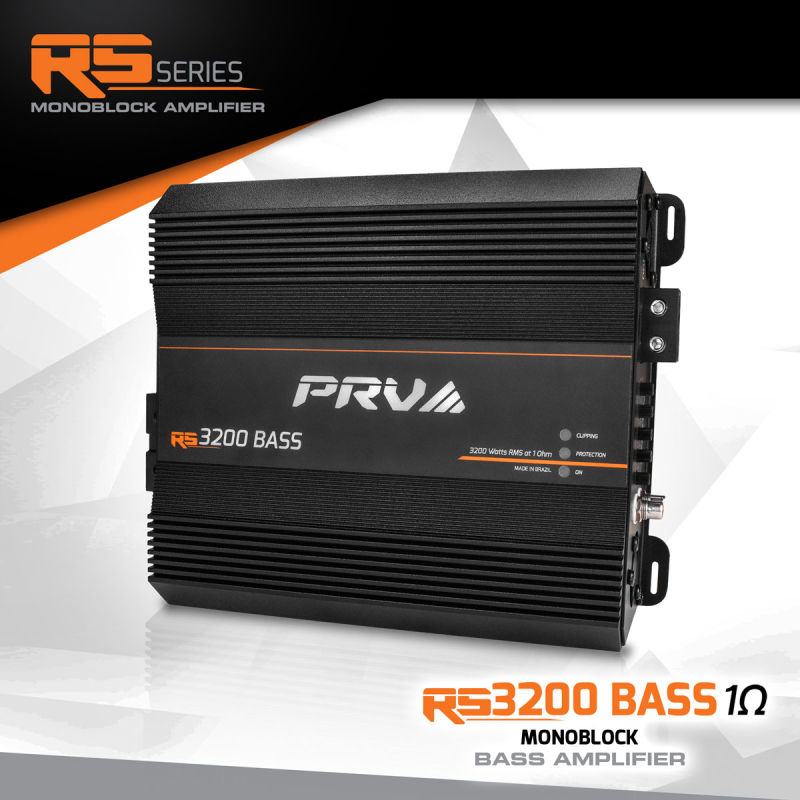

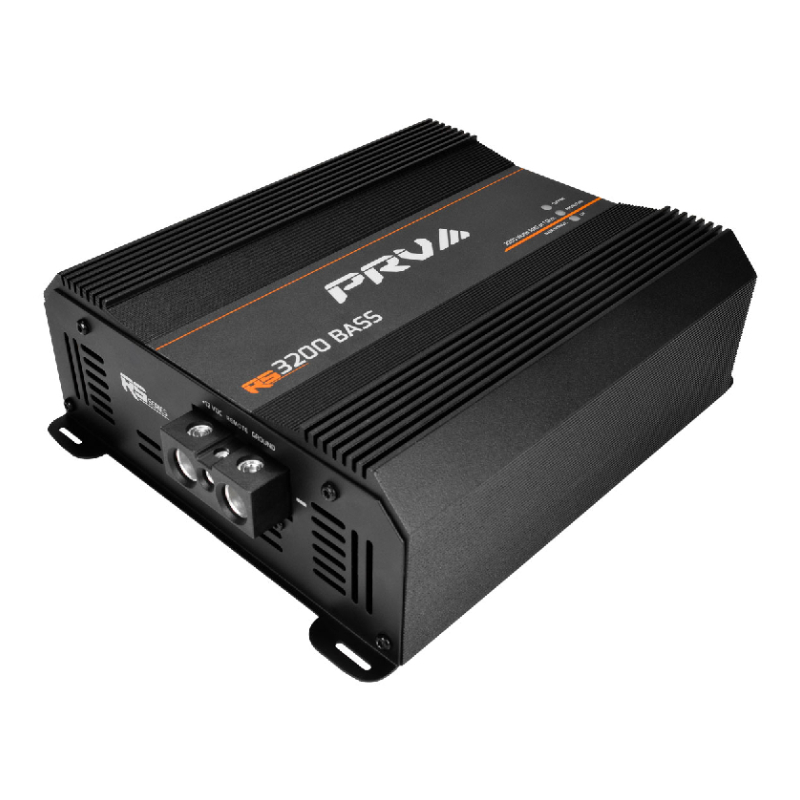

PRV Audio RS3200 BASS 6400W Max Power 1 Ohm, Class-D Mono Subwoofer Car Amplifier
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • RS Series 6400W Max Power 1 Ohm, Class-D Mono Subwoofer Car Amplifier
- • Owner's Manual
Bass That Hits Harder Than Expected
The PRV Audio RS3200 BASS 1 Ohm Class D Mono Subwoofer Amplifier is built for people who want serious low frequency impact in their car audio system. With 3200W RMS deep bass output, it delivers strong and controlled energy designed for SPL setups and bass heavy daily builds. Its bass tuned Class D engineering focuses specifically on low end performance, giving you tight, powerful bass that feels clean even when the volume climbs.
EfficientStable Power Built for Real Subwoofer Demands
This amplifier is designed with a true 1 ohm stable monoblock architecture that keeps output consistent even under heavy load. A reinforced power supply with high current copper pathways ensures steady energy flow when your system is pushed hard. It also supports high energy storage capacitor systems to help maintain punchy bass during peak demand moments, so your low end stays strong instead of dropping out under pressure.
Controlled Low End With Smart Protection and Compact Design

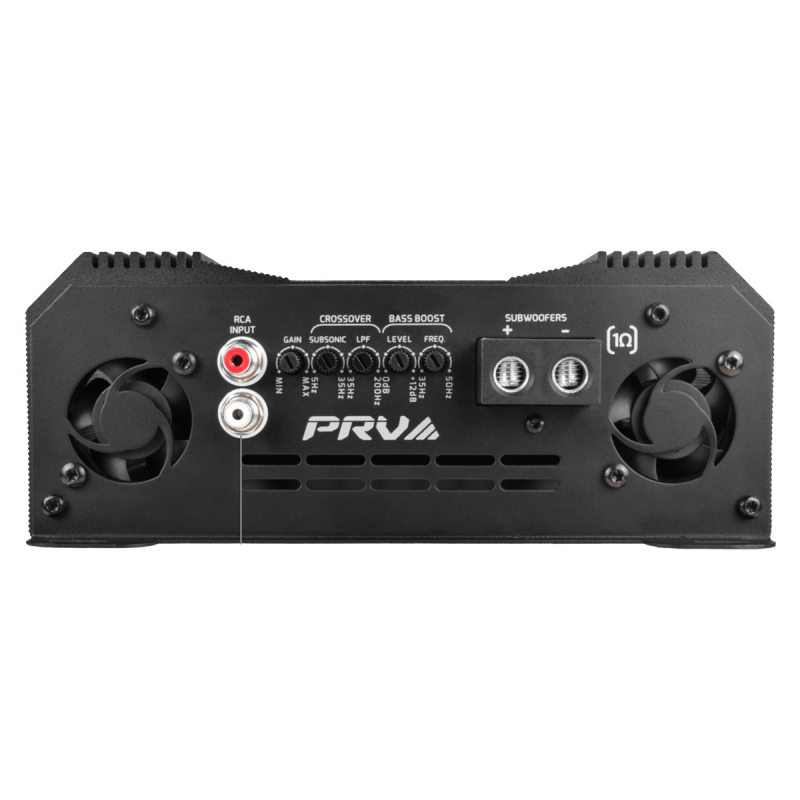

The RS3200 BASS gives you full control over your sound with adjustable bass boost from 0 to +12dB, plus subsonic and low pass filter tuning for clean and safe bass shaping. A heavy duty thermal management system keeps temperatures stable with a compact heatsink and efficient cooling design, even during long sessions. Vibration resistant RCA inputs help maintain clean signal flow in real driving conditions, while wide voltage flexibility ensures stable performance across different vehicle electrical systems. Add in a compact high power chassis and intelligent protection circuit suite, and you get a subwoofer amplifier that delivers deep bass power with control and reliability.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio RS3200 BASS 1 OHM go into protection mode during heavy bass?
Protection mode is commonly caused by low battery voltage, poor ground connections, overheating, or a speaker load that does not match the amplifier's recommended impedance.
- • Can I run the RS3200 BASS 1 OHM on my factory electrical system?
It may work for moderate listening, but many users experience better performance after upgrading the battery, alternator, or power wiring to support higher current demands.
- • Why does my bass sound weak even though the amplifier is powerful?
Weak bass can result from improper gain settings, incorrect crossover adjustments, poor enclosure design, or subwoofers wired to the wrong impedance.
- • Why does my amplifier get hot after only a short drive?
Restricted airflow, extended high volume playback, or excessive current draw can increase amplifier temperature. Make sure the amplifier has enough ventilation.
- • Can I connect more than one subwoofer to the RS3200 BASS 1 OHM?
Yes, multiple subwoofers can be connected as long as the final impedance and total power handling are compatible with the amplifier.
- • Why do my headlights dim every time the bass hits?
Headlight dimming usually indicates that the amplifier is drawing more current than the vehicle's charging system can provide. Upgrading the electrical system often improves this issue.
- • Why does my amplifier clip before reaching full volume?
Clipping is often caused by excessive gain, low supply voltage, or a distorted input signal from the source unit. Proper tuning helps prevent this problem.
- • Why does my subwoofer make a popping sound during loud bass notes?
Popping can be caused by amplifier clipping, excessive cone movement, loose wiring, or an enclosure that is not properly matched to the subwoofer.
- • Can the RS3200 BASS 1 OHM be used for both daily driving and bass competitions?
Yes, many users install it in daily driven vehicles while others use it in high output systems. Reliable performance depends on proper installation and adequate electrical support.
- • How can I get the best performance from the RS3200 BASS 1 OHM?
Use quality power and ground cables, maintain stable system voltage, wire the subwoofers correctly, tune the amplifier carefully, provide good airflow, and avoid prolonged clipping for dependable long term performance.
- Maximum Power : 6400 Watts
- Low Frequency Response : 5 Hz
- High Frequency Response : 200 Hz
- Number of Channels : 1
- Frequency Response : 5-200 Hz
- RMS Power Output : 3200 Watts
- Amplifier Class : D
- Fuse Rating : 200 A
Features:
- 3200W RMS Deep Bass Output System: Delivers strong low frequency energy designed for SPL builds and daily bass-heavy setups.
- True 1-Ohm Stable Monoblock Architecture: Maintains consistent output under low impedance loads for demanding subwoofer systems.
- Bass Tuned Class D Engineering: Specifically optimized for low frequency reproduction instead of full-range amplification behavior.
- Reinforced Power Supply Design: Built with high current copper pathways to maintain stable energy delivery under load.
- High Energy Storage Capacitor Support: Helps sustain punchy bass response during peak demand moments.
- Adjustable Bass Boost Control Stage: Offers variable gain tuning from 0 to +12dB with flexible frequency shaping.
- Subsonic and Low Pass Filter Control: Allows precise control of deep bass cutoff points for system protection and tuning accuracy.
- Heavy Duty Thermal Management System: Compact heatsink combined with active cooling ensures temperature stability under stress.

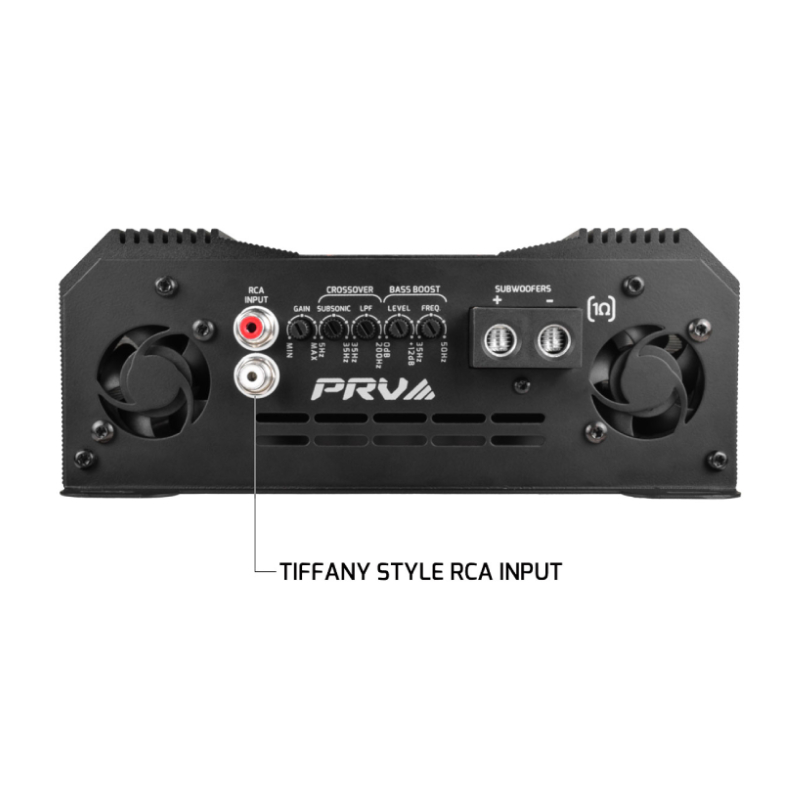

- Vibration Resistant Signal Input Stage: Premium RCA connection design reduces signal loss and interference in mobile environments.
- Wide Operating Voltage Flexibility: Designed to perform consistently across varying vehicle electrical conditions.
- Compact High Power Chassis Design: Small footprint allows installation in tight custom audio builds without sacrificing output.
- Intelligent Protection Circuit Suite: Guards against clipping, overheating, short circuits, and voltage instability.

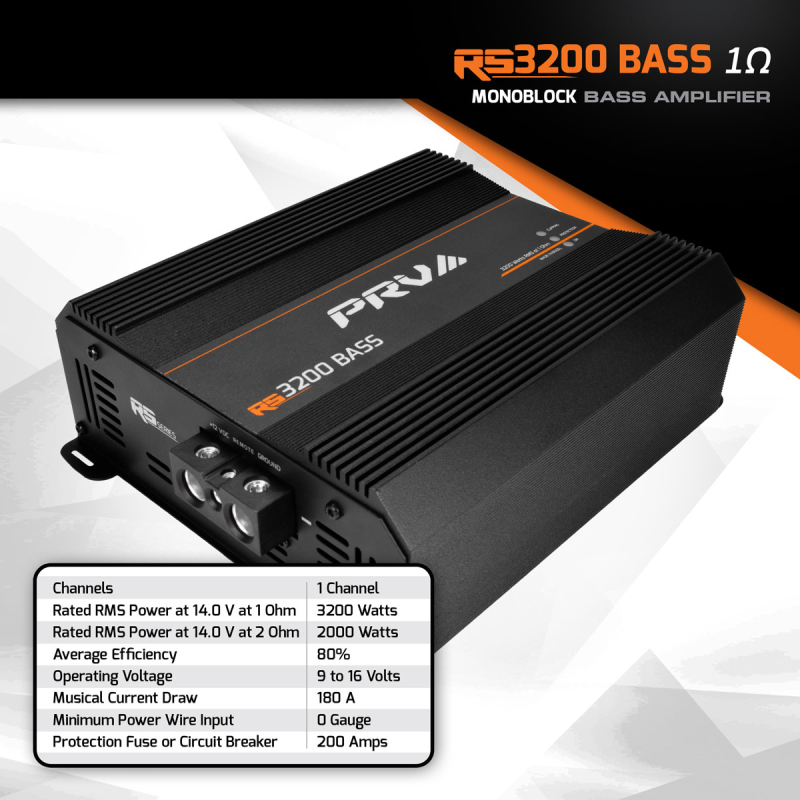

Specifications:
- Impedance: 1 Ohm
- Channels: 1 Channel
- Rated RMS Power at 14.0 V at 1 Ohm: 3200 Watts
- Rated RMS Power at 14.0 V at 2 Ohm: 2000 Watts
- Average Efficiency: 80%
- Operating Voltage: 9 to 16 Volts
- Musical Current Draw: 180 A

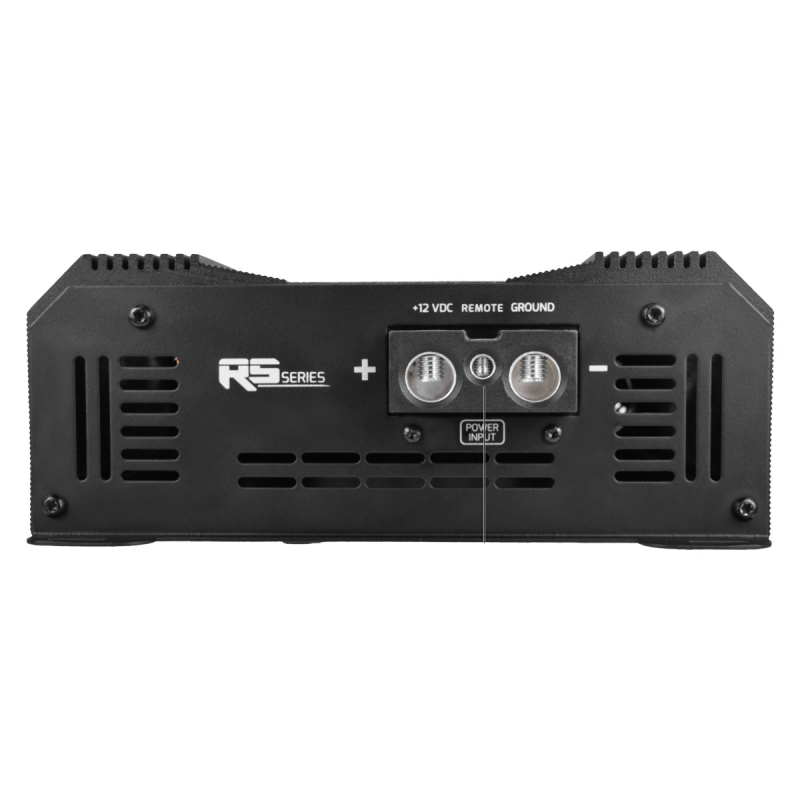

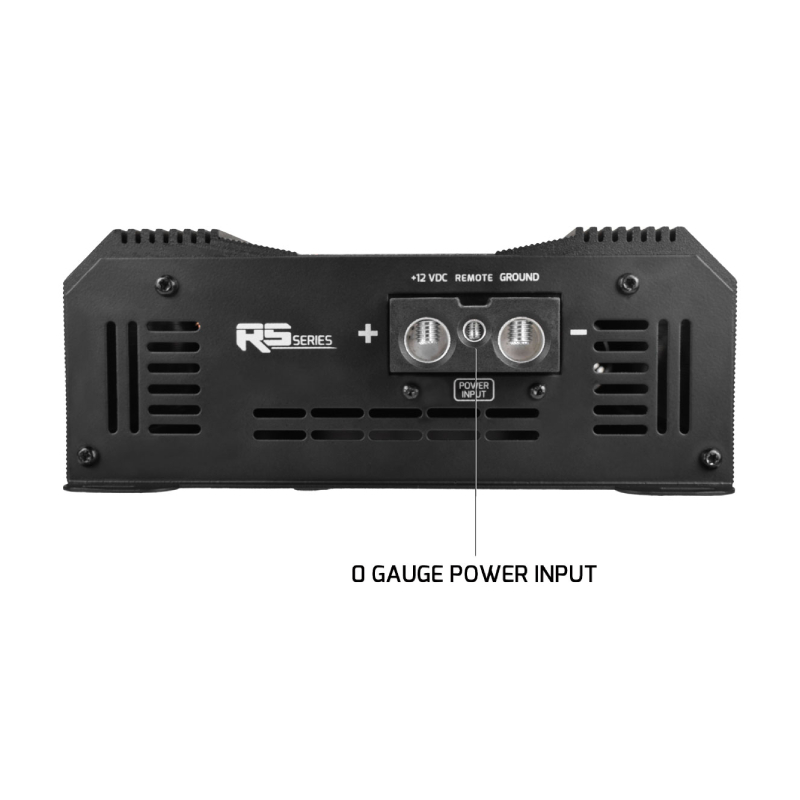

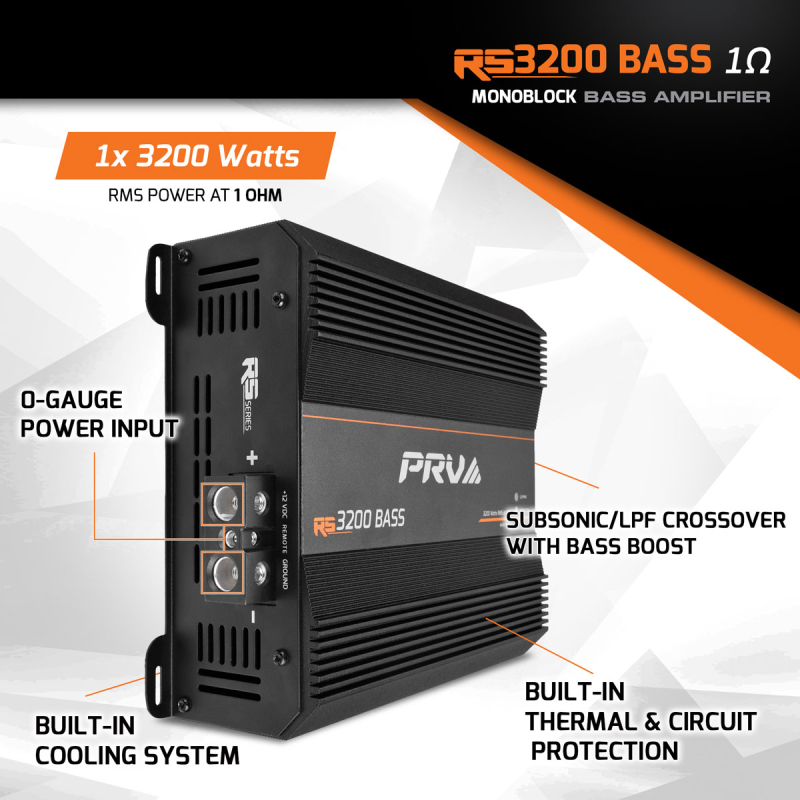

- Minimum Power Wire Input: 0 Gauge
- Protection Fuse or Circuit Breaker: 200 Amps
- Minimum Speaker Wire Output: (OFC) 14 Gauge wires
- Frequency Response (-3dB): 5 – 200 Hz
- Min. Input Sensitivity for Max. Output: 200 mV
- Signal Input: 1 Pair RCA
- Signal to Noise: >90 dB
- Protection System: Low & High Supply Voltage / Shortage on Output / Low Impedance on Output
- Heat Sink Type: Heavy Duty Cast Aluminum

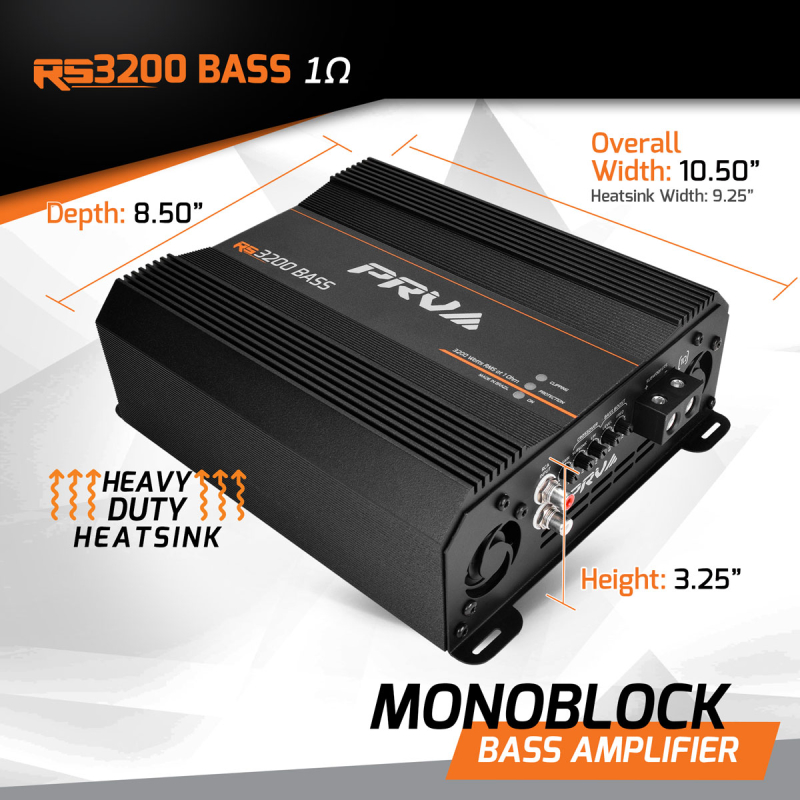

- Dimensions (W x D x H): 10.50” x 8.50” x 3.25”
- Weight: 8.2 Lbs
- UPC: 810075526509
- Weight: 8.2
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
